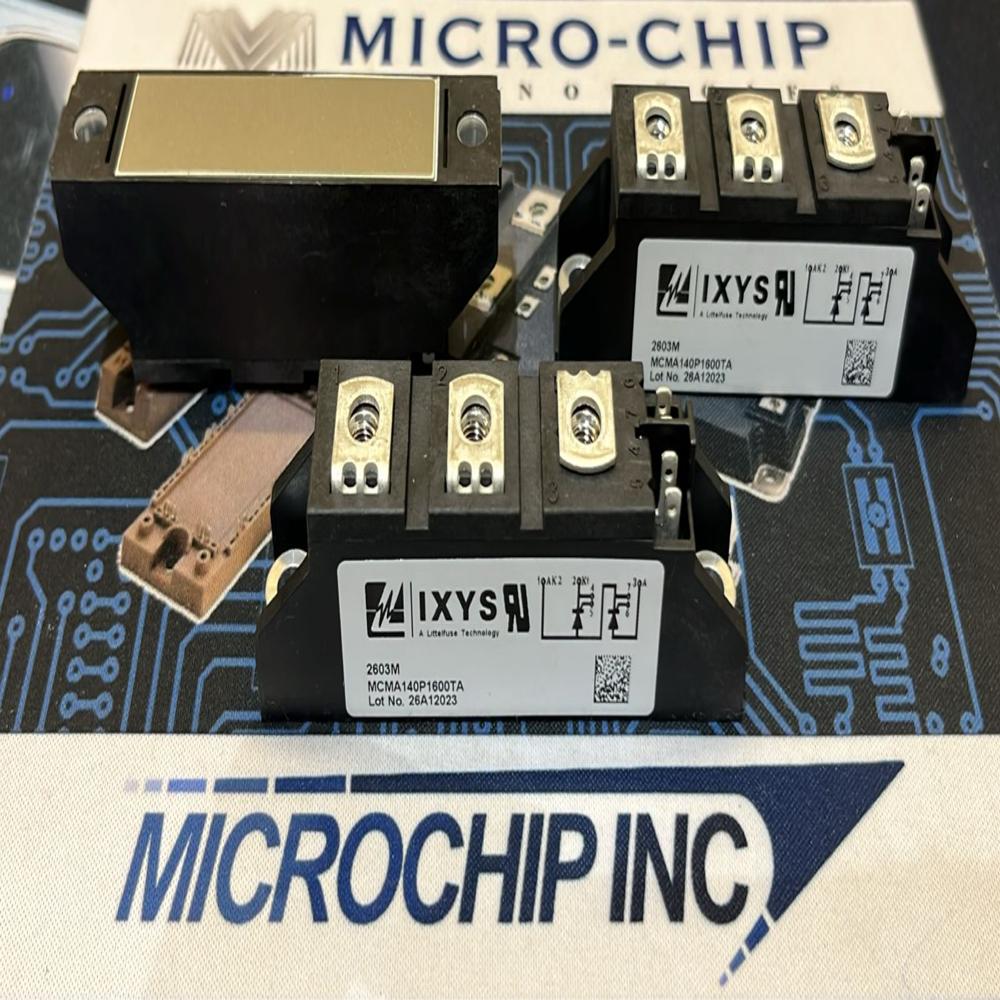

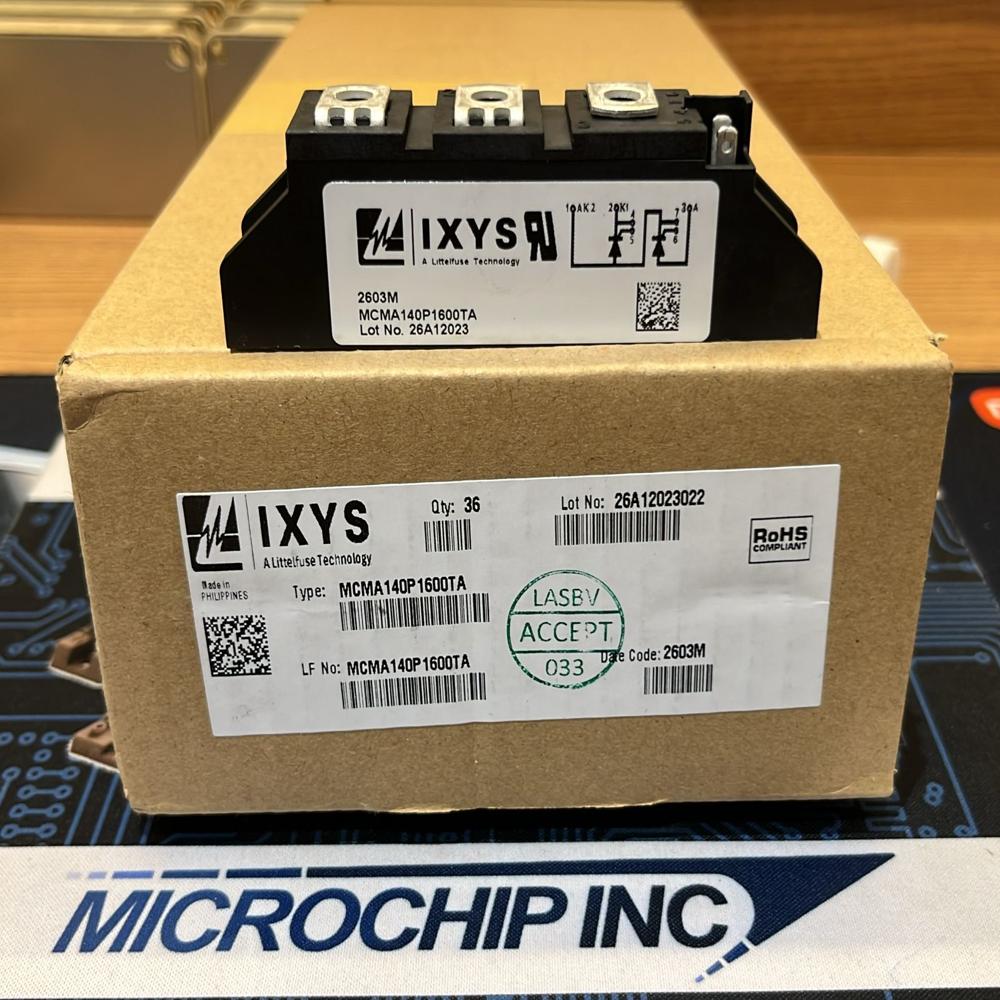

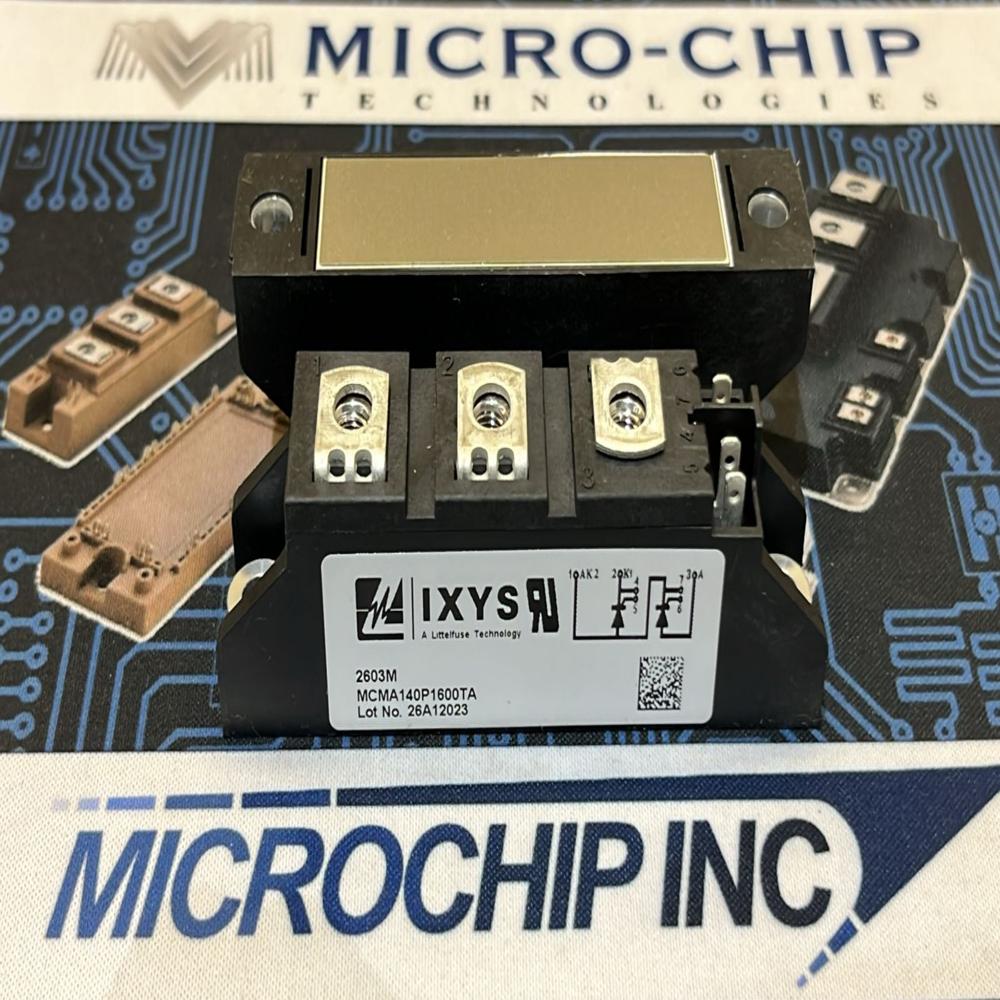

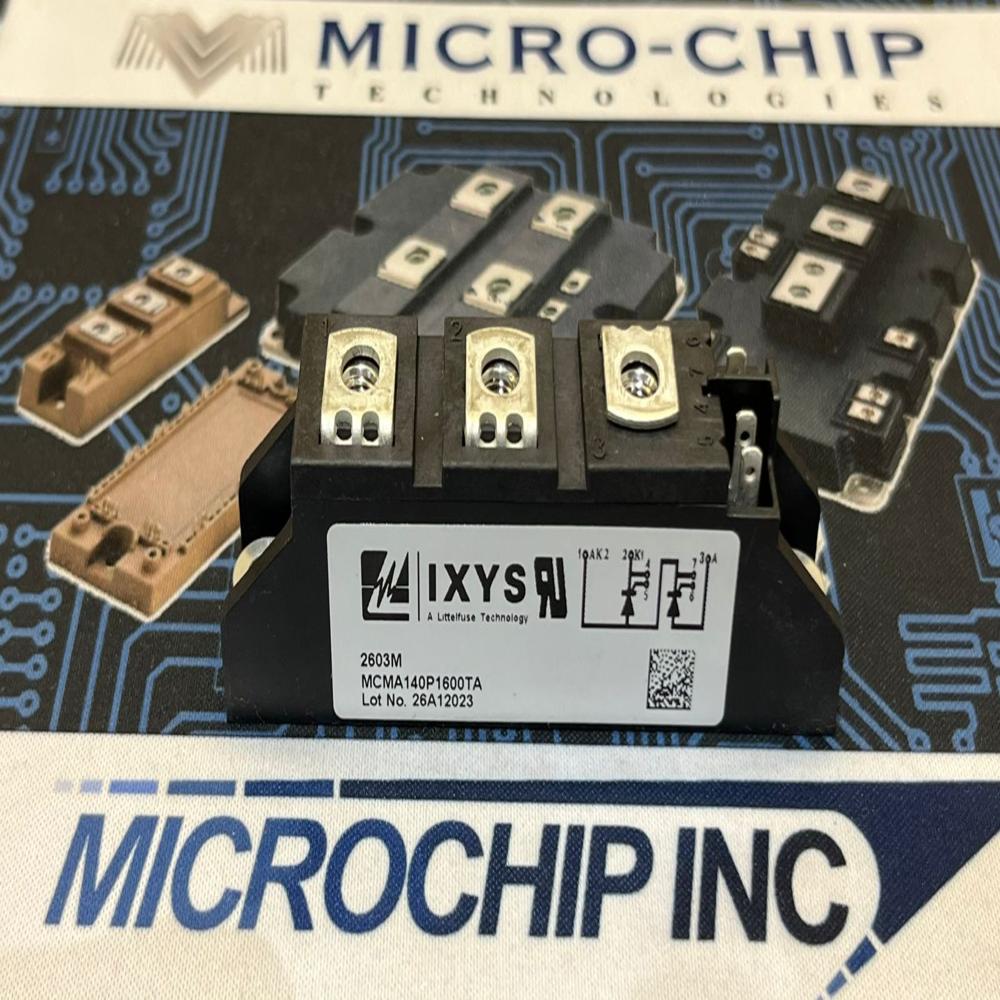

MCMA140P1600TA IXYS IGBT MODULE

Name: MCMA140P1600TA IXYS IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MCMA140P1600TA IXYS IGBT MODULE Specification

Power Supply
Electrical

Components
Integrated IGBT chips, internal freewheeling diode, isolated baseplate

Interface
Screw terminals, standard power module interfaces

Operating Temperature
-40C to +150C (junction)

Thermal Conductivity
Optimized baseplate for high thermal performance

Features
High power density, isolated baseplate, integrated protection diode, robust construction

Power Source
External DC supply

IP Rating
Not rated (must be mounted in protective enclosures for harsh environments)

Response Time
Fast switching, typical microseconds

Output
Controlled high-voltage/high-current switching

Usage
Industrial Power Switching, Motor Drives, Inverters, Power Supplies

Input
Gate signal control, typical low-voltage drive

Product Type
IGBT Module

Application
Motor Drive, UPS, Inverter, Industrial Automation, Power Conversion Equipment

Rated Voltage
1600 V

Supply Voltage
Up to 1600 V

Size
Standard IXYS module sizing - see dimensions

Dimension (L*W*H)
130mm x 45mm x 30mm (approximate)

Function
Insulated Gate Bipolar Transistor (IGBT) module for power switching and control applications

Color
Black and Silver

Weight
~600g (approximate)

Capacity
140A continuous collector current

Thickness
Standard module profile, precise dimension see datasheet

Current Rating
140A

Frequency
Up to 20 kHz switching frequency

Module Type
Dual IGBT

Reverse Diode
Integrated fast-recovery diode

VCE(sat) (Collector-Emitter Saturation Voltage)
typ. 2.65V at 140A

RoHS Status
Compliant

Part Number
MCMA140P1600TA

Baseplate Material
Copper with nickel plating

Case Style
Industrial power module with isolated base

Storage Temperature
-40C to +125C

Typical Switching Energy
E(on) 18 mJ, E(off) 15 mJ at 600V/140A

Collector Current (Ic)
140A

Mounting Type
Screw mounting

Gate-Emitter Voltage (Vge)
20V max

Isolation Voltage
2500V RMS (between terminals and baseplate)

Collector-Emitter Voltage (Vces)
1600V

Surge Current
210A (1ms)

MCMA140P1600TA IXYS IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About MCMA140P1600TA IXYS IGBT MODULE

Experience premier performance with the MCMA140P1600TA IXYS IGBT MODULE, tailored for high-power industrial applications. Personalise your power switching solutions with this featured dual IGBT module, highlighted by its 1600V collector-emitter voltage and an exquisite collector current capacity of 140A. This flawless module integrates a fast-recovery diode, robust copper baseplate, and advanced thermal management for impeccable reliability. Screw mounting and isolated base deliver seamless installation. It's RoHS compliant, ensuring eco-friendly operations for distributors, importers, and suppliers across India seeking superior industrial power control options.

Type Of Usage & Benefits: Power Control Excellence

The MCMA140P1600TA IXYS IGBT MODULE is designed for demanding applications such as industrial motor drives, UPS systems, inverters, and automation. Easy screw mounting and standard power interfaces facilitate smooth installation. Its competitive advantages include impeccable switching efficiency, integrated fast-recovery diodes, and an isolated baseplate for reduced electrical noise-making it ideal for flawless performance in critical operations.

Main Domestic Market & Logistics: Streamlined Outlay

Featured for supply in India, the MCMA140P1600TA IXYS IGBT MODULE arrives efficiently at customer locations with optimised logistics support. Samples are available as per policy to help you align with project outlay requirements. We ensure quick arrival and flexible delivery timelines so you can confidently plan procurement and deployment of this premier industrial component in your facility.

FAQ's of MCMA140P1600TA IXYS IGBT MODULE:

Q: How can the MCMA140P1600TA IXYS IGBT MODULE be used in industrial power applications?

A: This premier IGBT module is ideal for motor drives, inverters, UPS, and other industrial automation systems requiring reliable high-power switching.

Q: What makes the MCMA140P1600TA module a highlighted choice for engineers?

A: It features flawless integration of advanced IGBT chips, a robust isolated baseplate, and a fast-recovery diode, ensuring optimal performance, high thermal conductivity, and reduced electrical interference.

Q: Where is the MCMA140P1600TA IXYS IGBT MODULE typically supplied in India?

A: It is supplied through authorised distributors, importers, and suppliers for industrial and commercial facilities across India.

Q: What is the process to order samples and what is the expected delivery time?

A: Samples can be requested according to sample policy. Delivery times depend on logistics and order outlay but are generally prompt to ensure your project stays on schedule.

Q: How does personalised installation of the module enhance its performance?

A: Easy screw mounting and standard interface options allow for tailored integration, maximising thermal conduction and reliable operation in complex power assemblies.
