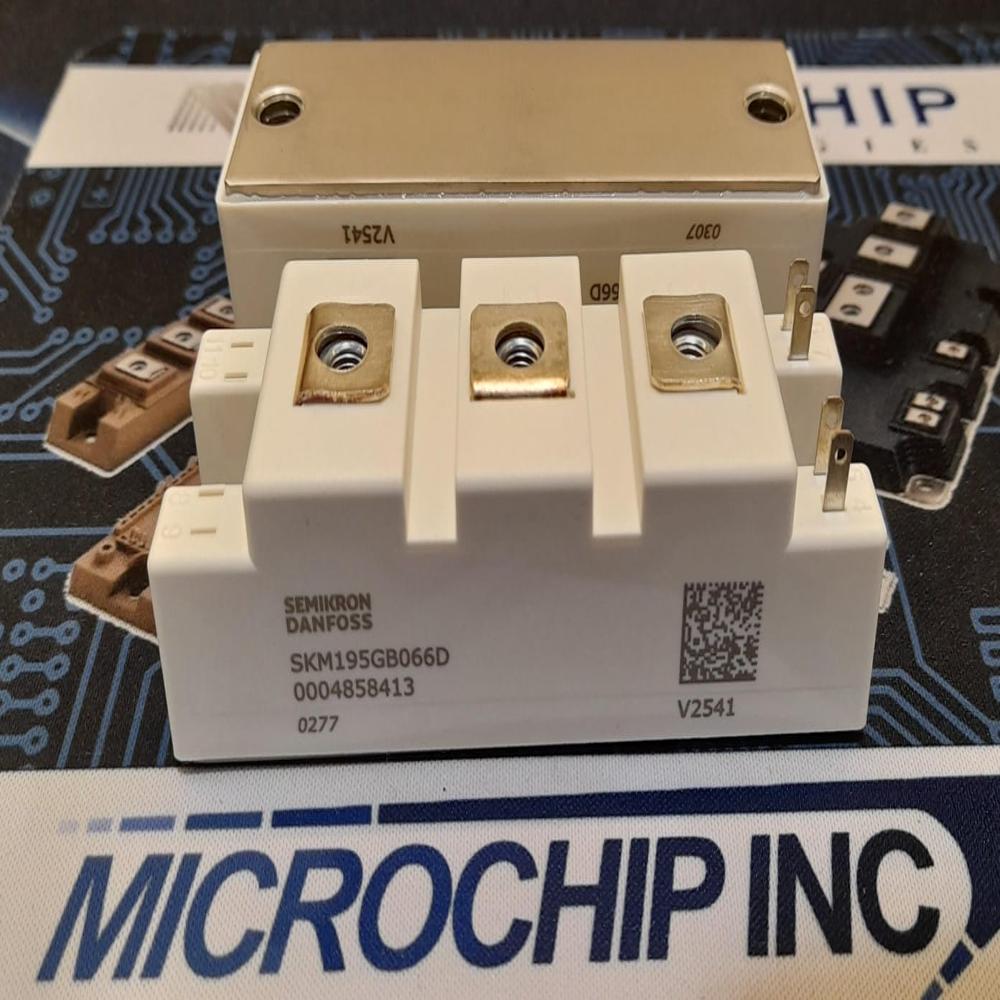

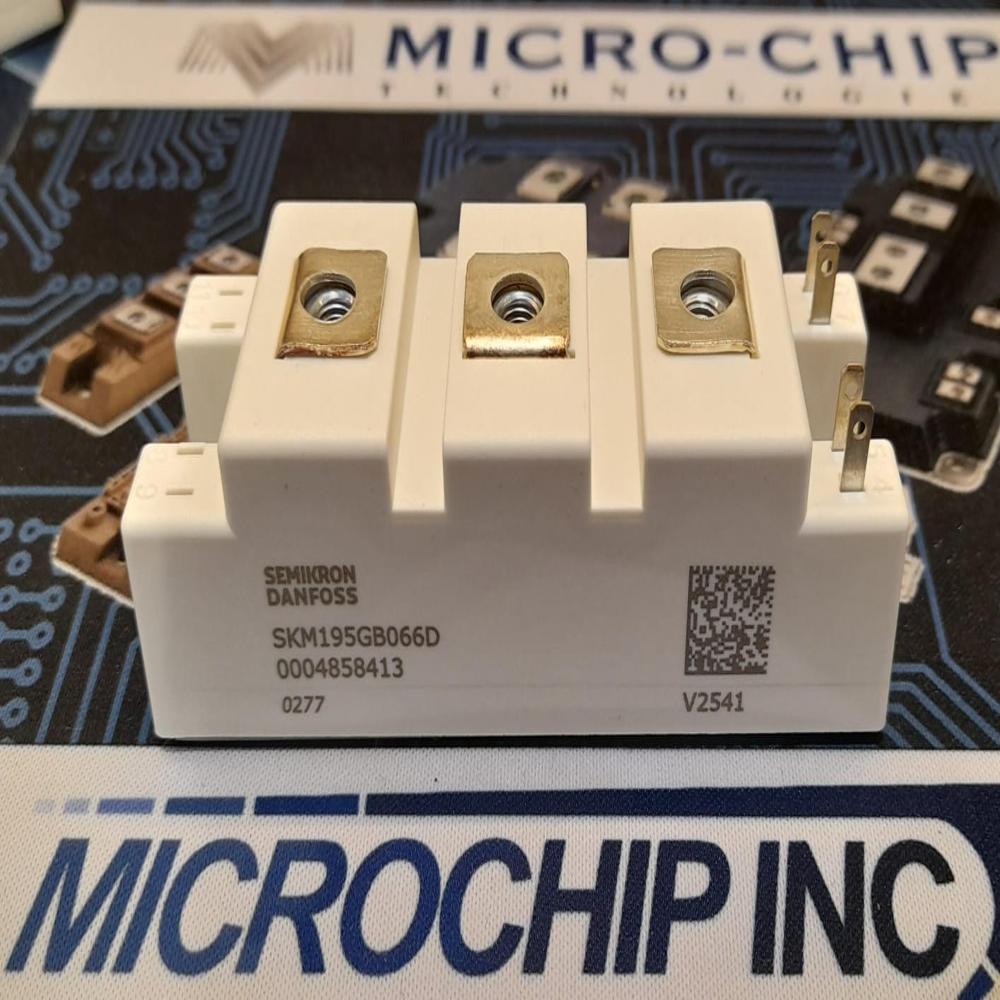

SKM195GB066D Semikron Dual IGBT Module

Name: SKM195GB066D Semikron Dual IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 1950.0 INR
Availability: InStock

Price 1950.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKM195GB066D Semikron Dual IGBT Module Specification

Components
Contains two IGBT transistors and two freewheeling diodes.

Operating Temperature
-40C to +150C junction temperature

Usage
Power conversion, inverter systems, motor drives, UPS systems.

Thermal Conductivity
Integrated metal baseplate for heat dissipation.

Power Supply
Requires external DC power supply for operation.

Input
Gate input voltage as per IGBT standard drive requirements.

Interface
Screw terminals for power and control connections.

IP Rating
Not rated; for use in protected enclosures.

Output
High current output (collector-emitter) for power circuitry.

Power Source
External DC supply required.

Features
Low-loss, compact design, reliable dual configuration.

Response Time
Fast switching capabilities as per IGBT technology.

Product Type
Dual IGBT Module

Application
Industrial motor drives, power inverters, renewable energy applications.

Rated Voltage
660V

Supply Voltage
Max 660V (DC bus voltage)

Size
Standard Semikron SEMiX case size

Dimension (L*W*H)
106 mm x 62 mm x 38 mm

Function
Dual IGBT module for switching and amplification in power electronics.

Color
White body with black base and metal terminals.

Weight
Approx. 400g

Capacity
195A (collector current rating per module)

Current Rating
195A

Thickness
Approx. 38 mm

Frequency
Up to 20 kHz switching frequency

Die Technology
Trench and Field Stop IGBT technology.

VCE (Collector-Emitter Voltage)
660V maximum rated.

IC (Collector Current)
195A continuous at case temperature 25C.

Compliance
RoHS Compliant

Mounting Type
Screw mounting with insulated baseplate.

Reverse Voltage Diode
Integrated fast-freewheeling diode per IGBT leg.

Cooling
Requires heatsink for optimal performance.

Surge Current
350A (1 ms peak)

Gate-Emitter Voltage
20V maximum.

Insulation Voltage
Basic insulation between terminals and heatsink up to 2500V AC.

Package
SEMiX standard industrial power module casing.

SKM195GB066D Semikron Dual IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About SKM195GB066D Semikron Dual IGBT Module

Grab the illustrious SKM195GB066D Semikron Dual IGBT Module-an outstanding solution for power electronics needs. Engineered for motor drives, inverter systems, and UPS systems, this module boasts a soaring 195A collector current with robust 660V voltage handling. Its advanced trench and field stop IGBT technology ensures reliable performance under demanding conditions. Featuring screw mounting, superb insulation up to 2500V AC, and integrated fast diodes, this compact SEMiX case component delivers exceptional efficiency. Don't miss this offer-pick yours today from our leading distribution network in India and elevate your power solutions!

Applications & Usage Directions for SKM195GB066D

The SKM195GB066D Semikron Dual IGBT Module is highly suitable for industrial motor drives, power inverters, and renewable energy installations. To use, mount the module securely using its insulated screw base and connect according to standard IGBT drive specifications. Apply an external DC supply and ensure optimal cooling with a dedicated heatsink. This module excels in high-frequency switching, making it perfect for robust and reliable application media where high currents and outstanding efficiency are vital.

Sample Availability & Shipping Details for SKM195GB066D

Samples of the SKM195GB066D are available for interested clients. Packaging is designed for maximum safety and module protection during dispatching. We offer shipment from major FOB ports in India, with a transparent sample policy. Sample charges may apply and are communicated before order processing. Dispatching is prompt and handled by reputable couriers to ensure timely delivery. Reach out for more details on sample requests, shipping charges, and packaging specifics.

FAQ's of SKM195GB066D Semikron Dual IGBT Module:

Q: How should the SKM195GB066D IGBT module be installed for optimal performance?

A: The SKM195GB066D should be installed using its screw mounting system on a suitable heatsink to ensure optimal cooling. Connect the power and control terminals as per IGBT drive requirements and ensure all electrical connections are secure.

Q: What are the primary benefits of using the SKM195GB066D module in power systems?

A: This IGBT module offers outstanding current and voltage handling, fast switching performance, reliable trench technology, and integrated fast-freewheeling diodes, ensuring efficient and dependable operation in demanding power electronics applications.

Q: Where can I obtain a sample of the SKM195GB066D Dual IGBT Module?

A: Samples are available from authorized distributors or the supplier in India. Contact us directly to initiate the sample request process and learn more about packaging, charges, and dispatching timelines.

Q: What is the typical application media for this Semikron IGBT module?

A: The SKM195GB066D is designed for use in industrial motor drives, power inverter systems, UPS units, and renewable energy applications requiring high current and reliable operation.

Q: When is the best time to use this module in an electronics project?

A: This module is ideal for integration when your project demands soaring power, high-speed switching, and exceptional reliability, especially in high-current, high-voltage environments typical of industrial and renewable installations.
