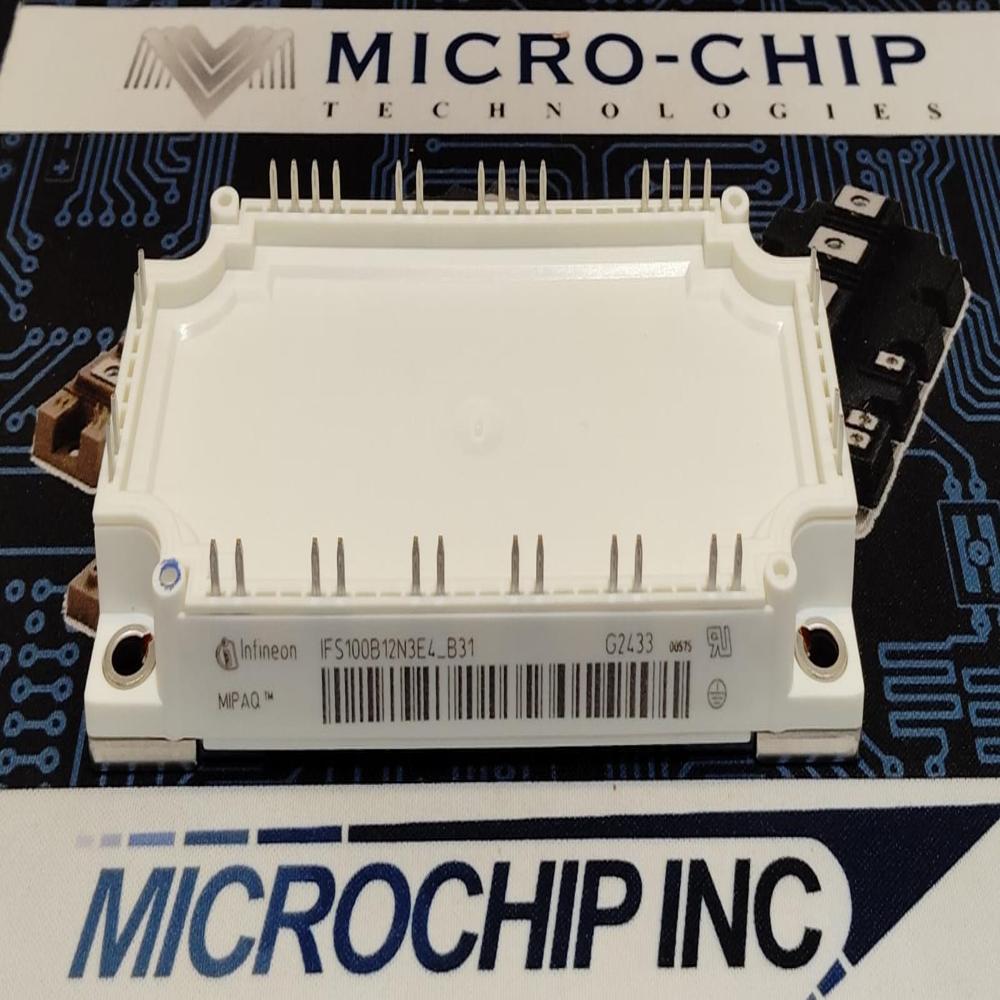

IFS100B12N3E4_B31 INFINEON IGBT MODULE

Name: IFS100B12N3E4_B31 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 18500.0 INR
Availability: InStock

Price 18500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

IFS100B12N3E4_B31 INFINEON IGBT MODULE Specification

Thermal Conductivity
Optimized module baseplate

Power Supply
External DC source

Interface
PCB solder pins, screw terminals

Features
Rugged design, low loss, short-circuit protection, high efficiency

IP Rating
IP00

Usage
Industrial power electronics and motor drives

Components
IGBT Transistors, freewheeling diodes

Input
Logic control (gate signal)

Output
High current switching, up to 100 A

Response Time
Fast switching (typ. <1 s)

Display Type
No display

Power Source
External supply, not self-powered

Operating Temperature
-40C to 150C (Tj max)

Product Type
IGBT Power Module

Application
Inverters, UPS, industrial motor drivers, induction heating

Rated Voltage
1200 V

Supply Voltage
1200 V (Maximum)

Size
Standard Infineon E4 housing

Dimension (L*W*H)
134 mm x 42 mm x 30 mm (typical)

Function
Insulated Gate Bipolar Transistor (IGBT) Module for fast switching and power control

Color
Black / White (Body / Label)

Weight
Approx. 400 g

Capacity
100 A current capacity

Current Rating
100 A

Thickness
Standard module thickness

Frequency
Up to 20 kHz (switching)

Model Number
IFS100B12N3E4_B31

Package
B31 module

Series
EconoPACK 4

Mounting Type
Screw mount

Turn-off Energy (Eoff)
Typical 3.9 mJ (per channel)

Technology
NPT IGBT3

Isolation Voltage
2500 V (AC, 1min)

Case Material
Plastic / Metal baseplate

Gate Emitter Voltage (VGES)
20 V

Short Circuit Capability
10 s

Collector Current (IC)
100 A (Tc=25C)

Configuration
6-Pack (Three Phase Bridge)

Blocking Voltage (VCES)
1200 V

Turn-on Energy (Eon)
Typical 3.5 mJ (per channel)

IFS100B12N3E4_B31 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About IFS100B12N3E4_B31 INFINEON IGBT MODULE

Introducing the hot-selling IFS100B12N3E4_B31 INFINEON IGBT MODULE, a champion in power electronics distinguished by its value, rugged performance, and unbeatable price. This 1200V, 100A EconoPACK 4 star dazzles with glorious efficiency, advanced NPT IGBT3 technology, and rapid response for demanding inverters, UPS, and industrial motor applications. Its robust screw-mount design, integrated IGBT transistors, and high isolation voltage ensure reliability and easy installation. Power up your systems with this high-performance module, available from reputable distributors, importers, and suppliers across India.

Key Features & Versatile Applications of IFIS100B12N3E4_B31

The IFS100B12N3E4_B31 INFINEON IGBT MODULE stands out with its dazzling special features: 1200 V blocking voltage, 100 A current capacity, rugged screw mount, and optimized thermal baseplate. Frequently used as a high-current, fast-switching solution, it serves as a reliable core for industrial power electronics and robust motor drivers. Install it in inverters, UPS, and induction heating systems for superior efficiency, robust performance, and dependable protection against short circuits and harsh operating environments.

Domestic Market Coverage & Robust Supply Logistics

This module is a preferred choice across India's major domestic markets, ensuring consistent value through reliable transport services and timely dispatching. With substantial supply ability and streamlined logistics, orders are processed promptly whether through local distributors or direct importers. FOB port options cater to bulk orders at attractive list prices, supporting hassle-free supply chain management for OEMs and large-scale industrial users looking for efficient procurement and swift delivery.

FAQ's of IFS100B12N3E4_B31 INFINEON IGBT MODULE:

Q: How is the IFS100B12N3E4_B31 IGBT module typically used in industrial applications?

A: The module is mainly used in high-power industrial settings, such as motor drives, inverters, uninterruptible power supplies (UPS), and induction heating equipment, where fast switching and reliable current handling are essential.

Q: What benefits does the EconoPACK 4 series offer for users of this IGBT module?

A: The EconoPACK 4 series provides enhanced thermal management, easy screw mount installation, and a compact footprint, resulting in lower energy losses, improved efficiency, and simplified system integration.

Q: Where can I source the IFS100B12N3E4_B31 IGBT module in India?

A: You can obtain this module from authorized Infineon distributors, importers, or suppliers throughout India, ensuring easy accessibility and authentic product sourcing.

Q: When is it recommended to use the IFS100B12N3E4_B31 in a new project?

A: It is recommended when your application demands high current (up to 100 A), high voltage (up to 1200 V), and fast, reliable switching in a rugged, industrial environment.

Q: What is the process for dispatching and delivery in the domestic market?

A: Orders are promptly processed and dispatched via reliable transport services, with shipment details coordinated according to customer specifications and the selected FOB port.

Q: How does the short circuit capability enhance module reliability?

A: The module's 10-second short circuit capability provides additional protection and resilience, safeguarding both the device and the application in the event of fault conditions.
