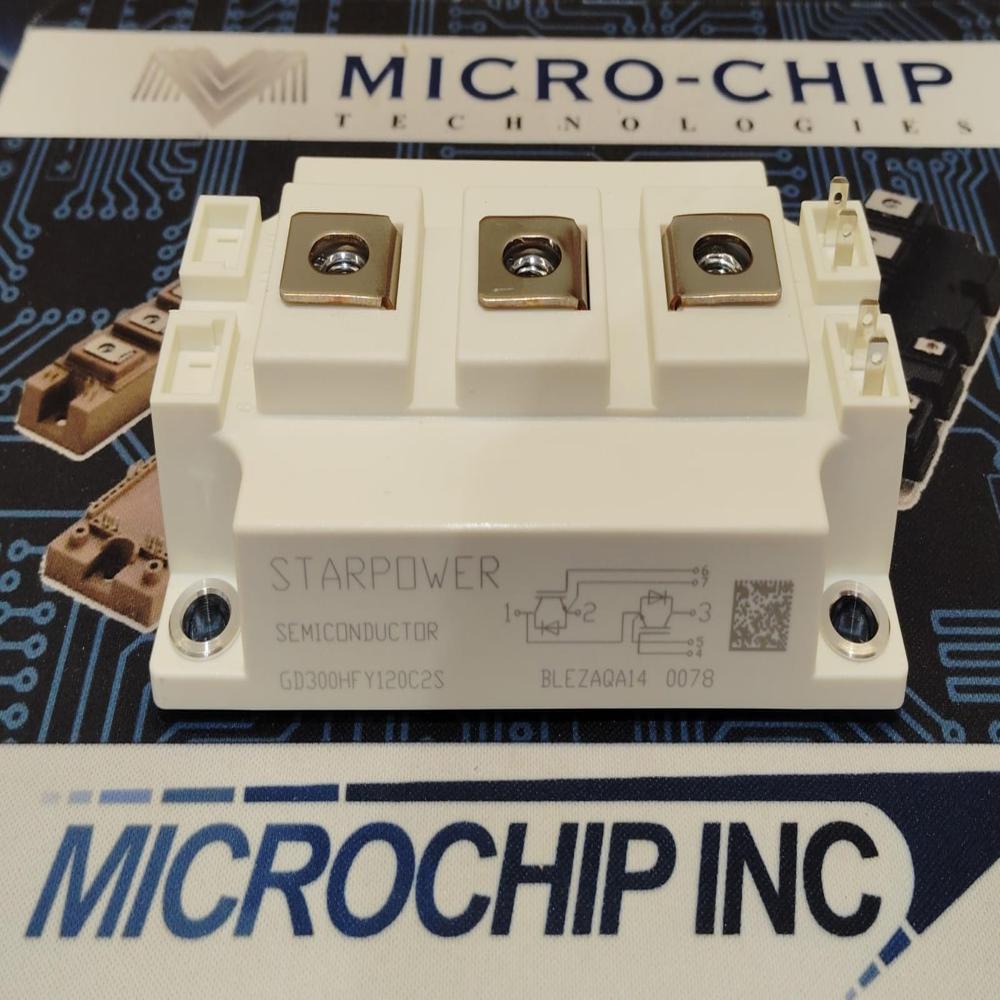

GD300HFY120C2S STARPOWER IGBT MODULE

Name: GD300HFY120C2S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD300HFY120C2S STARPOWER IGBT MODULE Specification

Output
300A

Power Supply
Electric

IP Rating
IPM Module, Standard Protection

Thermal Conductivity
High

Features
Low Saturation Voltage, High Reliability, Fast Switching

Power Source
External Electric

Interface
Screw Terminal

Components
IGBT, Fast Recovery Diode

Input
Signal Input

Response Time
Fast Switching

Usage
Industrial Motor Drives, Inverter, UPS, Power Control

Operating Temperature
-40C to +150C

Product Type
IGBT Module

Application
Power Electronics, Motor Controls, Renewable Energy, Solar Inverters, General-Purpose Inverter Circuits

Rated Voltage
1200V

Supply Voltage
1200V DC Maximum

Size
Standard Module

Dimension (L*W*H)
134mm x 41mm x 30mm (Approx.)

Function
High Power Switching

Color
Black / White

Weight
Approx. 800g

Current Rating
300A

Capacity
300A

Thickness
Standard Module

Frequency
DC - 20kHz (Switching Frequency)

Reverse Voltage (Diode)
1200V

Mounting
Screw Mount

Isolation Voltage
2500V AC min. (between terminals and baseplate)

Package Type
Insulated package for easy mounting

Module Structure
Half-Bridge IGBT Module

Connection Type
Pin and Screw Terminal

Internal Circuit
IGBT + Fast Recovery Diode

Gate Threshold Voltage
4V -- 6V

Collector Current (Ic)
300A continuous

Collector-Emitter Voltage (Vce)
1200V

Compliant Standards
RoHS Compliant

Typical Applications
Industrial drives, Renewable energy (solar/wind), UPS, Power Inverters, Welding equipment

Voltage Class
1200V

Part Number
GD300HFY120C2S

GD300HFY120C2S STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD300HFY120C2S STARPOWER IGBT MODULE

The GD300HFY120C2S STARPOWER IGBT Module is a top-rated, premier industrial solution designed for distinguished power switching applications. Featuring a robust half-bridge structure in an insulated package for ace mounting, this module delivers a continuous 300A at 1200V, guaranteeing high reliability and optimal performance. Engineered with advanced IGBT and fast recovery diode technology, it ensures fast switching and low saturation voltage. Buy online from trusted distributors and get superior performance for applications such as renewable energy, motor drives, UPS, and inverters. RoHS compliant, this module marks the highest benchmark in industrial power electronics.

Versatile Usage Across Multiple Industries

The GD300HFY120C2S STARPOWER IGBT Module is expertly engineered for heavy-duty industrial usage, including motor controls, general-purpose inverter circuits, and renewable energy systems like solar inverters. Its standardized module size and robust screw mount make it suitable for seamless installation on a wide variety of power electronics surfaces. Distinguished by its high power switching capabilities, it is widely used as a dependable component in manufacturing, power distribution, and motion control solutions.

Reliable Supply and Export Excellence

With a consistent supply ability, the GD300HFY120C2S is well-positioned for large-scale industrial demands. Samples are available under a clear policy to ensure customer satisfaction before bulk purchase orders. Main export markets include Europe, Asia, and the Middle East, serviced with secure packaging and timely delivery. Get quick quotations from authorized distributors and suppliers, ensuring a smooth procurement process for buyers across global export markets.

FAQ's of GD300HFY120C2S STARPOWER IGBT MODULE:

Q: How can I purchase the GD300HFY120C2S STARPOWER IGBT Module online?

A: You can buy the GD300HFY120C2S STARPOWER IGBT Module through authorized distributors, importers, or suppliers in India or via reputable online industrial electronics platforms.

Q: What are the main benefits of using the GD300HFY120C2S module in industrial applications?

A: This module offers high reliability, fast switching, low saturation voltage, high thermal conductivity, and a robust insulated package, making it ideal for demanding industrial environments such as motor drives, inverters, and renewable energy solutions.

Q: Where is the GD300HFY120C2S module typically used?

A: It is used in industrial motor drives, renewable energy systems (solar and wind), uninterruptible power supplies (UPS), welding equipment, and various power control applications.

Q: What is the process for obtaining a sample or quotation for the GD300HFY120C2S?

A: You can request samples or a quotation by contacting authorized distributors or suppliers. They provide sample policies and detailed quotations based on your order requirement through secure channels.

Q: What sets the GD300HFY120C2S apart from other IGBT modules?

A: Its ace features include a high 1200V rating, continuous 300A capacity, RoHS compliance, and an insulated package for easy mounting, making it a premier choice for high-performance and reliable industrial power applications.
