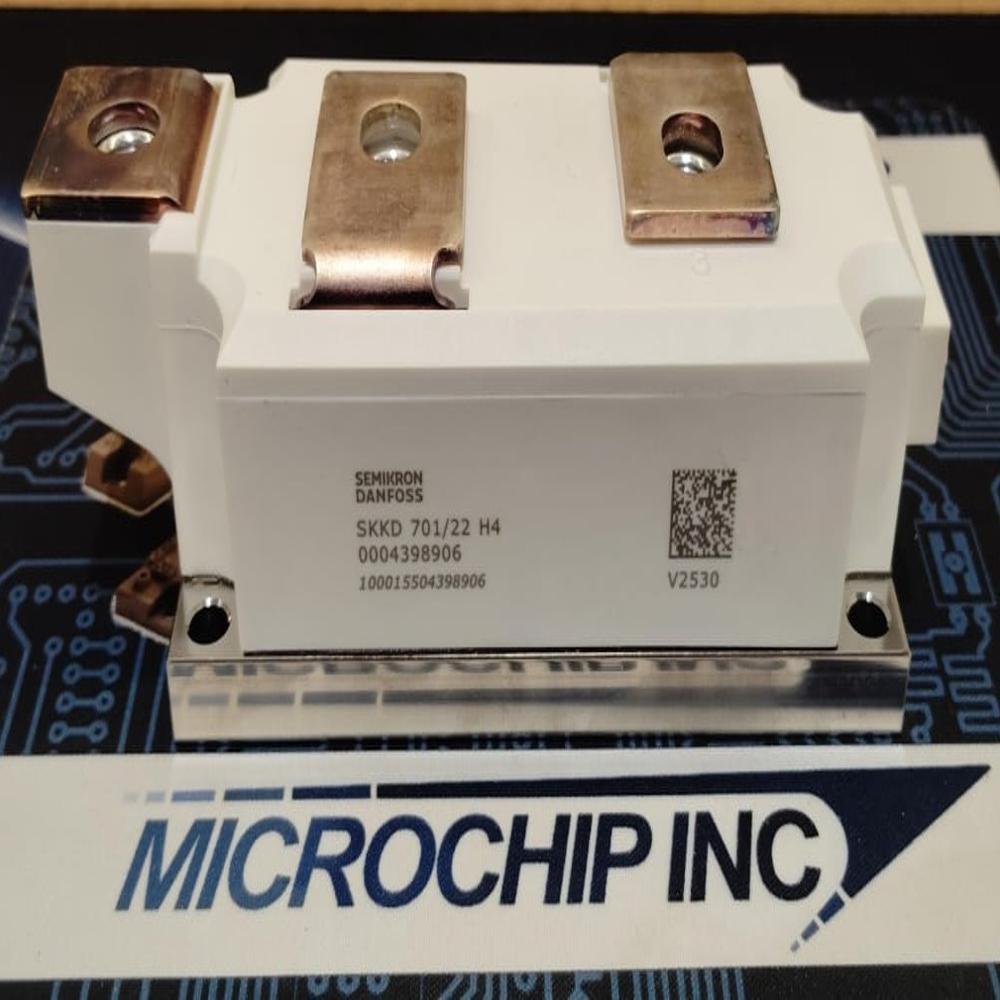

SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE

Name: SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE Specification

Product Type
High-Power Rectifier Diode Module

Application
Power control, AC/DC converters, industrial equipment, power supplies

Supply Voltage
Up to 2200 V

Dissipation Power
145 W (case temperature at 85C)

Operating Temperature
-40C to +140C

Power Consumption
Dependent on load and circuit configuration

Temperature Range
-40C to +140C

Input Voltage
Up to 2200 V

Voltage Regulator Type
Not applicable (Diode module)

Size
Approx. 106 mm x 45 mm x 30 mm

Weight
Approx. 350 g

Peak Reverse Voltage (VRRM)
2200 V

Compliance
RoHS compliant

Case Style
High-power module with insulated baseplate

Mounting Type
Screw Mount

Surge Forward Current (IFSM)
850 A (10 ms, half sine wave)

Module Type
Dual Diode, Common Cathode

Forward Voltage Drop (VF)
1.25 V at rated current

Isolation Voltage
2500 V AC

Average Forward Current (IF(AV))
71 A

Reverse Recovery Time
Typical for rectifier applications (not specified)

SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE About

Get your hands on the SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE-a wondrous masterpiece designed for demanding power control applications. With a Peak Reverse Voltage of 2200 V and an Average Forward Current of 71 A, this dual diode module stands out for its first-rate performance and advanced screw-mount design. Its insulated baseplate ensures robust isolation (2500 V AC), and the compact module is RoHS compliant. Secure this hot deal with Advance Purchase to elevate your industrial equipment and power supplies with exceptional reliability.

Advanced Features & Ideal Applications

The SKKD71/22H4 module is engineered with a dual diode, common cathode configuration and a high-power insulated screw-mount case. Its versatile design is trusted by OEMs, plant engineers, and service suppliers. It is perfectly suited for AC/DC converters, power supplies, and key plant applications where high surge capabilities and robust thermal performance are required. Its operational temperature range of -40C to +140C gives it flexibility for diverse industrial environments.

Sample Policy & Market Reach

Sample modules are handed over upon request, making testing and integration into premium solutions straightforward. This high-power rectifier is frequently exported to major export markets in Asia, Europe, and North America, ensuring a trusted global presence. Domestically, it serves key power and industrial segments, meeting both stringent quality demands and the robust requirements of local industries for reliable, high-voltage solutions.

FAQ's of SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE:

Q: How can the SKKD71/22H4 module be mounted in an industrial setup?

A: The SKKD71/22H4 uses a screw mount design, making installation quick and stable in industrial and plant equipment.

Q: What are the main benefits of using the SKKD71/22H4 HIGH-POWER RECTIFIER DIODE MODULE?

A: This module provides outstanding surge and isolation performance, making it ideal for power control and converter applications in demanding environments.

Q: Where can I use the SKKD71/22H4 diode module?

A: It is suitable for AC/DC converters, power supplies, and a variety of industrial equipment requiring high current and voltage ratings.

Q: What is the typical process for requesting a sample of the SKKD71/22H4 module?

A: Samples can be requested through authorized distributors and are handed over based on evaluation needs, ensuring suitability before larger purchases.
