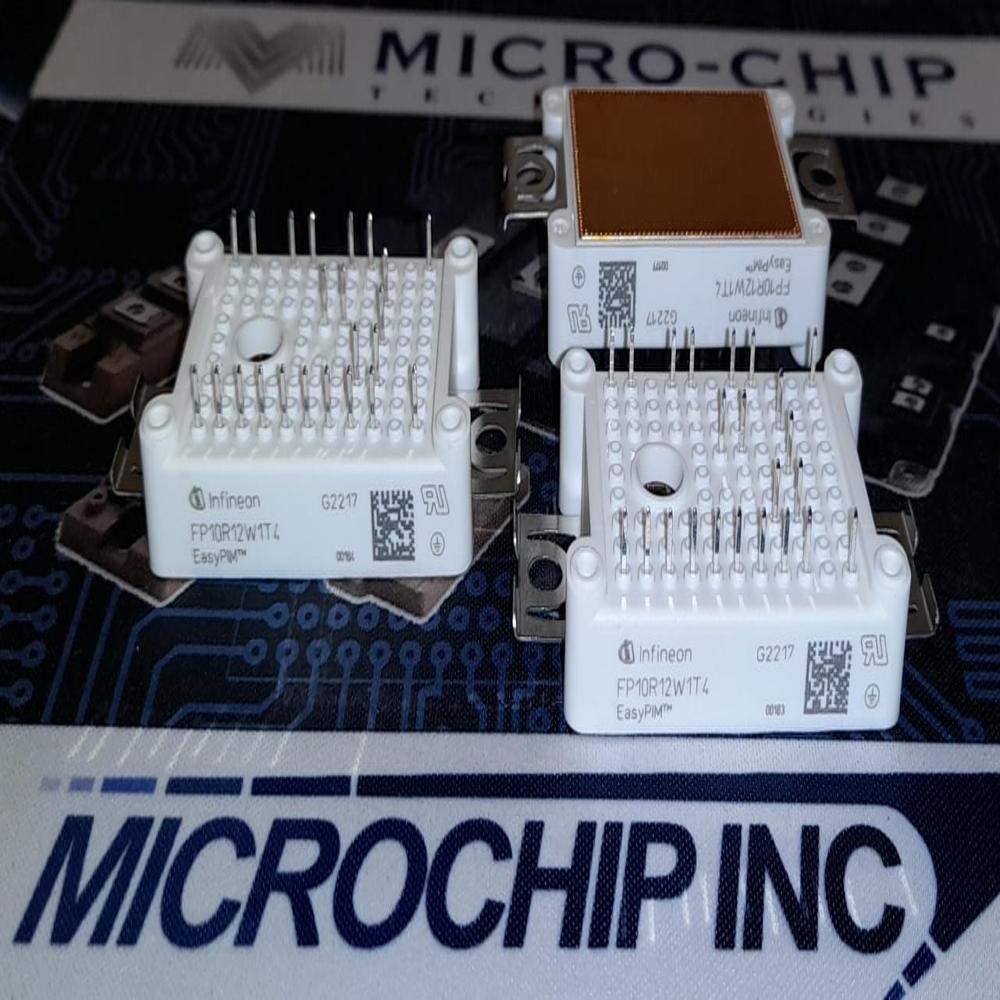

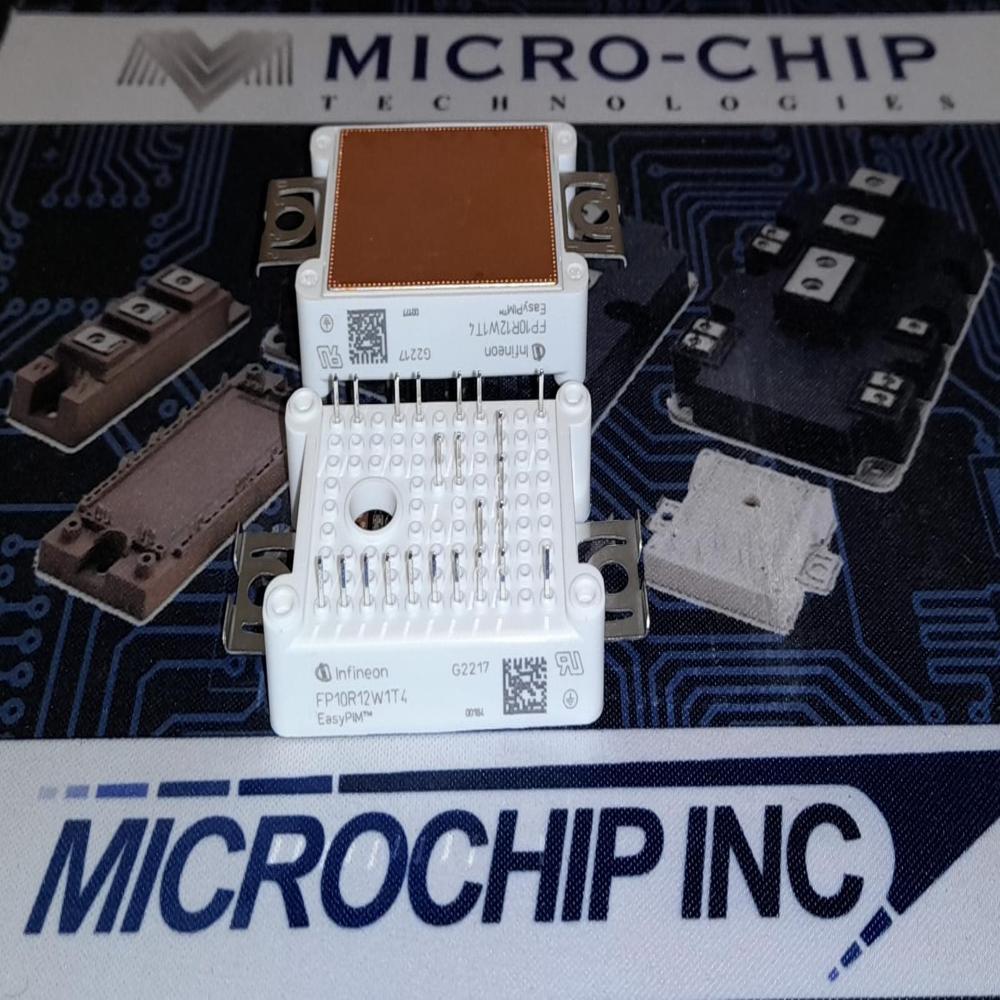

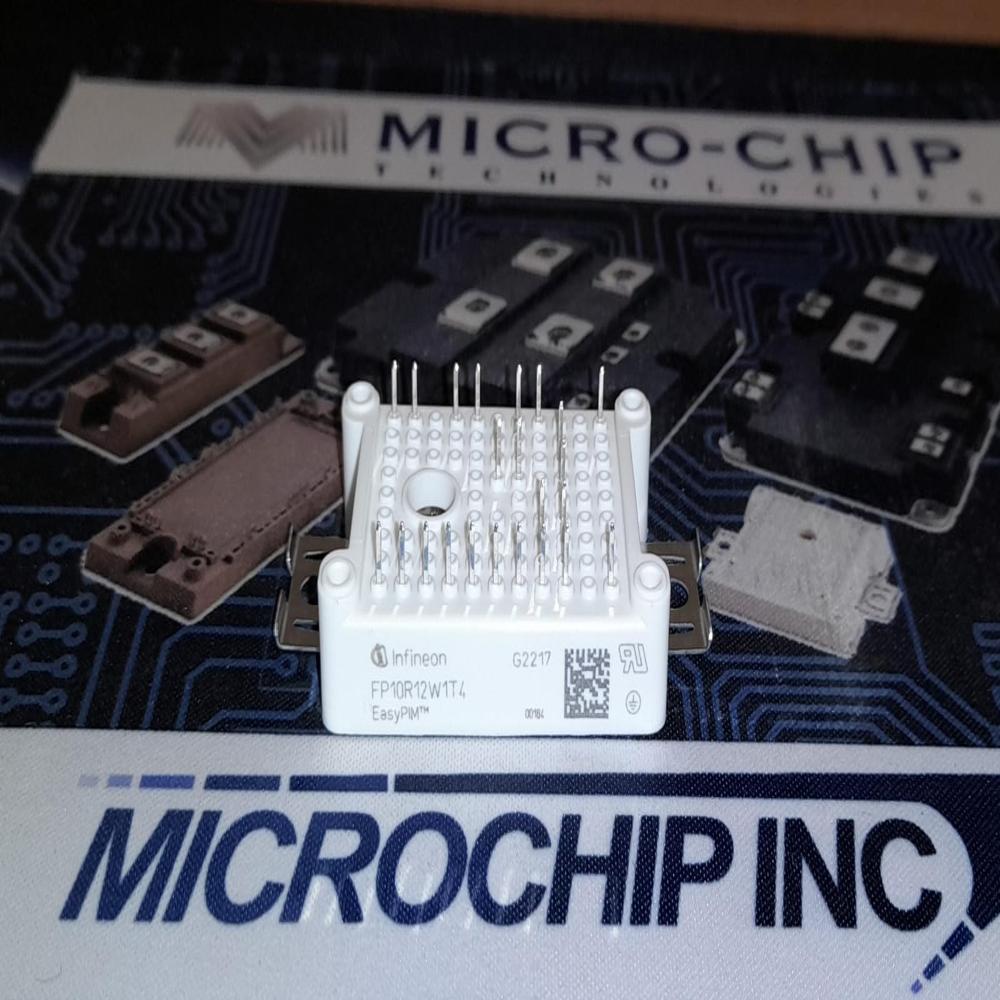

FP10R12W1T4 INFINEON IGBT MODULE

Name: FP10R12W1T4 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FP10R12W1T4 INFINEON IGBT MODULE Specification

Product Type
IGBT Module

Supply Voltage
Up to 1200V

Dissipation Power
26 W (approximate, per module)

Operating Temperature
-40C to +150C

Power Consumption
Depends on load (typically low power dissipation due to high efficiency)

Temperature Range
-40C to +150C

Input Voltage
Up to 1200V

Voltage Regulator Type
Not applicable (module consists of IGBT switch and freewheeling diode)

Size
Approx. 62.0mm x 34.0mm x 12.0mm

Weight
Approx. 62 grams

Package / Case
EconoPACKTM 1

Isolation Voltage
2500V AC (1 min)

Gate Emitter Voltage (Vge)
20V Maximum

Protection Features
Short Circuit, Over-temperature (interface dependent)

Product Series
IGBT4

Configuration
6-Pack / Triple Half-Bridge

Switching Frequency
Up to 20 kHz

Reverse Recovery Time
Typical 200 ns

Mounting Style
Screw Mount / PCB Mount

Collector Emitter Saturation Voltage (Vce(sat))
1.7V at 10A, 25C

Collector Current (Ic)
10A continuous

FP10R12W1T4 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FP10R12W1T4 INFINEON IGBT MODULE

Discover the gorgeous FP10R12W1T4 INFINEON IGBT MODULE - your hot deal for soaring performance and breathtaking efficiency! Get it now and find unmatched reliability for your industrial motor drives, inverters, UPS systems, and power supplies. With a triple half-bridge 6-Pack configuration, it handles up to 10A continuous collector current, operates over a broad temperature range, and boasts an impressive isolation voltage of 2500V AC. Enjoy effortless installation via screw or PCB mount, and superior protection against short circuit and over-temperature. Secure this must-have module today!

Advanced Versatility & Protection

The FP10R12W1T4 INFINEON IGBT MODULE is designed for high-efficiency switching, offering fast reverse recovery times and interface-dependent protection against short circuits and overheating. Ideal for use in demanding industrial settings, it shines in motor control, power conversion, and uninterrupted power supply setups. Benefit from flexible mounting options and a robust build that performs reliably, even under extreme temperatures. This module is your trusted choice for critical and high-powered applications.

Drop-off and Express Shipping Made Simple

Enjoy express shipping and prompt drop-off options for the FP10R12W1T4 INFINEON IGBT MODULE. Delivered securely via your specified FOB port in India, each unit is carefully packed to ensure it arrives in pristine condition-protective antistatic bags and shock-resistant packaging are standard. Samples are available upon request for evaluation. Experience seamless logistics and fast, reliable delivery every time you order.

FAQ's of FP10R12W1T4 INFINEON IGBT MODULE:

Q: How do I install the FP10R12W1T4 INFINEON IGBT MODULE?

A: The module offers screw and PCB mounting, allowing for flexible installation. Refer to the manufacturer's guidelines for pin configuration and mounting to ensure optimal performance and isolation.

Q: What are the main benefits of using this IGBT module in industrial applications?

A: Its high efficiency, low power dissipation, robust short-circuit and over-temperature protection, and reliability across wide temperatures make it ideal for industrial motor drives, inverters, and UPS systems.

Q: When should I use the FP10R12W1T4 module over other IGBT solutions?

A: Choose this module when you require up to 10A currents, rapid switching (up to 20 kHz), solid protection features, and reliable operation in harsh industrial environments.

Q: Where is the FP10R12W1T4 INFINEON IGBT MODULE distributed in India?

A: This module is available through authorized distributors, importers, and suppliers throughout India. Contact your local electronics distributor for details.

Q: How is the FP10R12W1T4 protected during shipping?

A: Each module is packaged in anti-static bags and shock-proof material, ensuring safe delivery to your chosen FOB port or via express shipping directly to your location.

Q: What is the typical usage process for this module in industrial setups?

A: Integrate the module within motor drives, power inverters, or UPS systems, ensuring proper cooling and adhering to recommended voltage and current specifications for optimal efficiency and durability.
