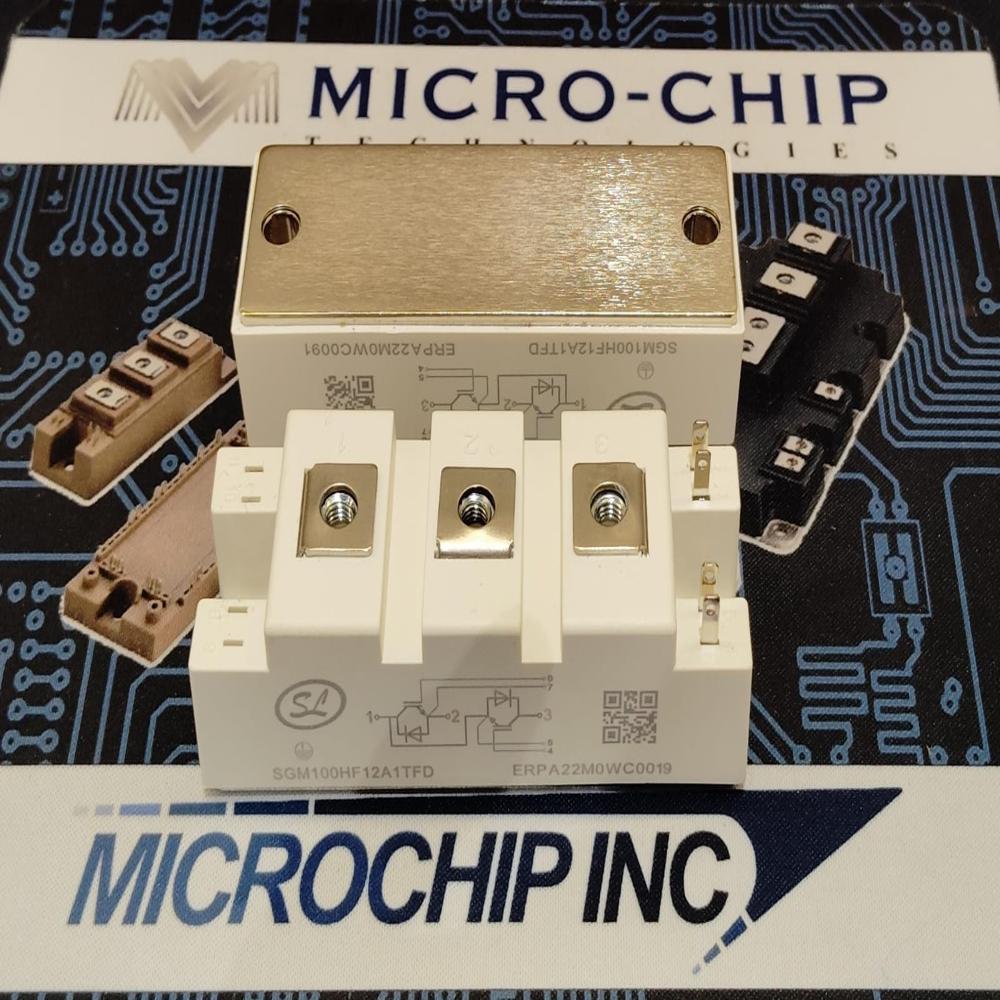

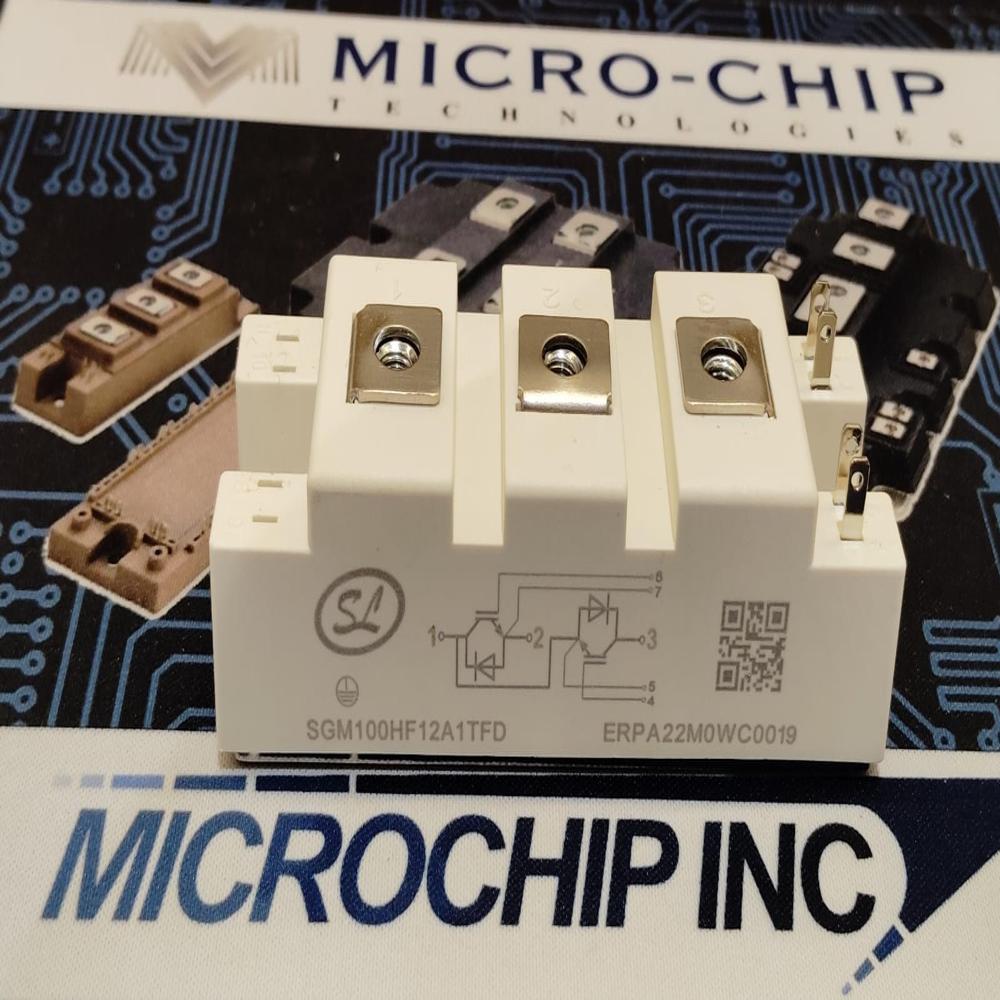

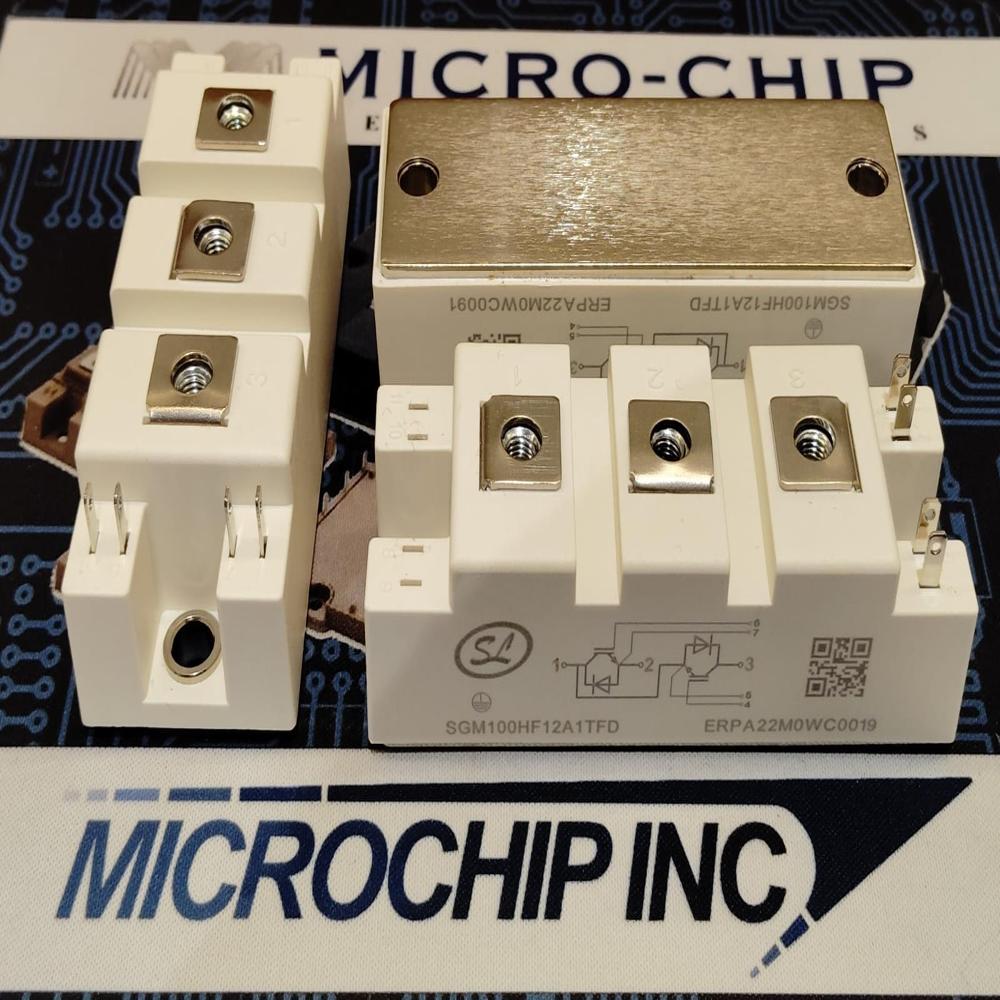

SGM100HF12A1TFD high-power IGBT module

Name: SGM100HF12A1TFD high-power IGBT module
Brand: MICROCHIP TECHNOLOGIES
Price: 1750.0 INR
Availability: InStock

Price 1750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SGM100HF12A1TFD high-power IGBT module Specification

Product Type
High Power IGBT Module

Supply Voltage
1200V

Dissipation Power
100A

Operating Temperature
-40C to +150C

Power Consumption
Varies by application (typically high efficiency)

Temperature Range
-40C to +150C

Input Voltage
Gate Drive: 15V nominal

Voltage Regulator Type
Not applicable (IGBT Module)

Size
Approx. 134mm x 42mm x 30mm (L x W x H)

Weight
Approx. 600g

Collector-Emitter Voltage (Vces)
1200V

Collector Current (Ic)
100A

Configuration
Half-Bridge

Switching Frequency
Up to 20kHz

Mounting Type
Screw Mount

Short Circuit Protection
Yes (with external circuitry)

Gate Threshold Voltage (Vge(th))
5V - 7V

Model Number
SGM100HF12A1TFD

Isolation Voltage
2500V AC (1 min)

Package Type
Module

SGM100HF12A1TFD high-power IGBT module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SGM100HF12A1TFD high-power IGBT module

Experience the distinguished SGM100HF12A1TFD high-power IGBT module, crafted for inestimable performance in demanding industrial environments. Utilise this offer to elevate your applications with 1200V Vces, 100A Ic, and superior short circuit protection (external circuitry required). Its noble half-bridge configuration, high isolation voltage (2500V AC), and robust screw-mount design ensure safety, reliability, and efficient operation. Take advantage of its high switching frequency (up to 20kHz) and broad temperature range (-40C to +150C). Order today from India's leading distributor, supplier, and importer for unbeatable quality and service.

SGM100HF12A1TFD: Competitive Edge and Usage

The SGM100HF12A1TFD high-power IGBT module offers a competitive advantage with its high current rating, robust design, and flexibility for diverse industrial motor drives, inverters, UPS, and power supplies. Used by distinguished manufacturers and engineers, it is suitable for both large-scale production and critical applications, guaranteeing reliability and efficiency where it matters most. Its noble features make it ideal for professionals seeking inestimable performance and long-term value.

Sample Availability, FOB Port, and Domestic Mar Exchange

Samples of the SGM100HF12A1TFD are available to support your product evaluation and development process. With a primary FOB port in India, we facilitate convenient international and domestic mar exchanges. There is a nominal charge for sampling, and we ensure prompt processing for the main domestic market. Utilise this opportunity to experience the quality of our product and streamline your supply chain with ease.

FAQ's of SGM100HF12A1TFD high-power IGBT module:

Q: How can I utilise the SGM100HF12A1TFD module in my application?

A: The SGM100HF12A1TFD can be integrated into industrial motor drives, inverters, UPS, and power supply systems, utilising its high current and voltage capabilities for efficient, reliable performance.

Q: What are the benefits of ordering this IGBT module from your distribution network in India?

A: Ordering from our distinguished distribution network ensures genuine products, timely delivery across India, and access to local technical support and after-sales service.

Q: When should I consider requesting a sample of this IGBT module?

A: If you are evaluating new designs, require product testing, or need to assess compatibility, you can request a sample at minimal charge to streamline your development process.

Q: Where do you ship the SGM100HF12A1TFD module from domestically and internationally?

A: We ship from our main facility in India, supporting both domestic mar and international exchanges through an established FOB port to ensure global reach and convenience.

Q: What process is involved in obtaining a sample and what charges apply?

A: To obtain a sample, contact our sales team, who will guide you through the exchange process. A nominal charge applies for sampling, covering handling and shipping expenses.

Q: How does the SGM100HF12A1TFD enhance the reliability of industrial systems?

A: Its noble features, such as high isolation voltage, robust screw mount, and advanced short circuit protection, enhance reliability and safety in demanding industrial scenarios.
