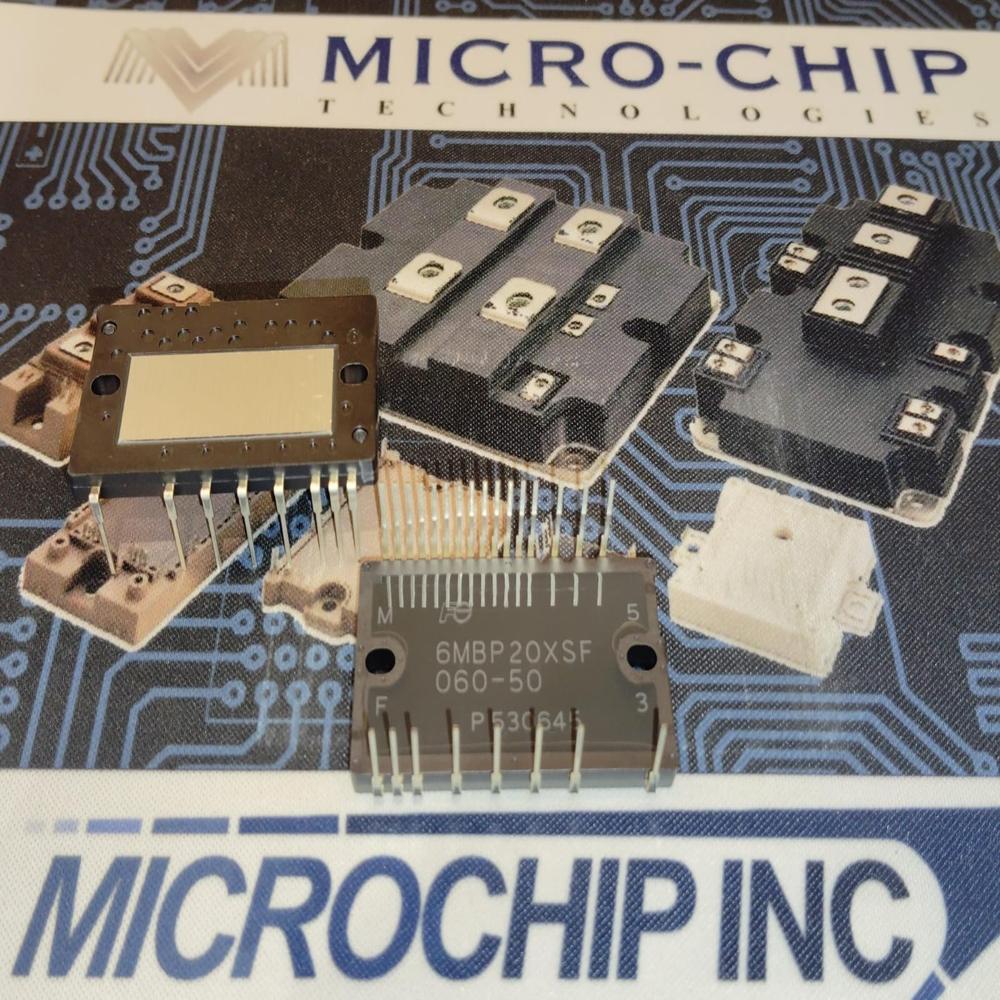

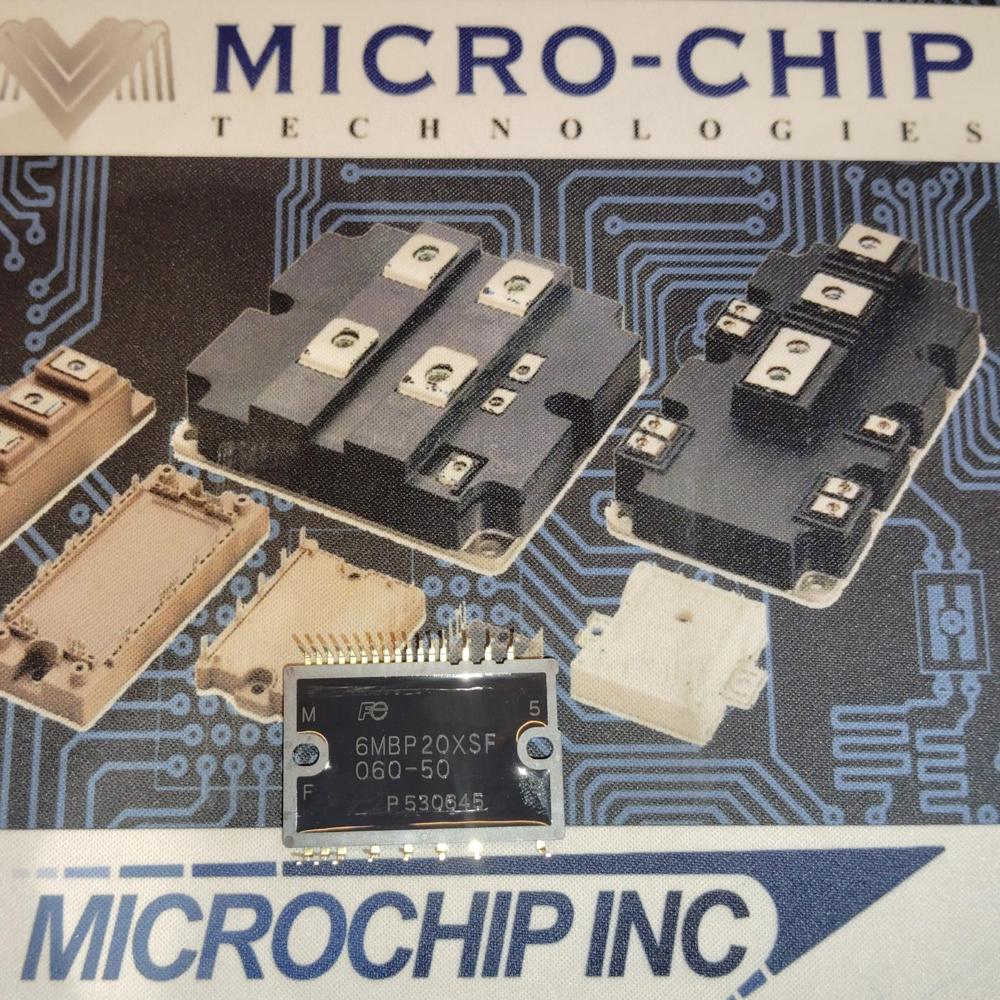

6MBP20XSF060-50 IPM IGBT MODULE

Name: 6MBP20XSF060-50 IPM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6MBP20XSF060-50 IPM IGBT MODULE Specification

Product Type
IPM IGBT Module

Supply Voltage
600V

Dissipation Power
120W

Operating Temperature
-20C to +150C

Power Consumption
20A

Temperature Range
-20C to +150C

Input Voltage
4.5V to 5.5V

Voltage Regulator Type
Internal regulator

Size
118mm x 44mm x 25mm (Approx.)

Weight
180g (Approx.)

Gate Drive Voltage
15V (Typical)

Control ICs
Built-in protection and drive circuits

Switching Frequency
Up to 20kHz

Mounting Type
Chassis Mount

Package Type
Module

Collector Current (Ic)
20A

Isolation Voltage
2500Vrms (Min.)

Collector Emitter Voltage (Vces)
600V

Short Circuit Protection
Integrated

RoHS Status
RoHS Compliant

Configuration
6-in-1 Three Phase Bridge

6MBP20XSF060-50 IPM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 6MBP20XSF060-50 IPM IGBT MODULE

Experience a peerless solution for power electronics with the 6MBP20XSF060-50 IPM IGBT Module-now available for immediate sale in India from top distributors, importers, and suppliers. Select this formidable, RoHS-compliant module for applications like inverters, servo drives, and motor controls. Procure robust performance with a collector emitter voltage of 600V, imposing 20A current capacity, and built-in short-circuit protection. Integrating 6-in-1 three-phase bridge configuration, this module offers integrated control ICs and comprehensive protection in a compact chassis-mount package, delivering unmatched reliability and operational efficiency for various high-demand environments.

Direction of Use, Applications, and Advantages

The 6MBP20XSF060-50 IPM IGBT Module is designed for seamless integration into inverter, servo drive, and motor control systems. Connect the module to compatible chassis mounts and supply a regulated voltage (4.5V-5.5V) for peerless operation. It excels in demanding industrial environments, thanks to its formidable current handling and built-in protection, significantly reducing the risk of component failure and extending system lifespan. Opt for this module to achieve remarkable operational advantages and streamlined control.

Certifications, Delivery Process, and Shipping Details

This module is RoHS compliant for eco-responsible applications. Orders are quickly processed, handed over for shipment from designated FOB ports, and delivered securely to your location. Standard delivery usually occurs within the stipulated timeline after dispatch. Each unit is carefully packaged and shipped with complete certification documentation, ensuring a transparent handover and adherence to quality standards throughout the procurement process.

FAQ's of 6MBP20XSF060-50 IPM IGBT MODULE:

Q: How is the 6MBP20XSF060-50 IPM IGBT Module typically used?

A: This module is commonly used for inverter, power supply, servo drive, and motor control applications due to its integrated protection and drive circuits.

Q: What are the main advantages of using this IGBT module?

A: It features integrated short circuit protection, built-in control ICs, compact design, and exceptional current handling, delivering robust reliability and efficiency.

Q: Where can I procure the 6MBP20XSF060-50 module in India?

A: You can procure this imposing module from authorized distributors, suppliers, and importers with delivery available across India.

Q: When will my order be shipped after I place a purchase?

A: Orders are typically handed over for shipment promptly and dispatched from the FOB port, with delivery timelines depending on the shipping destination and stock availability.
