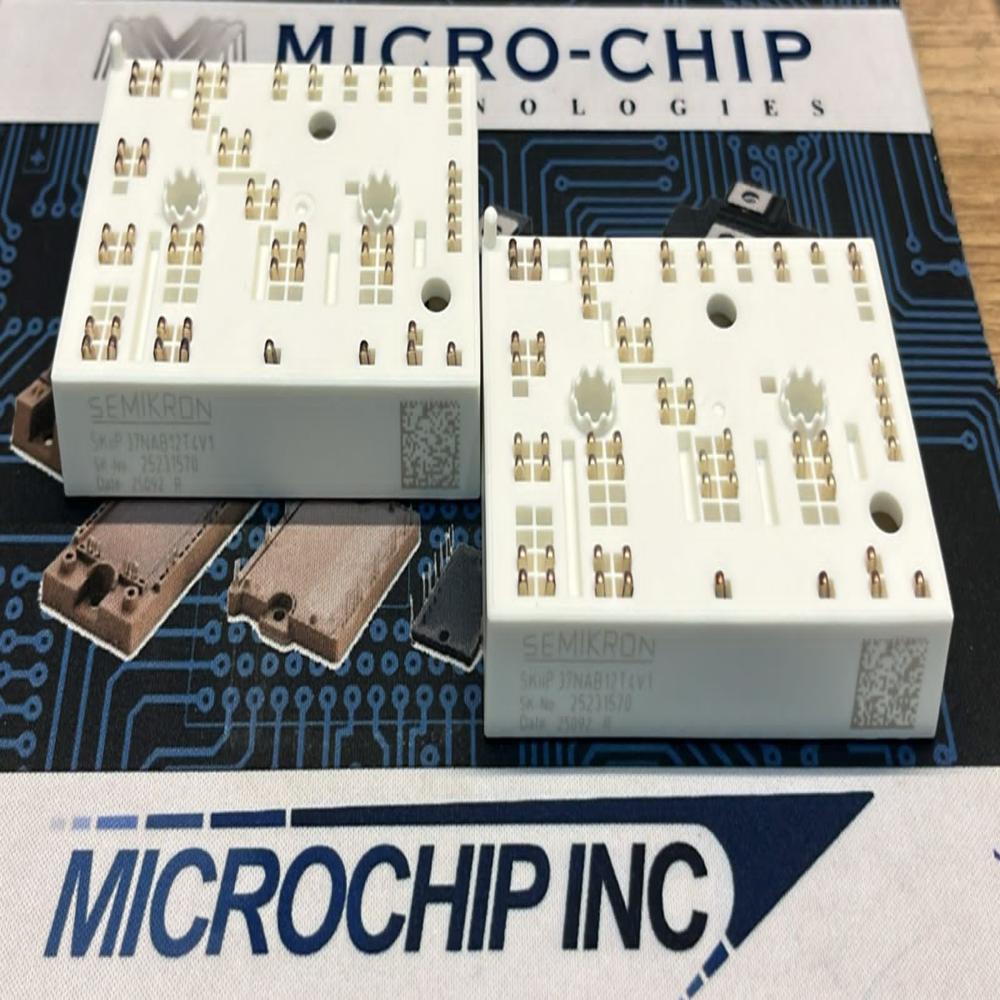

SKiiP 37NAB12T4V1 Semikron IGBT Module

Name: SKiiP 37NAB12T4V1 Semikron IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 7000.0 INR
Availability: InStock

Price 7000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKiiP 37NAB12T4V1 Semikron IGBT Module Specification

Response Time
Fast switching, microseconds range

Input
Gate signal input

Power Source
External power supply

Operating Temperature
-40C to +125C

Features
High efficiency, low power loss, robust design, integrated thermal management

Usage
Used for inverter and drive technology

Components
IGBT, Diode arrays, Driver circuit

Power Supply
Electric

Thermal Conductivity
Integrated thermal interface

Sensors Specification
Integrated temperature sensor

Output
High power switching output

IP Rating
IP00

Interface
Screw terminal / direct module mount

Product Type
IGBT Module

Application
Industrial drives, motor control, UPS systems

Rated Voltage
1200 V

Supply Voltage
Up to 1200V

Size
Compact module size

Dimension (L*W*H)
151 mm x 62 mm x 18 mm approx.

Function
IGBT Module for power electronic applications

Color
White / Grey

Weight
Approx. 450g

Thickness
Standard module thickness

Capacity
37A

Current Rating
37A

Frequency
DC to several kHz switching

Collector-Emitter Voltage (Vces)
1200 V

Cooling Method
Baseplate cooling (liquid or air)

Mounting Type
Chassis mounting

Gate Drive Voltage
15V / -8V

Configuration
Sixpack (Three-phase bridge)

Standards Compliance
RoHS, UL recognized

Typical Application Sectors
Renewable energy, industrial automation, power supplies

Switching Technology
Field-stop IGBT

Die Type
N-channel IGBT with anti-parallel diode

Isolation Voltage
4 kVAC

Module Series
SKiiP 3

Module Technology
Press-pack design, solder-free contacts

Storage Temperature Range
-40C to +125C

SKiiP 37NAB12T4V1 Semikron IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SKiiP 37NAB12T4V1 Semikron IGBT Module

Take advantage of our Clearance Sale and experience the lustrous performance of the SKiiP 37NAB12T4V1 Semikron IGBT Module, a paragon in power electronics. This spectacular sixpack module-part of the renowned SKiiP 3 series-boasts a 1200V rated voltage and 37A capacity, featuring innovative press-pack technology with solder-free contacts. Personalise your system with ease thanks to its compact size and robust, integrated driver circuit. Ideal for renewable energy, industrial drives, and UPS applications, this RoHS and UL-recognized unit guarantees superior efficiency, reliability, and thermal management for your projects.

Other Features & Versatile Industrial Application

The SKiiP 37NAB12T4V1 module showcases advanced features such as integrated thermal interface, fast microsecond switching, and a built-in temperature sensor, ensuring optimal performance and longevity. Designed for chassis mounting, this module is suitable for inverter and drive technology, industrial motor control, and UPS systems, processing DC to several kHz. Its robust construction and high isolation voltage make it perfect for demanding industrial environments, providing reliable power conversion and management across diverse application media.

Packaging, Handed Over Delivery & Export Supply

Each SKiiP 37NAB12T4V1 module is securely packaged to ensure safe transit, meeting strict export market standards. With a rapid delivery time and reliable supply chain, orders are swiftly processed and handed over to trusted logistics partners. We maintain competitive list prices and boast a solid supply ability, catering to bulk distributor and importer requirements across India and globally, assuring seamless procurement and timely fulfillment for power electronics professionals.

FAQ's of SKiiP 37NAB12T4V1 Semikron IGBT Module:

Q: How is the SKiiP 37NAB12T4V1 Semikron IGBT Module typically used in industrial applications?

A: This module is mainly used in inverter and drive technology for controlling motors, industrial automation, UPS systems, and renewable energy systems, supporting high-efficiency power conversion and management.

Q: What are the key benefits of the press-pack solder-free design?

A: The press-pack, solder-free contacts enable robust mechanical and electrical connections, improve thermal conductivity, and simplify module replacement, enhancing the module's long-term reliability and serviceability.

Q: Where can the SKiiP 37NAB12T4V1 module be installed?

A: It is designed for chassis mounting in various power electronic setups such as industrial control panels, inverters, and power supply units requiring high isolation and efficient cooling.

Q: What is the process for integrating this IGBT module into existing systems?

A: Integration involves mounting the module onto the chassis, connecting necessary gate signal inputs and power outputs, and ensuring compatible cooling (liquid or air) as per application load requirements.

Q: When can users expect delivery after placing their order?

A: Orders are processed efficiently, and products are typically handed over to logistics partners after quick packaging, with the exact delivery time depending on your location and shipping method.

Q: How does the integrated thermal interface improve module performance?

A: The integrated thermal interface ensures efficient heat dissipation, supporting reliable operation even at high loads and temperatures, ultimately increasing the module's life-span and minimizing power loss.
