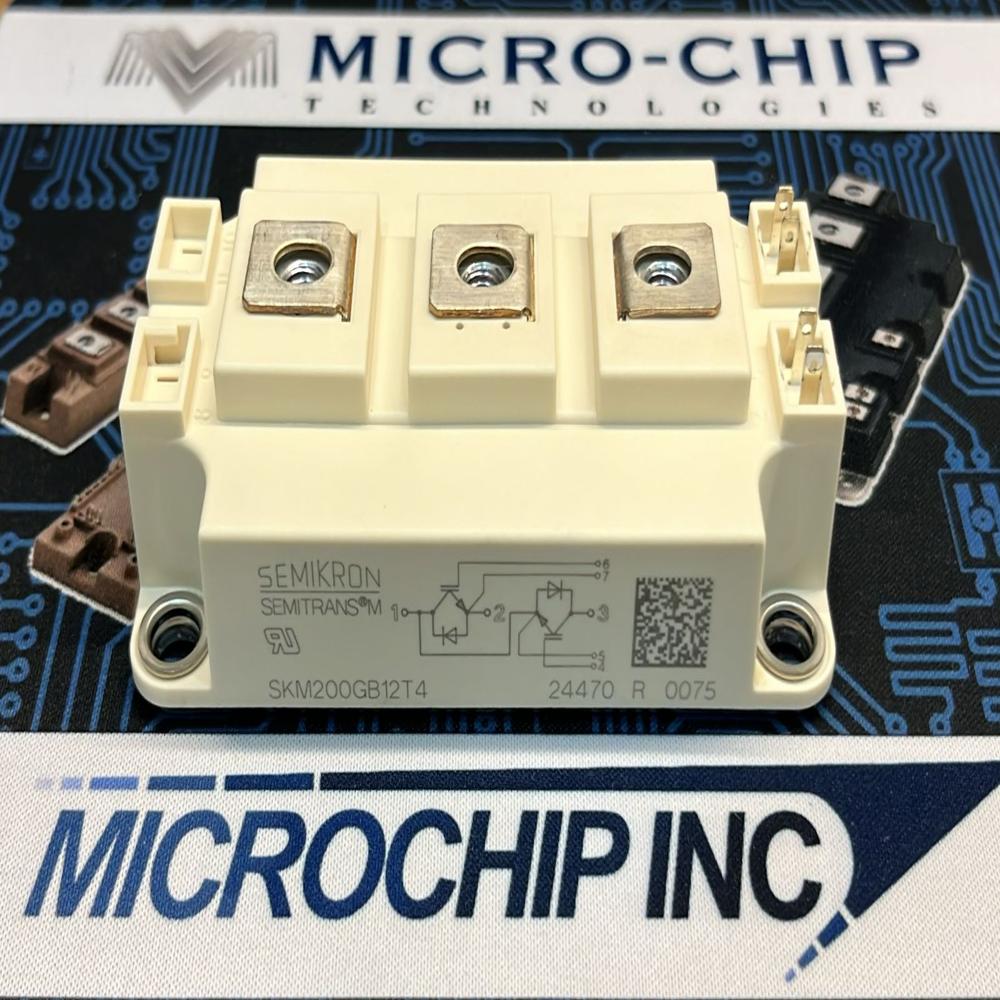

SKM200GB12T4 Semikron IGBT Module

Name: SKM200GB12T4 Semikron IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SKM200GB12T4 Semikron IGBT Module Specification

Interface
Screw terminal

Operating Temperature
-40C to +150C (Tj, junction temp.)

Output
Switching power output

Components
IGBT, FWD (Free Wheeling Diode)

Features
High efficiency, low saturation voltage, isolated baseplate, robust design

Response Time
Fast switching, <1 s

Usage
IGBT-based inverter applications, industrial motor drives, power supplies

Thermal Conductivity
Copper baseplate

Power Source
Electric

Input
Control signal (gate drive)

Power Supply
Electric

IP Rating
IP00

Product Type
IGBT Module

Application
Industrial, motor drives, inverters, UPS, renewable energy

Rated Voltage
1200V

Supply Voltage
1200V (Collector-Emitter) AC/DC

Size
Standard industry module

Dimension (L*W*H)
106 mm x 62 mm x 38 mm

Function
Power switching and rectification module

Color
White / Off-white

Weight
~480 g

Thickness
Approx. 38 mm

Current Rating
200A

Capacity
200A (Collector current)

Frequency
DC to 20 kHz switching

Application Standards
IEC 60747-9

IGBT Configuration
Single module, half-bridge topology

Collector-Emitter Saturation Voltage (Vce(sat))
Approx. 2.2V @ 200A, 25C

Mounting
Screw mount on heatsink

Creepage Distance
9.5 mm

Baseplate Material
Copper

Technology
Trench IGBT, 4th generation

Model Number
SKM200GB12T4

Isolation Voltage
2500V AC (RMS)

Gate-Emitter Voltage (Vge)
20V max

Package
Industrial high power module, isolated baseplate

Reverse Recovery Time
Short, for fast di/dt

SKM200GB12T4 Semikron IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SKM200GB12T4 Semikron IGBT Module

Experience the marvel of trending industrial innovation with the SKM200GB12T4 Semikron IGBT Module. Try Now this uncommon 4th generation Trench IGBT, designed for high efficiency, robust reliability, and fast di/dt switching. With a majestic 200A capacity and low Vce(sat) of 2.2V, it's customizable to your industrial inverter, motor drive, or UPS needs. Its isolated, screw-mounted copper baseplate ensures superior thermal conductivity and unmatched endurance, making it the preferred choice for power switching and rectification applications. Discover the future of power modules, available exclusively through trusted suppliers in India.

Unmatched Performance & Features

The SKM200GB12T4 Semikron IGBT Module sets itself apart with cutting-edge Trench IGBT technology, short reverse recovery time, and a durable copper baseplate. Its isolated baseplate and low saturation voltage guarantee high efficiency and reliability, even in rigorous industrial environments. Ideal for customizable power inverter systems, motor drives, and renewable energy applications, this half-bridge module meets IEC standards, ensures safe operation, and confidently handles up to 1200V and 200A. Experience outstanding switching responsiveness and build quality.

FOB Port & Sample Availability for Seamless Shipments

Our dedicated transportation team ensures express shipping of the SKM200GB12T4 Semikron IGBT Module from FOB ports in India. Valuation and customs handling are streamlined for prompt and secure delivery. Don't hesitate to request samples-subject to our sample policy. Sample units are often available, facilitating quick project testing and assessment. Trust our logistics expertise for timely and hassle-free module acquisition, whether you're planning a bulk procurement or needing immediate evaluation for engineering needs.

FAQ's of SKM200GB12T4 Semikron IGBT Module:

Q: How can I integrate the SKM200GB12T4 Semikron IGBT Module into my industrial system?

A: The module is designed with a standard package and screw-mount interface, allowing straightforward installation on heatsinks for use in motor drives, inverters, and UPS systems.

Q: What are the primary benefits of using this IGBT module over conventional alternatives?

A: This module delivers high efficiency, fast switching response, robust isolation, and low saturation voltage-making it ideal for demanding industrial and renewable energy applications.

Q: Where do shipments of the SKM200GB12T4 module originate from, and what delivery options are available?

A: Shipments are managed via FOB ports in India, with options for express shipping to ensure rapid delivery based on your project schedule and transportation needs.

Q: What is the recommended process for requesting a product sample?

A: You can initiate a sample request through our distributor or supplier channels. Upon approval following our sample policy, samples are shipped promptly for valuation and testing purposes.

Q: When should I select this IGBT module for my application?

A: Choose this module when your project demands reliable, high-current switching (up to 200A), fast response times, and rugged design, especially in environments involving industrial motor drives and power inverters.
