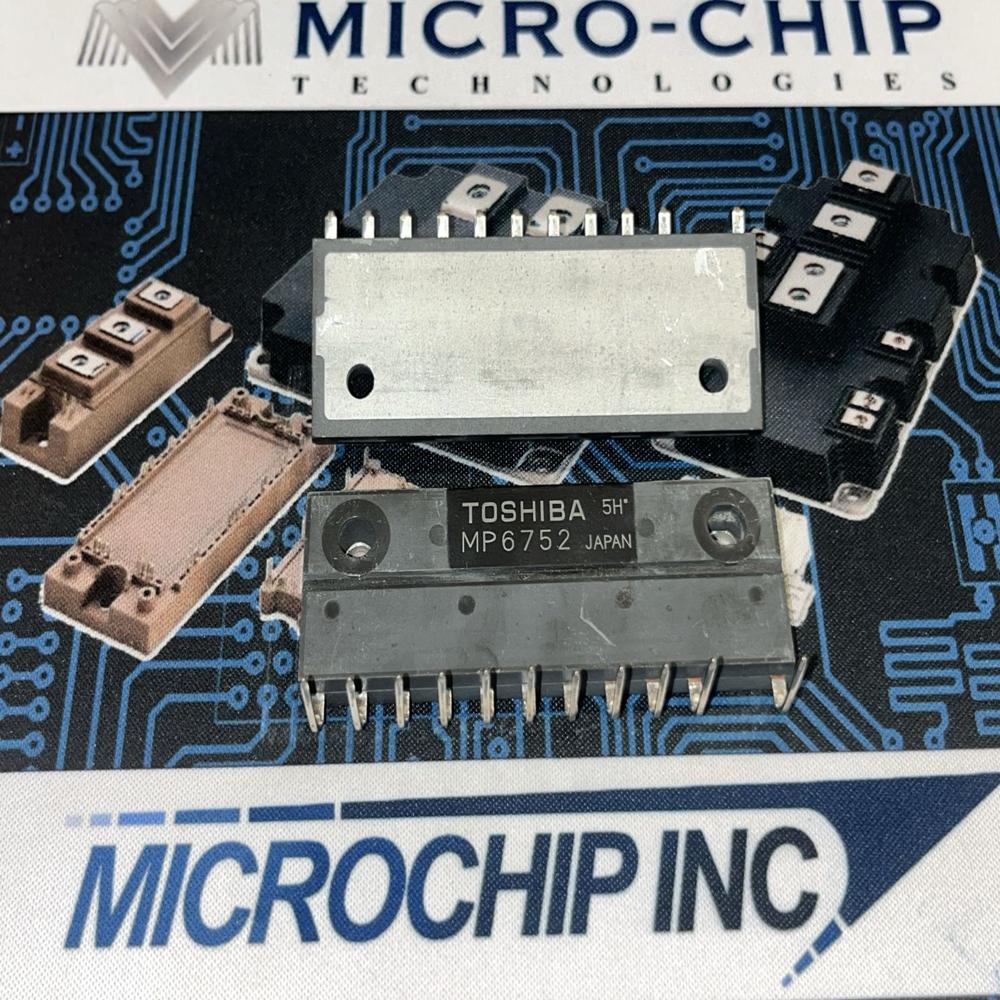

MP6752 TOSHIBA power IGBT module

Name: MP6752 TOSHIBA power IGBT module
Brand: MICROCHIP TECHNOLOGIES
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MP6752 TOSHIBA power IGBT module Specification

Usage
Inverter, UPS, Motor Drives

Thermal Conductivity
Integrated baseplate for enhanced heat transfer

IP Rating
IP00 (module type)

Response Time
Fast switching (typical t_on/t_off: 1.0 / 2.0 s)

Power Source
DC high-voltage source

Interface
Screw terminal connections

Input
Control Signal Input (typical gate drive)

Features
High reliability, fast switching, low saturation voltage, compact module

Output
Switched High Power Output

Power Supply
External

Components
Integrated IGBT with Free Wheeling Diode

Operating Temperature
-40C to +150C (Tj max)

Product Type
Power IGBT Module

Application
Industrial Power Control, Drive Systems, Power Supplies

Rated Voltage
1200V

Supply Voltage
1200V Maximum Collector-Emitter Voltage

Size
Standard industry size module

Dimension (L*W*H)
Approx. 118 x 63 x 33 mm

Function
IGBT Switching for Power Electronics

Color
Black/Gray

Weight
Approx. 450 grams

Thickness
Module height approx. 33 mm

Capacity
Current: 300A (Collector Current)

Current Rating
300A

Frequency
Up to 20 kHz switching frequency

Polarity
NPT (Non-Punch Through)

Isolation Voltage
2500V RMS (base to terminal)

Insulation
Isolated Baseplate

Short Circuit Withstand Time
Up to 10 s (typical)

Gate Emitter Voltage
20V maximum

Cooling Method
Base plate, requires heat sink

Typical Applications
AC Motor Control, Servo Drives, Renewable Energy Inverters

Mounting Type
Panel mount with screws

Model Number
MP6752

Package Type
Industrial Power Module

MP6752 TOSHIBA power IGBT module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About MP6752 TOSHIBA power IGBT module

Experience the latest in industrial power control technology with the MP6752 TOSHIBA Power IGBT Module. Engineered for impeccable performance, this top-ranking module features a lavish 1200V rated voltage and a robust 300A collector current. Capitalise on its advanced NPT technology, 2500V RMS isolation, and integrated free-wheeling diode for unmatched reliability. Its isolated baseplate ensures excellent thermal conductivity, while the compact design allows easy panel mounting. Ideal for AC motor control, UPS, renewable energy inverters, and drive systems, the MP6752 guarantees fast switching, superior heat management, and enduring operational efficiency for demanding industrial environments.

Versatile Usage & Dynamic Applications

The MP6752 TOSHIBA Power IGBT Module is meticulously crafted for both specific and general applications, making it a versatile choice for engineers. Widely used as a switching element in industrial power control, it excels in AC motor drives, servo drives, and renewable energy converters. Its reliable performance extends to inverters and uninterruptible power supplies, frequently deployed in drive systems and large-scale industrial power controls, addressing both dedicated and broad-spectrum power electronic needs.

Sample Availability and Reliable Supply Process

Suppliers ensure the MP6752 TOSHIBA Power IGBT Module is readily available for both bulk orders and sample requests. Samples can be quickly shipped out to facilitate evaluation or prototyping before mass procurement. The supply chain is streamlined to guarantee timely handover and efficient logistics, meeting demands for imported or distributor channels across India. Clearly defined sample policies backed by dependable shipping practices ensure smooth order processing and prompt delivery for all customers.

FAQ's of MP6752 TOSHIBA power IGBT module:

Q: How is the MP6752 TOSHIBA IGBT module typically used in industrial applications?

A: The MP6752 is commonly used in AC motor control, servo drives, UPS systems, and renewable energy inverters, where fast and reliable power switching is required.

Q: What benefits does the MP6752 offer over standard power modules?

A: It provides impeccable reliability, fast switching speeds, lavish thermal conductivity, and a top-ranking current capacity of 300A, making it ideal for demanding industrial power applications.

Q: Where can I find supply or request a sample of the MP6752 module in India?

A: Authorized distributors, importers, and suppliers in India offer the MP6752, with options for sample requests to support evaluation before large orders.

Q: What is the process for shipping samples of the MP6752 module?

A: Once a sample request is approved following supplier policies, the MP6752 module is shipped and the handover is managed efficiently to ensure prompt delivery to customers.
