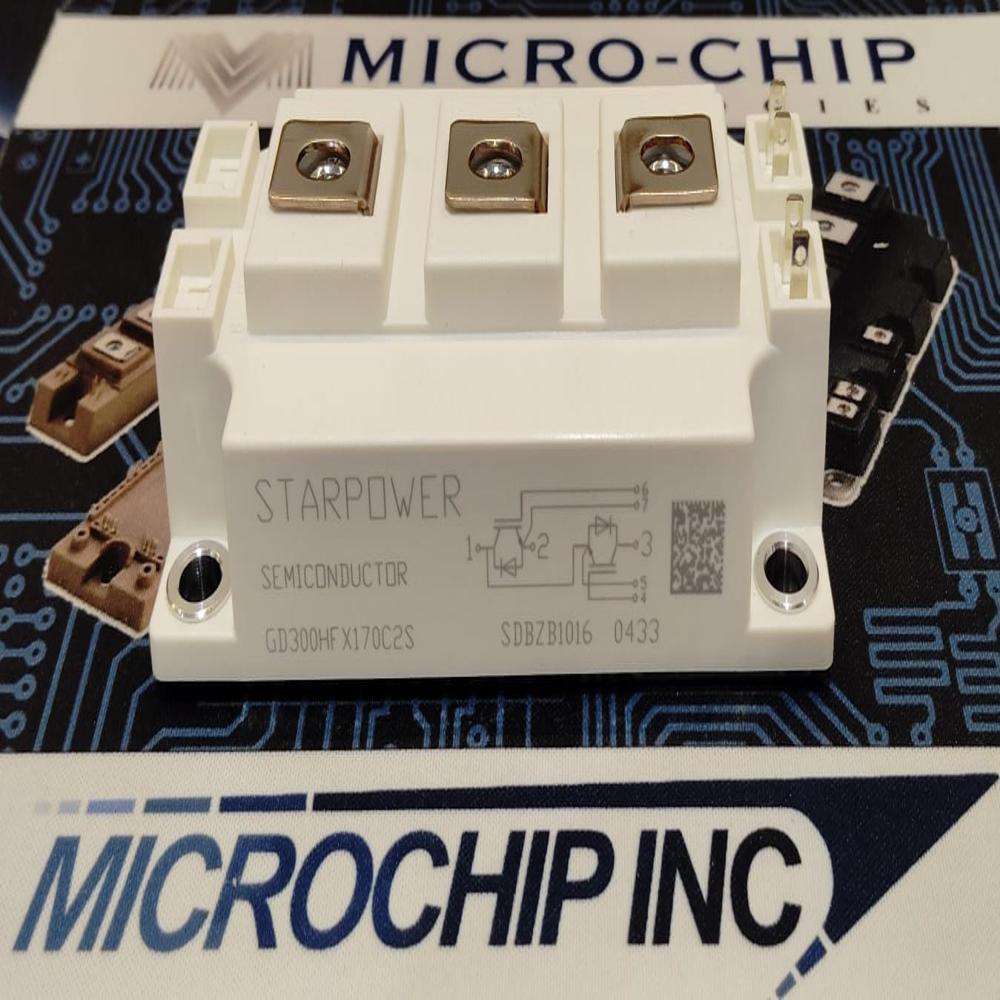

GD300HFX170C2S StarPower Semiconductor

Name: GD300HFX170C2S StarPower Semiconductor
Brand: MICROCHIP TECHNOLOGIES
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD300HFX170C2S StarPower Semiconductor Specification

Product Type
IGBT Power Module

Application
Industrial motor drives, inverters, UPS systems, power converters

Supply Voltage
1700V

Dissipation Power
300A (collector current)

Operating Temperature
-40C to 150C

Power Consumption
Dependent on circuit design and load (refer to datasheet)

Temperature Range
-40C to 150C

Input Voltage
1700V (maximum Vces)

Voltage Regulator Type
Not applicable (IGBT module)

Size
Standard industry IGBT module size (accurate dimensions available in datasheet)

Weight
Approx. 300 grams (varies by manufacturer and configuration)

Collector Current (Ic)
300A

Insulation Voltage
4kV (RMS) between terminals and baseplate

Gate Threshold Voltage (Vge(th))
4V (typical, refer datasheet)

Mounting Type
Screw Mount

Collector-Emitter Voltage (Vces)
1700V

Module Type
Dual IGBT

Package/Case
SEMITRANS Standard Case

Model Number
GD300HFX170C2S

Short Circuit Withstand Time
10 s (typical)

Switching Frequency
Up to 20kHz (typical for modules of this type)

Integrated Protection
No, external protection needed

GD300HFX170C2S StarPower Semiconductor About

Introducing the New GD300HFX170C2S StarPower Semiconductor-an affordable paragon of innovation. Featuring venerable reliability, this dual IGBT module is resplendent with advanced specifications: 4000V AC insulation, 600A surge current, and robust 1700V supply voltage. Swift turn-on/turn-off times and baseplate isolation ensure superior operational efficiency. Its eminent features make it ideal for industrial motor drives, inverters, UPS systems, and power converters. Available now on sale, this module combines leading performance and unrivaled durability, offering remarkable value for discerning distributors, importers, and suppliers.

Expanded Versatility and Features for Demanding Applications

The GD300HFX170C2S StarPower Semiconductor excels in a spectrum of applications beyond industrial motor drives, including renewable energy systems and critical infrastructure controls. Its application method leverages a chassis mount system for simplified integration. Notably, the package features baseplate isolation, enhancing safety and system design flexibility. Precise commutation diagrams, shown on the printed module legend, streamline installation for engineers and technicians, further reinforcing it as a trusted component for complex, large-scale solutions.

Market Reach, Efficient Logistics, and Customer Assurance

The GD300HFX170C2S StarPower Semiconductor enjoys widespread adoption in key export markets across Asia, Europe, and North America, while also serving expansive domestic territories. Customers benefit from transparent freight options, competitive lowest prices, and meticulous packing & dispatch protocols. Sample policies are customer-focused, often providing evaluation units on request to facilitate project assessment and procurement. This ensures that both new and recurring clients receive prompt service and tailored logistics support.

FAQ's of GD300HFX170C2S StarPower Semiconductor:

Q: How should the GD300HFX170C2S StarPower IGBT module be properly installed?

A: For optimal performance, the GD300HFX170C2S should be chassis mounted using industry-standard hardware. Ensure that proper heat sinking and electrical isolation are implemented as described in the datasheet to maintain reliable operation.

Q: What are the primary and additional applications of this dual IGBT module?

A: The GD300HFX170C2S is primarily suited for industrial motor drives, inverters, UPS systems, and power converters. It can also be utilized in renewable energy platforms and large-scale industrial automation systems owing to its versatility and robust design.

Q: When is it ideal to utilize this module in a project?

A: This module is ideal when high insulation voltage, rapid switching times, and significant surge current capability are required, especially in demanding environments or critical infrastructure settings.

Q: Where can clients obtain samples of the GD300HFX170C2S module?

A: Samples can often be requested directly through authorized distributors or suppliers. Refer to the distributor's sample policy for availability and procedural details.

Q: What are the benefits of the advanced isolation and commutation circuitry in the GD300HFX170C2S?

A: The advanced baseplate isolation guarantees improved electrical safety, while the commutation circuit diagram provided on the module simplifies system integration and minimizes setup errors.
