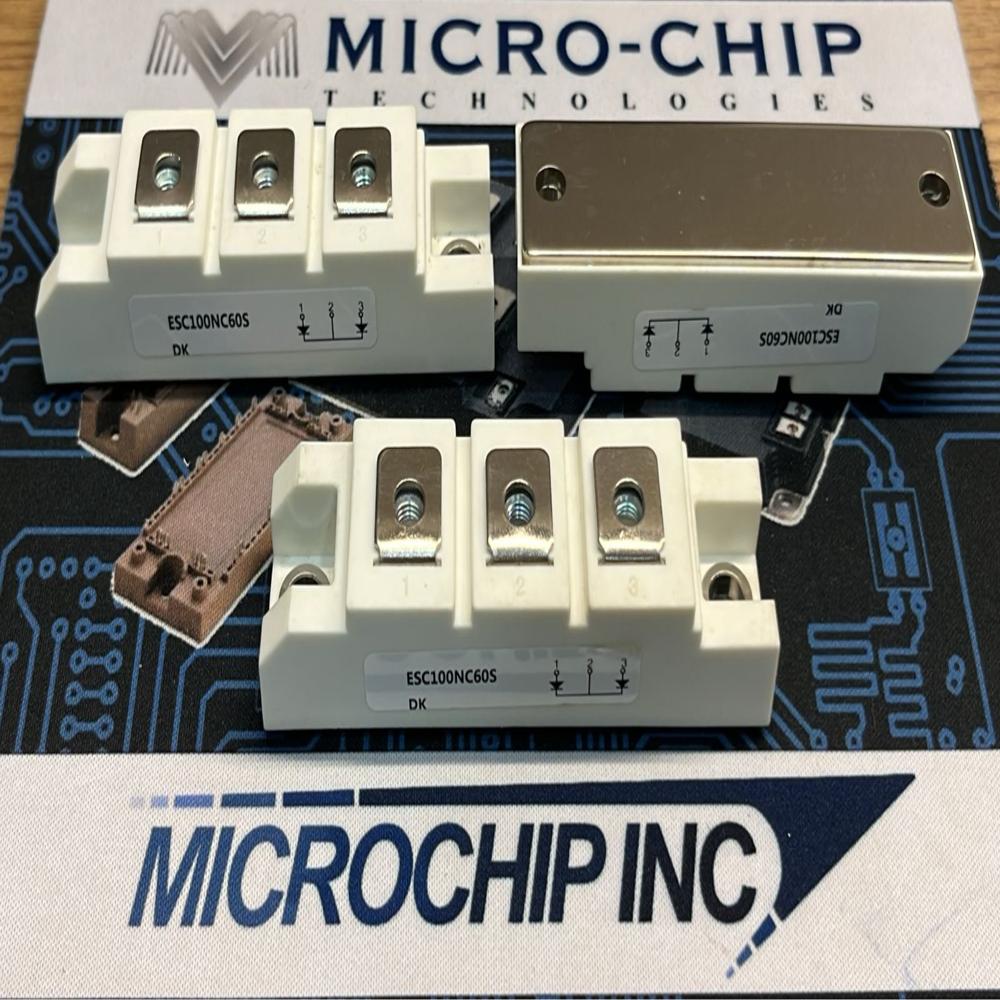

MSC100NC60S high-power ultra-fast recovery diode module

Name: MSC100NC60S high-power ultra-fast recovery diode module
Brand: MICROCHIP TECHNOLOGIES
Price: 1750.0 INR
Availability: InStock

Price 1750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MSC100NC60S high-power ultra-fast recovery diode module Specification

Product Type
High-Power Ultra-Fast Recovery Diode Module

Supply Voltage
Up to 600V

Dissipation Power
550 W

Operating Temperature
-40C to +150C

Power Consumption
Not applicable (passive component)

Temperature Range
-40C to +150C

Input Voltage
600V Maximum Repetitive Peak Reverse Voltage (Vrrm)

Size
Module package (approx. 106mm x 60mm x 30mm)

Weight
Approx. 350g

Case Material
Plastic Molding with Isolation Base

Forward Voltage Drop (Vfm)
Typical 1.7V at 100A

Terminal Type
Screw Terminals

Maximum Surge Forward Current (Ifsm)
900A

Reverse Recovery Time (trr)
60ns

Compliant Standards
RoHS Compliant

Storage Temperature Range
-40C to +150C

Maximum Average Forward Current (If(av))
100A

Isolation Voltage
2500Vrms

Diode Configuration
Single Phase, Two Diodes Inside

Mounting Type
Panel / Screw Mount

MSC100NC60S high-power ultra-fast recovery diode module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About MSC100NC60S high-power ultra-fast recovery diode module

Introducing the MSC100NC60S high-power ultra-fast recovery diode module, now at a Reduced Price. This Sterling device is engineered for phase-controlled rectifiers, snubber circuits, and induction heating. Select this Uncommon module favored by professionals for its Unbeatable performance, boasting a maximum average forward current of 100A, surge capacity up to 900A, and swift 60ns reverse recovery time. With Favorable Reviews, robust plastic molding, isolation base, and RoHS compliance, it's designed for reliability in demanding applications across India. Distributor, importer, and supplier services available.

Engineered Precision for High-Power Applications

The MSC100NC60S high-power ultra-fast recovery diode module is widely used for phase-controlled rectifiers, freewheeling, snubber, induction heating, and inverter circuits. Suitable for use in industrial systems requiring rapid switching and high current handling, its notable features include a 100A average forward current, strict RoHS compliance, and robust panel/screw mounting. Its reliable isolation and quick recovery make it ideal for high-performance machinery and demanding electrical environments.

Sample Availability, Shipping, and Export Details

Samples of the MSC100NC60S are available for qualified inquiries, ensuring hands-on evaluation before mass deployment. All shipments are dispatched from a major Indian FOB Port, ensuring timely delivery and optimum logistics management. We cater largely to main export markets in Europe, Asia, and the Americas. Charges for samples and exchanges vary by location and volume, with a seamless process for swift, secure exchange on qualified orders.

FAQ's of MSC100NC60S high-power ultra-fast recovery diode module:

Q: How is the MSC100NC60S diode module typically used in industrial circuits?

A: The MSC100NC60S is commonly used in phase-controlled rectifiers, freewheeling circuits, snubber applications, induction heating systems, and inverter circuits due to its ultra-fast recovery and high current capability.

Q: What are the primary features that set the MSC100NC60S diode module apart?

A: Its Unbeatable features include a maximum surge current of 900A, fast 60ns reverse recovery, high reliability, panel/screw mount, and RoHS-compliant robust construction. Favorable reviews highlight its performance in demanding environments.

Q: When should I select the MSC100NC60S for my application?

A: Select the MSC100NC60S for applications requiring high current (up to 100A average), ultra-fast recovery, and stringent isolation up to 2500Vrms-ideal for industrial settings where performance and durability are critical.

Q: Where can I obtain samples or make purchases of the MSC100NC60S in India?

A: You can request samples or place orders through authorized distributors, importers, and suppliers in India. Sample requests are processed promptly, with shipping from a major Indian FOB Port.

Q: What is the exchange and shipment process for the MSC100NC60S?

A: The exchange and shipment processes are streamlined to ensure quick handling. Once an order or request is confirmed, shipments are dispatched promptly and charges depend on volume and destination.

Q: How does the MSC100NC60S benefit phase-controlled rectifiers and inverter circuits?

A: Its ultra-fast recovery time and high surge current handling enable efficient switching, reduced losses, and increased reliability, making it a sterling choice for such applications.
