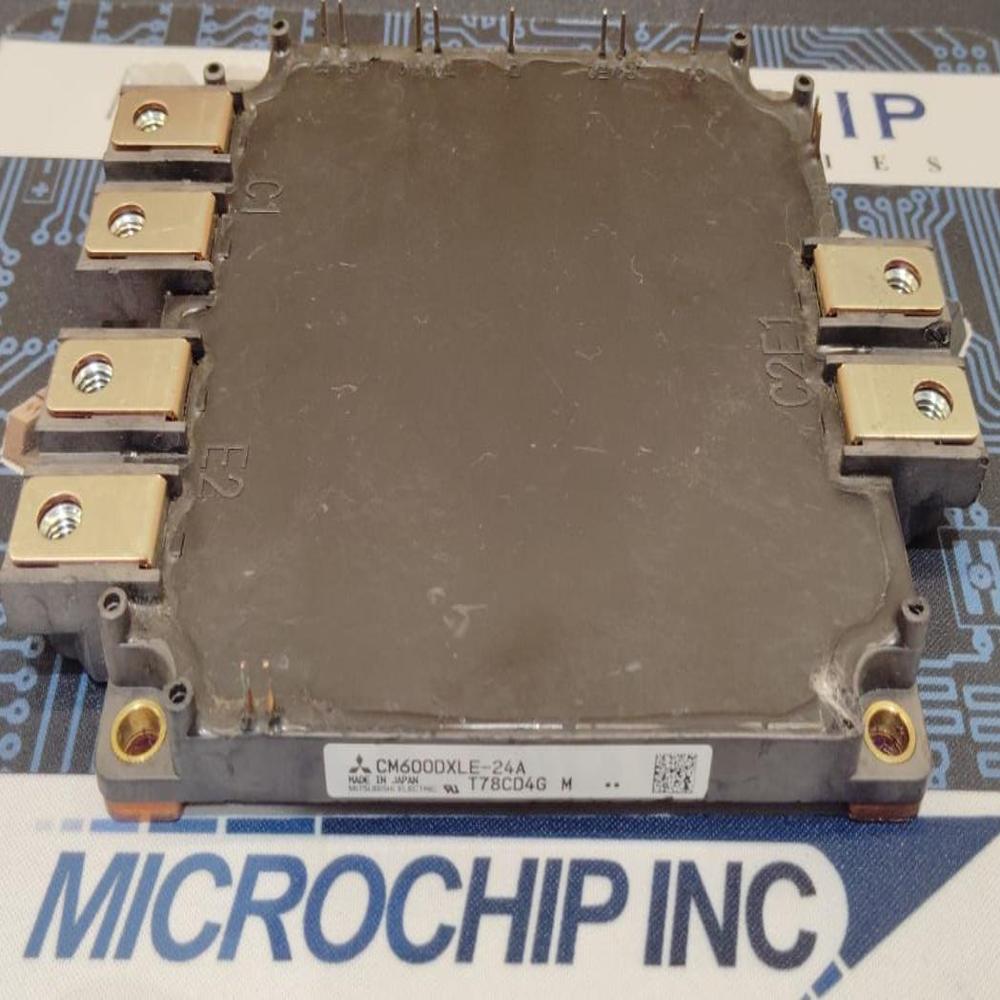

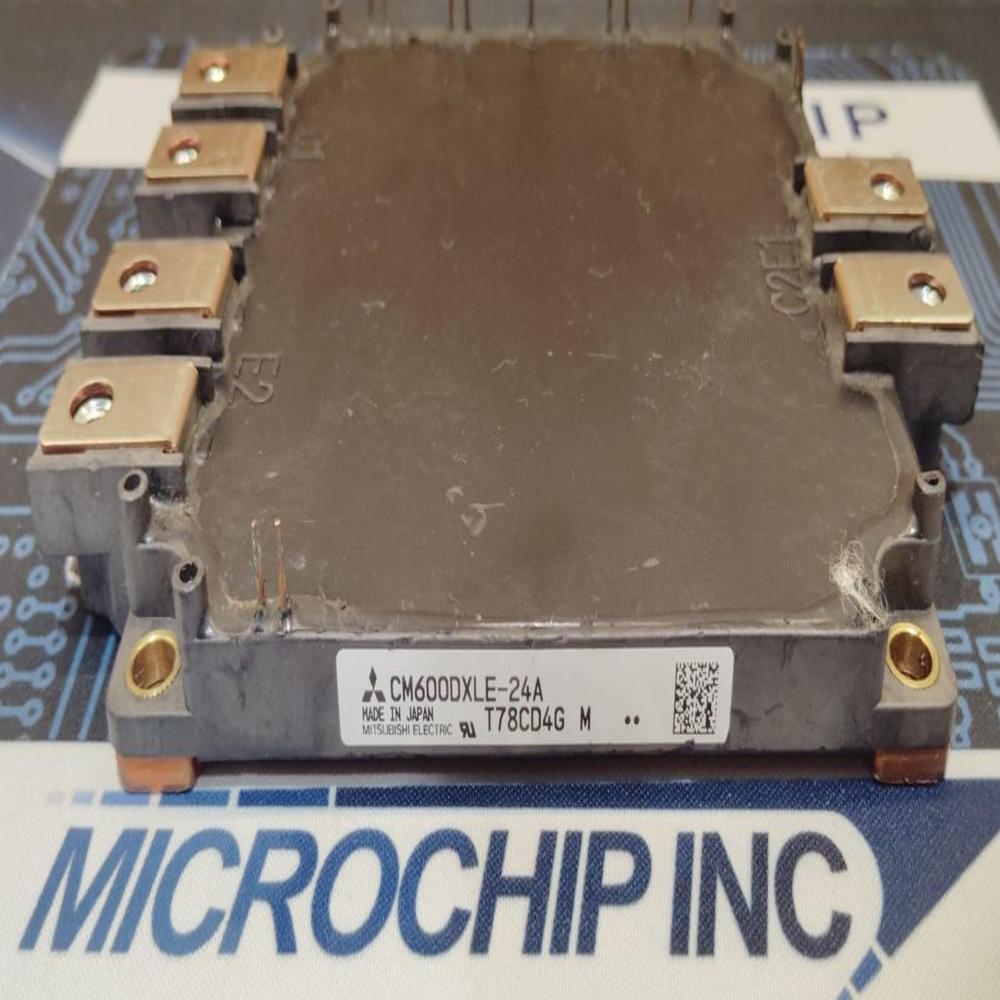

CM600DXLE 24A

Name: CM600DXLE 24A
Brand: MICROCHIP TECHNOLOGIES
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

CM600DXLE 24A Specification

Product Type
IGBT Module

Supply Voltage
1200V

Dissipation Power
600A

Operating Temperature
-40C to +150C

Power Consumption
High power applications, consult datasheet

Temperature Range
-40C to +150C

Input Voltage
1200V max

Size
134mm 61mm 30mm

Weight
Approx. 510g

Collector Current (Ic)
600A

Gate Emitter Voltage (VGES)
20V

Switching Frequency
Up to 20kHz

Configuration
Dual IGBT

Package Type
Module

Part Number
CM600DXLE-24A

Collector-Emitter Voltage (Vces)
1200V

RoHS Compliant
Yes

Short Circuit Withstand Time
10s

Control Type
Voltage Controlled

Storage Temperature
-40C to +125C

Isolation Voltage
2500V (AC, 1 minute)

Mounting Type
Chassis Mount

CM600DXLE 24A Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM600DXLE 24A

The Latest CM600DXLE-24A is a rarefied dual IGBT power module, highly recommended for its matchless performance in demanding industrial applications. Featuring a superb Collector-Emitter Voltage of 1200V and a robust Collector Current of 600A, this RoHS Compliant module offers an isolation voltage of 2500V for safety and reliability. Its voltage-controlled input ensures efficient operation from -40C to +150C. Ending soon in select markets, this chassis mount module elevates industrial motor drives, UPS systems, and welding machines, making it an outstanding choice for distributors, importers, and suppliers in India.

Versatile Uses and Application Methods of CM600DXLE-24A

The CM600DXLE-24A module is predominantly used for high-power industrial setups, including industrial motor drives, power supplies, UPS systems, and welding machines. Its application method relies on easy chassis mount installation and direct voltage control, enabling seamless integration into complex systems. Specifically designed for environments requiring robust isolation and high switching frequencies, it addresses the unique requirements of heavy-duty operations, making it suitable for challenging conditions with temperature ranges from -40C to +150C.

Export Markets, Payment, and Sample Policies for CM600DXLE-24A

Our CM600DXLE-24A modules are mainly exported to Southeast Asia, the Middle East, and several European nations, with smooth order completion ensuring timely handed over of products. We support flexible expenditure methods including advance payment, LC, and TT options for utmost convenience. Samples are available upon formal request, enabling clients to assess the product's superb capabilities before significant expenditure and order finalization.

FAQ's of CM600DXLE 24A:

Q: How is the CM600DXLE-24A typically used in industrial applications?

A: The CM600DXLE-24A is commonly used in industrial motor drives, high-power supplies, UPS systems, and welding machines where high voltage and reliability are essential.

Q: What makes the CM600DXLE-24A a highly recommended module for power applications?

A: Its superb performance stems from dual IGBT design, rarefied switching capability (up to 20kHz), robust voltage isolation, and wide operating temperature range, making it matchless for high-demand environments.

Q: Where can the CM600DXLE-24A be installed within a system?

A: This module features a chassis mount design, making it straightforward to install within control cabinets or power modules in industrial setups.

Q: When should I consider ordering a sample of CM600DXLE-24A?

A: You may request a sample before order completion to evaluate the module's compatibility and performance for your specific application needs.

Q: What is the process for acquiring CM600DXLE-24A modules in India?

A: You may contact authorized distributors, importers, or suppliers in India to begin your order, discuss payment terms, and arrange for sample availability if required.

Q: How does the CM600DXLE-24A handle high power dissipation and temperature?

A: Designed for high power applications, the module operates reliably across -40C to +150C, with robust short circuit withstand and efficient power handling capabilities.
