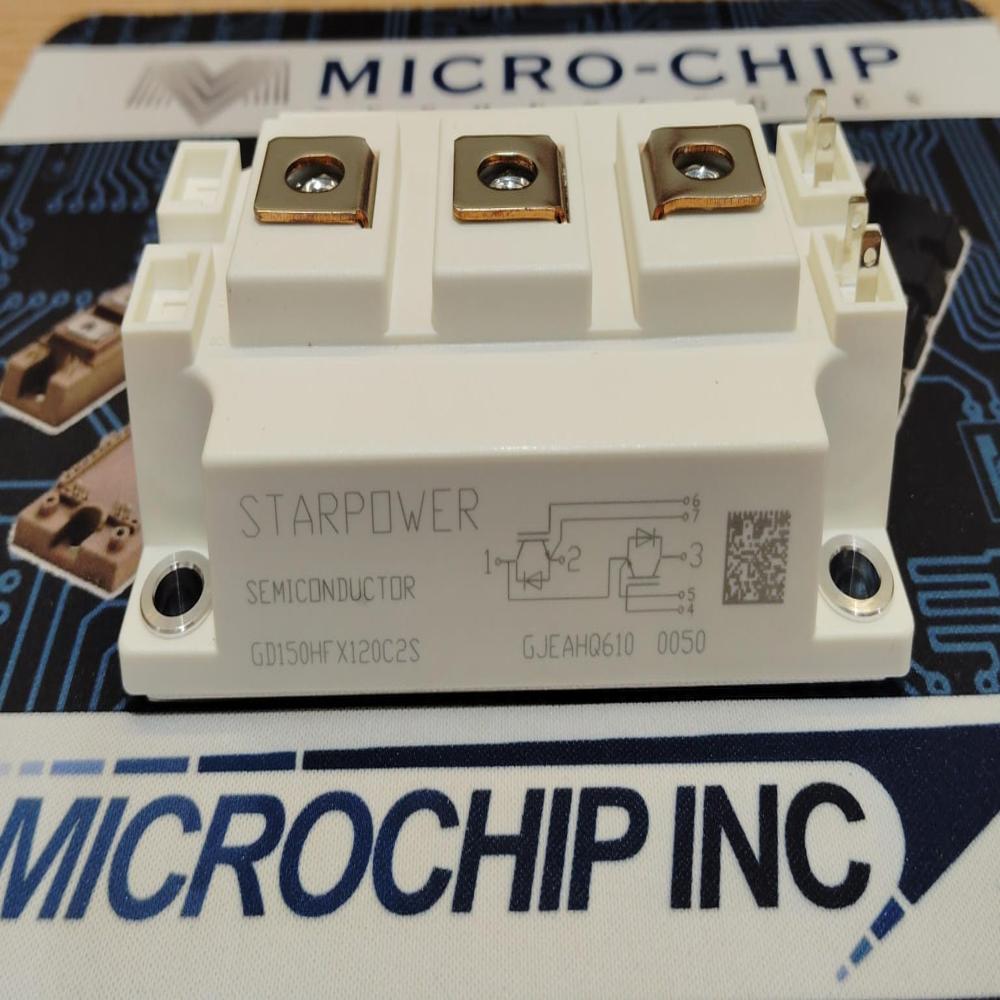

GD150HFX120C2S STARPOWER IGBT MODULE

Name: GD150HFX120C2S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2850.0 INR
Availability: InStock

Price 2850.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD150HFX120C2S STARPOWER IGBT MODULE Specification

Product Type
IGBT MODULE

Supply Voltage
Up to 1200V

Dissipation Power
600W (typical)

Operating Temperature
-40C to +150C

Power Consumption
Depends on load, 150A max output

Temperature Range
-40C to +150C

Input Voltage
1200V (Collector-Emitter Voltage)

Size
Approx. 134mm x 45mm x 30mm

Weight
Approx. 350g

Technology
Trench Field Stop IGBT

Mounting Type
Screw Mount

Isolation Voltage
2500V AC (1min)

Collector Current (Ic)
150A

Module Structure
Half-Bridge

Switching Frequency
Up to 20kHz

Package
Standard Power Module

Gate Emitter Voltage
+/-20V

RoHS Compliance
Yes

GD150HFX120C2S STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD150HFX120C2S STARPOWER IGBT MODULE

Discover the acclaimed GD150HFX120C2S STARPOWER IGBT MODULE-your ultimate solution for robust power electronics. Featuring an astounding collector current of 150A, half-bridge structure, and unbeatable isolation voltage of 2500V AC, this module guarantees reliability and performance in demanding environments. Engineered using trench field stop IGBT technology and RoHS compliant, it excels in industrial motor drives, inverters, UPS, and power supplies. The standard power package with screw mount ensures easy installation. Try now and grab this hot deal from a leading distributor, importer, and supplier in India.

Expansive Applications & Competitive Advantages

Beyond motor drives and inverters, the GD150HFX120C2S is ideal for applications such as renewable energy systems and high-frequency power supplies. Its primary competitive advantages include robust switching up to 20kHz and a typical power dissipation rating of 600W. The module's rugged design ensures outstanding usage across varied industrial segments, delivering high efficiency, superior thermal stability, and operational reliability even under extreme temperature ranges from -40C to +150C.

Export Markets, Packaging, and Sample Details

Serving major export markets across Asia, Europe, and the Middle East, the GD150HFX120C2S is shipped post order completion with secure, anti-static packaging for safe handling. Upon request, samples may be offered for a nominal charge, enabling clients to evaluate product quality and suitability prior to bulk purchase. Each shipment is carefully monitored to ensure accurate packaging and prompt delivery, upholding the highest standards of international trade.

FAQ's of GD150HFX120C2S STARPOWER IGBT MODULE:

Q: How can the GD150HFX120C2S STARPOWER IGBT MODULE be integrated into industrial systems?

A: The module's half-bridge structure and screw mount design allow for straightforward integration into various industrial systems, including motor drives, inverters, and UPS units. Ensure compatibility with system voltage and current ratings before implementation.

Q: What benefits does the Trench Field Stop IGBT technology offer in this module?

A: Trench Field Stop IGBT technology provides superior switching efficiency, reduced conduction losses, and enhanced thermal management, allowing the module to perform reliably in high-current and high-voltage applications.

Q: When is a sample of the GD150HFX120C2S available for evaluation?

A: Samples can typically be requested during the initial inquiry stage. Upon agreement, samples are provided for a nominal charge, facilitating quality and compatibility assessments before order completion.

Q: Where are the main export markets for the GD150HFX120C2S module?

A: This module is exported to markets in Asia, Europe, and the Middle East, catering to diverse industrial segments that require high-performance power electronics.

Q: What is the process for ordering the GD150HFX120C2S from a distributor in India?

A: Begin by placing an inquiry with the distributor or importer. After order confirmation and fulfillment of commercial terms, the product is packaged securely and dispatched, ensuring prompt and safe order completion.

Q: How does the isolation voltage feature enhance the safety of the GD150HFX120C2S?

A: With an unbeatable 2500V AC isolation voltage for one minute, the module provides exceptional insulation between circuits, significantly reducing the risk of electrical faults and enhancing overall system safety.
