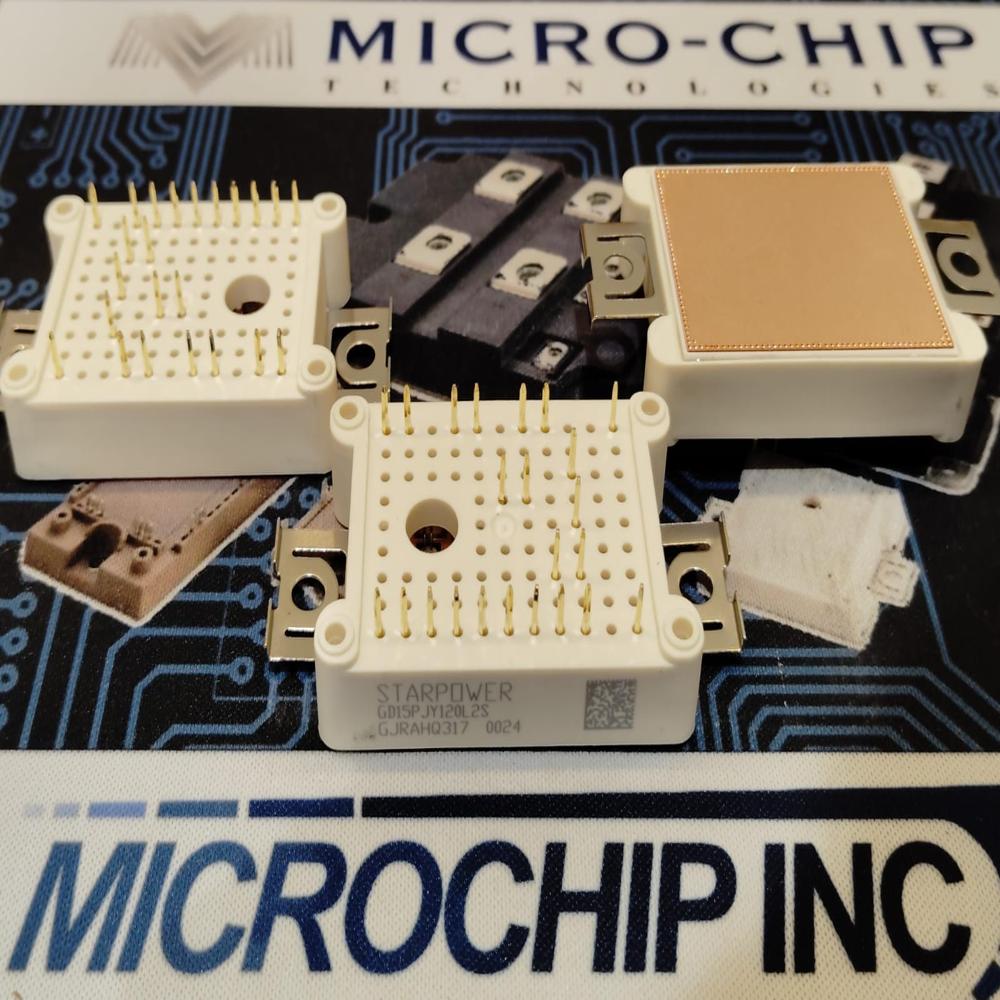

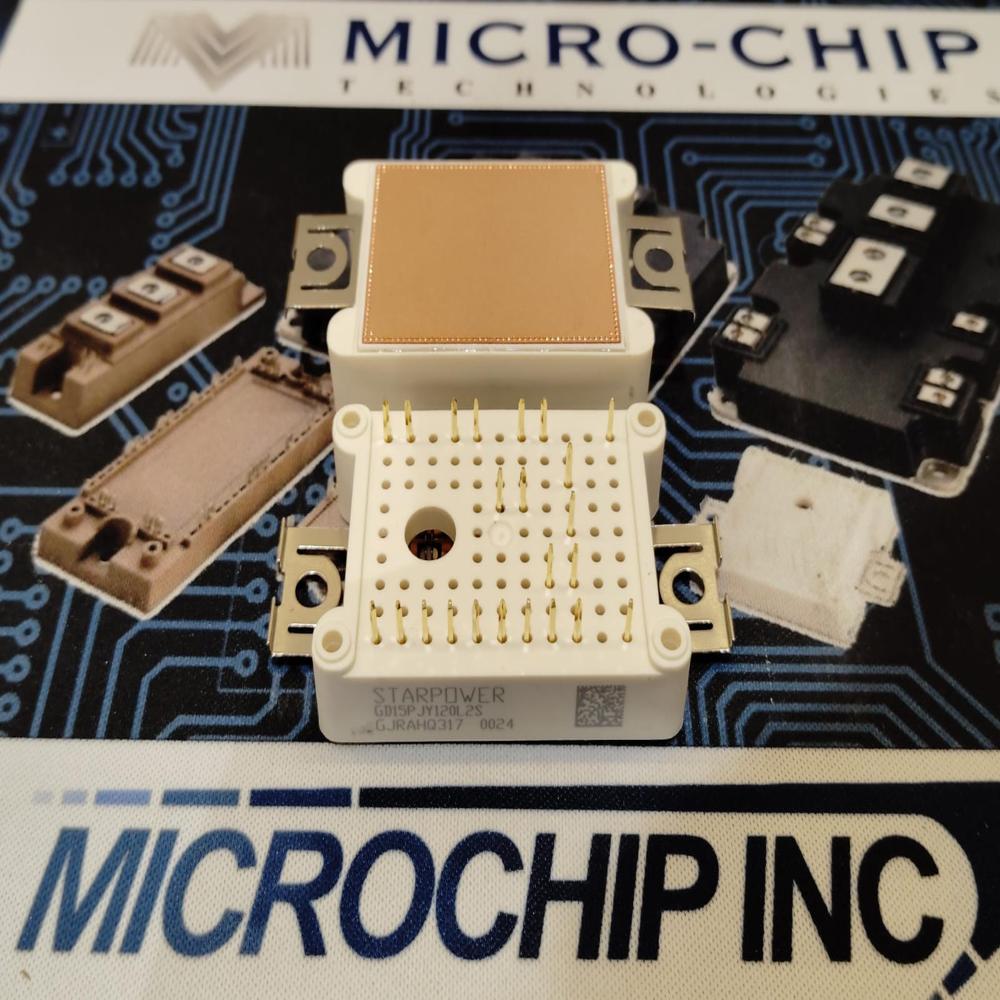

GD15PJY120L2S STARPOWER IGBT MODULE

Name: GD15PJY120L2S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD15PJY120L2S STARPOWER IGBT MODULE Specification

Interface
Screw terminal

Response Time
Fast switching, typical IGBT response

Input
Control signal

Usage
Industrial Inverter, Motor Drives, UPS, Power Supply

Power Supply
Electric

Operating Temperature
-40C to +150C

Components
Internal IGBT and FWD (Free Wheeling Diode)

Power Source
Industrial power supply

Output
High power switching output

Features
Low saturation voltage, high reliability, fast switching, RoHS compliant

Thermal Conductivity
Optimized ceramic baseplate (refer datasheet)

Product Type
IGBT Module

Application
Industrial Automation, Power Electronics, Motor Control

Rated Voltage
1200V

Supply Voltage
1200V (Collector-Emitter) Maximum

Size
Standard module size (See below for actual dimensions)

Dimension (L*W*H)
106 mm x 60 mm x 30 mm (approx.)

Function
IGBT power module for high voltage and high current switching applications

Color
Black / White (main body) with clear labeling

Weight
Approx. 150g

Current Rating
15A

Thickness
Standard module thickness (Refer to datasheet for specifics)

Capacity
15A Collector Current (IC)

Frequency
50/60 Hz (Application dependent)

Part Number
GD15PJY120L2S

Insulation Voltage
2500V AC/min (between terminals and baseplate)

Technology
NPT IGBT + FWD Diode

Isolation
Electrical isolation between terminals and base

Mounting Type
Screw mount

Collector-Emitter Saturation Voltage (Vce(sat))
Typ. 2.0V @ 25C, IC=15A

Lifecycle Status
Active production

Case Material
High strength resin + ceramic baseplate

Gate Emitter Voltage (VGE)
20V Max

Module Type
Half-Bridge IGBT Module

Cooling
Baseplate for heatsink mounting

Package Type
Industrial modular block

GD15PJY120L2S STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About GD15PJY120L2S STARPOWER IGBT MODULE

The GD15PJY120L2S STARPOWER IGBT Module, a popular and affordable choice for industrial automation, is a must-have component for modern power electronics. Boasting a top-notch Half-Bridge design, this champion module offers imposing electrical isolation (2,500V AC/min), robust screw mounting, and a durable resin-ceramic build. It excels in industrial inverters, motor drives, and UPS systems, featuring advanced NPT IGBT + FWD diode technology, a 15A collector rating, and rapid switching capabilities. Trusted for reliability and efficiency, this active, RoHS-compliant module stands out in its class.

Outstanding Features and Usage of GD15PJY120L2S STARPOWER IGBT Module

Packed with superior features, the GD15PJY120L2S STARPOWER IGBT Module is designed for high voltage and current switching, supporting up to 1200V and 15A. Its high strength resin and ceramic case ensure durability, while fast response and low Vce(sat) enhance system efficiency. Application places include industrial automation, motor control, UPS, and power supply systems. This module is perfect for engineers seeking reliable, quick-switching, and high-performance solutions in challenging environments.

Supply, Certifications, and Payment Terms at a Glance

GD15PJY120L2S STARPOWER modules are consistently stocked, supporting smooth supply chains for distributors and importers. Certified to RoHS standards, it ensures environmental compliance. Competitive asking prices are available, and multiple payment terms are accepted for your convenience. Freight options include standard and express shipping to meet urgent requirements across India. With quick order processing and transparent logistics, your industrial projects stay on schedule and within budget.

FAQ's of GD15PJY120L2S STARPOWER IGBT MODULE:

Q: How do I mount the GD15PJY120L2S STARPOWER IGBT Module for optimal heat dissipation?

A: The module is designed for screw mounting onto a heatsink, ensuring efficient thermal management. Proper contact between the ceramic baseplate and heatsink is essential for maximizing heat dissipation.

Q: What applications benefit most from using the GD15PJY120L2S STARPOWER IGBT Module?

A: This IGBT module excels in industrial inverters, UPS units, motor drives, and advanced power supply systems. It is ideal wherever high-voltage and high-current switching is required with reliable performance.

Q: When should I consider the GD15PJY120L2S over other IGBT modules?

A: Choose the GD15PJY120L2S when you need a module with 15A collector current, 1200V rated voltage, and superior insulation. It works best in demanding industrial automation and power electronics applications.

Q: Where can I purchase the GD15PJY120L2S module and what are the shipping options?

A: You can acquire the module from authorized distributors, suppliers, and importers across India, with available freight options including express shipping for urgent needs.

Q: What certifications does the GD15PJY120L2S module carry?

A: This product is RoHS compliant, ensuring restricted use of hazardous substances and alignment with environmental standards for industrial components.

Q: How does the advanced technology in this module benefit my industrial setup?

A: By integrating NPT IGBT and FWD diode technology, the module offers fast switching, lower voltage drops, and robust reliability, improving efficiency and performance in your applications.
