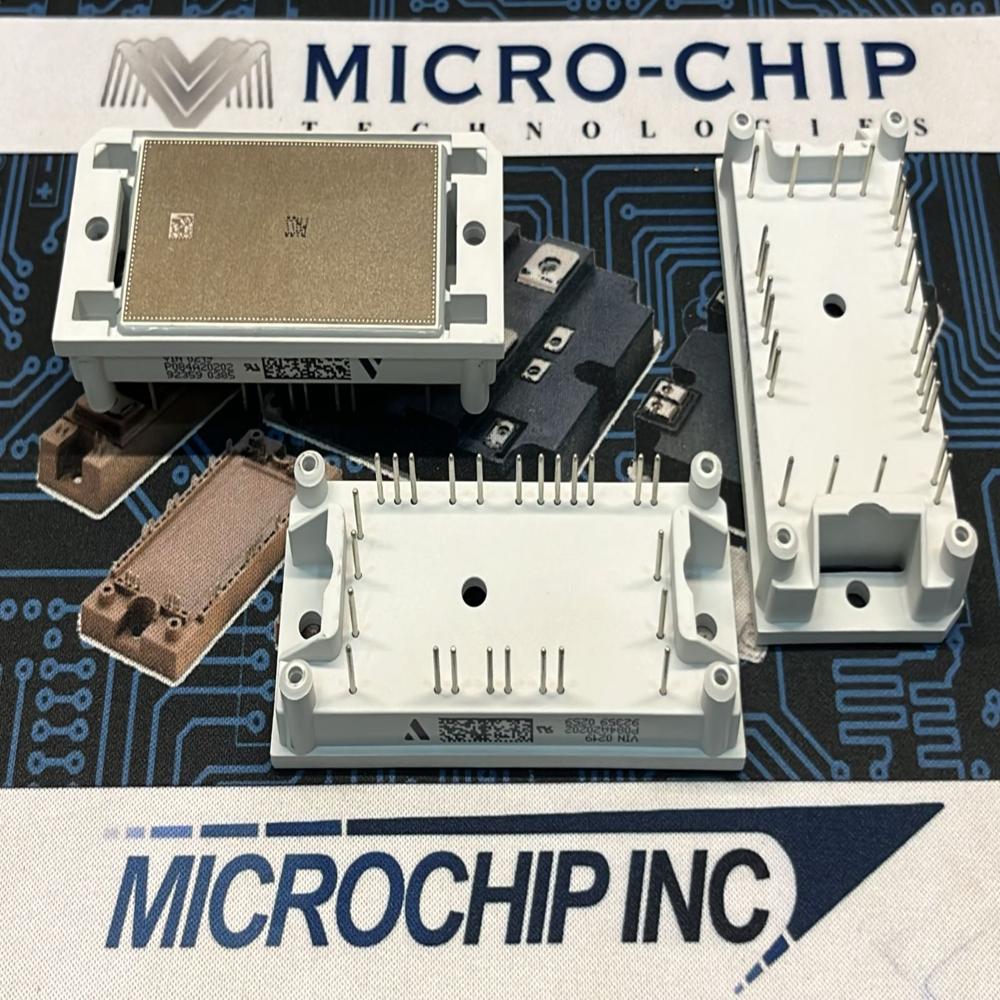

P084A20202 IGBT Module

Name: P084A20202 IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

P084A20202 IGBT Module Specification

Operating Temperature
-40C to +150C

Interface
Pin Terminal connection

IP Rating
Not Rated (Typically used in enclosed systems)

Power Source
Electrical

Thermal Conductivity
High-performance thermal baseplate

Input
Standard Gate Drive Signal

Usage
Industrial Power Control, Inverter, Motor Drives

Power Supply
Electrical

Response Time
Fast Switching: <1 s

Components
IGBT, Free Wheeling Diode, Substrate, Terminal Pins

Output
High Power Output Switching

Features
Low Saturation Voltage, High Efficiency, Rugged Construction

Product Type
IGBT Module

Application
Power Converters, UPS, Motor Control, Renewable Energy Systems

Rated Voltage
1200V

Supply Voltage
1200V DC

Size
Standard module size

Dimension (L*W*H)
108 mm x 62 mm x 35 mm

Function
Insulated Gate Bipolar Transistor (IGBT) Module for switching and amplification in power electronics

Color
Black / White

Weight
Approx. 350g

Thickness
Approx. 35 mm

Capacity
200A Continuous Collector Current

Current Rating
200A

Frequency
0-20 kHz switching frequency

Gate-Emitter Voltage
20V Max

Cooling Method
Baseplate for external heatsink

Isolation Voltage
2500V AC (1 min) between terminals and baseplate

Storage Temperature
-40C to +125C

Case Material
Molded plastic

Package Type
Module

Mounting Type
Screw Mount/Baseplate Mount

Collector-Emitter Saturation Voltage
2.0V (typ) at rated current

Pulse Collector Current
400A (maximum)

P084A20202 IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About P084A20202 IGBT Module

Experience grand industrial efficiency with the P084A20202 IGBT Module, now available at a reduced price-grab yours today and utilise our exclusive offer. This blue-ribbon module features a potent 1200V rated voltage, delivering continuous collector current up to 200A and pulse currents to 400A. Its screw/baseplate mounting ensures rugged, reliable installation, supported by high-performance thermal management. Ideal for power converters, UPS, and renewable energy systems, this IGBT module offers low saturation voltage for maximum efficiency. With molded plastic construction and fast switching response under 1 s, it's a powerful addition to any power electronics application.

Versatile Excellence for Power Applications

The P084A20202 IGBT Module delivers potent switching capabilities for both specific and broad industrial uses. Its grand performance advantage lies in fast switching, high thermal conductivity, and rugged construction. This module is highly valued in commercial power control, inverters, and renewable energy systems, ensuring enhanced efficiency and reliability. Whether for specialized power converters or general motor control tasks, its blue-ribbon engineering makes it a top choice for demanding commercial environments.

Comprehensive Domestic Market Service and Delivery

Serving the Indian domestic market, the P084A20202 IGBT Module is readily available with sample options to evaluate before bulk orders. Our streamlined order processing ensures timely delivery, typically within standard business lead times. Enjoy competitive list price options and flexible rates to suit all procurement needs. Distributors, importers, and suppliers across India can expect reliable support and efficient logistics, making it easier than ever to equip your industrial electronics projects promptly.

FAQ's of P084A20202 IGBT Module:

Q: How can the P084A20202 IGBT Module improve industrial power control systems?

A: The module offers high efficiency and potent performance for industrial power control systems due to its fast switching, high current capability, and robust thermal management, resulting in reduced energy losses and increased reliability.

Q: What applications is the P084A20202 IGBT Module specifically designed for?

A: This IGBT module is engineered for industrial power converters, UPS, renewable energy systems, inverters, and motor drives, making it ideal for a variety of high-power industrial applications.

Q: When should I select this module over traditional transistors?

A: Choose the P084A20202 IGBT Module when high switching speed, elevated voltage and current handling, and rugged operation are required, especially in demanding environments such as factories and renewable energy installations.

Q: Where can I order the P084A20202 IGBT Module in India?

A: Authorized distributors, importers, and suppliers throughout India offer this product. Sample availability and support can be accessed through verified electronic component suppliers.

Q: What is the process for obtaining a sample, and how quickly can I expect delivery?

A: To obtain a sample, contact your distributor to request one along with your list price inquiry. After order processing, delivery typically follows standard business shipping times.

Q: How does the module's cooling method benefit users?

A: The baseplate facilitates efficient external heatsink integration, providing superior thermal dissipation and enabling reliable operation at high currents and temperatures.
