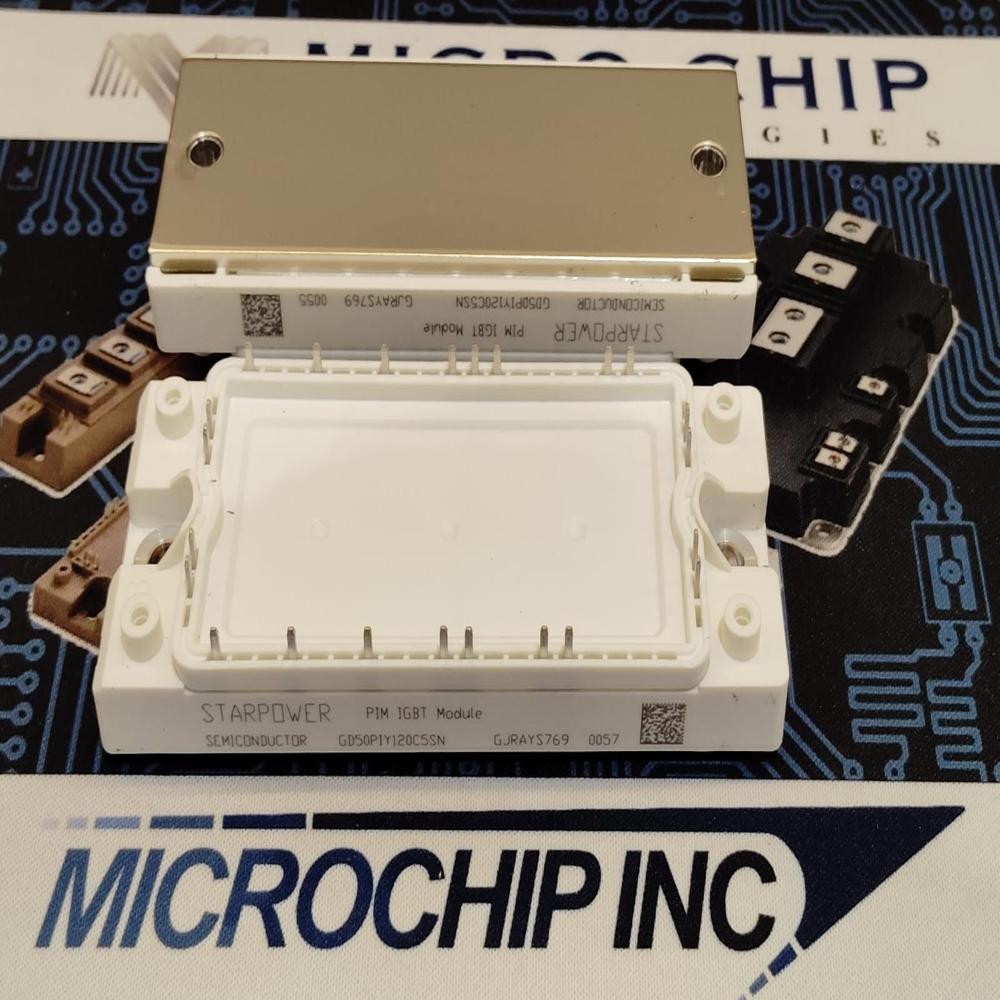

GD25PIY1205S STARPOWER PIM IGBT MODULE

Name: GD25PIY1205S STARPOWER PIM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2400.0 INR
Availability: InStock

Price 2400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD25PIY1205S STARPOWER PIM IGBT MODULE Specification

Power Source
Electrical, system dependent

Features
Compact design, high efficiency, integrated driver and protection

Operating Temperature
-40C to +150C

IP Rating
Not rated (depends on system enclosure)

Response Time
Fast switching characteristic of IGBT

Power Supply
AC/DC, dependent on system application

Usage
Inverter, UPS, Motor Drives, Industrial Electronics

Input
Control signal input, 15-18V gate drive

Output
IGBT switched load

Components
Integrated IGBT, Diode, NTC thermistor

Interface
Screw terminal, solder pin

Sensors Specification
Integrated NTC thermistor

Thermal Conductivity
Baseplate optimized for heat sinking

Product Type
IGBT PIM Module

Application
Industrial Automation, Power Conversion Systems

Rated Voltage
1200V

Supply Voltage
1200V max (Collector-Emitter)

Size
Standard module size

Dimension (L*W*H)
134mm x 62mm x 38mm

Function
Power Integrated Module (PIM) for motor drive and power inverter applications

Color
Standard industrial black with white label

Weight
Approx. 400g

Thickness
Module type, height approx. 38mm

Current Rating
50A

Capacity
Current Handling up to 50A, 1200V

Frequency
Up to 20kHz switching frequency

Isolation Voltage
2500V AC min (1-minute test)

PWM Capability
Supports high-frequency PWM

Module Series
GD25PIY1205S

Collector-Emitter Voltage (Vces)
1200V

Collector Current (Ic)
50A

RoHS Status
Compliant

Lifecycle Status
Active

Baseplate Material
Copper (Cu) with AlSiC or similar substrate

Gate Drive Voltage
15V typical

Protection Features
Short-circuit, over-temperature with NTC sensor, under-voltage lockout (by external design)

Cooling Requirement
External heatsink required

IGBT Configuration
3-phase input rectifier + 3-phase inverter (PIM)

Mounting Type
Screw or clamp mount

GD25PIY1205S STARPOWER PIM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

GD25PIY1205S STARPOWER PIM IGBT MODULE About

Reserve the GD25PIY1205S STARPOWER PIM IGBT MODULE now to secure instant savings on an exceptional power device, designed for monumentally efficient industrial automation, inverters, and motor drives. This flawless module boasts a 3-phase input rectifier + 3-phase inverter configuration, delivering a collector-emitter voltage of 1200V and 50A current handling. Benefit from scarce, in-demand features like robust short-circuit protection, fast IGBT switching, and a copper baseplate for superior heat transfer. Stock is limited, so act swiftly to equip your facility with this high-performance, RoHS-compliant power solution.

Directions, Commercial Uses, and Competitive Advantages

The GD25PIY1205S STARPOWER PIM IGBT MODULE is engineered for simple screw or clamp mounting, with external heatsink cooling. Ideal for use in UPS systems, motor drives, and power conversion platforms, its monumental performance surpasses competitors through high-frequency PWM capability, integrated NTC thermistor, and high isolation voltage. This compact, flawless module provides exceptional reliability in industrial automation, dramatically boosting system efficiency and operational life.

Sample Policy, Domestic Market Focus, and Supply Ability

Our sample policy ensures prompt proposal amount quotations and secure packaging for safe shipment. The GD25PIY1205S module is available throughout India, serving the main domestic industrial sectors with consistent supply ability. Clients benefit from flexible order options and reliable distributor support for both standard and custom packaging needs. We streamline order processing for your convenience, delivering this exceptional module swiftly and securely to your organization.

FAQ's of GD25PIY1205S STARPOWER PIM IGBT MODULE:

Q: How do I properly install the GD25PIY1205S STARPOWER PIM IGBT Module?

A: Install the module using screw or clamp mounting methods on an appropriate external heatsink. Ensure correct gate drive voltage (15V) and follow standard safety practices for high voltage devices.

Q: What commercial applications benefit most from this IGBT module?

A: This module is optimized for use in industrial automation, power conversion systems, motor drives, inverters, and uninterruptible power supplies (UPS), offering high performance and reliability.

Q: When should I consider using this module over conventional solutions?

A: Use this module when your project demands high efficiency, integrated driver and protection circuitry, compact design, and robust switching performance, especially at 1200V/50A ratings.

Q: Where can I source the GD25PIY1205S module within India?

A: The module is distributed nationwide in India through authorized distributors, importers, and suppliers specializing in power electronics solutions.

Q: What are the primary benefits of the integrated NTC thermistor?

A: The integrated NTC thermistor provides real-time temperature monitoring, enabling efficient protection against over-temperature scenarios, which extends the module's operational life and reliability.
