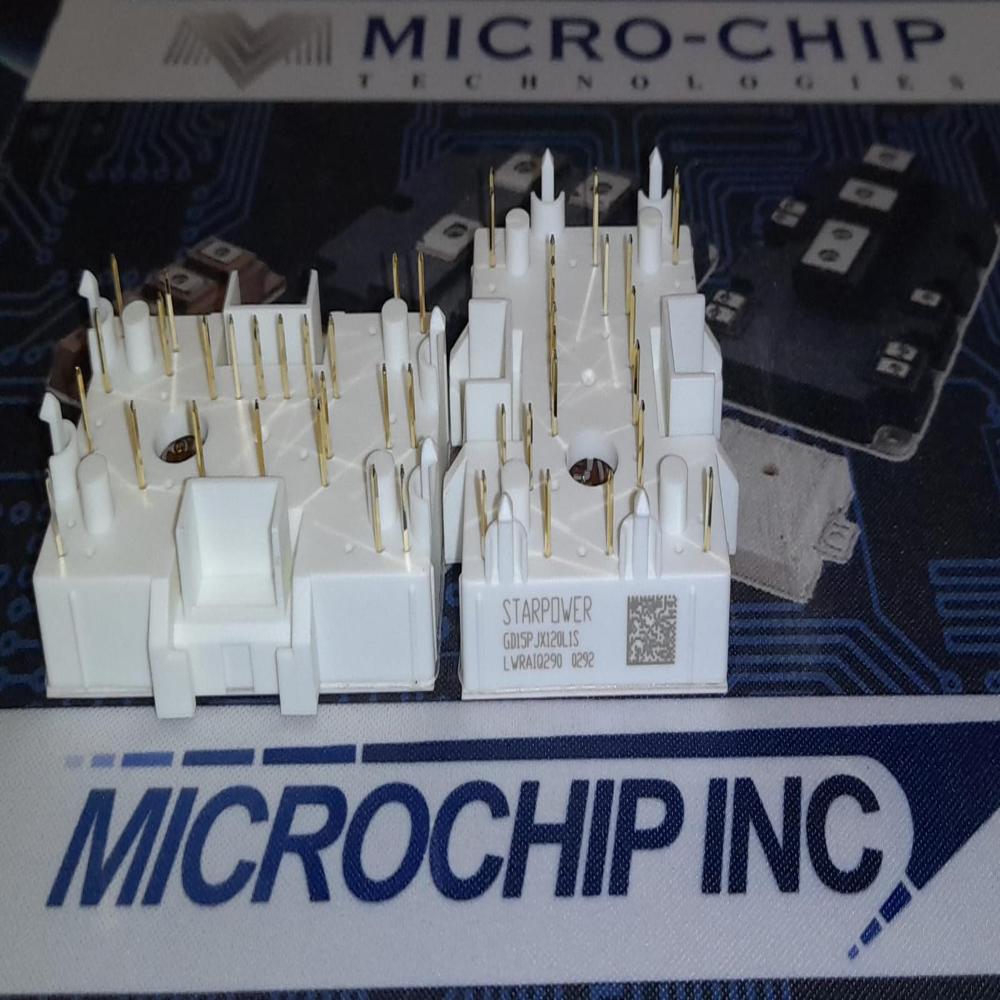

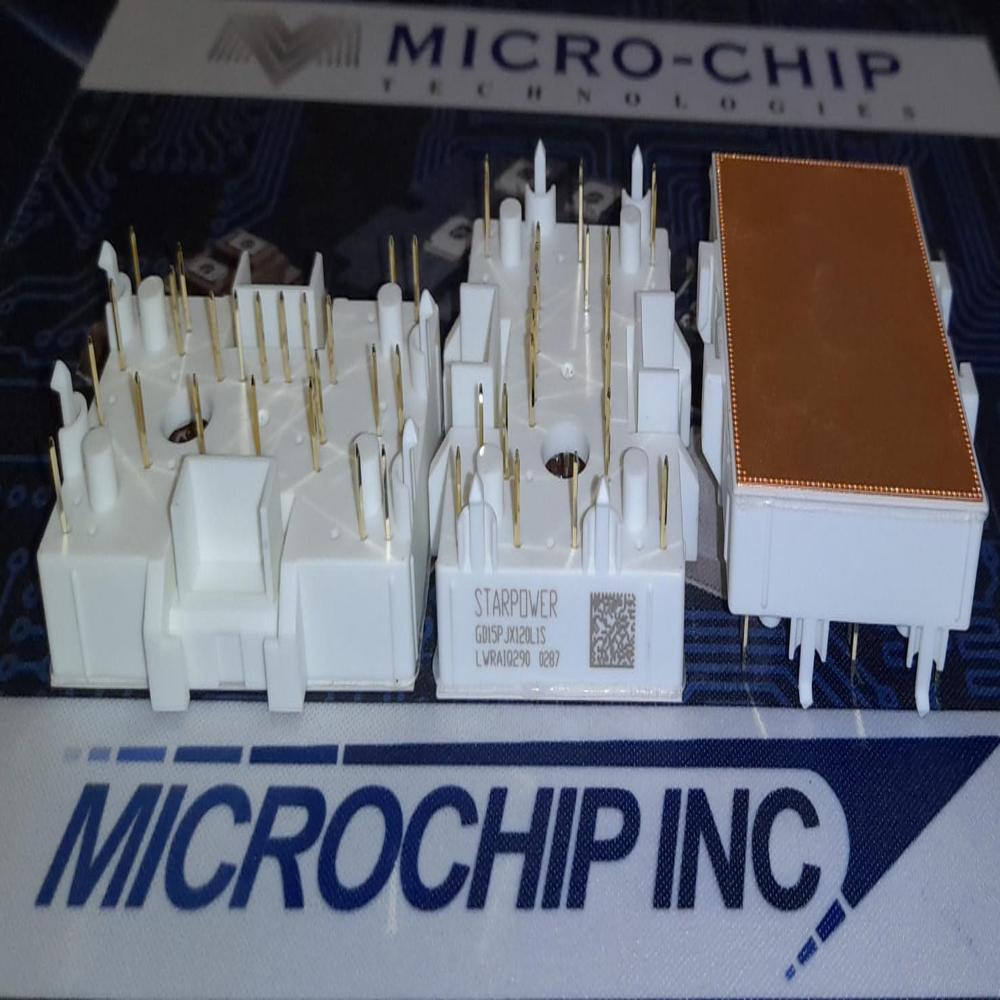

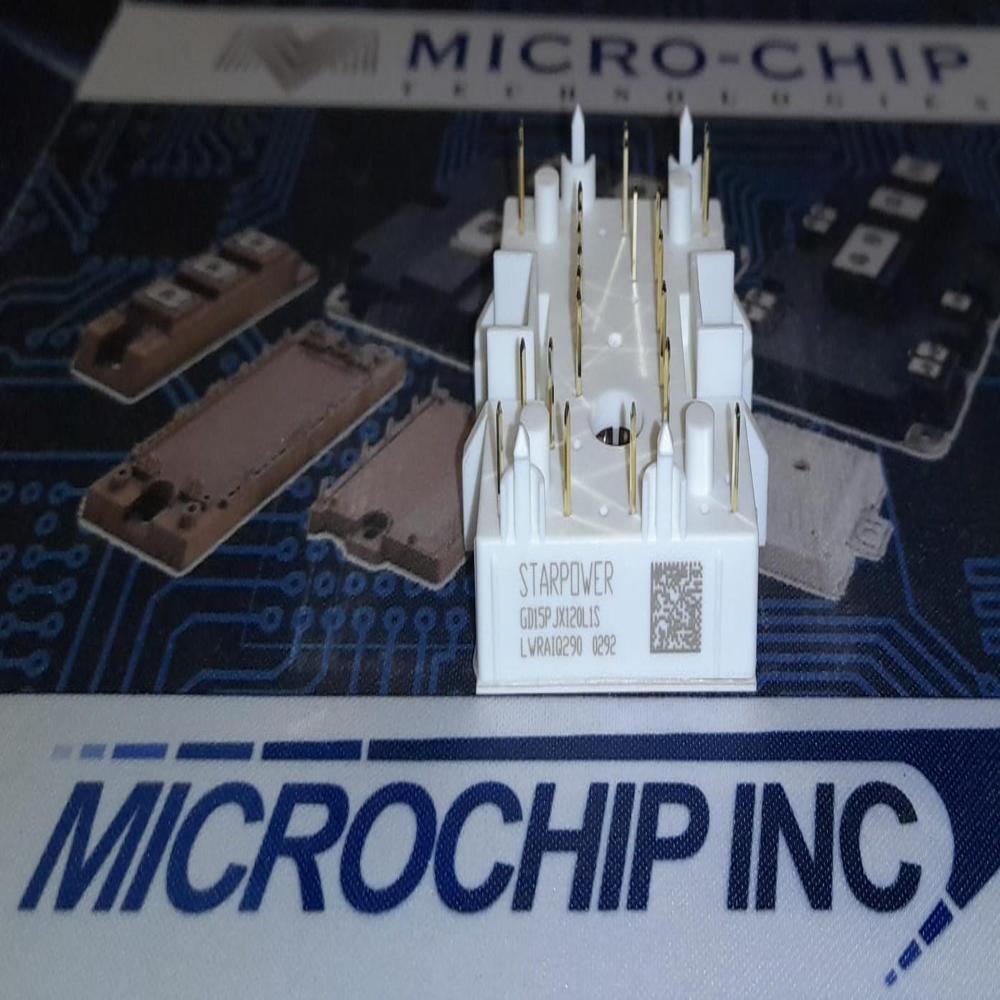

GD15PJX120L1S STARPOWER IGBT MODULE

Name: GD15PJX120L1S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD15PJX120L1S STARPOWER IGBT MODULE Specification

Output
High Current Switching Output

Usage
Industrial and Power Electronic Applications

Interface
Screw Terminal & Solder Pin

Power Source
External DC/AC power

Components
IGBT, Fast Recovery Diode

Response Time
Fast switching capability

Thermal Conductivity
Copper base plate for efficient heat dissipation

Features
Low saturation voltage (Vce), robust design, high reliability

Power Supply
Suitable for DC/AC circuits

Input
Standard IGBT Gate Drive

Operating Temperature
-40C to +150C (Tj)

Product Type
IGBT Module

Application
Inverters, UPS, Motor Drives, Power Supply Units

Rated Voltage
1200V

Supply Voltage
Up to 1200V

Size
Standard compact industrial case

Dimension (L*W*H)
94 mm x 34 mm x 38 mm (approx.)

Function
Insulated Gate Bipolar Transistor (IGBT) power module for efficient switching and power control

Color
Black / White Label with Metal Base

Weight
Approx. 230g

Thickness
Module housing - standard type

Capacity
15A current rating

Current Rating
15A

Frequency
Up to 20 kHz switching

Isolation
Module base electrically isolated from terminals

RoHS Compliance
Yes

Short Circuit Withstand Time
10s

Reverse Voltage
1200V

Mounting Type
Panel Mount / Screw Mount

Gate Emitter Voltage (Vge)
+/-20V

Insulation Voltage
2500Vrms (base plate to terminals)

Collector Current (Ic)
15A

Model Number
GD15PJX120L1S

Collector-Emitter Voltage (Vce)
1200V

Package Type
Industry standard IGBT module

GD15PJX120L1S STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD15PJX120L1S STARPOWER IGBT MODULE

Buy online the splendid GD15PJX120L1S STARPOWER IGBT MODULE, a monumental solution in power electronics. This top-rated module is engineered for panel or screw mounting, offering an enlightened choice for industrial efficiency. Insulation voltage stands at 2500Vrms, supporting 1200V collector-emitter voltage and 15A current. With robust short circuit endurance and rapid response, it's suited for inverters, UPS, power supplies, and motor drives. Its copper base plate ensures excellent thermal conductivity, while RoHS compliance guarantees environmental reliability. Secure this power module on sale now from leading distributors, importers, and suppliers in India.

Material Features and Surface Applications of GD15PJX120L1S STARPOWER IGBT MODULE

The GD15PJX120L1S STARPOWER IGBT MODULE features an industry-standard package with a rugged copper base plate, ensuring efficient thermal management and dependable insulation. Designed for panel mount or screw mount use, its standardized module housing makes installation straightforward. Thanks to its insulated base and robust material construction, this module is ideal for a variety of industrial application surfaces such as control panels, metal chassis, and power electronic enclosures, ensuring high reliability in demanding environments.

Packaging, Payment Terms, and Certifications for GD15PJX120L1S STARPOWER IGBT MODULE

GD15PJX120L1S STARPOWER IGBT MODULE comes in secure, anti-static packaging to preserve integrity during transit. Bulk and retail packaging options are available based on your estimate of usage. Payment terms are flexible for buyers, often aligning with standard industry market values and sale price offers during promotions. Every module is RoHS compliant, ensuring alignment with global certification standards and industrial requirements. Certification documents and technical datasheets are included for your convenience.

FAQ's of GD15PJX120L1S STARPOWER IGBT MODULE:

Q: How is the GD15PJX120L1S STARPOWER IGBT MODULE typically used in industrial applications?

A: This IGBT module is primarily used in inverters, UPS systems, power supply units, and motor drives, offering reliable high current switching and efficient power control for demanding industrial environments.

Q: What are the main benefits of buying the GD15PJX120L1S online from authorized distributors in India?

A: Purchasing online provides convenience, access to sale prices, genuine certification, prompt shipping, and after-sale support from recognized distributors, importers, and suppliers in India.

Q: Where can the GD15PJX120L1S IGBT MODULE be mounted and what makes its installation straightforward?

A: The module is designed for panel or screw mounting in industrial environments. Its standardized housing and screw terminals make installation efficient on control panels or industrial surfaces.

Q: What certifications does the GD15PJX120L1S STARPOWER module have for compliance and safety?

A: It is RoHS compliant, assuring users of its adherence to environmental and safety standards expected in industrial and power electronics applications.

Q: How does the copper base plate of the module enhance its performance?

A: The copper base plate provides splendid thermal conductivity, which helps in dissipating heat efficiently and ensures reliable operation even at higher switching frequencies.

Q: What is the standard process for payment and documentation when buying the GD15PJX120L1S module?

A: Orders typically offer flexible payment terms at market value, and each purchase is accompanied by certifications, technical datasheets, and secure anti-static packaging.
