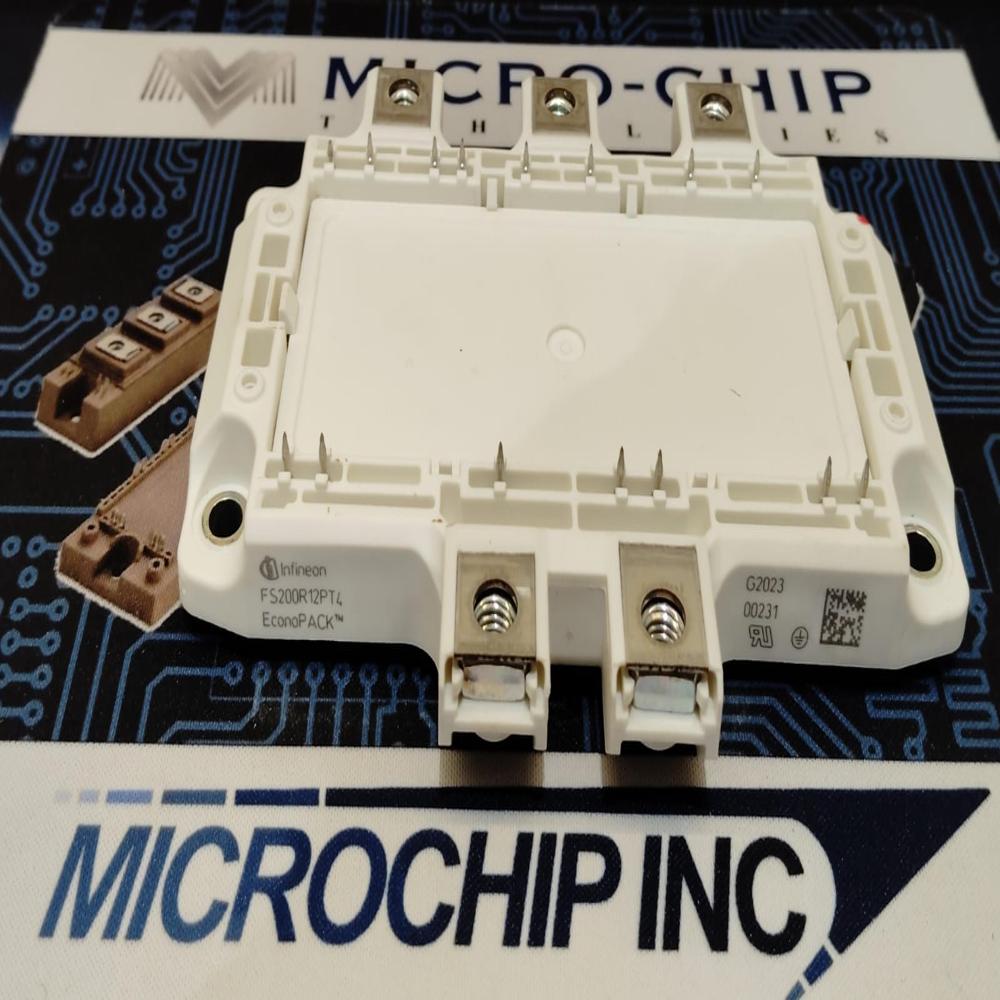

FS200R12PT4 INFINEON IGBT MODULE

Name: FS200R12PT4 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FS200R12PT4 INFINEON IGBT MODULE Specification

Thermal Conductivity
Optimized for module base, ceramic isolation substrate

Response Time
Fast switching (typical IGBT response in nanoseconds)

Components
IGBTs and free-wheeling diodes

Interface
Screw terminals for power connections, flat terminals for gate signal

Power Supply
Electrical

Operating Temperature
-40C to +150C junction temperature

Output
Switched output current up to 200A

IP Rating
Not provided, module must be installed in protective housing

Power Source
External power supply required

Features
Low saturation voltage, high short-circuit capability, low EMI, robust design

Usage
Industrial power electronics, motor drives, inverters and power supplies

Input
Gate control signal (standard IGBT drive voltage)

Product Type
IGBT Power Module

Application
Industrial automation, motor control, renewable energy conversion

Rated Voltage
1200V

Supply Voltage
Up to 1200V DC

Size
Standard SEMITRANS 3 package

Dimension (L*W*H)
130mm x 38mm x 30mm (approx.)

Function
Insulated Gate Bipolar Transistor (IGBT) Module for power switching and inverter applications

Color
White / Gray

Weight
Approx. 500g

Capacity
200A continuous collector current

Current Rating
200A

Thickness
Module body approx. 30mm

Frequency
Up to 20kHz switching frequency

Reverse Recovery Time
<1s (for free-wheeling diodes)

Vce(sat) (Collector-Emitter Saturation Voltage)
2.1V typical at 25C and rated current

IGBT Technology
Trench/Fieldstop 4 (IGBT4)

Package Type
SEMITRANS 3 module

Turn-off Delay Time
400ns (typical)

Compliance
RoHS compliant

Housing Material
High-performance plastic, UL compliant

Control Type
Voltage controlled (IGBT gate drive circuit required)

Short Circuit Withstand Time
10s at 1500A (typical)

Mounting Type
Screw mount to heat sink

Isolation Voltage
2500V AC (RMS), module base to terminals

Configuration
Module - Dual IGBT with integrated NTC thermistor

Turn-on Delay Time
100ns (typical)

Part Number
FS200R12PT4

FS200R12PT4 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About FS200R12PT4 INFINEON IGBT MODULE

Discover the acclaimed FS200R12PT4 INFINEON IGBT MODULE-a triumphant choice for industrial power solutions. This new, premier module features an unparalleled dual IGBT configuration with integrated NTC thermistor, boasting a collector-emitter saturation voltage of just 2.1V at 25C and robust 2500V AC isolation. Housed in a high-performance, RoHS and UL-compliant SEMITRANS 3 package, it supports up to 200A continuous output and 1200V, making it ideal for motor drives and renewable energy. Enjoy a hot deal from India's leading distributor, importer, and supplier.

Unrivaled Advantages and Industrial Versatility

The FS200R12PT4 INFINEON IGBT MODULE delivers unmatched efficiency in switching and reliability, setting itself apart with low EMI, rapid response, and superior thermal conductivity. Its robust design and low saturation voltage offer optimal performance across industrial automation, renewable energy, and motor control applications. High short-circuit tolerance and flexible mounting make this module a preferred solution in diverse, demanding environments, giving users a significant competitive edge in power electronics and control systems.

Swift Delivery and Reliable Supply Across India

We guarantee prompt quotation and seamless logistics for the FS200R12PT4 INFINEON IGBT MODULE. Expect reliable arrival timelines, tailored to your project requirements. Our robust supply ability covers major domestic markets, ensuring consistent availability and efficient order fulfillment. Benefit from our dedicated support team, who coordinate each process step-from initial inquiry to final delivery-so your operations experience minimal downtime and maximum productivity.

FAQ's of FS200R12PT4 INFINEON IGBT MODULE:

Q: How is the FS200R12PT4 INFINEON IGBT MODULE typically used in industrial applications?

A: The FS200R12PT4 module is primarily used in industrial power electronics, such as motor drives, automation systems, power inverters, and renewable energy conversion, due to its high efficiency and fast switching capabilities.

Q: What are the key benefits of choosing this IGBT module over other options?

A: This module offers low saturation voltage, high short-circuit resilience, rapid switching, and reliable operation up to 200A, providing exceptional performance and operational safety for demanding industrial environments.

Q: Where can I purchase the FS200R12PT4 INFINEON IGBT MODULE in India?

A: You can acquire this IGBT module through leading distributors, importers, and suppliers in India who offer prompt quotations, local inventory, and dedicated customer support.

Q: What is the typical delivery time and supply process for this module?

A: Delivery times depend on order quantity and current stock. After receiving your quotation request, our logistics team ensures timely shipment and provides updates until the module arrives at your specified location.

Q: When should a protective housing be considered for installation?

A: As the module does not include an IP rating, it should always be installed within a protective housing to safeguard against environmental factors and ensure safe operation.
