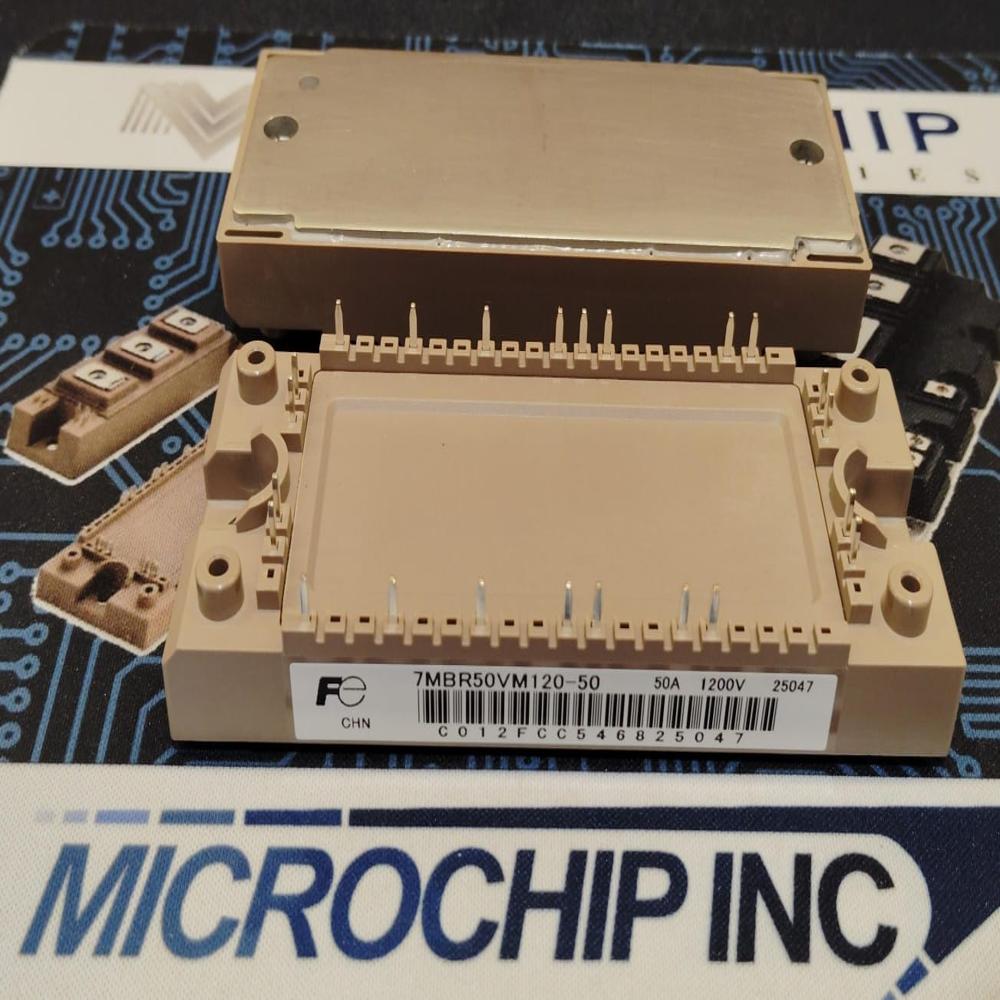

7MR50VM120-50 FUJI IGBT MODULE

Name: 7MR50VM120-50 FUJI IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 4800.0 INR
Availability: InStock

Price 4800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

7MR50VM120-50 FUJI IGBT MODULE Specification

Input
Signal (Gate Drive)

Power Supply
External, Required

Response Time
Fast switching response

Thermal Conductivity
Optimized baseplate for heat transfer

Operating Temperature
-40C to +150C

Features
High efficiency, low loss, robust construction

Interface
Power and signal terminals

Components
IGBT, Freewheeling Diode

Output
High Voltage/Current

Usage
Inverters, industrial drives, motor controls, power supplies

Power Source
DC

Product Type
IGBT Power Module

Application
Industrial automation, variable frequency drives, power electronics

Rated Voltage
1200V

Supply Voltage
Up to 1200V

Size
Standard Fuji module size

Dimension (L*W*H)
Approx. 130mm x 60mm x 30mm

Function
Insulated Gate Bipolar Transistor (IGBT) power module for high-speed switching and power control

Color
Black

Weight
Approx. 350g

Current Rating
50A

Capacity
50A (collector current)

Thickness
Standard module thickness

Frequency
High Frequency Switching

Brand Name
Fuji Electric

Baseplate Material
Copper

Model Number
7MR50VM120-50

Collector-Emitter Voltage (Vce)
1200V

Collector Current (Ic)
50A

Reverse Voltage
1200V

Mounting Type
Screw Mount

Gate Threshold Voltage (Vge)
20V max

Cooling Method
Baseplate cooling, heatsink required

Isolation Voltage
2500V AC (1 min)

Storage Temperature
-40C to +125C

Compliance
RoHS Compliant

Lifecycle Status
Active

Package Type
MODULE

Reverse Recovery Time
< 1s

7MR50VM120-50 FUJI IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 7MR50VM120-50 FUJI IGBT MODULE

Unlock dominant performance for your industrial automation needs with the Fuji Electric 7MR50VM120-50 IGBT Module. Engineered for top-tier reliability, this module aces high-frequency switching applications such as inverters, motor controls, and variable frequency drives. Featuring unparalleled isolation voltage (2500V AC) and a robust copper baseplate, it ensures optimal thermal conductivity for efficiency. Its RoHS compliance and active lifecycle status make it a leading choice for power electronics. Personalise your power solutions with this standard-sized, screw-mount, black module-ideal for those who demand excellence and consistency in power control.

Comprehensive Applications & Competitive Edge

The 7MR50VM120-50 FUJI IGBT MODULE shines across surfaces of industrial automation, variable frequency drives, and advanced power electronics. Its ace-in-class efficiency and dominant switching speed deliver an unparalleled advantage for demanding applications, outmatching standard modules. Ideal for inverters, industrial drives, and robust motor controls, this unit is designed to excel in environments requiring reliable, high-voltage, high-current switching. Select this IGBT module for superior operational stability and personalized control over high-power tasks.

Packaging, Market Reach, and Sample Availability

Each 7MR50VM120-50 FUJI IGBT MODULE is supplied in premium protective packaging, safeguarding product integrity during delivery. As a dominant choice for distributors, importers, and suppliers in India's main domestic market, customers can request samples (charges may apply) before order completion. This process ensures absolute confidence in your investment and aligns with top-tier industry standards for quality and service. Order your tailored solution with optional sample testing before full-scale deployment.

FAQ's of 7MR50VM120-50 FUJI IGBT MODULE:

Q: How is the 7MR50VM120-50 FUJI IGBT MODULE typically used in industrial settings?

A: The module is used for high-speed switching and power control in inverters, motor controls, variable frequency drives, and advanced power electronics, providing efficient and reliable performance in demanding industrial environments.

Q: What are the main benefits of using this Fuji Electric IGBT module over other models?

A: This module offers optimized thermal conductivity, fast response time, low loss, and a robust copper baseplate, giving it an edge in efficiency, cooling, and longevity compared to standard alternatives.

Q: Where can I purchase the 7MR50VM120-50 IGBT module?

A: You can obtain this module from authorized distributors, importers, and suppliers specializing in Fuji Electric industrial components, especially within the Indian domestic market.

Q: How is the product packaged, and is a sample available before ordering in bulk?

A: The module is securely packed to prevent damage during transit. Sample units can be provided (with applicable charges) prior to order completion, allowing you to evaluate the product's performance first.

Q: What is the process for integrating the 7MR50VM120-50 into existing systems?

A: Integration involves screw-mount installation with compatible heatsinks, connecting power and signal terminals, and ensuring the module operates within its specified voltage and temperature parameters for safe and optimal performance.

Q: When should this IGBT module be considered for upgrading existing equipment?

A: Consider upgrading to this module when aiming for higher efficiency, advanced thermal management, and faster switching speed in your industrial automation, especially if current modules are underperforming or outdated.
