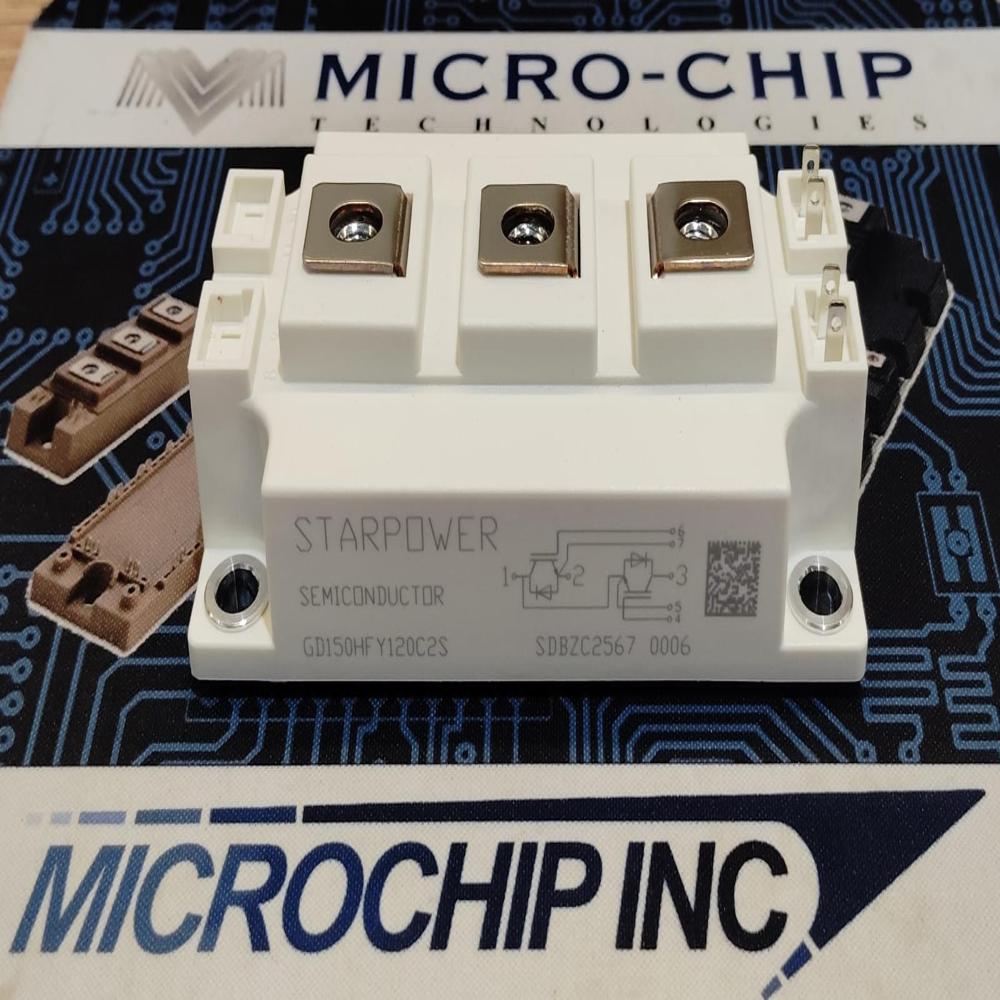

GD150HFY120C2S STARPOWER IGBT MODULE

Name: GD150HFY120C2S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2900.0 INR
Availability: InStock

Price 2900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD150HFY120C2S STARPOWER IGBT MODULE Specification

Components
IGBT, free wheeling diode

IP Rating
N/A (typically mounted in protected environment)

Power Source
External high voltage DC

Thermal Conductivity
Integrated copper base for thermal management

Features
High efficiency, low saturation voltage, high reliability

Input
Control input via gate terminal

Output
Power switching output

Interface
Screw and plug terminal

Usage
Used in inverters, converters, power supplies, and motor drives

Operating Temperature
-40C to +150C

Response Time
Fast switching response, typically <1 s

Power Supply
Electrical

Product Type
IGBT Module

Application
Industrial, motor control, renewable energy, UPS

Rated Voltage
1200V

Supply Voltage
600V-1200V (max 1200V)

Size
Standard STARPOWER SEMITRANS module size

Dimension (L*W*H)
Approx. 106mm 55mm 30mm

Function
Insulated Gate Bipolar Transistor (IGBT) module for power switching applications

Color
White

Weight
Approx. 250g (typical for this housing type)

Current Rating
150A

Thickness
Standard module thickness

Capacity
150A collector current

Frequency
Applicable at switching frequencies up to 20 kHz

Recommended Gate Voltage
+15V

Mounting Type
Screw mount

Module Case Style
SEMIPACK (industry standard)

Collector Emitter Saturation Voltage (Vce(sat))
Typically 2.1V at 150A

Maximum Power Dissipation
Varies with cooling (refer to datasheet/ application)

Gate Emitter Voltage (Vge)
+/-20V max

Isolation Voltage
2500V (rms) between terminals and baseplate

Model Number
GD150HFY120C2S

Diode Included
Yes (free-wheeling diode)

Package Type
Industrial power module

Topology
Half-bridge

About GD150HFY120C2S STARPOWER IGBT MODULE

Presenting the GD150HFY120C2S STARPOWER IGBT Module: a blue-ribbon choice for industrial power switching. This outstanding half-bridge, SEMIPACK module delivers a grand capacity of 150A with competitive pricing, ensuring access to state-of-the-art motor control and renewable energy solutions. Boasting high thermal conductivity and a robust isolation voltage of 2500V, it offers low Vce(sat) and swift response, built for reliability in demanding commercial settings. Integrated with a free-wheeling diode, the GD150HFY120C2S enables high-frequency applications up to 20kHz for superior efficiency and performance.

Versatile Uses and Commercial Applications

The GD150HFY120C2S STARPOWER IGBT Module is grandly engineered for use in inverters, converters, power supplies, and motor drives. Designed for straightforward screw mount installation and standard SEMIPACK housing, its application method ensures compatibility with industrial and commercial systems. This outstanding IGBT module is a preferred option for demanding industrial environments and renewable energy projects, thanks to its high collector current and durable construction, supporting critical commercial uses like UPS and motor control.

Delivery, Supply Ability, and Certification Highlights

Benefit from timely delivery and strong supply ability when sourcing the GD150HFY120C2S IGBT Module. Built to meet global certification standards, this product is ready for both local and export markets. Customers can secure this high-performance module at the lowest price rate, ensuring competitive advantage in procurement. Distributors and importers can count on constant availability backed by trustworthy certifications, making it easy to access the product quickly and reliably for varied industrial needs.

FAQ's of GD150HFY120C2S STARPOWER IGBT MODULE:

Q: How is the GD150HFY120C2S STARPOWER IGBT Module installed in industrial applications?

A: The module is designed for screw mount installation, making it easy to integrate into standard industrial power systems and compatible with SEMIPACK housing layouts.

Q: What commercial uses are supported by the GD150HFY120C2S IGBT Module?

A: It is suitable for inverters, converters, power supplies, UPS systems, and motor drives, providing reliable switching capabilities for various commercial and industrial environments.

Q: When is the GD150HFY120C2S Module most beneficial to use?

A: This module excels in applications that demand high efficiency, fast switching, and robust protection-such as renewable energy setups, heavy motor control, and backup power systems.

Q: Where can customers access the GD150HFY120C2S IGBT Module?

A: The product is available through distributors, importers, and suppliers, offering broad access in domestic and export markets at competitive prices.

Q: What are the main benefits of using the GD150HFY120C2S STARPOWER Module?

A: Users benefit from outstanding thermal management, high current handling (150A), and low Vce(sat), ensuring grand performance with enhanced reliability and operational lifespan.

Q: How does the module ensure high reliability under industrial conditions?

A: With an integrated copper base for thermal management, robust isolation voltage (2500V), and a durable housing, the GD150HFY120C2S offers consistent, reliable operation even at high temperatures.
