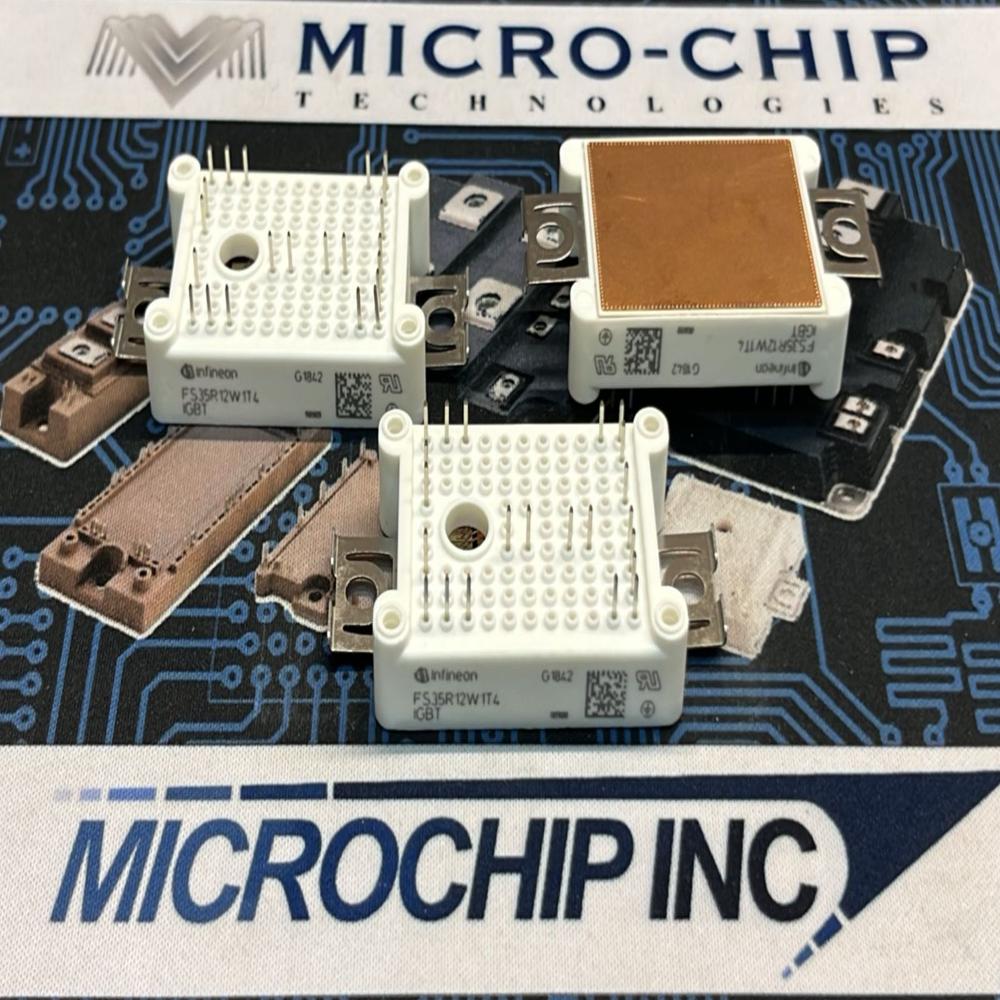

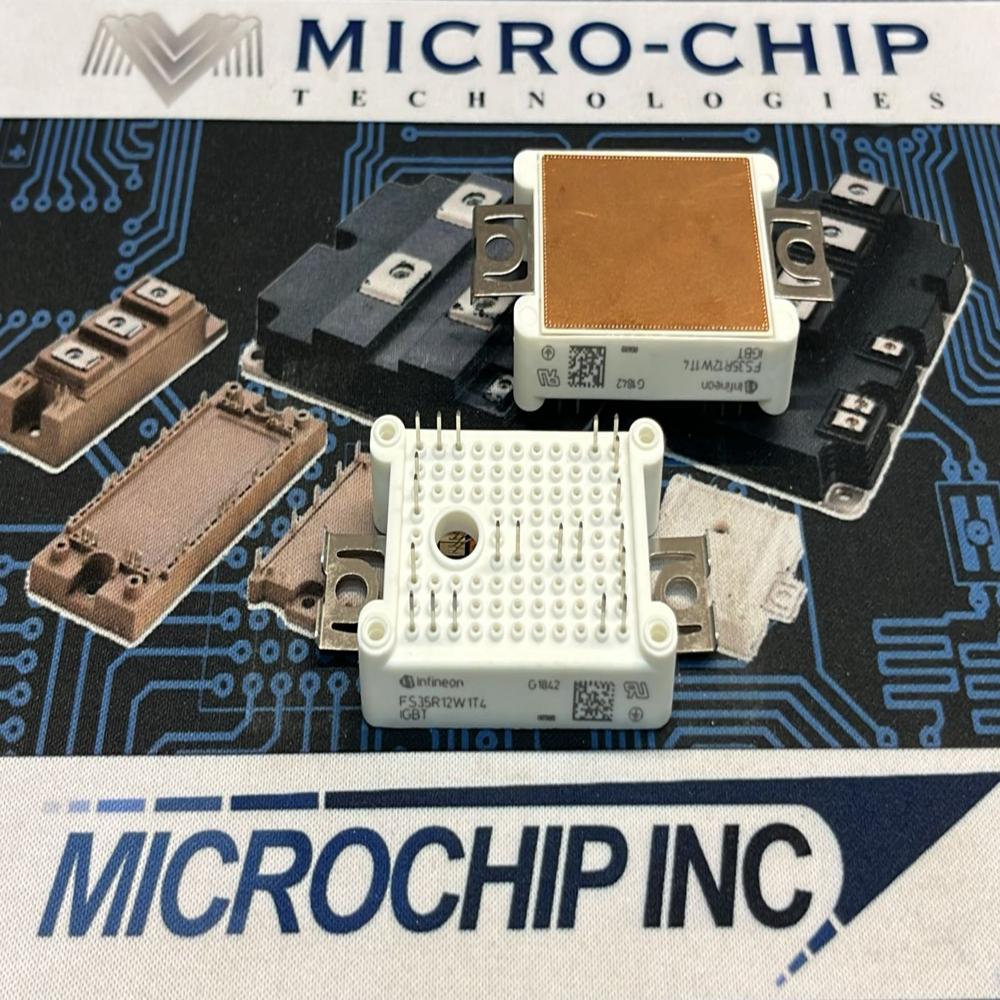

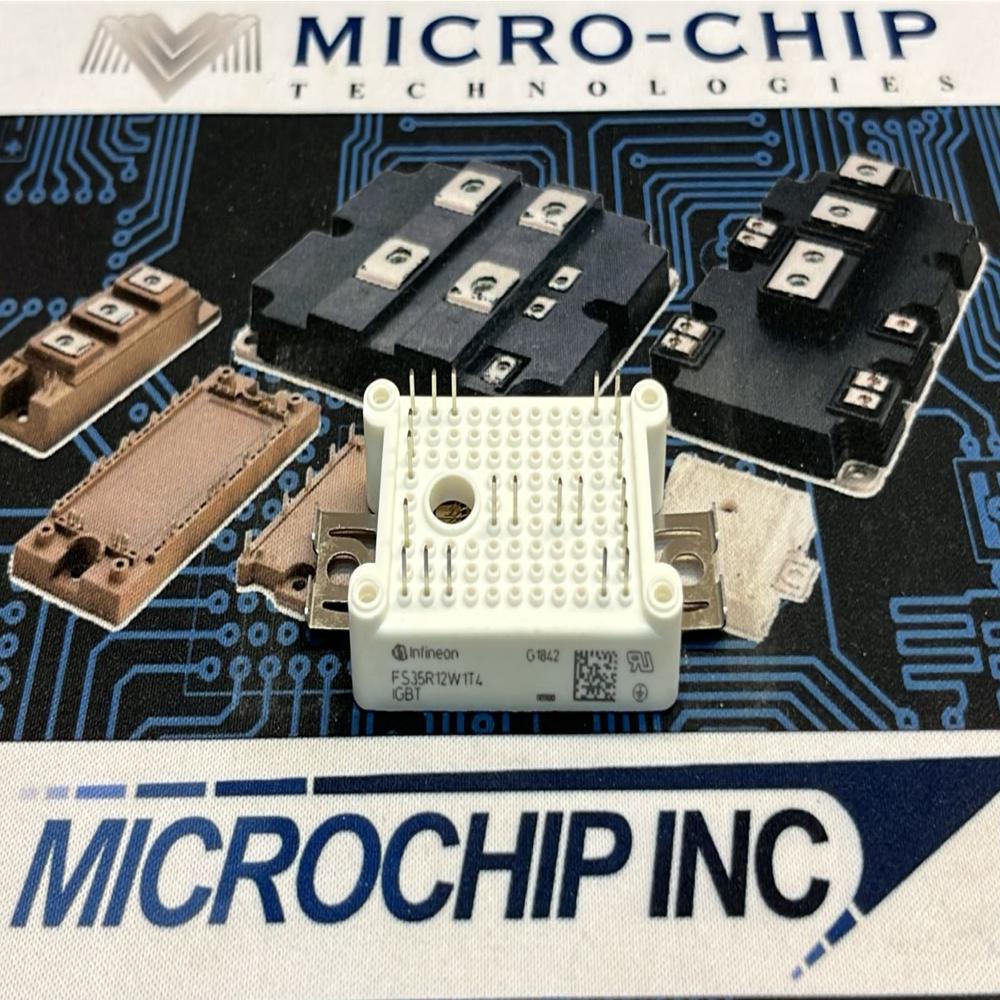

FS35R12W1T4 INFINEON IGBT MODULE

Name: FS35R12W1T4 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FS35R12W1T4 INFINEON IGBT MODULE Specification

IP Rating
Unspecified

Components
IGBT chips, freewheeling diodes

Operating Temperature
-40C to +150C

Power Source
External power supply

Output
High Power AC or DC

Power Supply
Electric

Interface
Screw terminal connection

Input
Control Signals

Response Time
Fast switching

Thermal Conductivity
Optimized for high thermal performance

Features
Low saturation voltage, high reliability, integrated freewheeling diodes

Usage
Industrial motor drives, power inverters, UPS systems

Product Type
IGBT Module

Application
Industrial, Power Electronics

Rated Voltage
1200 V

Supply Voltage
Up to 1200 V DC

Size
Module

Dimension (L*W*H)
106 mm x 62 mm x 30 mm (approx.)

Function
Power switching and control in inverter applications

Color
White

Weight
Approx. 300 g

Current Rating
35 A

Capacity
35 A continuous collector current

Thickness
Standard module thickness

Frequency
Operating up to 20 kHz

Collector Current (IC)
35 A

Mounting Type
Screw Mount

Isolation Voltage
2500 V AC (1 min)

Package
W1T4 module

Gate Emitter Voltage
20 V max

Part Number
FS35R12W1T4

Maximum Junction Temperature (Tj)
150C

Configuration
Three-phase bridge

Collector Emitter Voltage (VCES)
1200 V

FS35R12W1T4 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FS35R12W1T4 INFINEON IGBT MODULE

Don't miss your Last Chance to access the splendiferous FS35R12W1T4 INFINEON IGBT MODULE - a top-notch solution for demanding industrial applications! This splendid three-phase bridge module delivers a rated voltage of 1200V and 35A continuous collector current, achieving efficient power switching and control in inverter systems. With a magnificent isolation voltage of 2500 V AC, integrated freewheeling diodes, fast switching, and superior thermal conductivity, this white W1T4 module stands out in performance and reliability. Grab yours before stocks run out! Trusted by distributors and suppliers across India.

Exceptional Advantages and Versatile Applications

The FS35R12W1T4 INFINEON IGBT MODULE boasts primary competitive advantages such as high reliability, low saturation voltage, and fast response time. Its application surface flourishes in industrial motor drives, UPS systems, and power inverters, supporting seamless high-power switching and control. Embedded within power electronics, it handles a variety of media, from control signals to high power AC or DC outputs, showcasing its versatility in challenging industrial environments.

Packaging Details, Supply & Sample Policy

Every outlay is handled with care-each FS35R12W1T4 module is securely packaged to prevent transit damage. We supply shipped goods reliably across India with a stable stock flow, supporting high-volume orders. Transparent sample policies are available for bulk buyers, enabling comprehensive evaluation before full procurement. Count on us for prompt order processing and comprehensive supply capabilities, ensuring a seamless purchasing experience.

FAQ's of FS35R12W1T4 INFINEON IGBT MODULE:

Q: How is the FS35R12W1T4 INFINEON IGBT MODULE installed?

A: The module is designed for screw mounting, allowing secure attachment onto heatsinks or inverter systems for optimal thermal management and electrical connectivity.

Q: What applications benefit most from the FS35R12W1T4 IGBT module?

A: This IGBT module excels in industrial motor drives, power inverters, and UPS systems, supporting efficient power switching and high-reliability operation in demanding settings.

Q: When should I choose this IGBT module over others?

A: Choose the FS35R12W1T4 when you demand 1200V operation, 35A current capability, high isolation (2500V AC), and robust performance under fluctuating industrial temperatures.

Q: Where can this module be applied with confidence?

A: This module can be confidently deployed in industrial environments requiring high-performance power electronics, such as manufacturing plants, renewable energy systems, and automated production lines.

Q: How does the FS35R12W1T4 enhance operational efficiency?

A: It provides fast switching, low saturation voltage, and optimized thermal management, resulting in reduced energy losses and prolonged component lifespan for significant efficiency gains.
