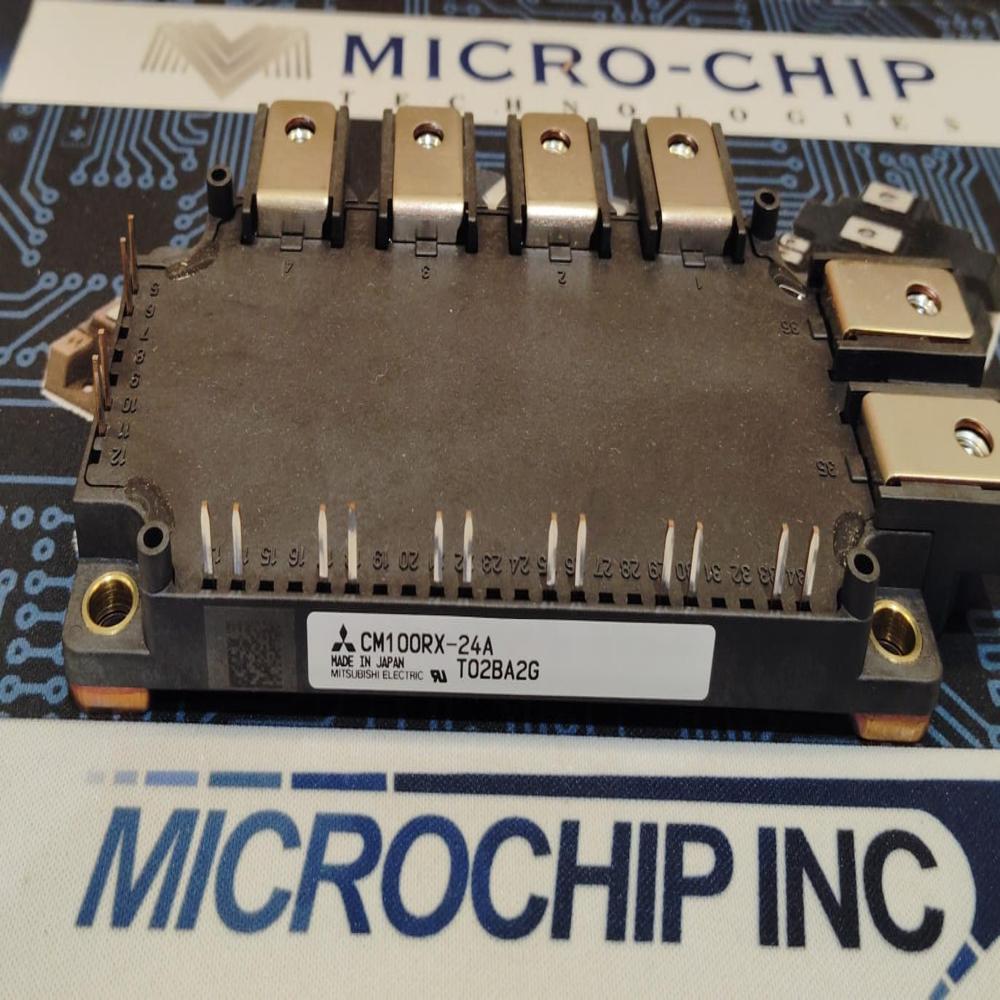

CM100RX-24A MITSUBISHI IGBT MODULE

Name: CM100RX-24A MITSUBISHI IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CM100RX-24A MITSUBISHI IGBT MODULE Specification

Output
Collector current up to 100A

Input
Gate trigger signal

Operating Temperature
-40C to 150C (junction temperature max.)

Thermal Conductivity
Baseplate provides efficient heat dissipation

Response Time
Fast switching (typ. <1 microsecond)

Interface
Screw and solder terminals

Sensors Specification
No onboard sensors

Components
Integrated IGBT transistor and freewheeling diode

Power Source
External DC

Power Supply
External DC supply

IP Rating
Not IP rated

Usage
Used in inverters, motor drives, UPS, and industrial power control

Product Type
IGBT Power Module

Application
Industrial and automation equipment, motor controllers, UPS systems

Rated Voltage
1200V

Supply Voltage
Collector-Emitter Voltage (Vces) up to 1200V

Size
Standard Mitsubishi IGBT module footprint

Dimension (L*W*H)
108mm x 60mm x 30mm (Approx.)

Function
IGBT (Insulated Gate Bipolar Transistor) Power Module for switching and amplification applications

Color
Black

Weight
Approx. 0.6 kg

Thickness
Module body approx. 30mm

Capacity
100A continuous collector current

Current Rating
100A

Frequency
Recommended switching frequency up to 20kHz

Isolation Voltage
2500Vrms (AC, 1 min) between terminals and baseplate

Package Type
Mitsubishi industry standard IGBT module

Short Circuit Withstand Time
10s (@ 1250V, Tj = 125C)

Mounting Type
Panel mounting with screw holes

Leakage Current
Less than 1mA at rated voltage

Collector-Emitter Saturation Voltage (Vce(sat))
2.6V typ. at 100A/25C

Gate Threshold Voltage
6V (typical)

Internal Freewheeling Diode
Yes (built-in)

RoHS Compliant
Yes

CM100RX-24A MITSUBISHI IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM100RX-24A MITSUBISHI IGBT MODULE

The CM100RX-24A Mitsubishi IGBT Module is a popular and superb solution for industrial power applications, championing efficiency and reliability. With a pivotal gate threshold voltage of 6V and the ability to handle collector currents up to 100A at a rated voltage of 1200V, this module offers seamless operation in inverters, UPS systems, and motor drives. Benefit from fast switching and an integrated freewheeling diode for enhanced performance. RoHS compliant and panel-mountable, it's a top offer for industry professionals seeking dependable power switching.

Versatile Industrial Usage and Key Features

Widely used in industrial automation, motor controllers, and UPS systems, the CM100RX-24A Mitsubishi IGBT Module excels in switching and amplification applications. Mounted easily via screw holes, it offers pivotal features such as high isolation voltage (2500Vrms), a built-in freewheeling diode, impressive short circuit withstand time, and fast response. Its robust construction and thermal management ensure high efficiency, making it a reliable choice for demanding environments.

Shipping, Delivery, and Domestic Market Coverage

Shipped from reliable FOB ports upon receipt of your purchase order, the CM100RX-24A Mitsubishi IGBT Module typically offers rapid delivery times, depending on freight arrangements and stock availability. We serve the main domestic market across India, ensuring timely supply and efficient logistics. This module is distributed by trusted importers and suppliers, streamlining the procurement process for businesses seeking consistent quality and support.

FAQ's of CM100RX-24A MITSUBISHI IGBT MODULE:

Q: How is the CM100RX-24A Mitsubishi IGBT Module typically installed?

A: The module is designed for panel mounting and features screw holes for secure installation. Electrical connections are made through screw and solder terminals, ensuring robust mechanical and electrical integration in your systems.

Q: What are the primary applications for this IGBT module?

A: This IGBT module is ideal for use in industrial and automation equipment, including inverters, motor drives, UPS systems, and other industrial power control applications where high efficiency and fast switching are required.

Q: Where can I use the CM100RX-24A in industrial environments?

A: It is suitable for demanding environments requiring reliable power switching and amplification, such as in industrial motor control centers, power converters, and high-capacity uninterruptible power supplies.

Q: What are the benefits of using this module in my application?

A: You will benefit from high efficiency, low leakage current, fast response times (less than 1 microsecond), excellent thermal conductivity, and ease of integration, thanks to its Mitsubishi industry-standard footprint and RoHS compliance.

Q: What is the process for ordering and delivery in India?

A: Ordering involves submitting a purchase order to authorized suppliers or importers in India. Once confirmed, the product is shipped from FOB ports with efficient freight handling to ensure timely delivery to the main domestic market.
