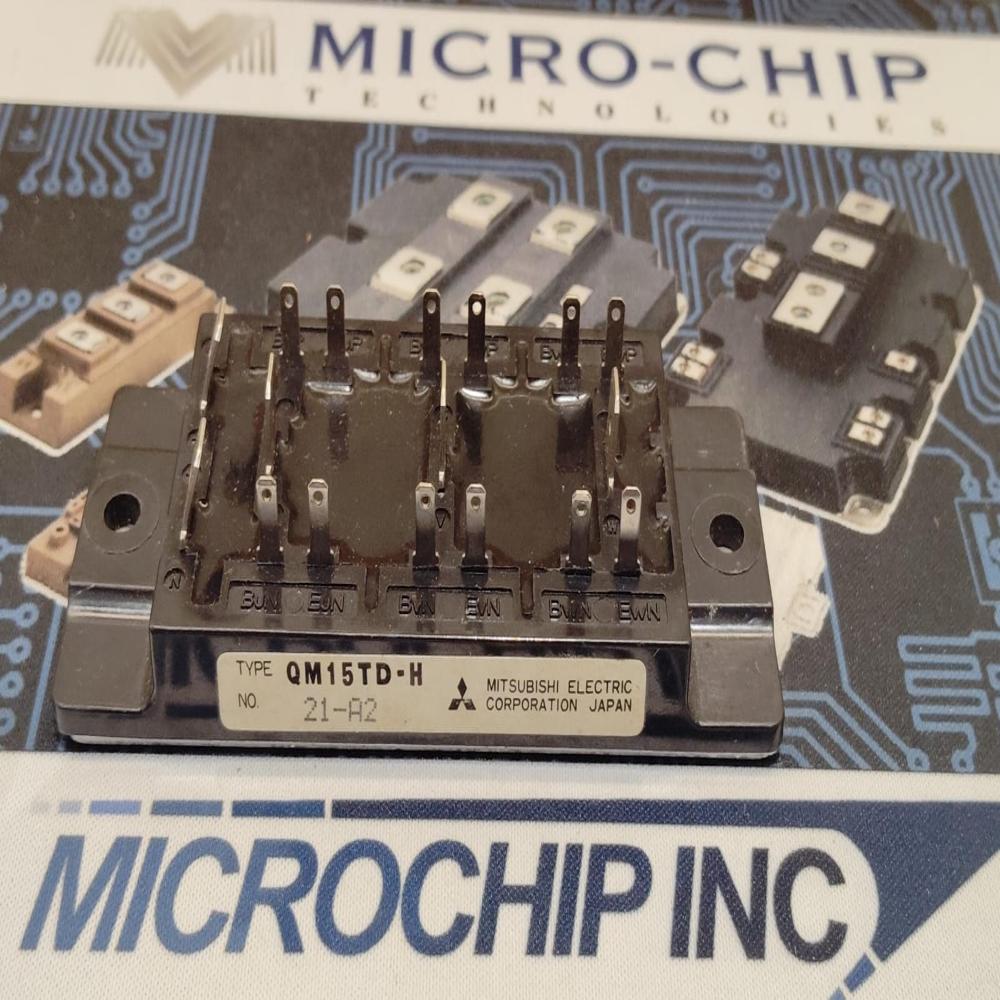

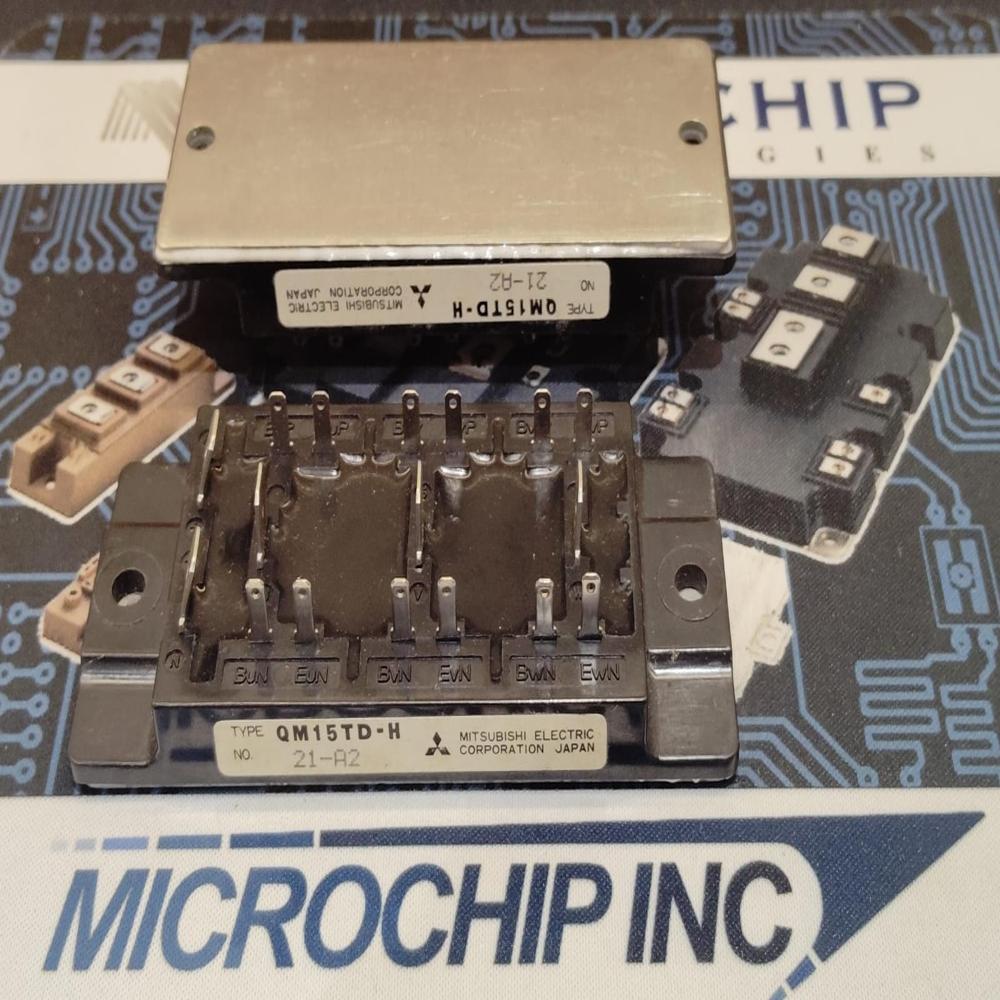

QM15TD-H MITSUBISHI IGBT MODULE

Name: QM15TD-H MITSUBISHI IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

QM15TD-H MITSUBISHI IGBT MODULE Specification

Usage
Power Control, Motor Drives, Inverters

Response Time
High-speed switching

Power Supply
DC

Power Source
Electric

Output
Current Output (Collector-Emitter)

Operating Temperature
-20C to +150C

Input
Signal Input (IGBT Gate Drive)

Interface
Screw Terminal

Components
IGBT Module, Diode Free Wheel Circuit

Thermal Conductivity
Optimized for heat dissipation

Features
Rugged Construction, High Reliability, Fast Switching

Product Type
IGBT Module

Application
Industrial Automation, Servo Drives, UPS

Rated Voltage
600V

Supply Voltage
Up to 600V

Size
Compact

Dimension (L*W*H)
90mm x 35mm x 30mm (approx.)

Function
High-Speed Switching and Inverter Applications

Color
Black

Weight
Approx. 150g

Current Rating
15A

Capacity
15A Collector Current

Thickness
Standard Module Thickness

Frequency
50/60 Hz compatible

Isolation
Isolated Package

On-State Voltage
2.7V (max @ 15A)

Insulation Voltage
2500VAC (1 min)

Mounting Type
Panel Mount

Storage Temperature
-40C to +125C

Model Number
QM15TD-H

Dielectric Strength
Up to 2500V RMS

Gate Threshold Voltage
6V (max)

Collector Current (Ic)
15A

Short Circuit Duration
10s (max)

Collector-Emitter Voltage (Vce)
600 V

Reverse Voltage
600V

Lead Form
Screw bolt

Package Type
Module

QM15TD-H MITSUBISHI IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About QM15TD-H MITSUBISHI IGBT MODULE

Capitalise on the Unprecedented performance with the QM15TD-H Mitsubishi IGBT Module, carefully designed for Best quality in power control, motor drives, inverters, and industrial automation. With a Top-tier Collector-Emitter Voltage of 600V and a current capacity of 15A, this compact, panel mount module offers Reduced power losses through optimized thermal conductivity and a fast response time for high-speed switching. Its rugged, isolated construction ensures high reliability and safety, making it ideal for applications In demand in both Indian and global markets. Achieve superior results in your projects with this high-performance IGBT Module.

Advanced Automation Solution - Versatile Application & Special Features

The QM15TD-H Mitsubishi IGBT Module stands out with its exceptional suitability for industrial automation, servo drives, UPS systems, and motor control applications. Key features include an isolated module package, fast switching capabilities, and high dielectric strength up to 2500V RMS. Engineered for rugged operation, this module offers high reliability, a compact form factor, and seamless panel mounting, making it a Best-in-class choice for demanding environments that require reduced downtime and superior performance.

Sample Provision, Export Logistics, and Market Focus

Samples of the QM15TD-H Mitsubishi IGBT Module are available for quality evaluation and testing purposes. Shipped Goods are securely dispatched from our FOB port to international buyers, ensuring optimal sale price negotiations. With strong reach in both the domestic mar and global export markets, we cater to diverse clientele-focusing on timely delivery and customer satisfaction. Extensive export experience allows us to streamline logistics while maintaining a high standard of product assurance for every order.

FAQ's of QM15TD-H MITSUBISHI IGBT MODULE:

Q: How does the QM15TD-H Mitsubishi IGBT Module benefit industrial automation?

A: The module supports high-speed switching, robust heat dissipation, and reliable operation, making it ideal for precise and consistent control in industrial automation systems.

Q: What special features differentiate the QM15TD-H from other IGBT modules?

A: It offers an isolated package, high dielectric strength (up to 2500V RMS), reduced on-state voltage, optimized thermal conductivity, and a compact, rugged construction for demanding applications.

Q: Where can the QM15TD-H be used most effectively?

A: This IGBT module is best suited for use in industrial automation, motor drives, inverters, UPS systems, and servo drive applications that demand high reliability and fast response.

Q: When can customers request a product sample and what is the process?

A: Customers may request samples at any time for testing and evaluation, with shipment coordinated directly from our warehouse upon confirmation of requirements.

Q: What is the typical usage process for the QM15TD-H IGBT Module?

A: The module is mounted via screw bolt connections, interfaced with signal input for the IGBT gate drive, and can be integrated into power electronics systems for efficient switching and control.
