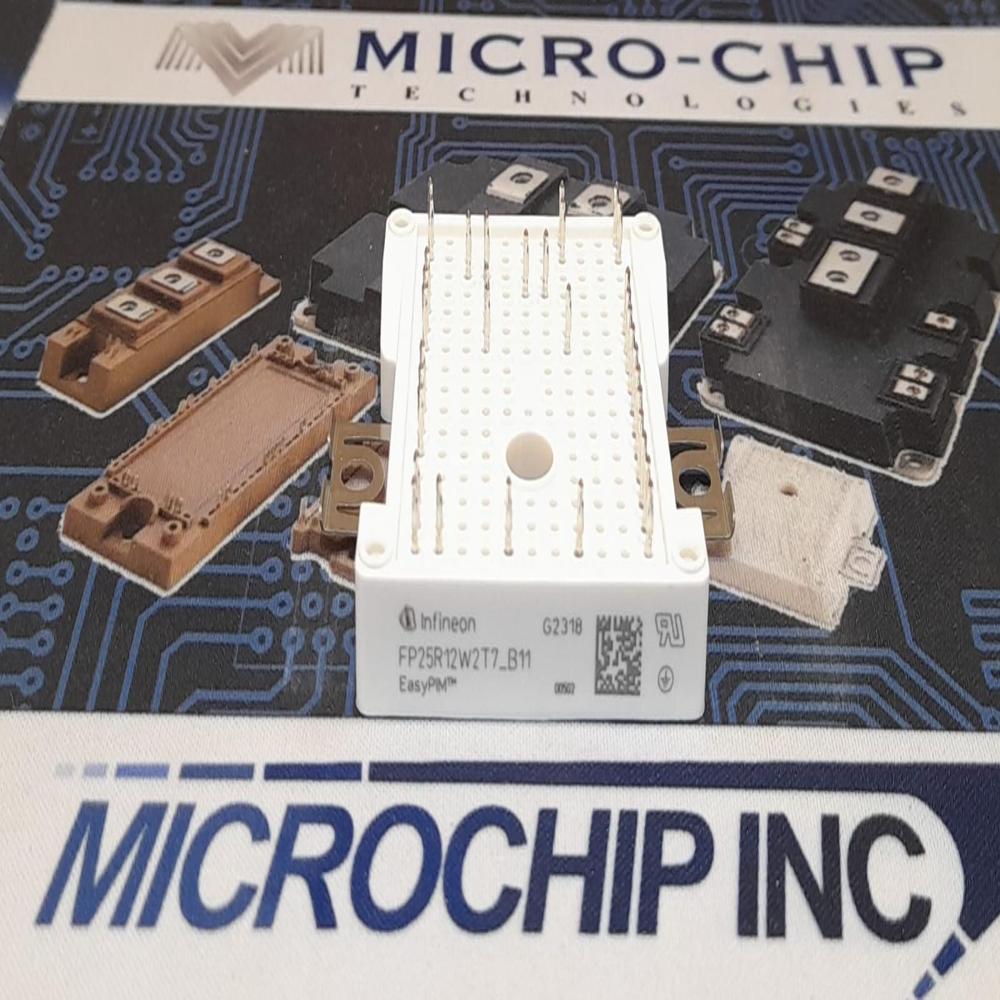

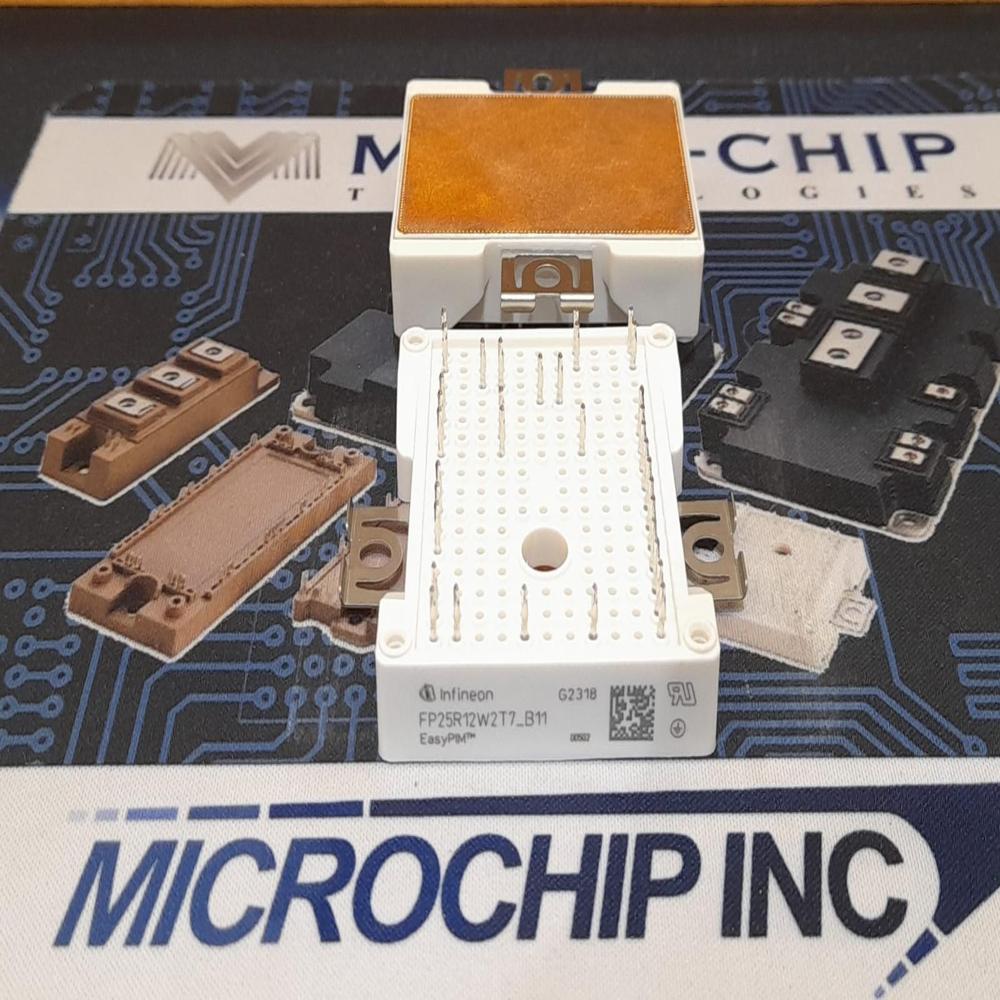

FP25R12W2T7-B11 INFINEON IGBT MODULE

Name: FP25R12W2T7-B11 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FP25R12W2T7-B11 INFINEON IGBT MODULE Specification

IP Rating
IP00

Thermal Conductivity
Isolated baseplate for optimized heat transfer

Power Supply
DC

Operating Temperature
-40C to +150C (Tj)

Interface
Screw terminal

Input
Gate

Usage
General-purpose inverter, motor control, power conversion

Output
Collector-Emitter

Sensors Specification
Integrated NTC thermistor

Components
IGBT Transistors, Diodes, Integrated NTC

Features
Low saturation voltage; high reliability; isolated base; compact design

Power Source
External

Response Time
Fast switching

Product Type
IGBT Module

Application
Industrial drives, renewable energy systems, UPS, welding, power supplies

Rated Voltage
1200V

Supply Voltage
1200V

Size
Standard module

Dimension (L*W*H)
134mm x 37mm x 30mm

Function
Switching and amplification in power electronic circuits

Color
White/Beige

Weight
Approx. 250g

Current Rating
25A

Thickness
Standard module height

Capacity
25A

Frequency
up to 20kHz switching

Collector-Emitter Voltage (Vce)
1200V

Collector Current (Ic)
25A continuous

RoHS Status
RoHS Compliant

Reference Standard
Compliant with IEC/UL standards

Gate-Emitter Voltage
20V max

Isolation Voltage
2500VAC/min

Number of Phases
3

Module Package
EconoPACKTM 2

Configuration
Sixpack (three-phase bridge)

Storage Temperature
-40C to +125C

Mounting Style
Screw Mount

Internal NTC
Yes

Module Type
Sixpack IGBT with fast free-wheeling diodes

FP25R12W2T7-B11 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FP25R12W2T7-B11 INFINEON IGBT MODULE

Procure the illustrious FP25R12W2T7-B11 INFINEON IGBT MODULE, rigorously engineered for heroic performance in power electronics. This in-demand Sixpack module flaunts a towering 1200V collector-emitter voltage and continuous 25A current handling, making it a versatile choice for general-purpose inverters, industrial drives, and renewable energy systems. Its compact EconoPACKTM 2 footprint, robust isolation, and rapid switching up to 20kHz distinguish it among peers. Jump on this RoHS-compliant solution featuring an isolated base, integrated NTC, low Vce(sat), and unwavering reliability-ideal for high-precision power conversion in the industrial arena.

Versatile Applications and Areas of Usage

FP25R12W2T7-B11 INFINEON IGBT MODULE shines across a spectrum of application places, including industrial automation floors, renewable energy installations, and robust UPS setups. Its surface-mount screw terminals ease deployment within motor control panels, power supply units, and welding machines. With a design optimized for standard module heights, this component adapts seamlessly to various surface configurations, delivering efficient switching and amplification wherever high-reliability power conversion is demanded.

Efficient Order Processing and Delivery Assurance

Experience a streamlined proposal amount process and prompt order processing for the FP25R12W2T7-B11 module. Secure shipping ensures your product arrives safely, anywhere across India-the main domestic market. Each module is certified in accordance with IEC/UL standards and RoHS directives, ensuring guaranteed compliance and reliability. From inquiry to delivery, every stage is handled with meticulous care, providing peace of mind to customers seeking trust and speed in procurement.

FAQ's of FP25R12W2T7-B11 INFINEON IGBT MODULE:

Q: How is the FP25R12W2T7-B11 IGBT module typically used?

A: This module is predominantly used in switching and amplification roles within power electronic circuits, making it ideal for general-purpose inverters, industrial motor drives, renewable energy systems, UPS, welding machines, and power supplies.

Q: What are the benefits of the integrated NTC thermistor in this IGBT module?

A: The integrated NTC thermistor provides real-time temperature monitoring, enhancing safety and optimizing thermal management during operation, which improves overall reliability and longevity of the device.

Q: When should I consider using the FP25R12W2T7-B11 module?

A: You should consider this module for applications requiring reliable sixpack IGBT technology, high current capacity (25A), and efficient 1200V operation in environments such as industrial drives or renewable energy systems.

Q: Where can this module be installed within a typical setup?

A: With its screw-mount EconoPACKTM 2 configuration, the module can be installed in power electronic cabinets, control panels, or any environment supporting its standard module footprint and electrical requirements.

Q: What is the process for securing delivery and certifications for this module in India?

A: Order processing is streamlined with clear proposal amounts and secure shipping procedures. Products are distributed throughout India, fully compliant with IEC, UL, and RoHS certifications to ensure safety, standards, and swift delivery.
