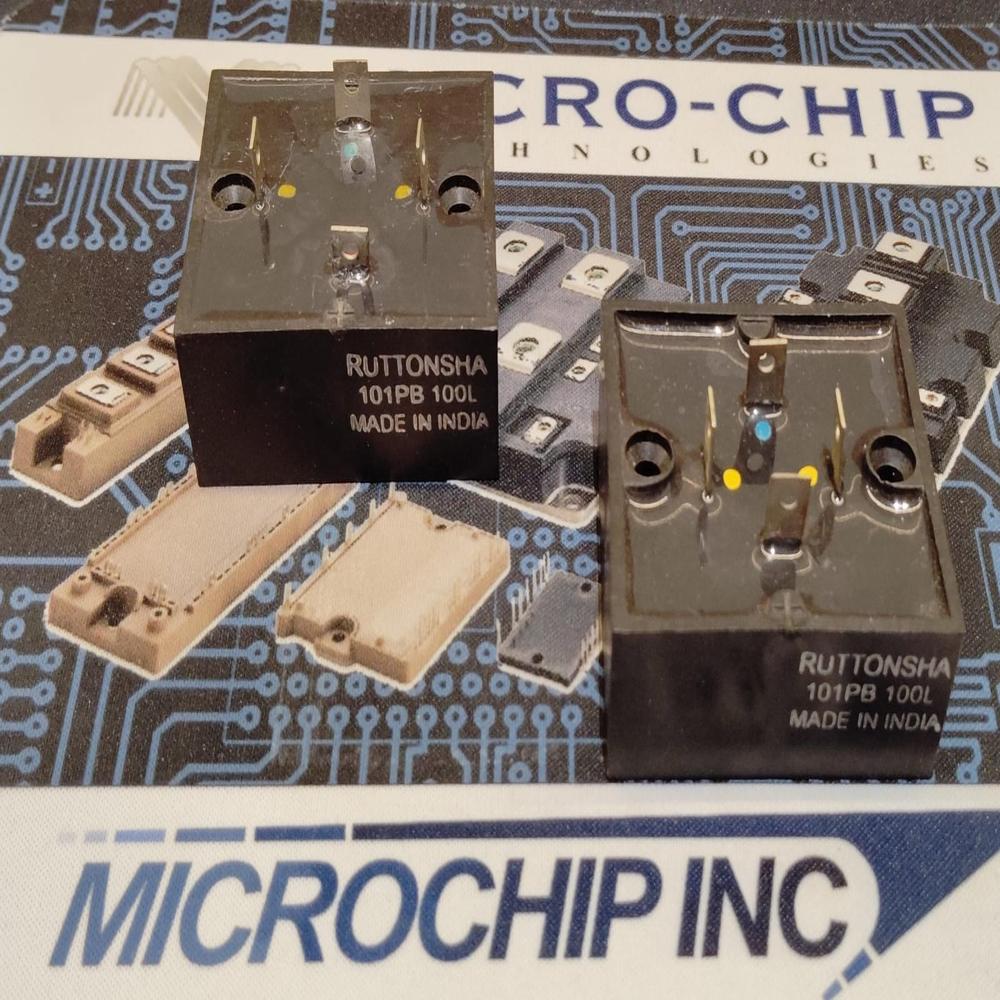

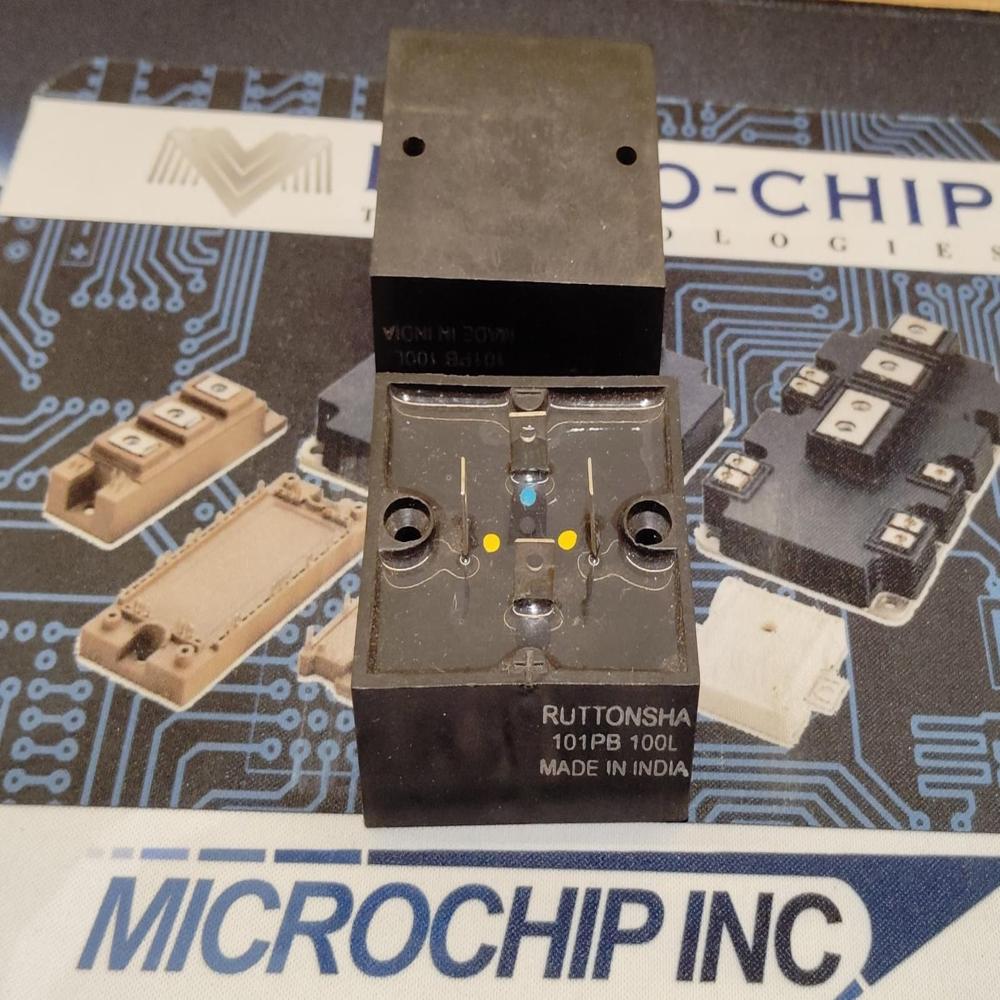

101PB100L RUTTONSHA IPM MODULE

Name: 101PB100L RUTTONSHA IPM MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

101PB100L RUTTONSHA IPM MODULE Specification

Operating Temperature
-20C to +125C

IP Rating
IP20

Input
Logic Control Signal

Features
Short Circuit Protection, Over-Temperature Protection, Integrated Driver Circuitry, High-Efficiency Operation

Components
IGBT, Diode, Integrated Gate Driver Circuit

Interface
Screw and Pin Terminal Connections

Power Supply
AC/DC

Power Source
External Power Circuit

Thermal Conductivity
High, Integrated Base for Efficient Dissipation

Response Time
Fast Switching (<1s)

Usage
Industrial Motor Drives, Inverter Circuits, Power Electronics

Charging Voltage
Does Not Apply

Output
Three-phase Output to Load (Motor)

Product Type
IPM Module

Application
Variable Frequency Drives, Industrial Automation, Energy Control

Rated Voltage
1000V

Supply Voltage
600V - 1000V

Size
Compact rectangular module

Dimension (L*W*H)
Approx. 118mm x 55mm x 28mm

Function
Intelligent Power Module (IPM) for efficient power switching and motor control

Color
Black Base with White Label

Weight
Approx. 250g

Current Rating
100A Continuous

Capacity
100A

Thickness
Approx. 28 mm

Frequency
Up to 20 kHz Switching

Lifecycle
Industrial Grade, Long Lifecycle

Case Material
Molded Plastic Encapsulation

Isolation Voltage
2500Vrms

Switching Device
IGBT (Insulated Gate Bipolar Transistor)

Internal Protection
Gate Under-voltage, Over-current protection

Reference Standard
IEC/UL Recognized

Auxiliary Voltage
15V DC (for gate drive)

Mounting Type
Panel or PCB Mount

Cooling Method
Baseplate Cooling compatible with Heatsink

101PB100L RUTTONSHA IPM MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 101PB100L RUTTONSHA IPM MODULE
