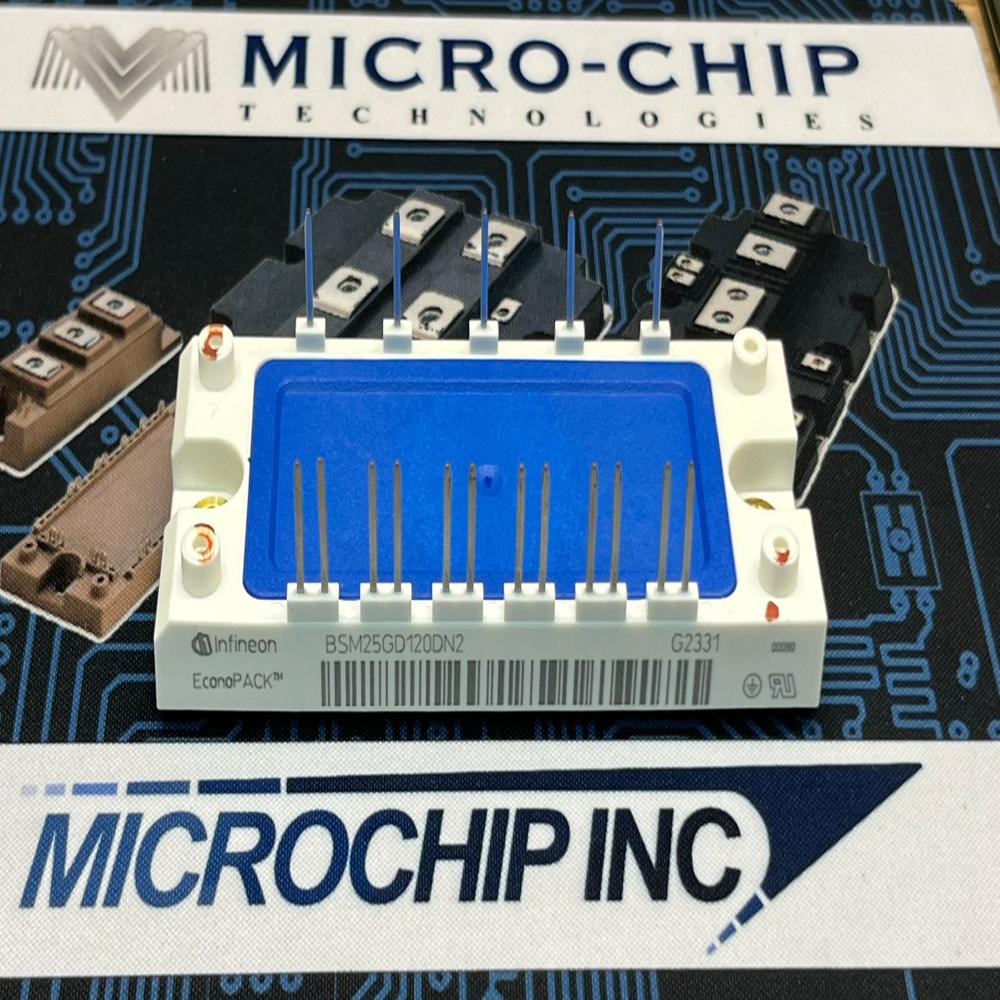

BSM25GD120DN2 Infineon IGBT Power Module Siemens / Danfoss

Name: BSM25GD120DN2 Infineon IGBT Power Module Siemens / Danfoss
Brand: MICROCHIP TECHNOLOGIES
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BSM25GD120DN2 Infineon IGBT Power Module Siemens / Danfoss Specification

IP Rating
IP20

Usage
Industrial Power Electronic Circuits

Components
IGBT + FWD (free wheeling diode)

Power Source
Electrical

Display Type
No display

Response Time
Fast switching (typ. <1s)

Thermal Conductivity
Optimized for high thermal performance

Interface
Press-fit / Solder Pins

Output
Transistorized Electrical Output

Input
Control Signal

Power Supply
External Power Source

Operating Temperature
-40C to +150C

Features
Low Switching Losses, High Efficiency, Rugged and Durable Build

Product Type
IGBT Power Module

Application
Inverter, Motor Drives, UPS, Power Converter

Rated Voltage
1200 V

Supply Voltage
1200 V

Size
Compact (as per module format)

Dimension (L*W*H)
94 mm x 34 mm x 17 mm

Function
IGBT Power Module for switching and amplification

Color
White / Grey

Weight
Approx. 120 g

Current Rating
25 A

Thickness
Standard Module housing (approx. 17 mm)

Capacity
25 A Collector Current

Frequency
High Frequency Switching

Forward Voltage Drop (Vcesat)
1.85 V typ. at 25A, 25C

Baseplate Material
Copper (Cu)

Module Family
EconoPack

Gate Emitter Voltage
20 V max

Collector Emitter Saturation Voltage
1.85 V typ.

Storage Temperature
-40C to +125C

Brand Compatibility
Danfoss Drive Modules / Siemens Modules

Mounting
Screw Mount

Package Type
Isolated base - plastic module

Reverse Recovery Time (diode)
<100 ns

Topology
Dual IGBT / 3-phase bridge

Short Circuit Withstand Time
10 s

Part Number
BSM25GD120DN2

Isolation Voltage
2500 V AC (1 min)

ROHS Status
Yes

BSM25GD120DN2 Infineon IGBT Power Module Siemens / Danfoss Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About BSM25GD120DN2 Infineon IGBT Power Module Siemens / Danfoss

The BSM25GD120DN2 Infineon IGBT Power Module is a popular choice among engineers and technicians for its unbeatable performance and classic design. Highly recommended for industrial power electronic circuits, this module features a dual IGBT / 3-phase bridge topology and robust copper baseplate. With potent switching capabilities, remarkable 1200 V rated voltage, and fast response times, it's trending in inverter, motor drive, UPS, and power converter applications. Rugged construction with an isolated base and RoHS compliance ensures durability, high efficiency, and reliable long-term operation for Siemens and Danfoss drive modules.
