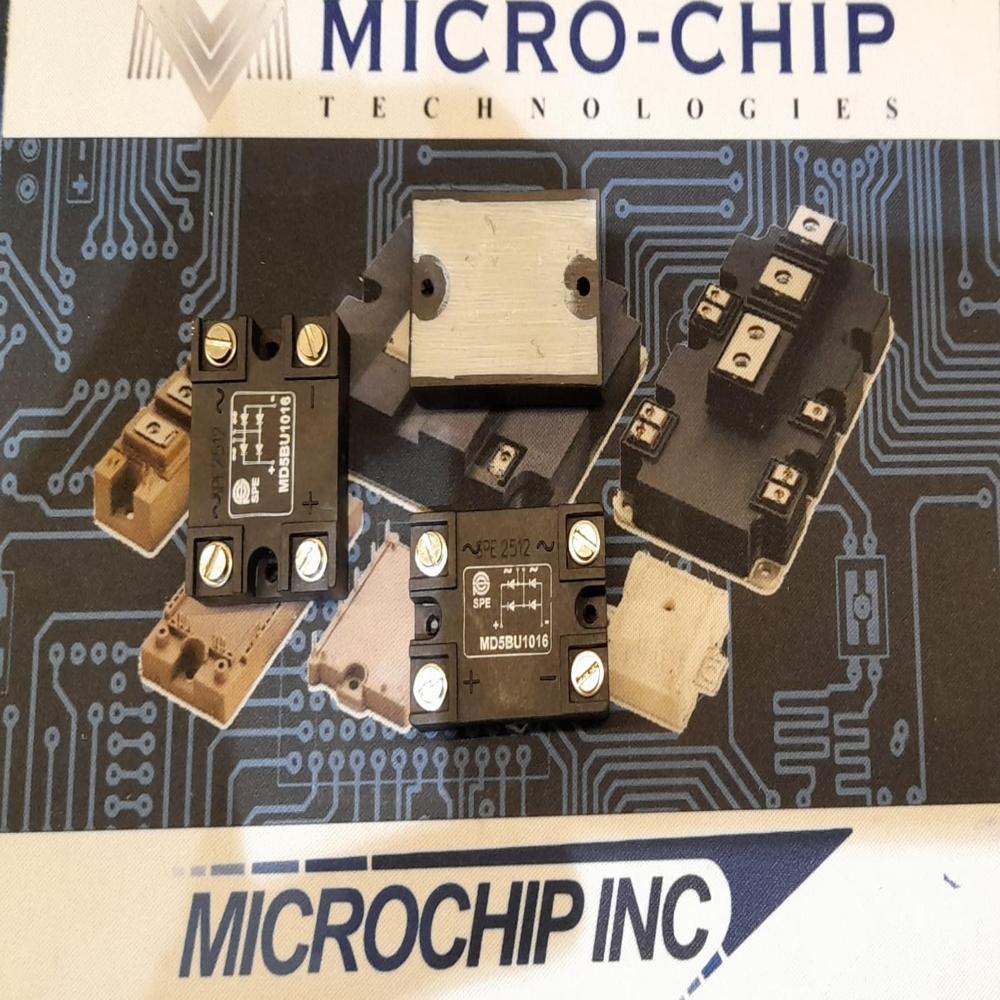

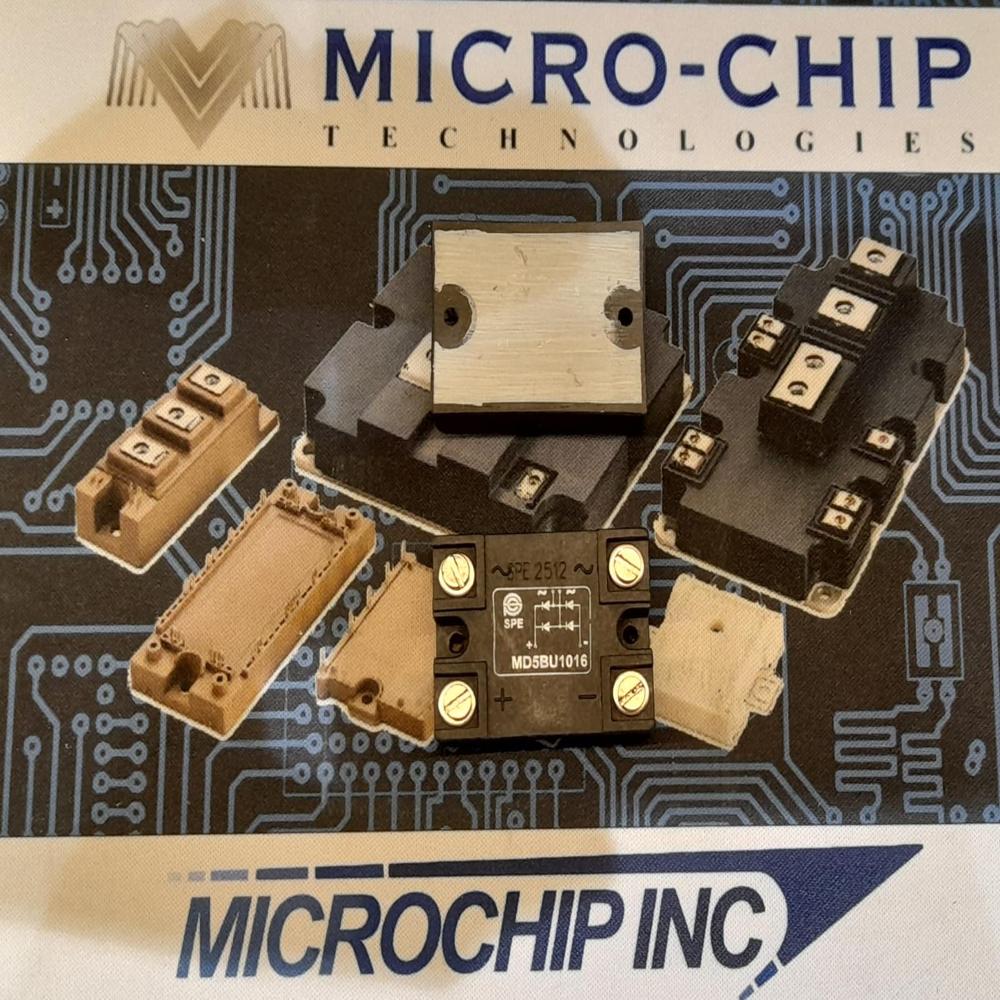

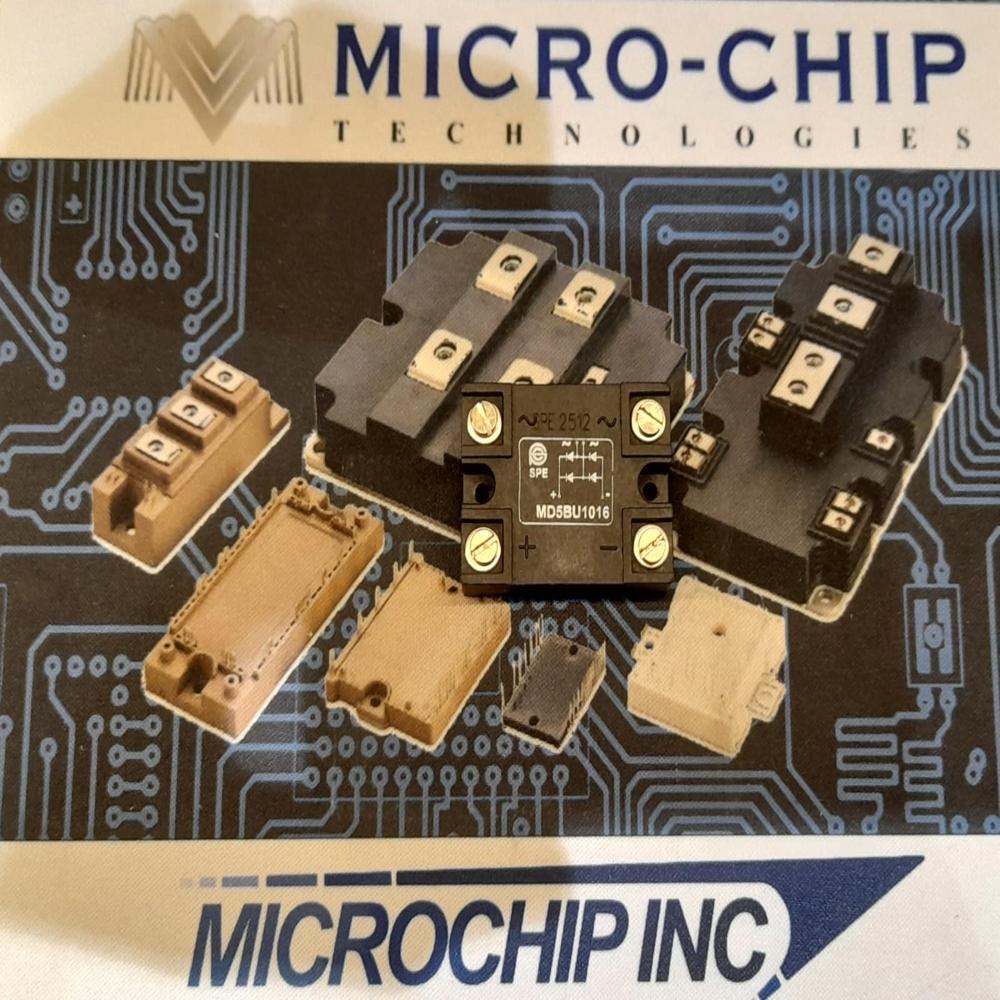

MD5BU1016 SPE Bridge Rectifier

Name: MD5BU1016 SPE Bridge Rectifier
Brand: MICROCHIP TECHNOLOGIES
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

MD5BU1016 SPE Bridge Rectifier Specification

Product Type
Bridge Rectifier

Supply Voltage
1000V (Peak Reverse Voltage)

Dissipation Power
2W

Operating Temperature
-55C to +150C

Power Consumption
Depends on Load

Temperature Range
-55C to +150C

Input Voltage
Up to 700V AC

Voltage Regulator Type
Not Applicable (Bridge Rectifier)

Size
35mm x 35mm x 15mm (approx)

Weight
18g

Frequency Range
50/60Hz

Package Type
BU Bridge

Storage Temperature Range
-55C to +150C

Terminal Type
Lug

Maximum RMS Voltage
700V

Mounting Type
Panel Mount

Reverse Recovery Time
Instantaneous

Lead Free Status
RoHS Compliant

Peak Forward Surge Current (Ifsm)
300A

Peak Reverse Repetitive Voltage (Vrrm)
1000V

Case
BU

Part Number
MD5BU1016 SPE

Maximum Average Forward Output Current (Io)
10A

MD5BU1016 SPE Bridge Rectifier Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About MD5BU1016 SPE Bridge Rectifier

Introducing the must-have MD5BU1016 SPE Bridge Rectifier-an unbeatable and new solution for reliable AC to DC conversion. Delivering a blue-ribbon performance, it features a peak reverse repetitive voltage of 1000V, a maximum average forward current of 10A, and a powerful 300A surge current capacity. Perfect for battery chargers, power supplies, adapters, and motor drives, this discount-worthy rectifier comes RoHS compliant and lead-free. Its rugged panel mount case and lug terminals ensure secure installation, while its wide temperature resilience guarantees dependable operation across demanding applications.

MD5BU1016 SPE Bridge Rectifier: Specific & General Uses

The MD5BU1016 SPE Bridge Rectifier is perfect for both specific and general AC to DC conversion tasks. Whether you need competitive advantages in battery chargers, adapters, or power supplies, its high voltage and amperage capabilities make it stand out. Installation is straightforward with its panel mount and lug terminals, offering reliable usage for motor drives and other demanding electrical systems. Proper direction of use involves secure mounting and ensuring compatibility with your supply parameters for optimal performance.

Supply Ability, Certifications & Domestic Market Reach

Our proposal amount ensures you get the right MD5BU1016 SPE Bridge Rectifier supply for your needs. We guarantee prompt delivery, careful packing & dispatch for seamless logistics. Certified for RoHS compliance, our bridge rectifiers adhere to environmental standards. Serving the main domestic market across India, we support customers with continuous stock availability and responsive distribution channels, ensuring you receive certified and reliable products in excellent condition every time.

FAQ's of MD5BU1016 SPE Bridge Rectifier:

Q: How does the MD5BU1016 SPE Bridge Rectifier benefit AC to DC conversion processes?

A: The rectifier efficiently converts AC input up to 700V into a stable DC output, making it ideal for powering battery chargers, adapters, and motor drives while ensuring high reliability and minimal power loss.

Q: What are the main applications for the MD5BU1016 SPE Bridge Rectifier?

A: It is designed for use in power supplies, battery chargers, adapters, and motor drives, handling demanding electrical systems with up to 10A output and 1000V reverse voltage.

Q: When should the MD5BU1016 SPE Bridge Rectifier be considered over other types?

A: Choose this bridge rectifier when high voltage tolerance, strong surge capacity, and panel mounting are essential, especially in industrial and commercial setups requiring RoHS compliance and reliable operation.

Q: Where can the MD5BU1016 SPE Bridge Rectifier be installed?

A: It is intended for panel mount installations, making it suitable for enclosed power supply units, charging stations, and industrial motor drives where secure, robust mounting is needed.

Q: What is the process for installing the MD5BU1016 SPE Bridge Rectifier?

A: Installation involves mounting it securely via its panel mount case, connecting AC input and DC output to the appropriate lug terminals, and ensuring all voltages and currents match system specifications.
