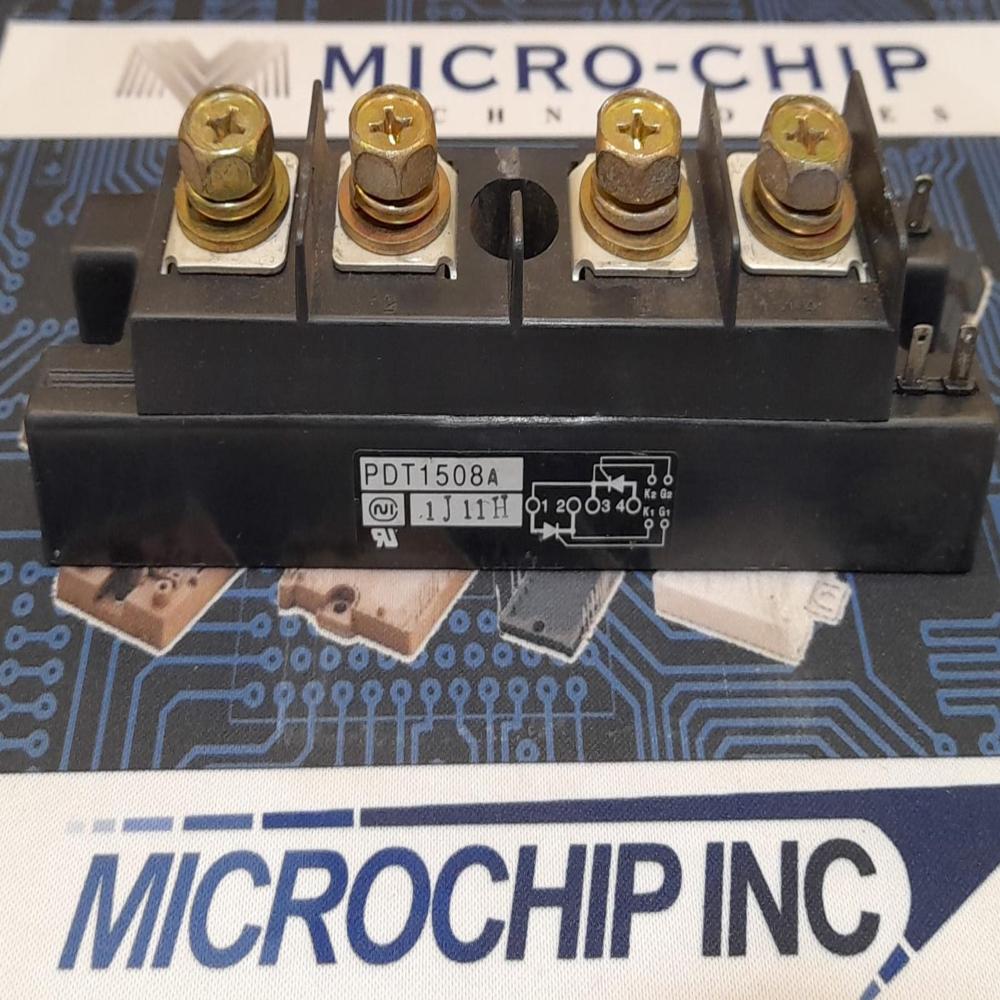

PDT1508A high-power IGBT module

Name: PDT1508A high-power IGBT module
Brand: MICROCHIP TECHNOLOGIES
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PDT1508A high-power IGBT module Specification

Product Type
High-power IGBT Module

Supply Voltage
1200 V

Dissipation Power
150 A

Operating Temperature
-40C to +150C

Power Consumption
Varies with application; designed for high power operation

Temperature Range
-40C to +150C

Input Voltage
1200 V

Voltage Regulator Type
Integrated

Size
130 mm x 63 mm x 30 mm (approx.)

Weight
750 g (approx.)

Collector-Emitter Voltage (Vces)
1200 V

Switching Frequency
Up to 20 kHz

Isolation Voltage
2500 V (AC RMS, 1 min)

Mounting Type
Screw Mount

Package Type
Module

Collector Current (Ic)
150 A

Typical Turn-Off Time
1.0 s

Housing Material
Industrial epoxy, robust casing for high reliability

Gate-Emitter Voltage (Vge)
20 V

Typical Turn-On Time
0.5 s

Contact Terminals
Copper, screw terminals

PDT1508A high-power IGBT module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About PDT1508A high-power IGBT module

Take advantage of our Advance Purchase Sale and experience a Premier solution with the celebrated PDT1508A high-power IGBT module. Featuring an exceptional 1200 V collector-emitter voltage and a robust 150 A current capability, this module delivers outstanding performance for rigorous industrial environments. Encased in industrial-grade epoxy and engineered for dependability, it boasts high isolation voltage, rapid switching, and efficient heat dissipation. Secure this product now at a Price Cut and equip your power drives, inverters, or UPS systems with world-class, reliable technology from an acclaimed distributor in India.

Directions and Applications - Unmatched Performance for Power Systems

The PDT1508A high-power IGBT module is designed for secure screw-mount installation, ensuring optimal contact and stability. Ideal for plant applications requiring high-current capability, it integrates into power conversion systems, industrial inverters, and motor drives. To maximize operational integrity, follow manufacturer-recommended wiring for copper, screw terminals. This module is exceptionally suitable for high-reliability UPS systems, offering precise voltage regulation under dynamic load conditions, making it a trusted choice for continuous industrial usage.

Global Market Reach and Reliable Delivery

Exported to multiple principal markets, including Asia-Pacific, Middle East, and Africa, the PDT1508A module represents significant market value in the power electronics sector. We provide prompt freight and transport services with a standard delivery time of 5-10 business days, depending on regional logistics. Certified for quality and performance, our IGBT modules are shipped with all essential documentation, ensuring seamless transactions for international buyers and reliable integration into multinational operations.

FAQ's of PDT1508A high-power IGBT module:

Q: How can the PDT1508A IGBT module be integrated into existing industrial systems?

A: The PDT1508A can be securely mounted using its screw terminals, with recommended copper connections for optimal conductivity, making integration straightforward for most industrial power control setups.

Q: What benefits does the robust epoxy casing provide?

A: The industrial epoxy housing delivers enhanced mechanical protection and superior thermal endurance, ensuring long-term reliability even in demanding environmental conditions.

Q: When is advance purchase recommended for this IGBT module?

A: Advance purchase is ideal during periodic sale events, offering the chance to benefit from price cuts, and ensuring timely availability for critical project timelines.

Q: Where is the PDT1508A primarily applied?

A: This IGBT module is predominantly used in power conversion systems, high-capacity industrial inverters, motor drives, and UPS systems, where consistent performance is essential.

Q: What certifications accompany the PDT1508A module shipments?

A: Each shipment includes certifications verifying electrical safety and performance, complying with international standards required by major export markets.

Q: How does the typical turn-on and turn-off time impact system efficiency?

A: The swift typical turn-on (0.5 s) and turn-off (1.0 s) times promote responsive switching, enhancing overall efficiency and minimizing energy loss within power control applications.
