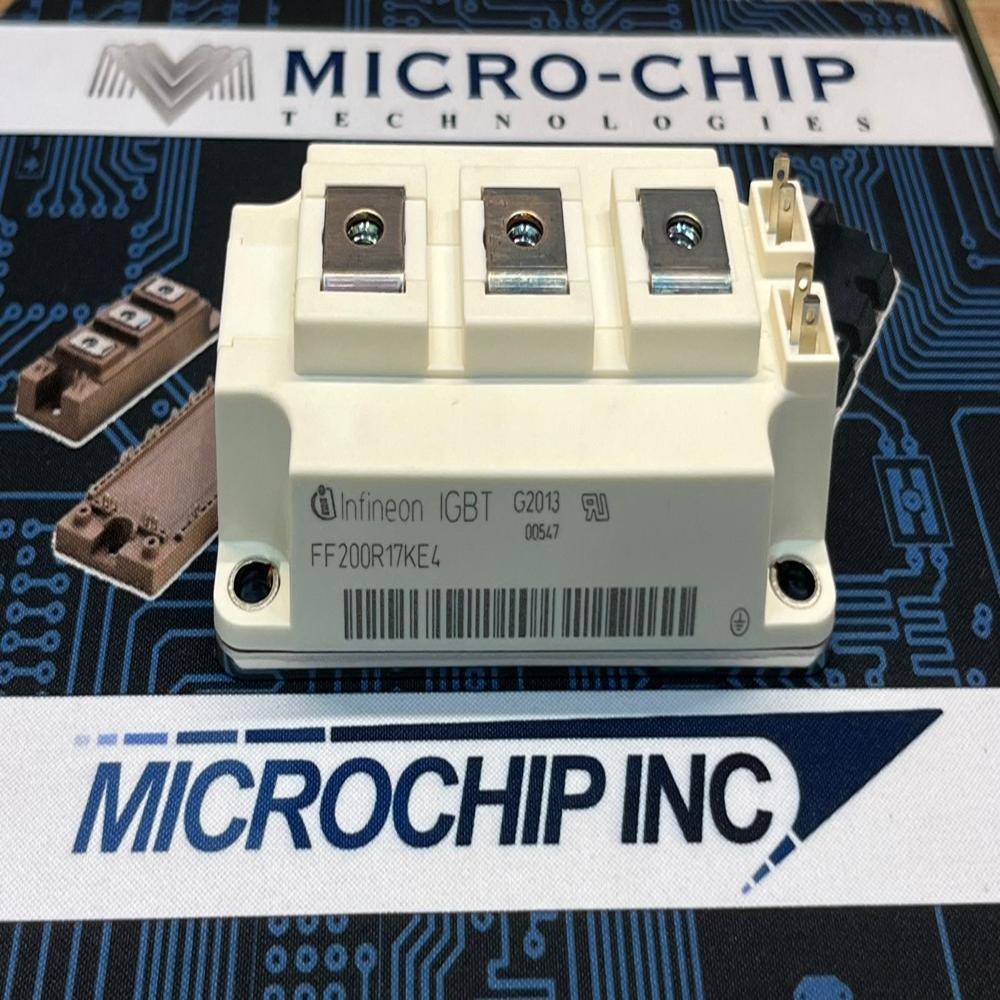

FF200R17KE4 Infineon dual IGBT power module

Name: FF200R17KE4 Infineon dual IGBT power module
Brand: MICROCHIP TECHNOLOGIES
Price: 7000.0 INR
Availability: InStock

Price 7000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

FF200R17KE4 Infineon dual IGBT power module Specification

Power Source
External DC bus

Thermal Conductivity
Rth(j-c) = 0.14 K/W

Output
Dual IGBT output channels

Interface
Power module direct solder/bolt terminals

Input
Control input for gate trigger

Operating Temperature
-40 C to +150 C (Tj)

Usage
Industrial drives, inverter systems, converters, and power supplies

Power Supply
DC powered module for inverter and converter drive applications

IP Rating
Not rated for ingress protection

Response Time
Typical switching times: ton=0.7 s, toff=1.0 s

Components
IGBT transistors with free-wheeling diodes

Features
Low VCEsat, high short-circuit withstand, industry-standard package

Product Type
Dual IGBT power module

Application
Motor drives, UPS, renewable energy inverters

Rated Voltage
1700 V

Supply Voltage
Max Collector-Emitter voltage 1700 V

Size
Standard module size E3/62 mm

Dimension (L*W*H)
134 mm x 62 mm x 38 mm

Function
Dual IGBT power module for fast switching and energy-efficient power conversion

Color
White/Beige module with black terminal covers

Weight
Approximately 500 g

Current Rating
200 A (IC) continuous collector current

Capacity
Collector current 200 A

Thickness
Module thickness approx. 38 mm

Frequency
Maximum switching frequency 20 kHz

Package Type
E3 housing

Short-circuit Withstand Time
10 s

Safety Standards
IEC 60747-9

RoHS Compliant
Yes

Technology
IGBT4 with Soft Switching Technology

Baseplate Material
Copper

Gate Emitter Voltage
20 V max

Mounting Style
Screw Mount

Isolation Voltage
2500 V AC, 1 minute

Part Number
FF200R17KE4

Diode Rating
Free-wheeling Diode, IF = 200 A, VRRM = 1700 V

VCE(sat) (typ)
2.1 V at IC=200A, Tj=25C

Module Category
High-power IGBT modules

FF200R17KE4 Infineon dual IGBT power module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About FF200R17KE4 Infineon dual IGBT power module

Explore superior energy control with the FF200R17KE4 Infineon dual IGBT power module-highly recommended for demanding industrial applications. Featuring advanced IGBT4 Soft Switching Technology, this top-drawer module delivers exceptional efficiency with a 200A collector current and 1700V voltage rating. Its free-wheeling diode and robust copper baseplate ensure high performance, while RoHS compliance and IEC 60747-9 safety standards guarantee reliability. With industry-standard E3 housing, short-circuit resilience, and exceptional thermal conductivity, this special power module is perfect for inverter systems, renewable energy, and motor drives.

Versatile Applications Across Industries

The FF200R17KE4 Infineon dual IGBT power module serves a wide range of application media. It excels in plant automation, renewable energy inverters, commercial UPS systems, and industrial converters. Its superior energy-conversion capability makes it highly valuable for factory machinery, motor drive controls, and power supply units. This module's reliability and fast switching response are particularly beneficial in modern manufacturing environments and commercial settings where stable, efficient performance is critical.

Reliable Supply and Export Credentials

FF200R17KE4 modules are delivered based on large-scale proposal amounts, catering to extensive industrial and commercial needs. With robust supply ability, our main export markets include Asia, Europe, and the Middle East. The module's valuation is reinforced by globally recognized certifications including RoHS compliance and IEC 60747-9, ensuring best-in-class product safety and operational standards. Purchase assurance and consistent export delivery make this power module a highly trusted choice for importers and distributors everywhere.

FAQ's of FF200R17KE4 Infineon dual IGBT power module:

Q: How is the FF200R17KE4 module typically used in industrial environments?

A: The FF200R17KE4 is integrated into inverter systems, motor drives, UPS units, and converter applications where fast switching and energy-efficient power conversion are required.

Q: What are the main benefits of using this dual IGBT power module?

A: Users benefit from superior energy efficiency, robust short-circuit protection, reliable isolation voltage, and long-term compliance with global safety standards, making it suitable for demanding situations.

Q: Where can this module be installed for optimal performance?

A: It is ideally installed in industrial plants, renewable energy setups, and commercial power supply systems, utilizing its screw mount design and copper baseplate for efficient thermal conduction.

Q: What is the process to integrate the module into an inverter system?

A: Integration involves securing the module using screw mount, connecting it to an external DC bus, interfacing input gate triggers, and utilizing the dual output channels for motor or converter drive operations.

Q: When should the FF200R17KE4 module be considered for replacement in existing systems?

A: Replacement is recommended if existing modules show signs of decreased efficiency, increased response time, or inability to meet required voltage and current specifications in critical power applications.
