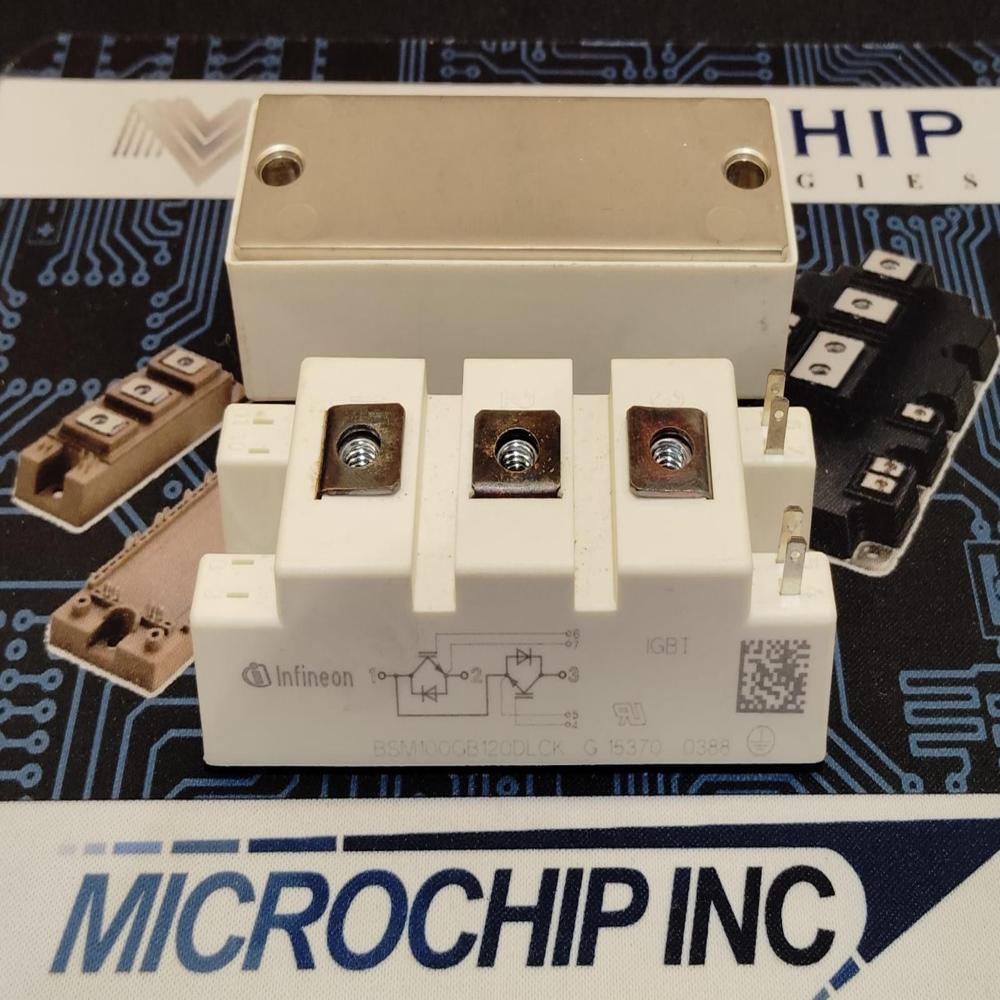

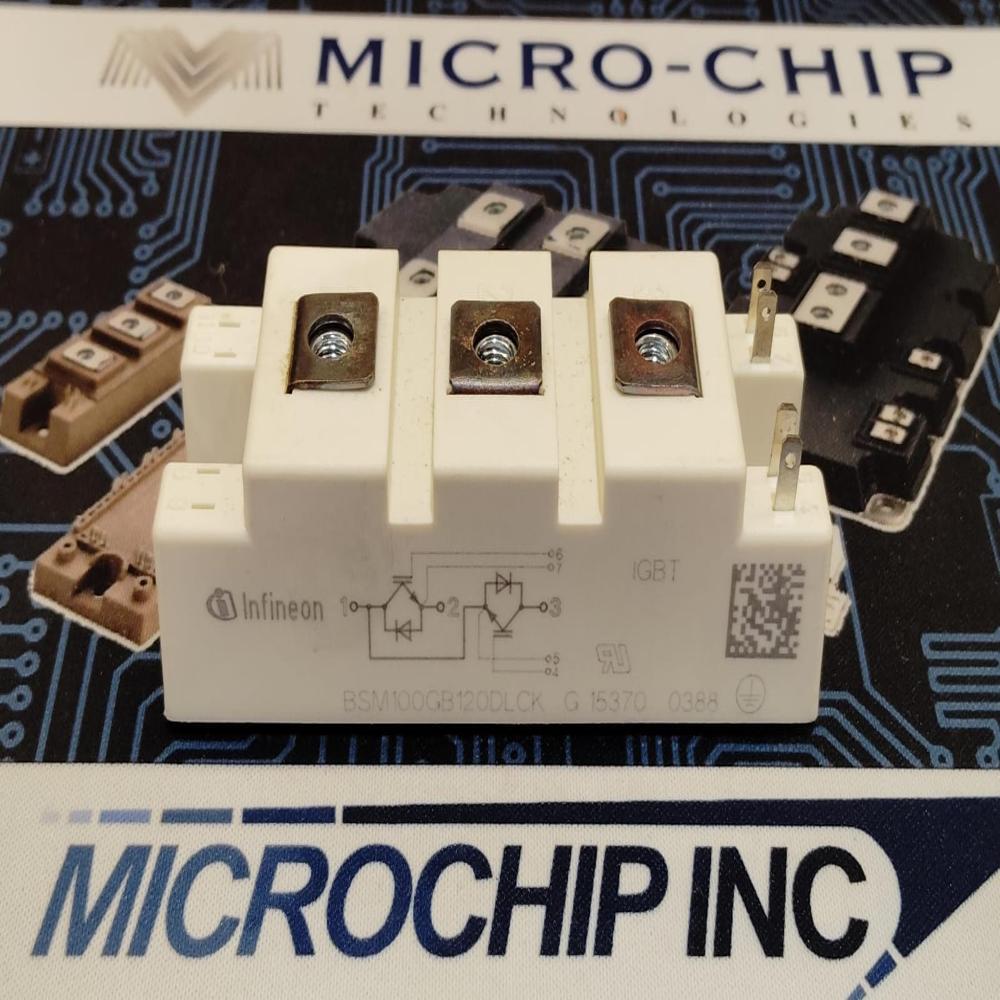

BSM100GB120DLCK IGBT MODULE

Name: BSM100GB120DLCK IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BSM100GB120DLCK IGBT MODULE Specification

Power Supply
Electric

Components
IGBT Transistors, Freewheeling Diode, Insulation Substrate

Output
High Voltage/Current Switching

Thermal Conductivity
High, with isolated baseplate

Interface
Screw Terminal

Usage
Industrial Power Electronics Applications

Input
PWM/Logic Level Signal

Operating Temperature
-40C to +150C

Power Source
External DC Supply

Features
Low Saturation Voltage, Fast Switching, Electrically Isolated Baseplate

IP Rating
IP00 (Open frame)

Response Time
Fast Switching

Product Type
IGBT Module

Application
Inverters, Motor Drives, UPS, Renewable Energy Systems

Rated Voltage
1200V

Supply Voltage
1200V (Collector-Emitter) Max

Size
Standard industrial module size

Dimension (L*W*H)
134 mm x 45 mm x 30 mm (approx.)

Function
IGBT (Insulated Gate Bipolar Transistor) Module for power switching/conversion

Color
Black and White

Weight
Approx. 350g

Thickness
Module body approx. 30mm

Capacity
100A (Collector Current) Max

Current Rating
100A

Frequency
High Switching Frequency

Vge (Gate-Emitter Voltage)
20V

Ic (Collector Current)
100A (Tc=25C)

Protection
No built-in protection, requires external circuits

Technology
NPT (Non-Punch Through)

Mounting
Screw Mount

Vces (Collector-Emitter Voltage)
1200V

Series
BSM100GB120DLCK

RoHS Compliance
Yes

Short Circuit Withstand Time
10s

Package Type
Dual IGBT, Industrial Standard Package

Isolation Voltage
2500V AC/min

Heat Sink Requirement
External Heat Sink Required

Module Structure
Half-Bridge Configuration

Lead Pitch
Standard, for industrial modules

BSM100GB120DLCK IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About BSM100GB120DLCK IGBT MODULE

Discover the ultimate in industrial-grade power control with the BSM100GB120DLCK IGBT Module. Designed for rarefied efficiency, this kingly dual-IGBT module boasts a robust 1200V Collector-Emitter Voltage and a superior 100A current capacity. Its fast-switching, high thermal conductivity and reduced losses deliver the very best for power electronics professionals. Stock is limited and in high demand-ending soon! Don't miss out; add to cart now and secure this industrial standard module for power conversion, inverters, renewable energy, motor drives, and more. External heat sink required. RoHS compliant.

Where the BSM100GB120DLCK IGBT Module Shines

The BSM100GB120DLCK IGBT Module excels in demanding industrial applications such as motor drives, UPS systems, renewable energy setups, and high-performance inverters. Used for efficient power switching and voltage conversion, it is a key component for commercial installations in factories, power plants, and cutting-edge renewable infrastructure. Perfectly suited for sectors where robust reliability and high switching frequency are required, this module elevates overall system performance.

Packaging, Availability, and Export Markets

Our BSM100GB120DLCK IGBT Modules are meticulously packaged for safe, secure delivery. With stock ready for immediate dispatch, units are quickly handed over to our trusted logistics partners, ensuring continual supply to meet industrial needs. We cater primarily to markets in India and maintain strong export channels. Whether for large-scale installations or critical replacements, our supply process ensures your workflow never stalls.

FAQ's of BSM100GB120DLCK IGBT MODULE:

Q: How is the BSM100GB120DLCK IGBT Module typically used in industrial applications?

A: The BSM100GB120DLCK IGBT Module is mainly used for high-power switching and conversion tasks in applications like inverters, motor drives, UPS, and renewable energy systems, where efficient, reliable performance is essential.

Q: What are the main benefits of using this module over other power semiconductor devices?

A: Its fast switching speeds, high thermal conductivity, reduced energy losses, and high isolation voltage make it ideal for demanding environments where reliability and efficiency are critical.

Q: Where can I integrate the BSM100GB120DLCK in my existing system?

A: This module can be directly integrated into industrial power control circuits, replacing or upgrading current switching modules in motor drives, power inverters, and energy storage systems with a standard half-bridge configuration.

Q: What is the process for installing the BSM100GB120DLCK IGBT Module?

A: Installation involves mounting with screws, connecting via screw terminals, and ensuring an external heat sink is used for optimal thermal management. Proper insulation and secure wiring are essential for safe operation.

Q: When should I opt for the BSM100GB120DLCK for my industrial projects?

A: Choose this module when your application demands high voltage (up to 1200V), high current (up to 100A), and rapid switching capability, especially in situations where you require reliable isolation and RoHS compliance.
