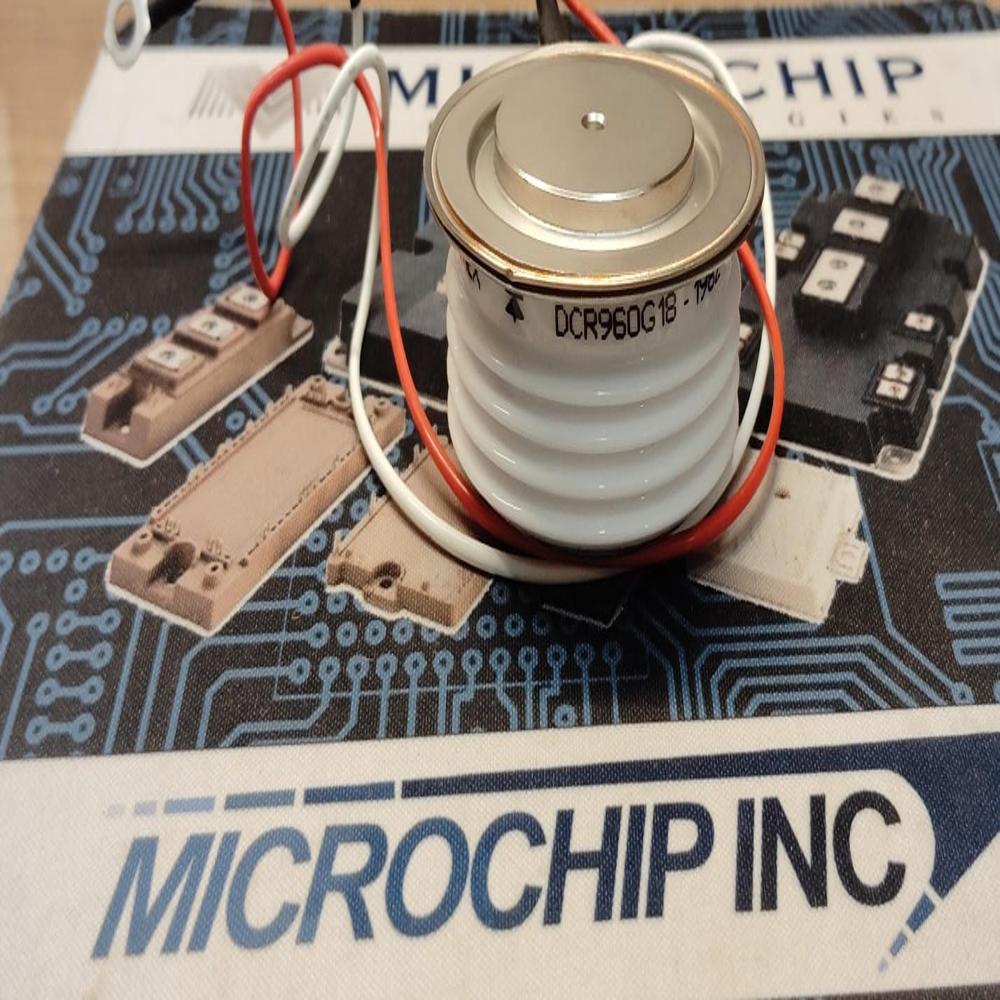

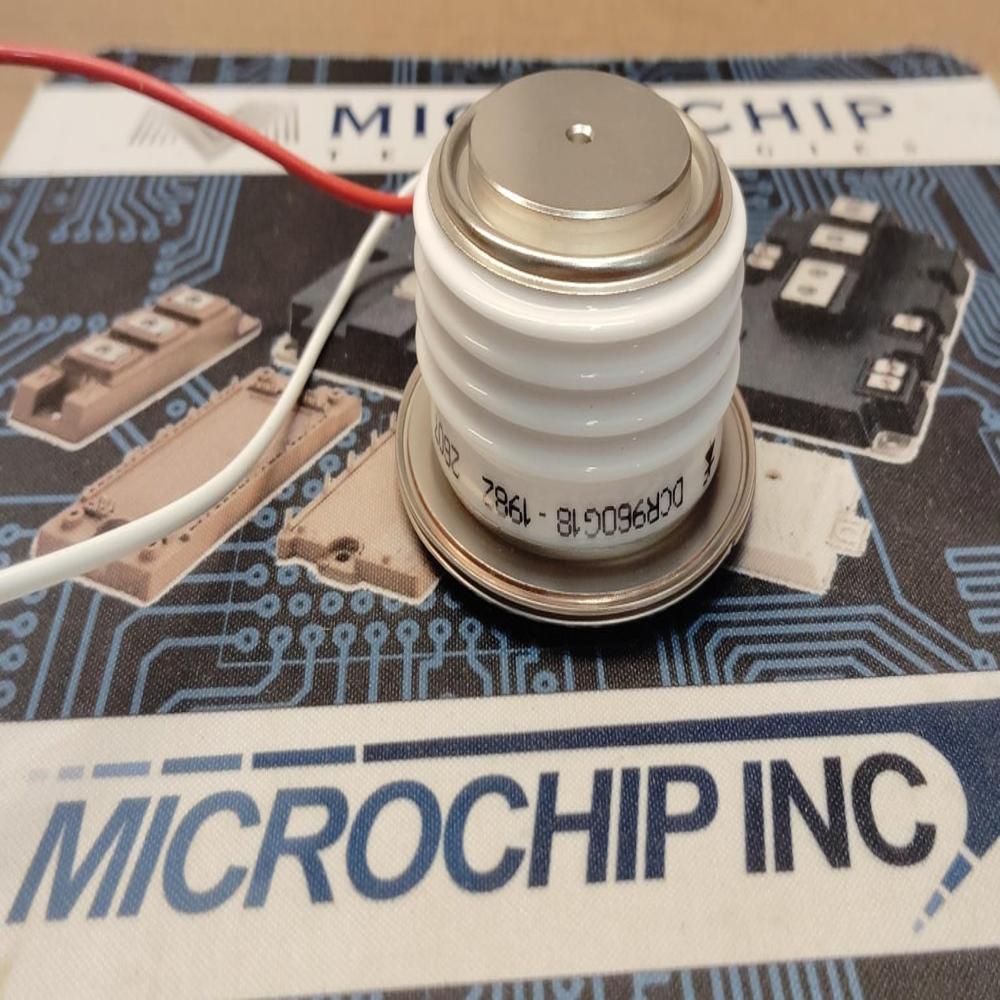

DCR960G18 Diode Module

Name: DCR960G18 Diode Module
Brand: MICROCHIP TECHNOLOGIES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

DCR960G18 Diode Module Specification

Product Type
Diode Module

Application
High power rectification, industrial power supplies, and converter circuits

Supply Voltage
Up to 1800V (Reverse Voltage)

Dissipation Power
960A

Operating Temperature
-40C to +125C

Power Consumption
Dependent on load and application

Temperature Range
-40C to +125C

Input Voltage
Up to 1800V

Voltage Regulator Type
Not applicable (rectifier diode)

Size
Approximately 80mm diameter x 40mm height (estimated from industry standard)

Weight
Approx. 400g (estimated)

Peak Forward Surge Current (IFSM)
Up to 10000A (typical for this range)

Leakage Current
Typically less than 100mA at rated voltage

Mounting
Press-pack/disc mounting

Reverse Recovery Time
Fast recovery, typical for high power diodes

Reference Code
DCR960G18-1982

Insulation
Ceramic body for high voltage insulation

Polarity
Stud Cathode, Case Anode

Compliance
RoHS compliant, Industrial grade

Package Type
Disc Type (Stud-Mount)

About DCR960G18 Diode Module

Pick yours today-the DCR960G18 Diode Module is engineered for those who demand impeccable quality and spectacular performance in high power rectification. Boasting a superb peak forward surge current of up to 10,000A and fast reverse recovery time, this industrial-grade, RoHS-compliant disc-type module offers fresh reliability for demanding converter circuits and power supplies. The ceramic body ensures high-voltage insulation, while leakage current stays well below 100mA. Take advantage of its robust design for efficient, high-voltage operations. Reference: DCR960G18-1982.

Versatile Application of DCR960G18 Diode Module

The DCR960G18 Diode Module finds its place in a range of high-power industrial sites, from transformer stations and converter circuits to heavy-duty industrial power supplies. Designed for rectification in environments requiring consistent performance, it excels in applications with large currents and harsh operating conditions. Its disc-type mounting allows effortless integration into panel assemblies, making it superb for use in both new projects and upgrades requiring reliability and rapid installation.

Supply Ability & Market Coverage of DCR960G18 Diode Module

With robust supply ability for bulk Purchase Orders, every DCR960G18 Diode Module is meticulously packed and dispatched from a primary FOB port tailored for domestic and international needs. Seamless support for exchanges and logistics ensures your requirements are managed with efficiency. The main domestic market benefits from swift availability and responsive fulfillment, making supply and restocking straightforward to guarantee uninterrupted operation on your site.

FAQ's of DCR960G18 Diode Module:

Q: How is the DCR960G18 Diode Module commonly used in industrial settings?

A: The DCR960G18 Diode Module is primarily utilized for high-power rectification, such as in industrial power supplies, transformer stations, and large converter circuits where efficient and reliable current control is vital.

Q: What are the advantages of using a disc-type, press-pack diode like the DCR960G18?

A: Disc-type, press-pack diodes like the DCR960G18 offer superb thermal management, robust mounting, and high reliability under large current surges, making them ideal for demanding applications with rigorous operating conditions.

Q: When should I consider choosing the DCR960G18 over other diodes?

A: You should consider the DCR960G18 for applications where high peak forward surge current, fast recovery time, and insulation are crucial, particularly when dealing with voltages up to 1800V and currents up to 960A.

Q: Where can the DCR960G18 Diode Module be installed?

A: The DCR960G18 can be installed in industrial sites requiring heavy-duty rectifiers, including electrical substations, power generation facilities, and high-capacity converter panels.

Q: What is the process for placing a supply order or arranging an exchange for the DCR960G18?

A: To place a Purchase Order, contact your distributor or authorized supplier. For exchanges or support, provide the reference code (DCR960G18-1982) and specify your requirements during packing and dispatch arrangements.
