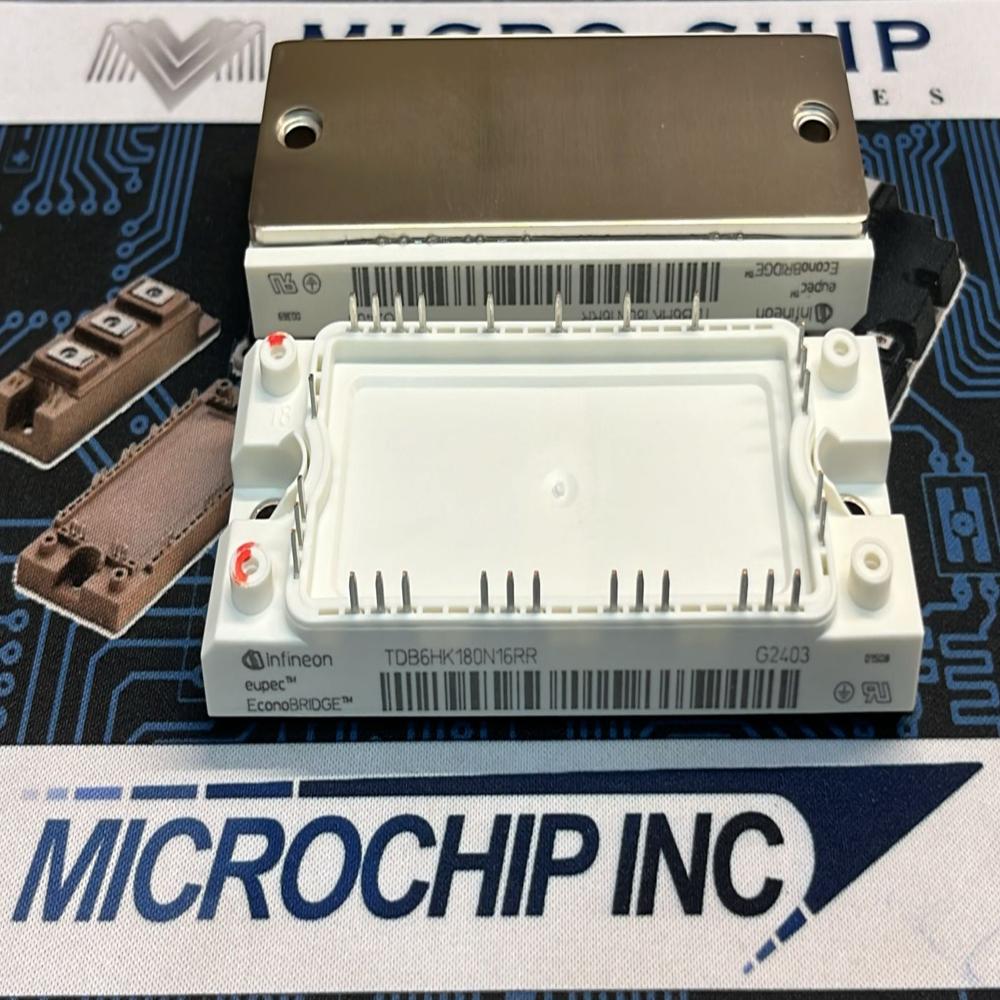

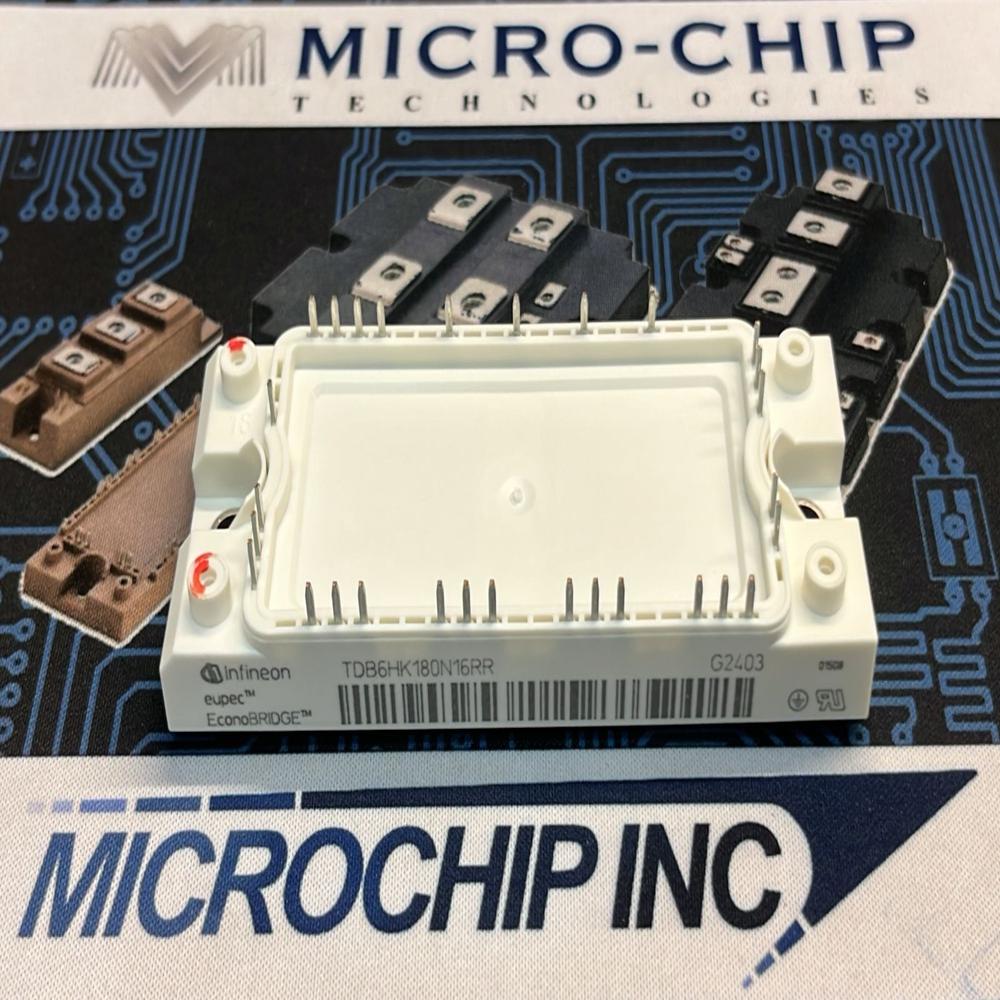

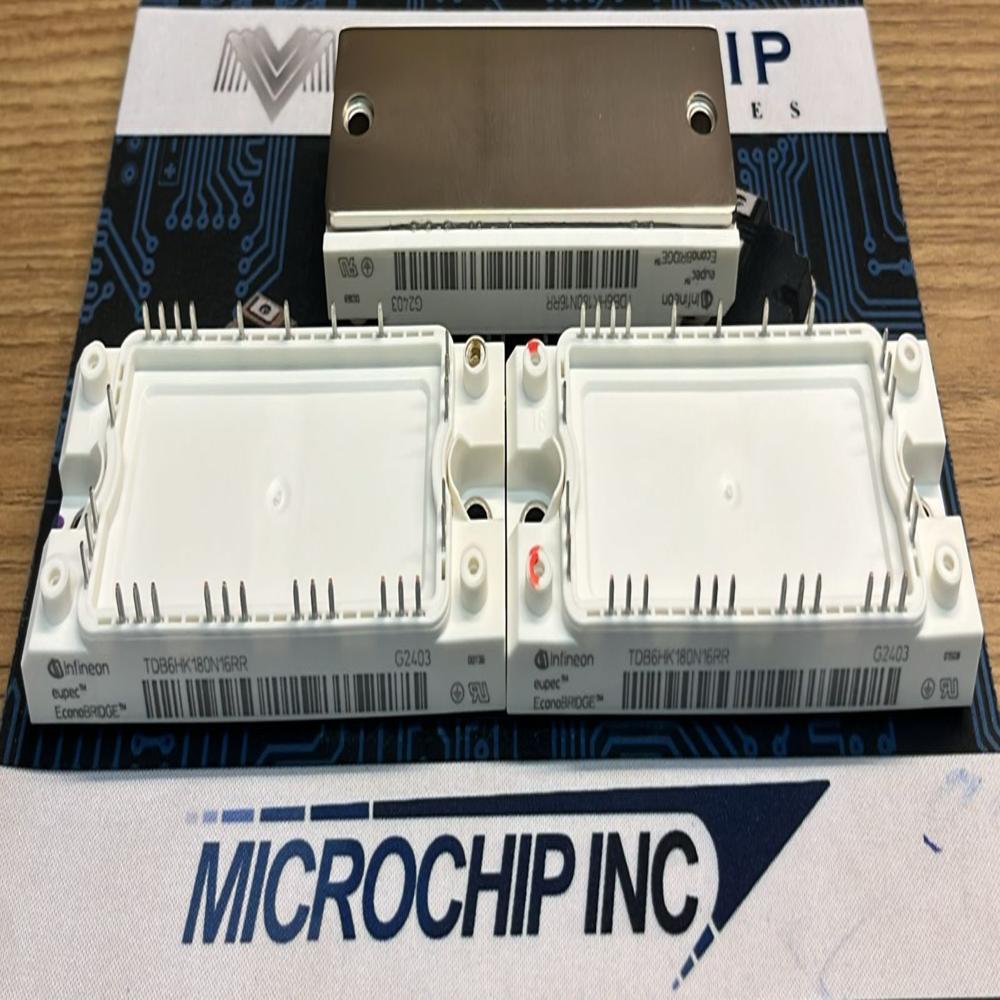

TDB6HK180N16RR Infineon IGBT module

Name: TDB6HK180N16RR Infineon IGBT module
Brand: MICROCHIP TECHNOLOGIES
Price: 9000.0 INR
Availability: InStock

Price 9000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

TDB6HK180N16RR Infineon IGBT module Specification

Product Type
Infineon IGBT Module

Application
Motor drives, inverters, UPS, renewable energy systems, industrial controls

Supply Voltage
1200V - 1600V

Dissipation Power
1820 W

Operating Temperature
-40C to 150C

Power Consumption
High power (for industrial applications)

Temperature Range
-40C to +150C

Input Voltage
1200V

Voltage Regulator Type
IGBT Module (not a voltage regulator)

Size
Conforms to industry standard package (Powerblock)

Weight
Approx. 600g

Isolation Voltage
4000V AC (1 min)

Package Type
Powerblock

Compliance
RoHS Compliant

Gate Emitter Voltage (Vge)
20V max

Short Circuit Withstand Time
10 s

Switching Frequency
Up to 20 kHz

Module Configuration
Dual IGBT (6-pack) with fast recovery diodes

Collector Current (Ic)
180A

Mounting
Screw mounting

Collector-Emitter Voltage (Vces)
1600V

Thermal Resistance, Junction-case (RthJC)
0.083 K/W

Part Number
TDB6HK180N16RR

TDB6HK180N16RR Infineon IGBT module Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About TDB6HK180N16RR Infineon IGBT module

Experience the remarkable TDB6HK180N16RR Infineon IGBT module-a rare find now on sale for advance purchase! This praiseworthy, dual IGBT (6-pack) module features monumental performance: Vces of 1600V, Ic up to 180A, and a fast switching frequency reaching 20 kHz. Engineered for excellence, it incorporates fast recovery diodes, robust isolation (4000V AC), and RoHS compliance. Ideal for high-power motor drives, renewable systems, UPS, and industrial controls, this module ensures monumental reliability and energy efficiency for high-demand applications across India.

Optimal Applications & Praiseworthy Advantages

The TDB6HK180N16RR is crafted for demanding industrial applications such as motor drives, inverters, renewable energy systems, and UPS. Its advanced dual IGBT (6-pack) configuration with fast recovery diodes is suited for continuous, high-power usage. Key advantages include excellent thermal conductivity, robust short-circuit protection, and dependable performance in extreme temperatures. This module's versatility makes it a monumental choice for critical infrastructure requiring high efficiency and reliability.

Prompt Shipment & Exceptional Certifications

Enjoy prompt delivery of the TDB6HK180N16RR Infineon IGBT module from our well-established FOB port in India. The shipment process is streamlined to ensure timely handling and reduced market outlay. Backed by full RoHS compliance and offered by trusted distributors and suppliers, this module maintains extraordinary market value. Certifications add to its credibility and make it an excellent industrial investment for projects prioritizing quality, reliability, and performance standards.

FAQ's of TDB6HK180N16RR Infineon IGBT module:

Q: How is the TDB6HK180N16RR module typically used in industrial applications?

A: The TDB6HK180N16RR Infineon IGBT module is primarily deployed in high-power motor drives, inverters, uninterruptible power supplies (UPS), renewable energy systems, and a variety of industrial control systems owing to its dependable high current and voltage ratings.

Q: What are the main advantages of purchasing the TDB6HK180N16RR in advance?

A: Advance purchase of this module ensures priority access to a rare and high-demand IGBT solution, facilitating seamless project planning and preventing potential stock shortages during peak demand periods.

Q: When can I expect shipment of the TDB6HK180N16RR after placing an order?

A: Shipment times may vary; generally, orders are processed promptly and shipped from India's major FOB ports. Please confirm current lead times with your distributor for the most accurate delivery schedule.

Q: Where does the TDB6HK180N16RR Infineon module get transported from?

A: The module is typically shipped from well-connected FOB ports in India, distributed by reputable suppliers and importers to locations nationwide and overseas, ensuring fast and secure delivery.

Q: What certifications does the TDB6HK180N16RR module hold?

A: This IGBT module is RoHS compliant, aligning with international safety and environmental standards, thereby reinforcing its credibility for diverse industrial uses.

Q: How does using the TDB6HK180N16RR benefit my power management systems?

A: With its monumental performance capabilities-including fast switching, excellent thermal management, and robust protection-this module enhances operational efficiency and extends the lifespan of high-power systems.
