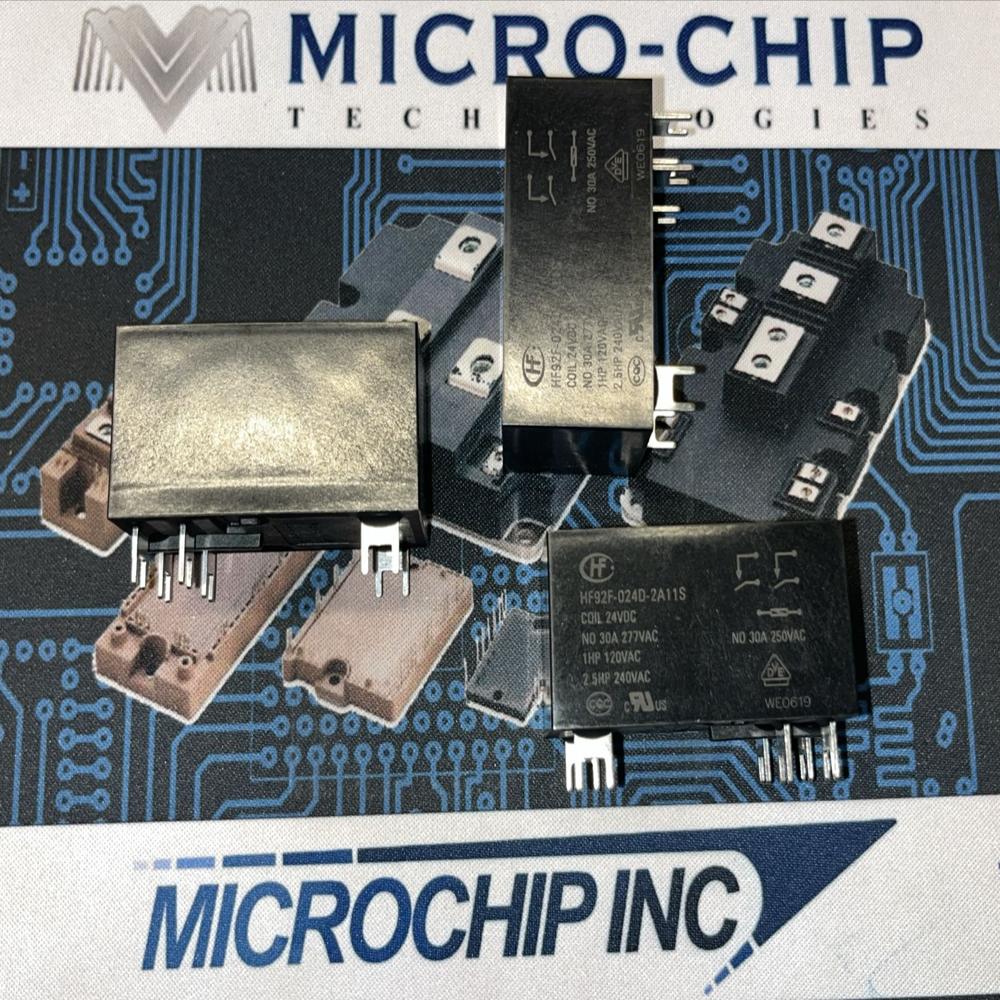

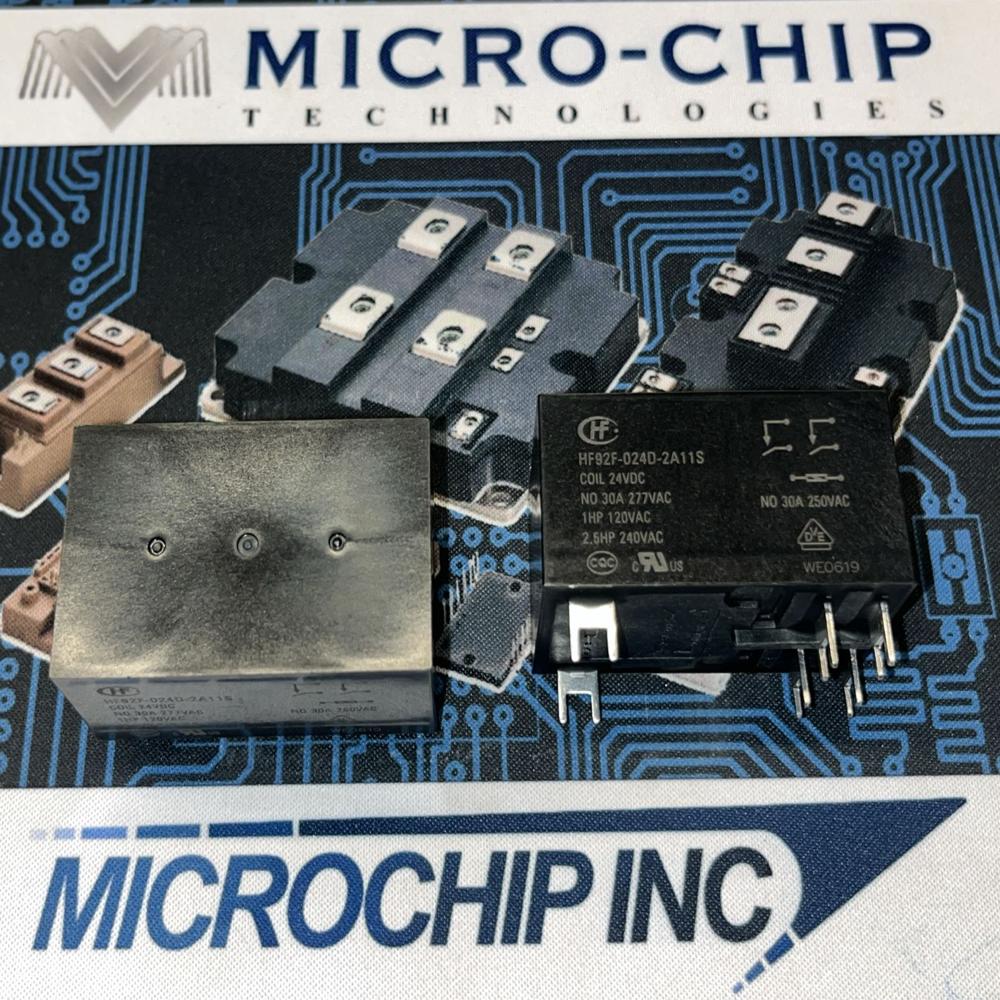

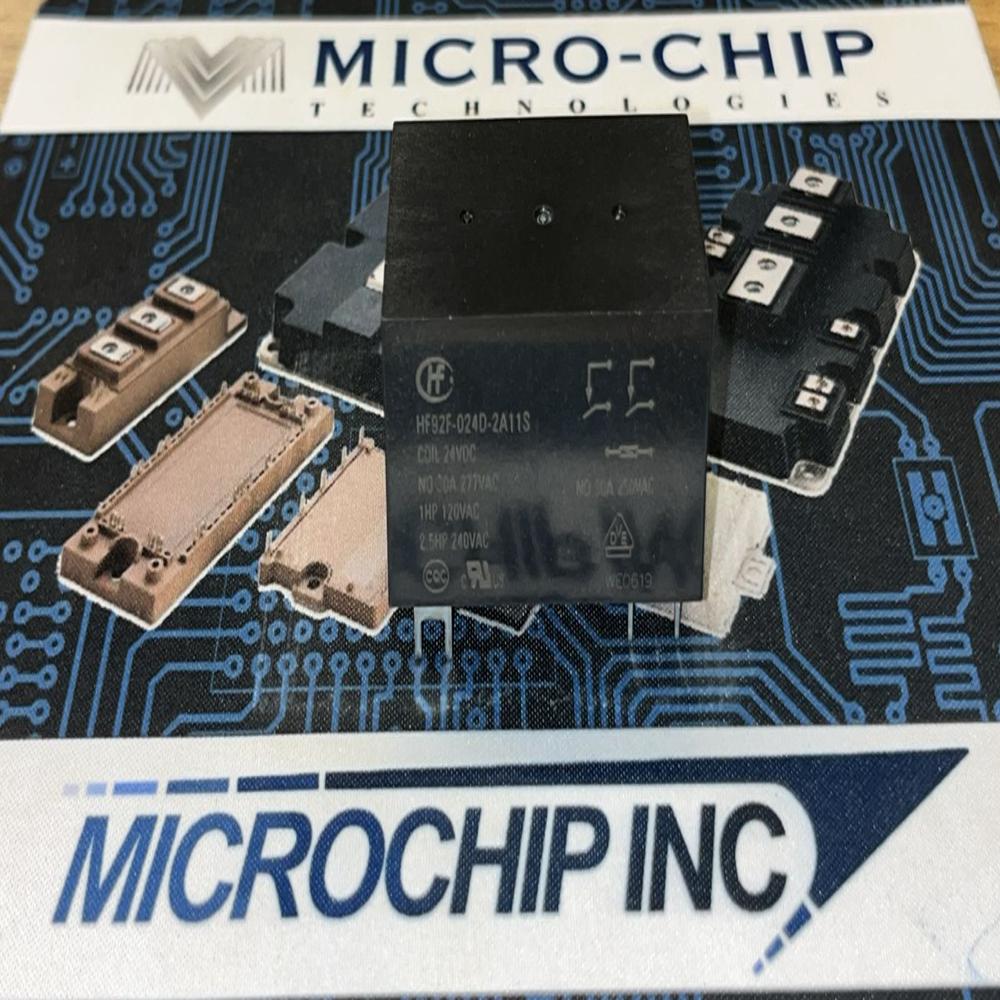

HF92F-024D-2A11S is a high-power PCB relay

Name: HF92F-024D-2A11S is a high-power PCB relay
Brand: MICROCHIP TECHNOLOGIES
Price: 1100.0 INR
Availability: InStock

Price 1100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

HF92F-024D-2A11S is a high-power PCB relay Specification

Product Type
High-Power PCB Relay

Supply Voltage
24 VDC

Dissipation Power
Approximately 0.9 W

Operating Temperature
-40C to +85C

Power Consumption
Approx. 0.9 W (coil)

Temperature Range
-40C to +85C

Input Voltage
24 VDC

Size
29 x 12.7 x 20.2 mm

Weight
Approx. 18 g

Release Time
10 ms

Coil Resistance
640 10%

Maximum Switching Current
16A

Electrical Life
100,000 operations (min at rated load)

Contact Form
DPDT (2A)

Contact Material
AgSnO2

Maximum Switching Voltage
250VAC / 30VDC

Insulation Resistance
>1000 M (500 VDC)

Pick-Up Voltage
70% of nominal voltage

Mechanical Life
10,000,000 operations (min)

Operate Time
10 ms

Compliance
RoHS, CE, UL Certified

Sealing
Flux Proof or Sealed type available

Mounting Type
PCB (Through Hole)

Drop-Out Voltage
5% of nominal voltage

Dielectric Strength
Between coil and contacts: 5000 VAC 1 min; Between open contacts: 1000 VAC 1 min

Contact Rating
16A 250VAC / 30VDC (resistive load)

HF92F-024D-2A11S is a high-power PCB relay Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About HF92F-024D-2A11S is a high-power PCB relay

Spotlight on the HF92F-024D-2A11S: this peerless, high-power PCB relay delivers performance fit for a laureate engineer. Engineered with a robust DPDT (2A) contact setup and a valorous contact rating of 16A at 250VAC or 30VDC, this relay stands unmatched at an unbeatable price. Its AgSnO2 contacts and exceptional dielectric strength guarantee unwavering reliability. RoHS, CE, and UL certifications enhance its reputation, making it ideal for automation systems, HVAC, power supplies, and more. Ending soon-secure your supply from India's leading distributor, importer, and supplier!

Versatile Applications and Superior Features

The HF92F-024D-2A11S relay excels in a spectrum of uses, ranging from control panels and industrial automation to home appliances and HVAC systems. Its compact build and powerful 16A switching capacity ensure seamless integration into modern automation and power solutions. The relay features high dielectric and insulation resistance, swift operate and release times, and options for flux proof or sealed enclosures, making it suitable for challenging environments and demanding use-cases.

Supply, Certifications and Pricing Advantages

Supplied with a consistent and reliable output, the HF92F-024D-2A11S is available FOB major Indian ports to expedite delivery. This relay is certified RoHS, CE, and UL, attesting to its premium standards and compliance. Distributors and importers in India can request the asking price or list price for bulk orders, ensuring access to top-tier products with unmatched quality and supply ability.

FAQ's of HF92F-024D-2A11S is a high-power PCB relay:

Q: How does the HF92F-024D-2A11S relay benefit industrial automation systems?

A: The HF92F-024D-2A11S relay provides dependable switching of up to 16A, ideal for controlling various loads in automated systems, ensuring safety and reliability for continuous operation.

Q: What environments and applications are suitable for this relay?

A: This relay is well-suited for use in control panels, HVAC systems, home appliances, industrial equipment, power supplies, and automation systems, thanks to its wide operating temperature range and robust sealing.

Q: Where can I purchase the HF92F-024D-2A11S in India?

A: You can source the HF92F-024D-2A11S from leading distributors, importers, and suppliers throughout India, with options for bulk orders and FOB delivery.

Q: What certifications does the HF92F-024D-2A11S hold?

A: This relay is RoHS, CE, and UL certified, affirming its compliance with international safety and environmental standards.

Q: How is this relay mounted and what are its installation advantages?

A: The HF92F-024D-2A11S is designed for through-hole PCB mounting, enabling easy installation and firm connectivity in high-density electronic assemblies.
