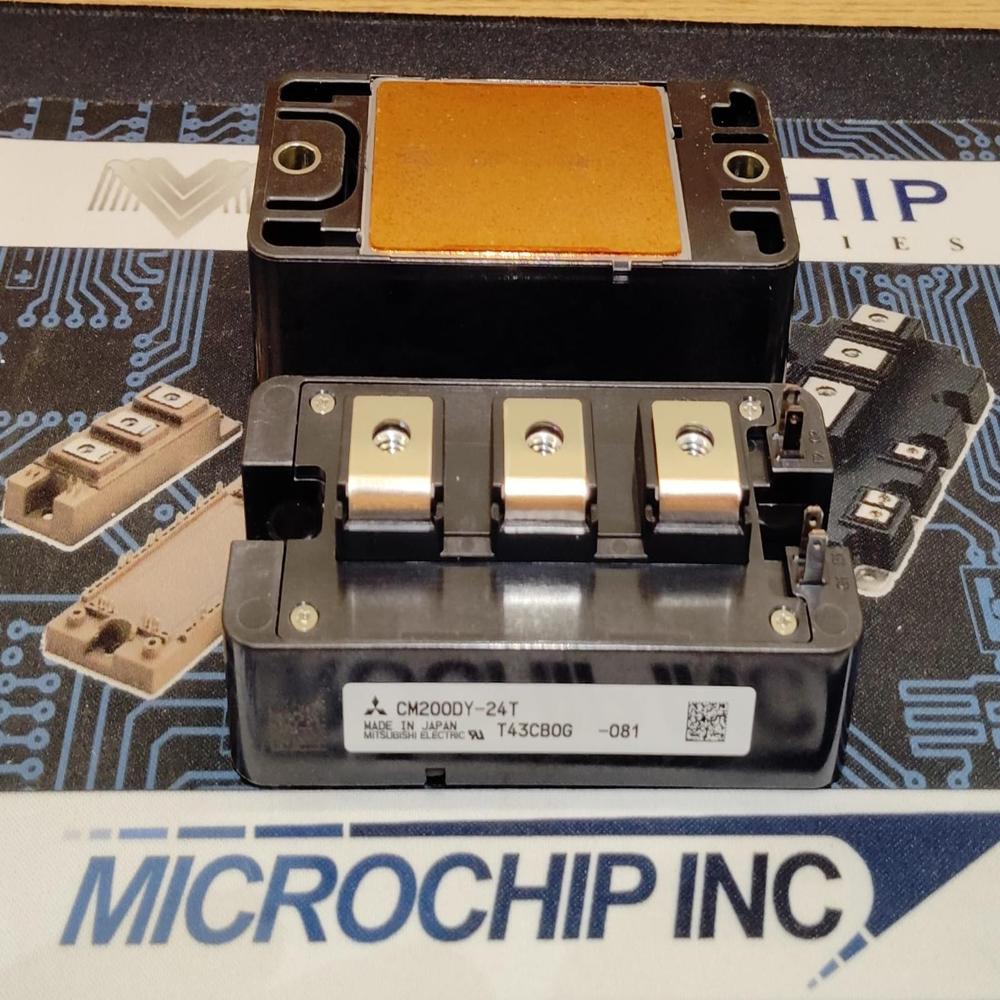

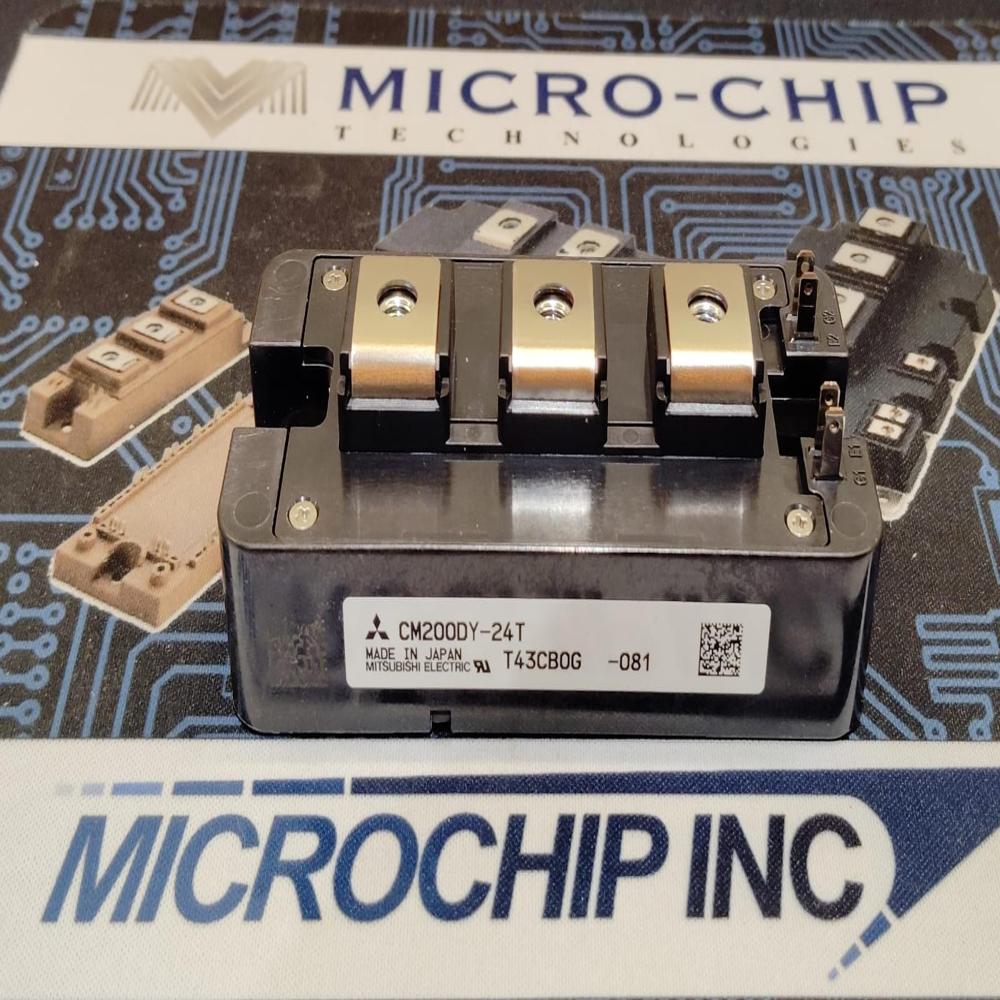

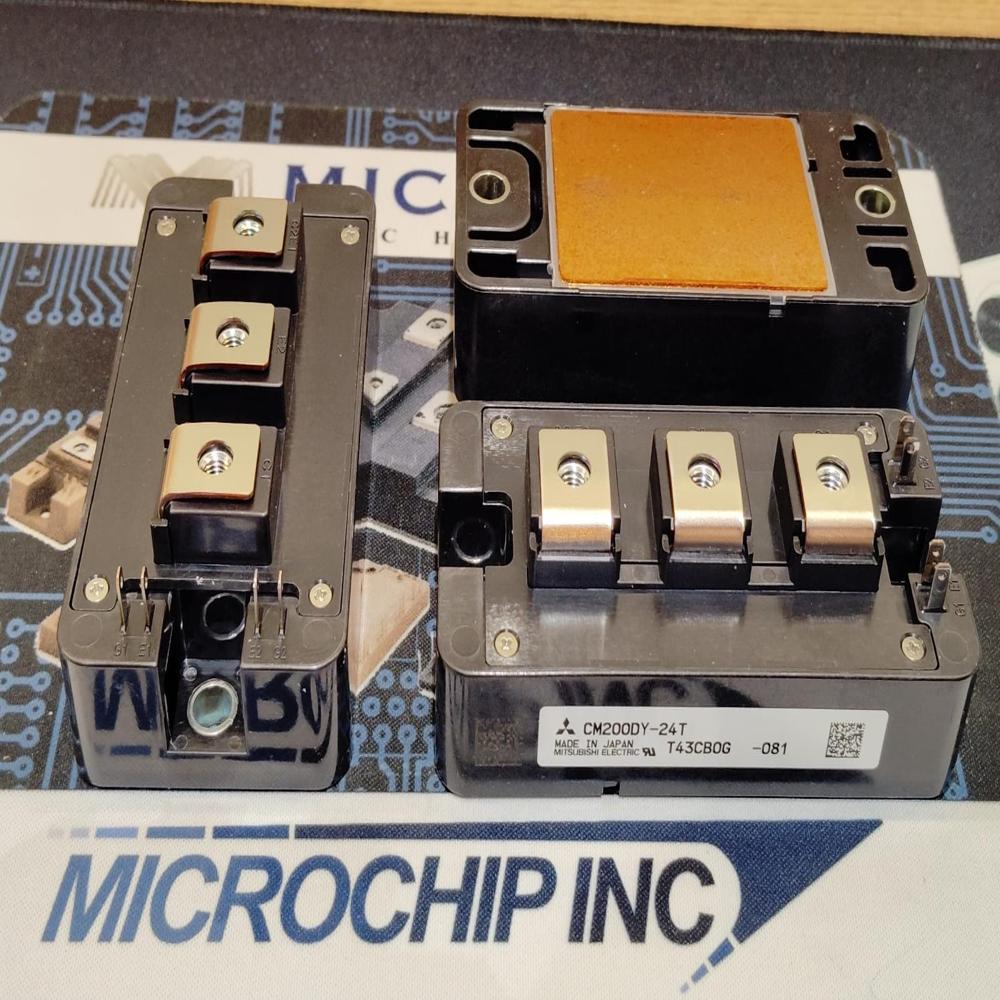

CM200DY-24T Mitsubishi IGBT Module

Name: CM200DY-24T Mitsubishi IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CM200DY-24T Mitsubishi IGBT Module Specification

Product Type
IGBT Module

Supply Voltage
1200V

Dissipation Power
1280W

Operating Temperature
-40C to +150C

Power Consumption
200A (Collector Current)

Temperature Range
-40C to +150C

Input Voltage
24V (Gate Drive Circuit)

Voltage Regulator Type
Dual IGBT Module

Size
118mm x 69mm x 30mm (LxWxH)

Weight
~470g

Gate Threshold Voltage (Vge(th))
4V - 6V

Internal Circuit Protection
Yes (diode included)

Mounting Type
Panel, Screw Mount

Package Type
Module

Switching Frequency
Up to 10kHz

Model Number
CM200DY-24T

Made In
Japan

Collector Emitter Voltage (Vce)
1200V

Isolation Voltage
2500V AC (1 min)

RoHS Compliant
Yes

Collector Current (Ic)
200A

Short Circuit Withstand Time
10s

Configuration
Dual

CM200DY-24T Mitsubishi IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM200DY-24T Mitsubishi IGBT Module

Buy Online the popular CM200DY-24T Mitsubishi IGBT Module to experience matchless power delivery and reliability for your industrial applications. Masterful engineering supports a collector-emitter voltage of 1200V and collector current of 200A, ensuring efficient inverter, power control, and motor drive operations. The ravishing dual-module design offers robust protection features, with a short circuit withstand time of 10 seconds and included internal diodes. RoHS compliant and made in Japan, it's ideal for panel mounting using screw mounts. Choose from leading distributors, suppliers, and importers in India for this high-demand product.

Versatile Usage and Remarkable Features

The CM200DY-24T Mitsubishi IGBT Module is engineered for seamless integration in inverters, industrial equipment, and motor drives. Its dual configuration and panel screw mount enable straightforward application. Enhanced by a 10-second short-circuit withstand and integrated diode, this module excels in environments demanding reliability and power efficiency. Its wide operating temperature range and RoHS compliance further underscore its suitability for advanced applications, establishing it as a preferred choice for demanding industrial projects.

Transport, Market Reach & Certifications

Our CM200DY-24T Mitsubishi IGBT Module is shipped via trusted transport services and delivered safely to your drop-off location. With extensive supply ability, this product holds significant market value for importers and distributors. Each module is RoHS compliant and manufactured in Japan, ensuring strict quality control and global standards. From major Indian ports, rapid dispatch supports your project timelines, making this certified IGBT module a reliable cornerstone for industrial supply chains.

FAQ's of CM200DY-24T Mitsubishi IGBT Module:

Q: How is the CM200DY-24T Mitsubishi IGBT Module used in industrial settings?

A: The module is commonly used in inverters, power control units, motor drives, and other industrial equipment requiring efficient power switching and regulation.

Q: What special features does the CM200DY-24T offer compared to similar modules?

A: It features a matchless dual IGBT configuration, internal circuit protection, integrated diode, short-circuit withstand time of 10 seconds, and robust panel screw mounting for exceptional durability.

Q: Where can I buy the CM200DY-24T Mitsubishi IGBT Module online in India?

A: You can buy this popular IGBT module online from reputable distributors, suppliers, and importers specializing in industrial electronic components throughout India.

Q: What certifications does the CM200DY-24T possess?

A: The module is RoHS compliant and manufactured to high-quality standards in Japan, making it suitable for use in a wide range of industrial applications requiring certified components.

Q: What is the process for transporting and delivering the CM200DY-24T?

A: Modules are packed securely and dispatched using reliable transport services, with deliveries coordinated for timely drop-off at your chosen address or project site.
