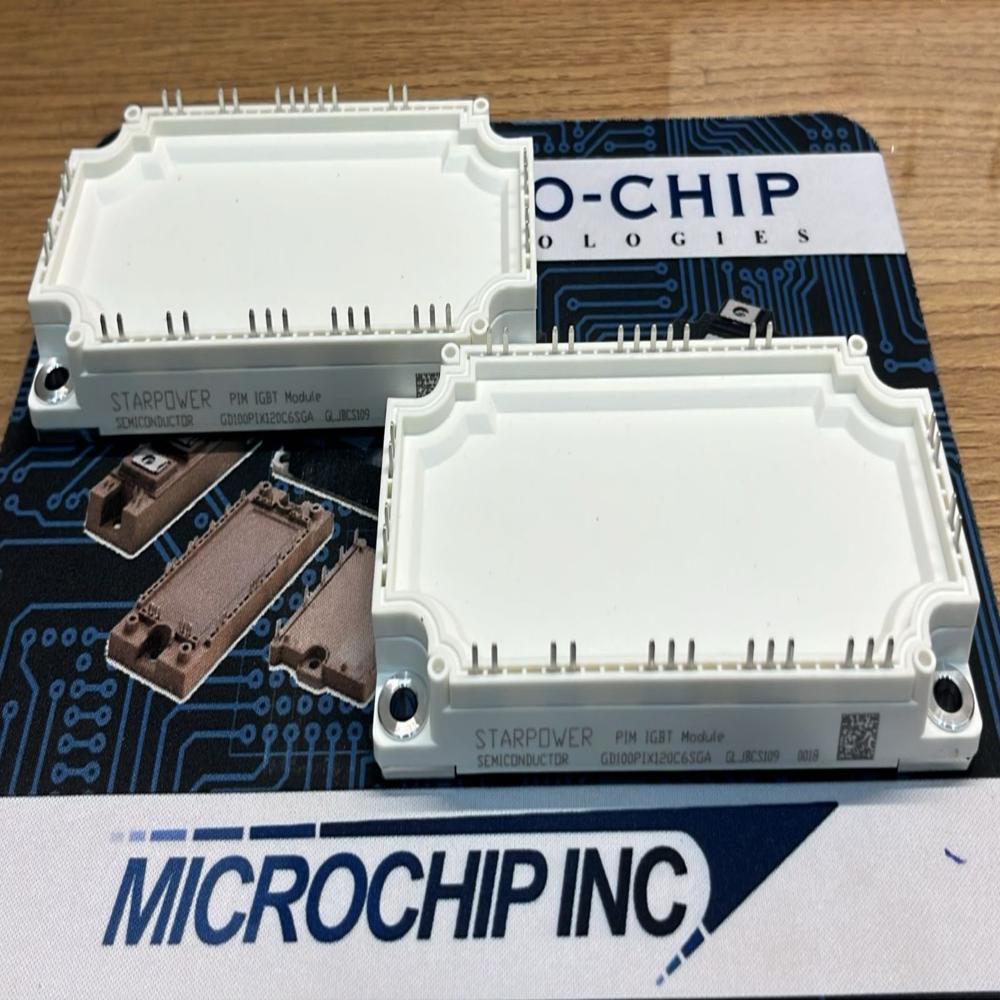

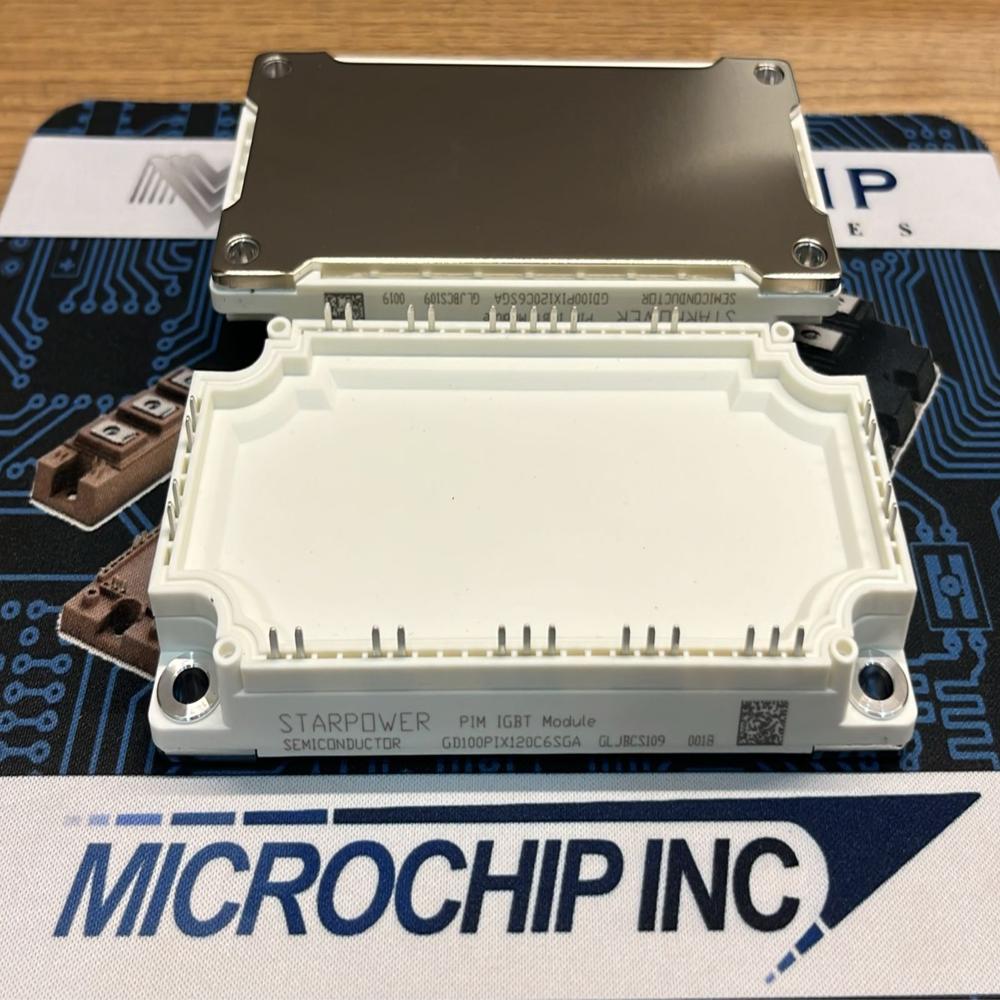

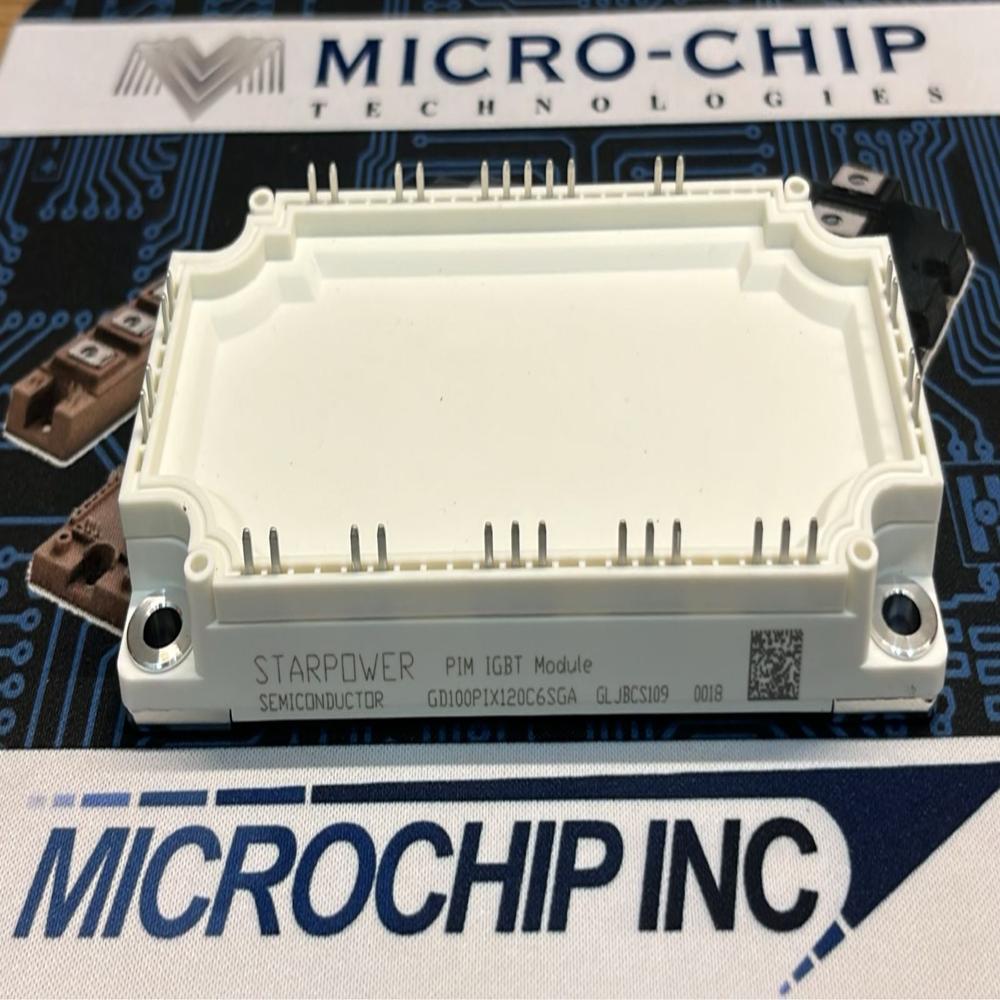

GD100PIX120C6SGA STARPOWER IGBT MODULE

Name: GD100PIX120C6SGA STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 9000.0 INR
Availability: InStock

Price 9000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GD100PIX120C6SGA STARPOWER IGBT MODULE Specification

Product Type
IGBT Module

Supply Voltage
Up to 1200V

Dissipation Power
780 W

Operating Temperature
-40C to +150C

Power Consumption
100A Rated Current

Temperature Range
-40C to +150C

Input Voltage
1200V (VCES)

Voltage Regulator Type
IGBT/Freewheeling Diode

Size
136 mm x 54 mm x 30 mm (Approx.)

Weight
Approximately 350g

Gate Emitter Voltage (VGES)
20 V max

Switching Frequency
Up to 20 kHz

Thermal Resistance (Junction-Case)
0.18C/W

Package Type
Standard Industrial Module

Mounting Type
Screw Mount

Collector-Emitter Voltage (VCES)
1200 V

Module Structure
6-Pack (Six IGBTs)

Isolation Voltage
2500 V AC, 1 min

Short Circuit Withstand Time
10 s

Collector Current (IC)
100 A

GD100PIX120C6SGA STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About GD100PIX120C6SGA STARPOWER IGBT MODULE

The GD100PIX120C6SGA STARPOWER IGBT Module sets an unassailable benchmark in industrial power electronics. This top-rated, customizable 1200V, 100A module is engineered for sublime performance in demanding inverter, motor drive, power supply, and UPS applications. Featuring a robust 6-pack structure with a switching frequency up to 20 kHz and an isolation voltage of 2500V AC, it ensures optimal safety and efficiency. The standard industrial package and screw mount enable flexible installation. Grab the best-in-class module, widely distributed and supplied across India, for superior power management solutions.

Powerful Applications and Advantages

The GD100PIX120C6SGA STARPOWER IGBT Module excels in sectors like industrial automation, renewable energy inverters, motor drives, and UPS systems. Its primary competitive advantages include high collector current capability, customizable setup, and superior thermal resistance. Extra features such as a short circuit withstand time of 10 seconds and up to 20 kHz switching frequency equip the module for varied, high-demand environments.

Delivery, Packaging, and Sample Policy Details

Upon receipt of the purchase order or approval of the proposal amount, delivery times for the GD100PIX120C6SGA STARPOWER IGBT Module are prompt, with options for expedited drop-off across India. Packaging prioritizes safety and integrity, utilizing anti-static, impact-resistant materials. Sample policy is transparent-samples can be requested with formal documentation or contract, ensuring customers evaluate module quality before bulk procurement.

FAQ's of GD100PIX120C6SGA STARPOWER IGBT MODULE:

Q: How do I install the GD100PIX120C6SGA STARPOWER IGBT Module?

A: Installation is straightforward thanks to the module's standard industrial screw mount. Ensure proper alignment, secure the screws, and connect electrical terminals as specified in the datasheet for optimal performance and safety.

Q: What are the key benefits of using this IGBT module in power supply or inverter systems?

A: The module delivers high efficiency, superior voltage isolation, reliable operation across a wide temperature range, and robust protection through its short circuit withstand capability, making it ideal for critical power supply and inverter applications.

Q: When can I expect delivery after placing a purchase order?

A: Delivery is swift and typically dispatched promptly after order confirmation or approval of the proposal amount, with expedited drop-off available for urgent requirements.

Q: Where is the GD100PIX120C6SGA STARPOWER IGBT Module distributed or available in India?

A: The module is available through leading distributors, importers, and suppliers across India, ensuring nationwide accessibility and local support.

Q: What is the application process for obtaining samples?

A: To obtain samples, submit an official purchase order or request in line with the distributor's or supplier's policy. This ensures transparent evaluation before committing to larger quantities.

Q: How does the module's customizable configuration benefit specific industrial needs?

A: Customizable setup enables tailoring of the power module to match precise electrical and mechanical requirements, enhancing flexibility and performance in specialized industrial applications.
