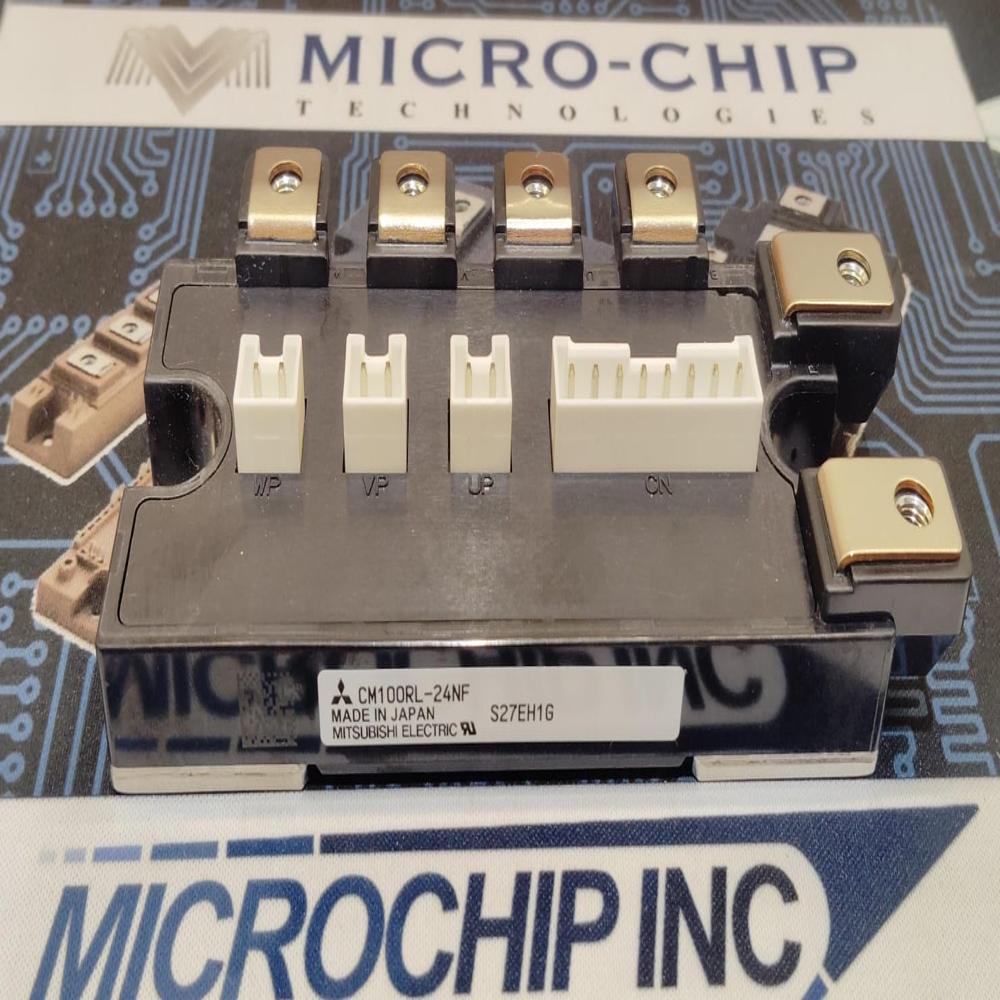

CM100RL-24NF Mitsubishi Electric

Name: CM100RL-24NF Mitsubishi Electric
Brand: MICROCHIP TECHNOLOGIES
Price: 18500.0 INR
Availability: InStock

Price 18500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CM100RL-24NF Mitsubishi Electric Specification

Product Type
IGBT Module

Supply Voltage
1200V

Dissipation Power
740W

Operating Temperature
-40C to +150C

Power Consumption
Depends on Application Load

Temperature Range
-40C to +150C

Input Voltage
Not Applicable (Controlled via Gate Signal)

Size
118mm x 70mm x 30mm

Weight
Approximately 500g

Switching Frequency
Up to 20kHz

Isolation Voltage
2500Vrms

Package/Case
Module

Modules Configuration
Dual IGBT with Free Wheel Diode

Mounting Type
Chassis Mount

Termination Style
Screw Terminal

Collector-Emitter Voltage (Vce)
1200V

Collector Current (Ic)
100A

Series
CM100RL

CM100RL-24NF Mitsubishi Electric Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM100RL-24NF Mitsubishi Electric

Discover the famed CM100RL-24NF Mitsubishi Electric IGBT module-where splendiferous engineering meets instant savings. Celebrated across India for its robust 1200V collector-emitter voltage and a remarked 100A collector current, this popular module ensures reliability in critical industrial motor drives, inverters, and UPS applications. Rated for -40C to +150C operations, it delivers fresh, long-lasting performance with a dissipation power of 740W. Its dual IGBT with free wheel diode configuration and secure chassis mount ensures seamless integration. Trust this module for efficiency and durability, supplied directly by reputed distributors, importers, and suppliers in India.

Industrial Versatility and Commercial Directions

The CM100RL-24NF Mitsubishi Electric is popularly used by commercial entities for industrial motor drives, power supplies, inverters, and UPS systems. Designed for engineers and technicians, it should be mounted securely on chassis and connected via screw terminals, following manufacturer guidelines. Splendidly suited for commercial, automation, and heavy-duty applications, its usage maximizes productivity and durability. When it comes to direction of use, professionals should use appropriate gate controls for optimal module functioning and integrate within existing energy systems for reliable, efficient power management.

Export Markets, Terms, and Certifications: Ready for Dispatch

With stock ready across India, the CM100RL-24NF Mitsubishi Electric serves main export markets in Asia, Africa, and the Middle East. Orders are efficiently processed via purchase orders, ensuring quick dispatching to desired destinations. Our supply chain honors various payment terms, including T/T and LC, catering to diverse client requirements. Each module adheres to international quality certifications, promising assured performance and reliable operation. Secure your module today and experience seamless procurement and prompt delivery every step of the way.

FAQ's of CM100RL-24NF Mitsubishi Electric:

Q: How should the CM100RL-24NF Mitsubishi Electric module be installed for optimal performance?

A: For best results, the module should be mounted securely on a chassis using the screw terminals. Ensure that all electrical connections are tight and the unit is appropriately integrated within your drive or inverter system, following the manufacturer's instructions for gate signal control.

Q: What are the primary commercial uses of the CM100RL-24NF module?

A: This module is commonly employed in industrial motor drives, UPS systems, inverters, and power supplies. Its robust design makes it suitable for applications demanding high voltage and current handling capabilities.

Q: Where is the CM100RL-24NF mainly exported and what is the typical dispatch process?

A: The product is mainly exported to key markets in Asia, Africa, and the Middle East. Orders are fulfilled through a purchase order system, and prompt dispatching is ensured once payment terms are confirmed.

Q: What certifications does the CM100RL-24NF Mitsubishi Electric module carry?

A: The module complies with international quality standards, guaranteeing reliable operation and safety for a wide range of industrial applications.

Q: How does using CM100RL-24NF benefit industrial energy systems?

A: Incorporating the CM100RL-24NF enhances energy efficiency, ensures long-lasting operation under demanding conditions, and contributes to reliable power management for critical industrial applications.
