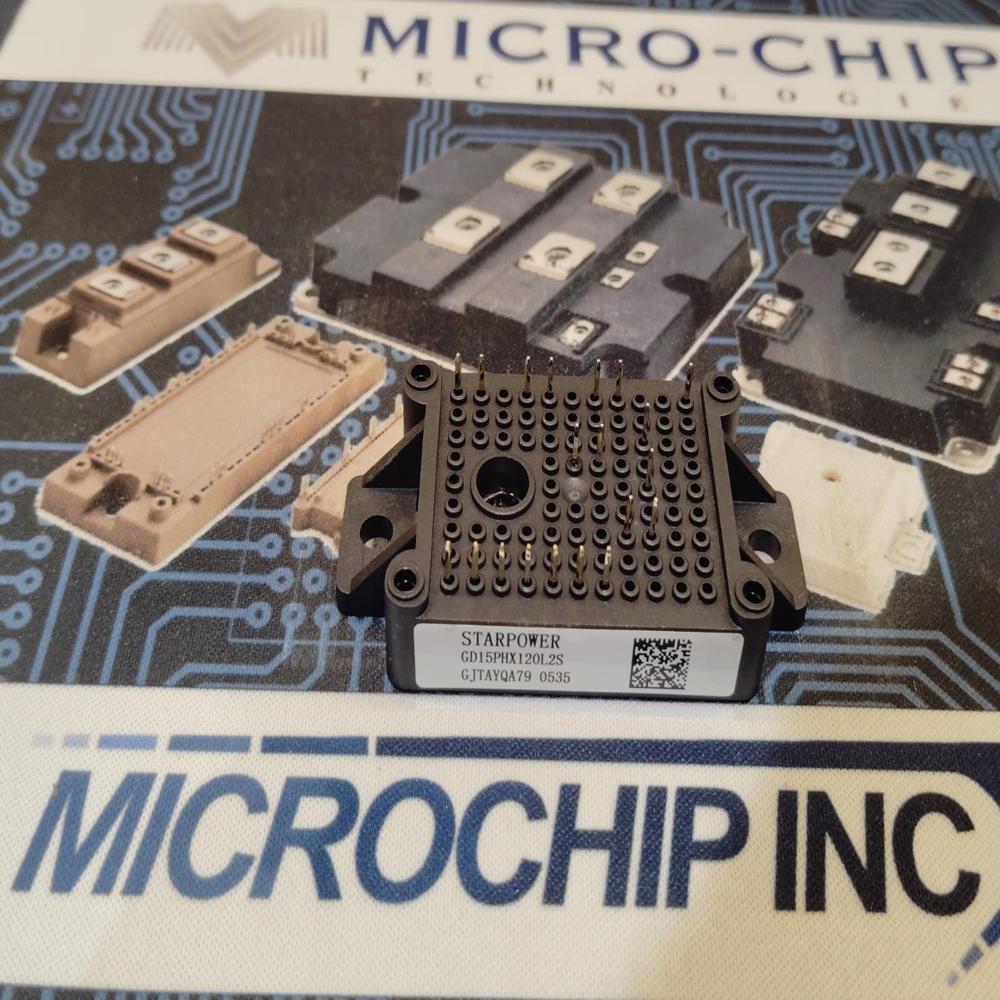

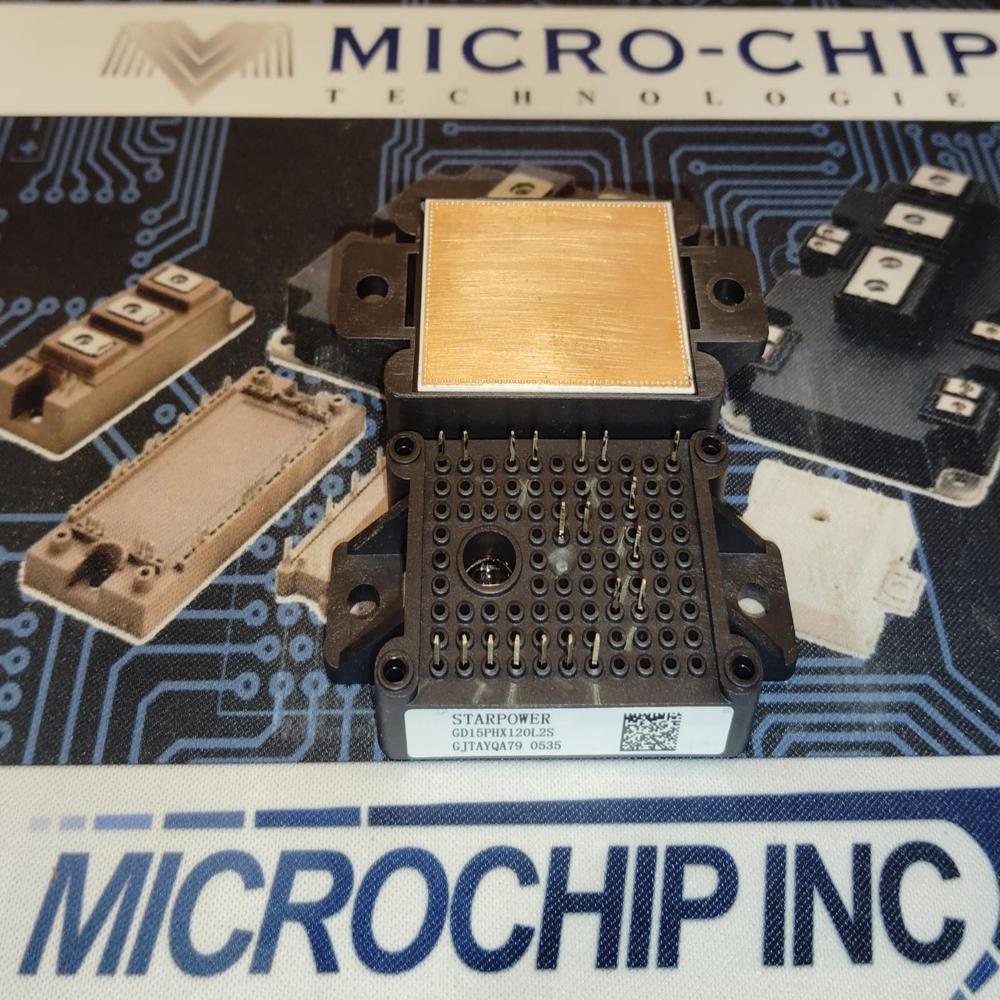

GD15PHX120L2S STARPOWER IGBT MODULE

Name: GD15PHX120L2S STARPOWER IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD15PHX120L2S STARPOWER IGBT MODULE Specification

Product Type
IGBT Module

Supply Voltage
1200V

Dissipation Power
150W (typical)

Operating Temperature
-40C to +150C

Power Consumption
Varies by application

Temperature Range
-40C to +150C

Input Voltage
1200V (Collector-Emitter Voltage)

Size
106mm x 62mm x 30mm (approx.)

Weight
Approx. 450g

Configuration
Half-Bridge

Mounting Type
Screw Mount

Collector-Emitter Saturation Voltage (Vce(sat))
2.2V (typical)

Storage Temperature
-40C to +150C

Technology
Trench Gate Field Stop IGBT

Model Number
GD15PHX120L2S

Current Rating
15A (Collector Current)

RoHS Compliance
Yes

Isolation Voltage
2500V (rms, 60s)

Package Type
Module

Gate-Emitter Voltage
20V (max)

Short Circuit Withstand Time
10s (max)

Switching Frequency
Up to 20kHz

GD15PHX120L2S STARPOWER IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD15PHX120L2S STARPOWER IGBT MODULE

Grab the GD15PHX120L2S STARPOWER IGBT MODULE for your next high-performance venture! This top-tier, trending power module boasts optimum efficiency through its trench gate field stop IGBT technology and crowning 15A collector current. Decorated with a robust 1200V rating and 2500V isolation, it features a reliable half-bridge configuration, up to 20kHz switching frequency, and a typical 2.2V Vce(sat). With RoHS compliance and sturdy screw mount design, it stands out as the ultimate choice for inverters, UPS, motor drives, and critical power supplies - setting a new standard in advanced power control modules across India.

Outstanding Features & Applications

The GD15PHX120L2S STARPOWER IGBT MODULE brings highly decorated reliability for advanced applications. Its half-bridge configuration ensures optimum switching in industrial inverters, UPS units, motor drives, and power supplies. With a robust design, it excels in demanding environments, offering a wide temperature tolerance and high dissipation rating. The module's RoHS compliance further makes it a trending choice for eco-conscious industries. Explore its power in renewable energy, automation systems, and high-efficiency motor control domains.

Domestic Market, Export Benefits & Certifications

Our GD15PHX120L2S STARPOWER IGBT MODULE dominates the main domestic market in India, with express shipping available through reputable FOB ports. Ideal for both local and export market needs, it meets stringent international certifications and standards. The proposal amount for bulk orders is highly competitive. Rely on our trusted distribution network to deliver crowning quality and outstanding customer support for every business requirement, ensuring timely and secure export shipments every time.

FAQ's of GD15PHX120L2S STARPOWER IGBT MODULE:

Q: How is the GD15PHX120L2S STARPOWER IGBT MODULE typically used in industrial applications?

A: This IGBT module is primarily used in inverters, uninterruptible power supplies (UPS), motor drives, and power supply systems, facilitating efficient power switching and management in demanding environments.

Q: What are the key benefits of the GD15PHX120L2S STARPOWER IGBT MODULE?

A: Key benefits include a crowning 15A current rating, optimum thermal management, RoHS compliance, decorated with high isolation voltage, and trending trench gate field stop technology for superior performance and reliability.

Q: Where can I purchase the GD15PHX120L2S STARPOWER IGBT MODULE in India?

A: You can obtain this module through authorized distributors, importers, and suppliers specializing in industrial electronic components across India.

Q: When should I consider using the GD15PHX120L2S in my project?

A: Consider integrating this IGBT module when your application requires high efficiency, reliability, and robust performance in power electronics, especially for systems needing up to 1200V and 15A ratings.

Q: What is the process for securing express shipping and export support?

A: Simply contact our sales team for a detailed proposal amount; we provide express shipping through major FOB ports and support for export documentation and compliance.

Q: How does this module ensure safety during operation?

A: The module features a high isolation voltage of 2500V, robust short-circuit withstand time, and wide operating temperature range to ensure safe and stable operation across varied industrial environments.
