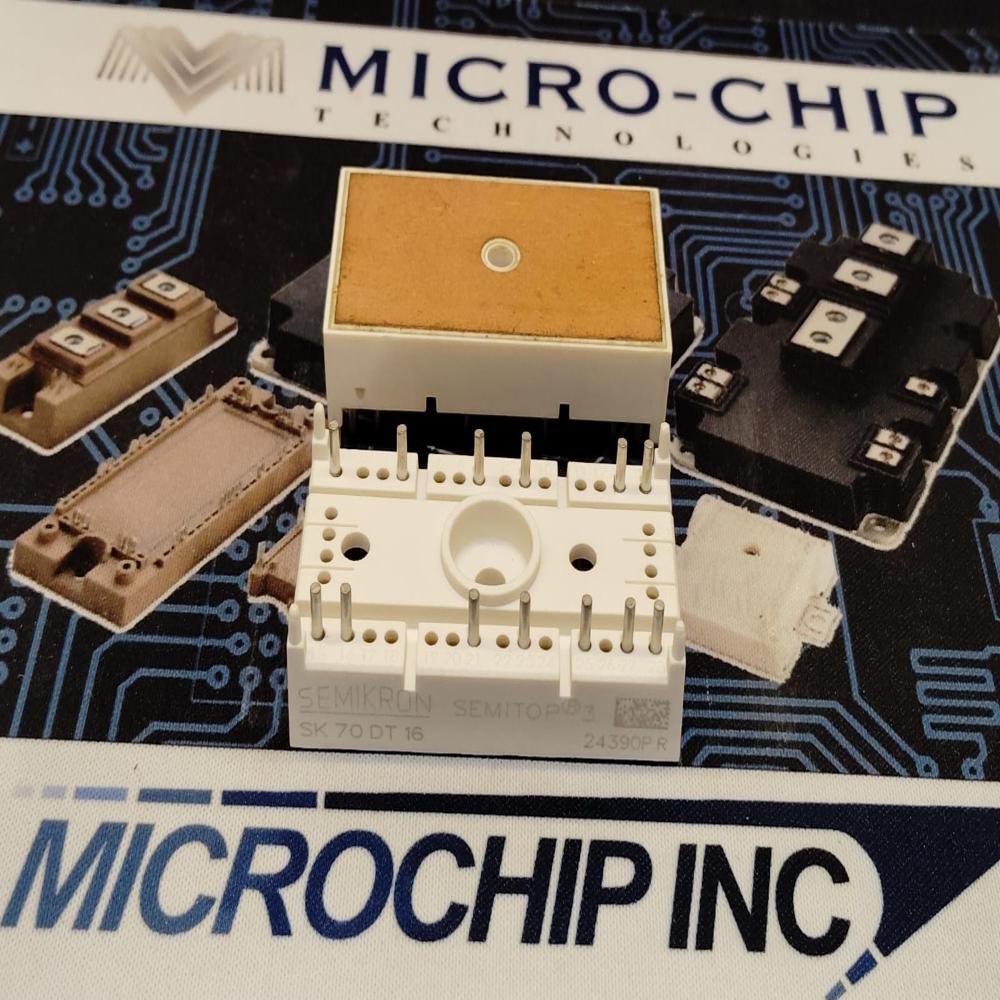

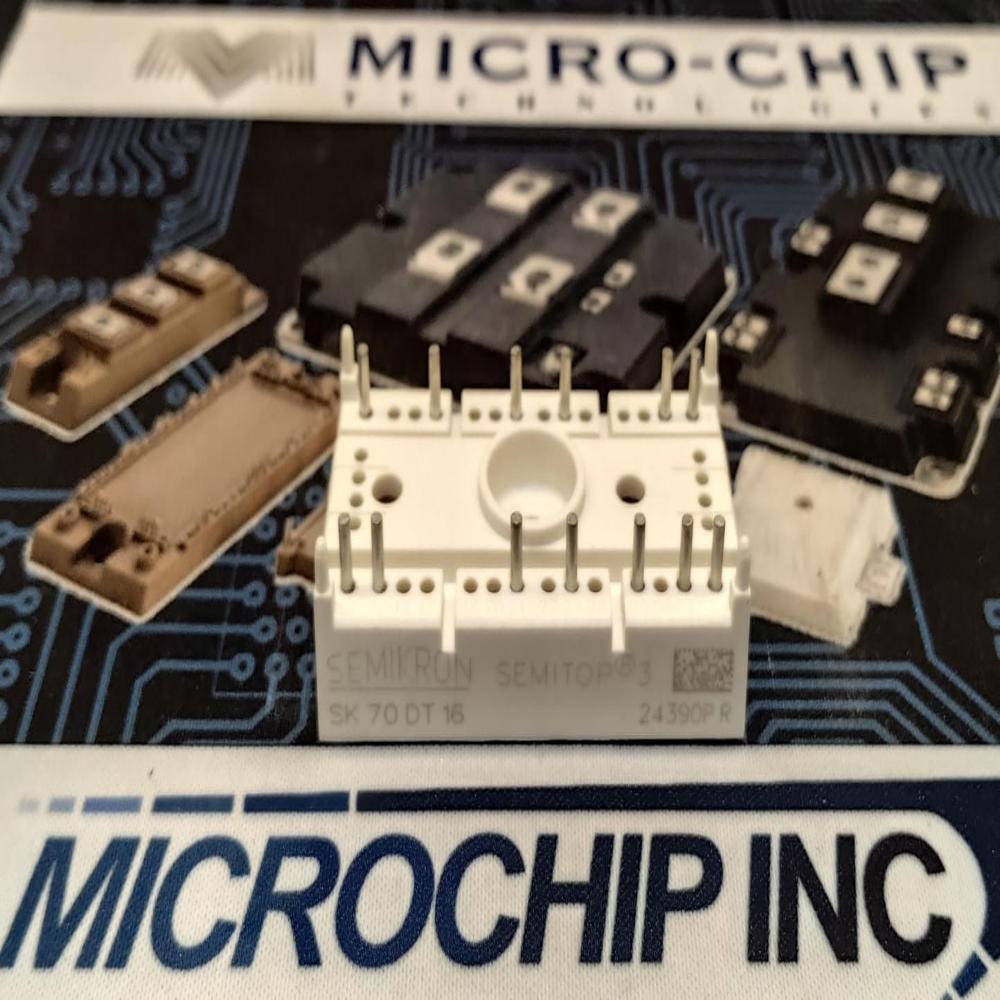

SEMIKRON SK70DT16 Thyristor Module

Name: SEMIKRON SK70DT16 Thyristor Module
Brand: MICROCHIP TECHNOLOGIES
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SEMIKRON SK70DT16 Thyristor Module Specification

Product Type
Thyristor Module

Supply Voltage
Up to 1600V blocking voltage (VDRM/VRRM)

Dissipation Power
Depends on application, typically managed via heatsink

Operating Temperature
-40C to +125C

Power Consumption
Depends on load and switching, typically minimal in off-state

Temperature Range
-40C to +125C (storage and operation)

Input Voltage
Gate trigger voltage (VGT) typically 2.5V max

Voltage Regulator Type
Not applicable (Thyristor module)

Size
Approx. 106mm x 62mm x 30mm

Weight
Approx. 420 g

Model
SK70DT16

Mounting Type
Screw Mount

Current Rating
70A (IT(AV))

Gate Trigger Current (IGT)
max 150mA

Case Style
Industrial Module

Holding Current (IH)
approx. 200mA

Storage Temperature
-40C to +125C

Circuit Configuration
Dual Thyristor (Phase Control)

Isolation Voltage
2500V (RMS) between terminals and base

Surge Current (ITSM)
1200A

Repetitive Peak Off-State Voltage (VDRM)
1600V

Package
Industrial Power Semiconductors Module

SEMIKRON SK70DT16 Thyristor Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SEMIKRON SK70DT16 Thyristor Module

Grab the venerable SEMIKRON SK70DT16 Thyristor Module for top-tier industrial power control. Ideal for AC/DC motor drives, rectifier circuits, and inverters, this module boasts a soaring 70A current rating, 1600V peak off-state voltage, and a robust 1200A surge current. Built with a dual thyristor phase control configuration, it offers remarkable voltage isolation (2500V RMS) and secure screw-mount installation. Markdown your expenditure while reserving reliable, high-performance switching for demanding environments. Now available in India through trusted distributors, importers, and suppliers.

Versatile Applications and Competitive Edge

Beyond standard roles in AC/DC drives and rectifiers, the SEMIKRON SK70DT16 excels in soft starters, power switching, and inverter circuits. Its industrial-grade design ensures consistent peak performance under strenuous conditions. As a top-tier solution from a venerable brand, it stands out for its high surge current capability and superior isolation. This makes it ideal for commercial uses requiring robust, reliable operation with minimal maintenance-ensuring a competitive advantage for system integrators and power engineers.

Domestic Market, Packaging, and Payment Details

The SEMIKRON SK70DT16 Thyristor Module is shipped across India's main domestic markets at the lowest price available. Each unit is securely packaged in standard, protective industrial-grade boxes to ensure safe transit. Payment terms are flexible, designed to suit various budget requirements and minimize initial expenditure. Our streamlined ordering process allows you to reserve inventory in advance, providing swift dispatch and reliable delivery right to your location-maximizing convenience and satisfaction for all customers.

FAQ's of SEMIKRON SK70DT16 Thyristor Module:

Q: How can the SEMIKRON SK70DT16 Thyristor Module be used in motor drive applications?

A: The SEMIKRON SK70DT16 is designed for phase control in AC/DC motor drives, offering precise regulation and soft starting capability for industrial motors, which enhances energy efficiency and equipment longevity.

Q: What are the primary benefits of using this thyristor module in power electronics?

A: The module delivers high reliability, soaring surge current handling (up to 1200A), excellent electrical isolation, and top-tier performance in power switching, making it suitable for demanding industrial setups.

Q: Where is this module commonly installed?

A: It's commonly installed in control panels, power switching cabinets, and industrial automation systems, thanks to its compact size and screw mount, facilitating easy integration and secure placement.

Q: How is the SEMIKRON SK70DT16 shipped and packaged?

A: Each module is carefully packaged in rugged industrial-grade boxes to ensure safe delivery and is shipped across all major domestic markets in India, backed by reliable distribution networks.

Q: What is the typical process for reserving inventory and securing the lowest price?

A: To reserve inventory and grab markdown pricing, customers should contact authorized distributors or suppliers, request a quote, and confirm their order early to secure timely delivery at the best expenditure rate.

Q: What types of commercial or industrial uses are supported by this module?

A: The SEMIKRON SK70DT16 supports a wide array of industrial applications, including rectifier circuits, soft starters, inverters, and general power switching tasks in commercial environments.
