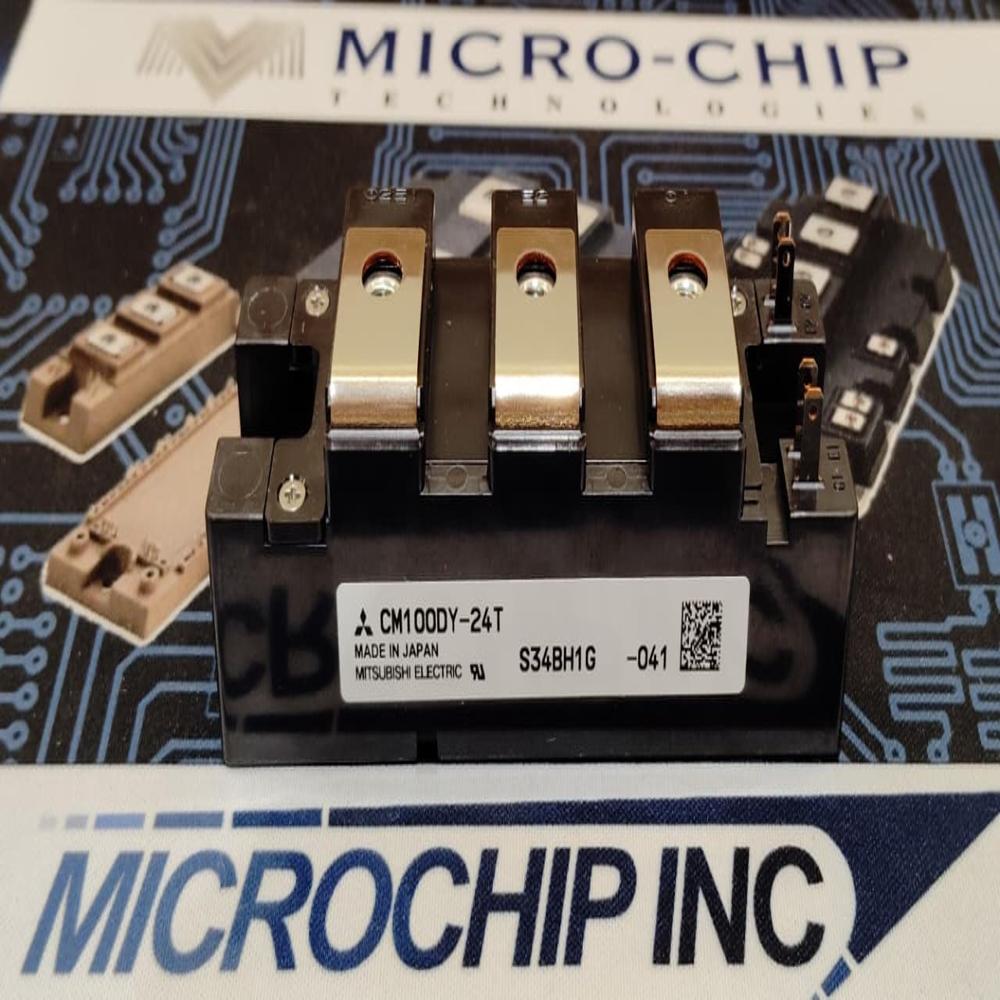

CM100DY-24T Mitsubishi IGBT Module

Name: CM100DY-24T Mitsubishi IGBT Module
Brand: MICROCHIP TECHNOLOGIES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CM100DY-24T Mitsubishi IGBT Module Specification

Product Type
IGBT Module

Supply Voltage
1200V

Dissipation Power
780W

Operating Temperature
-40C to +150C

Power Consumption
Depends on gate drive and load; module rated for high power applications

Temperature Range
-40C to +150C

Input Voltage
Gate drive typically +15V

Voltage Regulator Type
N/A (Module; uses external gate drive circuit)

Size
110 x 62 x 30 mm (approximate)

Weight
About 350g

Module Configuration
Dual IGBT (Half-Bridge)

Case Material
Molded plastic with metallized base

Switching Frequency
Recommended max 20kHz (dependent on application)

Collector-Emitter Voltage (VCES)
1200V

Mounting
Screw Mount

Package
Industrial module package

Isolation Voltage
2500V AC, 1 min

Collector Current (IC)
100A

Gate-Emitter Voltage (VGES)
20V

CM100DY-24T Mitsubishi IGBT Module Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CM100DY-24T Mitsubishi IGBT Module

Unlock noteworthy value with the CM100DY-24T Mitsubishi IGBT Module, a clearance item tailored for power specialists in India from leading suppliers and distributors. This invincible module boasts a collector-emitter voltage of 1200V and a formidable 100A current capability, ideal for industrial controls, power supplies, inverters, and motor drives. Its valiant dual IGBT configuration and half-bridge design enable sustained, high-efficiency performance. Procure this robust, molded plastic industrial module now and achieve unmatched durability, superior isolation, and performance in demanding environments.

Exceptional Features, Application Versatility

The CM100DY-24T stands out with its resilient dual IGBT half-bridge design, engineered for robust machine operations such as AC motor drives, inverters, UPS, and industrial controls. Special features like 1200V collector-emitter voltage, 100A current, and 2500V AC isolation ensure reliable and safe operation. Its screw mount and molded plastic case provide straightforward installation, while its compact size fits seamlessly into advanced industrial applications, marking it as a truly versatile and noteworthy module.

Efficient Procurement, Flexible Supply Options

This IGBT module's supply ability is invincible, with shipments swiftly handed over to clients across India. Each module is securely packaged to safeguard integrity during transit, ensuring quality upon delivery. We offer competitive sale prices and compelling clearance offers, making it easier than ever to procure top-tier modules. Orders are dispatched via reliable FOB ports, streamlining import processes for distributors, buyers, and end-users alike. Enhance your value chain today with flexible, cost-effective module sourcing.

FAQ's of CM100DY-24T Mitsubishi IGBT Module:

Q: How can I procure the CM100DY-24T Mitsubishi IGBT Module in India?

A: You can obtain this module through authorized distributors, importers, and suppliers operating across India, who also offer convenient clearance and competitive sale prices.

Q: What are the main applications for the CM100DY-24T IGBT Module?

A: This module is suitable for industrial control systems, AC motor drives, inverters, uninterruptible power supplies (UPS), and high-power power supplies.

Q: When is the ideal time to use this module for system upgrades?

A: The CM100DY-24T is ideal when upgrading or designing systems requiring high efficiency, robust isolation, and reliable switching in demanding industrial environments.

Q: Where is this IGBT module typically installed or used?

A: It is typically installed in industrial machines and cabinets, especially those needing high-power switching, such as inverter systems or motor drives.

Q: What are the benefits of choosing this module for industrial applications?

A: Benefits include invincible performance with a valiant 100A current rating, excellent thermal dissipation, noteworthy reliability, and comprehensive isolation, ensuring long-term operation in critical systems.

Q: How is the module packed and transported to customers?

A: Each module is carefully packaged in secure industrial packaging and is handed over to reliable logistics providers for safe delivery to your chosen FOB port.
