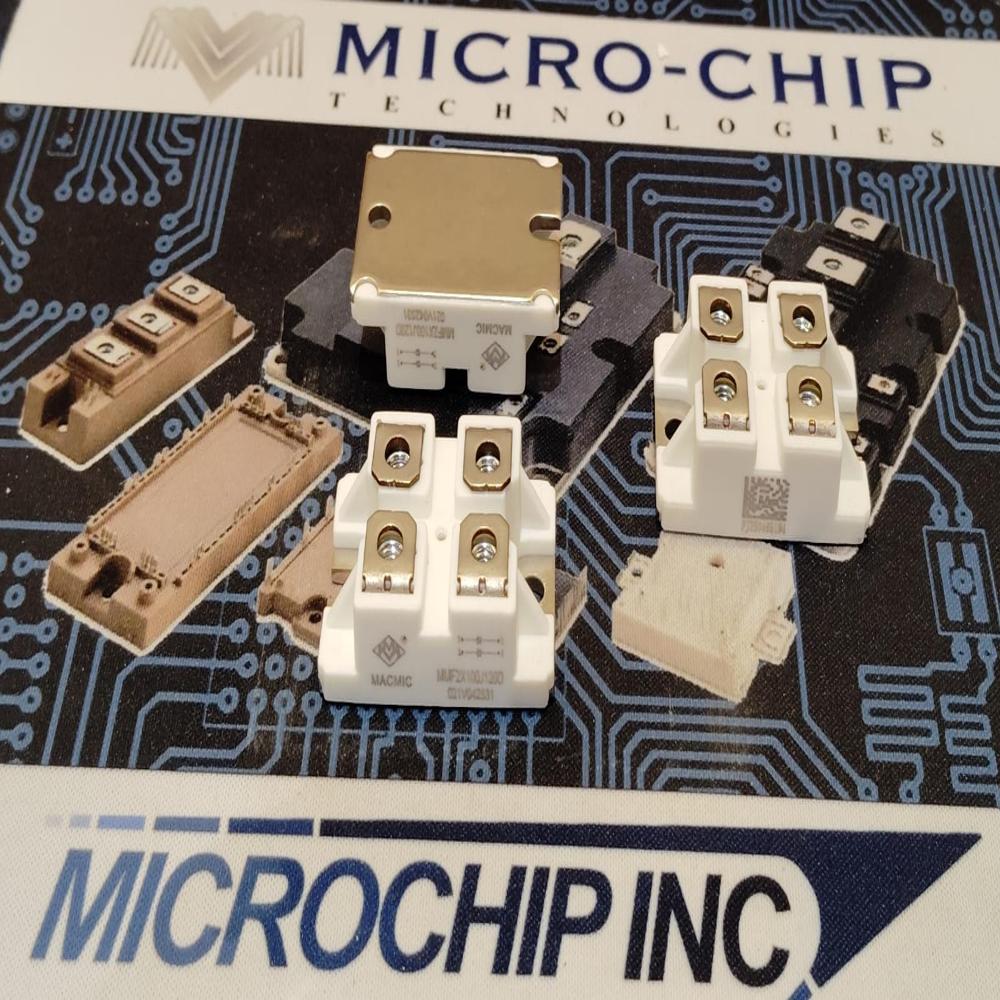

MMF2X100J120D POWER SEMICONDUCTROR MODULE

Name: MMF2X100J120D POWER SEMICONDUCTROR MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1250.0 INR
Availability: InStock

Price 1250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MMF2X100J120D POWER SEMICONDUCTROR MODULE Specification

Product Type
Power Semiconductor Module

Application
Industrial Motor Drives, Inverters, Power Supplies, UPS

Supply Voltage
1200 V

Dissipation Power
940 W

Operating Temperature
-40C to +150C

Temperature Range
-40C to +150C

Input Voltage
1200 V

Voltage Regulator Type
IGBT Module

Size
142 mm x 55 mm x 30 mm

Weight
~650 g

Configuration
Dual IGBT Module

Mounting Type
Screw Mount

Current Rating
2 x 100 A

Case Material
Plastic / Epoxy Mold

Switching Frequency
up to 20 kHz

RoHS Compliant
Yes

Collector-Emitter Saturation Voltage
2.3 V (typ) @ 100 A

Isolation Voltage
2500 V AC (1 min)

Gate Emitter Voltage
20 V (max)

MMF2X100J120D POWER SEMICONDUCTROR MODULE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-10 Days

About MMF2X100J120D POWER SEMICONDUCTROR MODULE

Experience the elite power of the acclaimed MMF2X100J120D Power Semiconductor Module, a must-have solution for high-demand industrial applications. This dominant dual IGBT module offers a breathtaking current rating of 2 x 100A, extraordinary isolation voltage at 2500V AC, and a robust operating temperature from -40C to +150C. Its screw mount design, RoHS compliance, and epoxy-molded case ensure reliable performance. Whether integrated in inverters, UPS systems, or motor drives, this module is the DEAL for anyone seeking maximum efficiency and lasting durability.

Elite Features & Competitive Advantages

The MMF2X100J120D Power Semiconductor Module delivers special features such as a high gate-emitter voltage of up to 20V and a rapid switching frequency up to 20 kHz. Designed for industrial motor drives, inverters, and power supplies, its superior plastic/epoxy mold case protects against harsh conditions. Competitive advantages include dominant reliability, efficient mounting, and exceptional power dissipation, enabling superior performance in demanding environments and making it a standout choice for engineers and manufacturers alike.

Domestic Market Reach & Value Packaging

MMF2X100J120D commands a strong presence in the main domestic market, supported by flexible payment terms tailored to business needs. Packaged for optimal safety, each module preserves market value right up to installation. Samples are available to qualified partners, letting you experience the module's merits firsthand before full investment. The attractive list price provides excellent value, making it highly sought after among suppliers and distributors in the industrial power sector.

FAQ's of MMF2X100J120D POWER SEMICONDUCTROR MODULE:

Q: How do I install the MMF2X100J120D Power Semiconductor Module?

A: The MMF2X100J120D is designed with a screw mount for secure and straightforward installation into your equipment, ensuring solid contact and electrical connectivity.

Q: What are the main applications where this module excels?

A: This module is ideally suited for industrial motor drives, inverters, power supplies, and UPS systems, offering remarkable performance and reliability for critical operations.

Q: Where can I benefit most from using the MMF2X100J120D?

A: You will benefit most in environments requiring high current handling and rapid switching capabilities, especially in heavy-duty and continuous industrial processes.

Q: What competitive advantages does the MMF2X100J120D offer over other modules?

A: Key advantages include a dominant dual IGBT configuration, broad temperature endurance, high isolation voltage, and RoHS compliance, making it a strong contender in advanced applications.

Q: Is sample availability an option before placing a bulk order?

A: Yes, samples can be provided to qualified buyers, allowing evaluation of product quality and suitability for specific projects prior to committing to a larger purchase.
