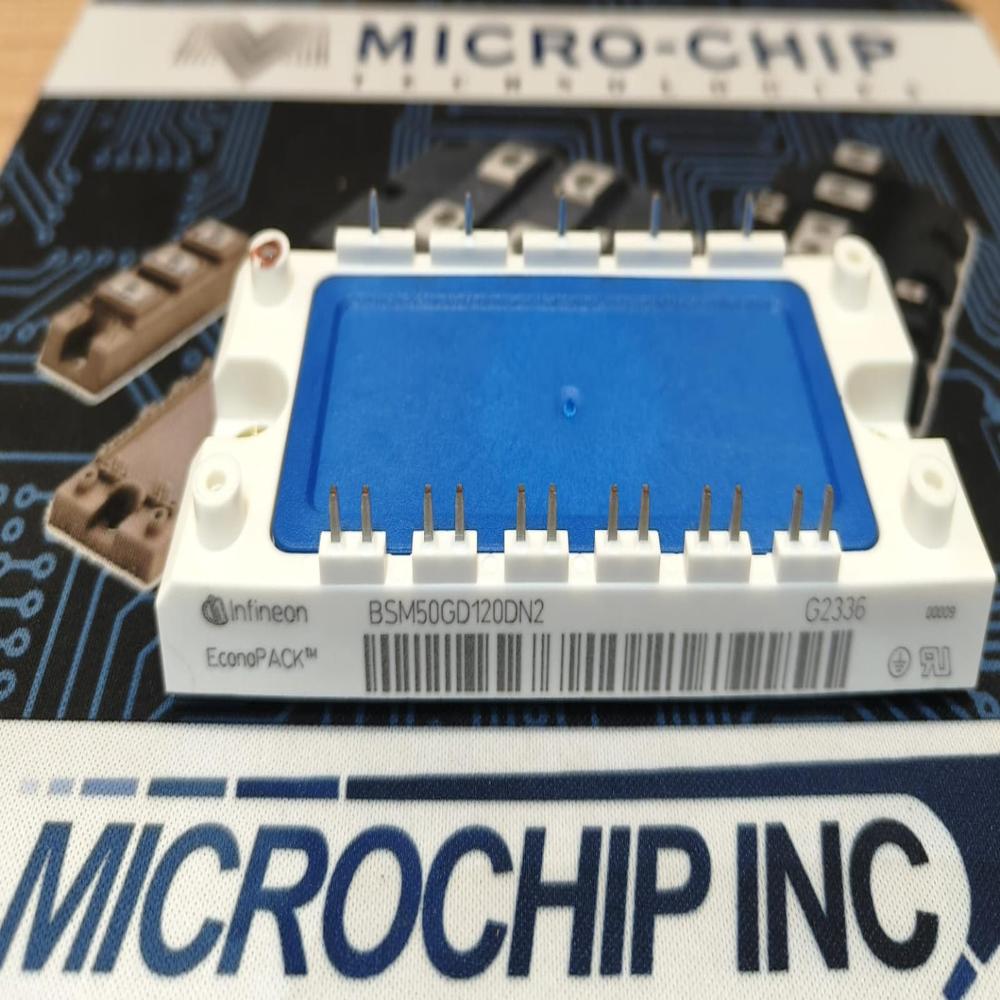

BSM50GD120DN2 INFINEON IGBT POWER MODULE

Name: BSM50GD120DN2 INFINEON IGBT POWER MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BSM50GD120DN2 INFINEON IGBT POWER MODULE Specification

Input
Logic Level Signal

Interface
Screw Terminal

Power Supply
Electric

Operating Temperature
-40C to +150C Junction Temperature

Output
Three-phase Power Output

Components
IGBT and Diode Chips

Features
Low Saturation Voltage, Low Switching Losses, Excellent Thermal Management

Usage
Industrial Motor Drives, Power Inverters

Thermal Conductivity
High, Module Designed for Efficient Heat Dissipation

Response Time
Fast Switching, In Nanoseconds

Power Source
Electrical Grid or DC Bus

Product Type
IGBT Power Module

Application
Industrial, Motor Control, Inverters, UPS, Servo Drives

Rated Voltage
1200 V

Supply Voltage
Up to 1200 V

Size
Standard Module Size

Dimension (L*W*H)
106 mm x 62 mm x 30 mm (approx.)

Function
IGBT Power Module for Switching and Inverter Applications

Color
White / Grey

Weight
Approximately 180 g

Capacity
Current handling up to 50 A

Current Rating
50 A

Frequency
High Switching Frequency up to 20 kHz

Package / Case
EconoDUALTM 2 Module

Isolation Voltage
2500 V RMS (1 min)

Mounting Type
Screw Mount

Gate-Emitter Voltage (Vge)
20 V (max)

Part Number
BSM50GD120DN2

Short Circuit Withstand Time
10 s (typical)

Collector-Emitter Saturation Voltage (Vce(sat))
2.15 V at 50 A

Modules per Unit
1

BSM50GD120DN2 INFINEON IGBT POWER MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About BSM50GD120DN2 INFINEON IGBT POWER MODULE

Ignite your operational efficiency with the sizzling BSM50GD120DN2 INFINEON IGBT Power Module-an immaculate choice for instant checkout by discriminating engineers. Grab this venerable powerhouse, revered for its meritorious performance in industrial motor drives, power inverters, UPS, and servo drives. Housed in the robust EconoDUALTM 2 module, it offers 1200V rating, 50A current capacity, and superb thermal conductivity. Designed for high switching frequencies and fast response times, this module ensures reliable, efficient, and long-lasting performance with stellar heat dissipation-perfect for industrial and automation applications in India.

Impeccable Application & Usage for Advanced Industries

The BSM50GD120DN2 INFINEON IGBT Power Module is engineered for demanding industrial media such as motor control systems, power inverters, and UPS. To achieve optimal results, secure the module with screw mount terminals, ensuring a solid interface. It accepts logic-level signals as input and delivers robust three-phase power output, making it suitable for continuous or intermittent industrial usage. Its usage type ranges from controlling motors to optimizing inverter efficiency, enabling seamless automation and control in power-intensive applications.

Offering Samples, Reliable Supply & Global Export Reach

Samples for the BSM50GD120DN2 are available upon request, allowing you to evaluate performance before making a purchase. With steadfast supply ability, distributors, importers, and suppliers in India cater to bulk and custom orders. The main export markets include Asia, Europe, and North America. For precise asking price, freight details, or logistics planning, connect directly to discuss cost-effective shipments and timely deliveries. The module is shipped safely, ensuring prompt arrival for your industrial requirements.

FAQ's of BSM50GD120DN2 INFINEON IGBT POWER MODULE:

Q: How can the BSM50GD120DN2 INFINEON IGBT Power Module improve industrial applications?

A: This IGBT module enables high efficiency and rapid switching, reducing power losses and optimizing thermal management for motor drives, inverters, UPS, and servo systems in industrial environments.

Q: What is the recommended process for mounting and connecting the module?

A: The module is designed for secure screw mounting and features screw terminals, ensuring stable and reliable electrical connections in demanding industrial setups.

Q: When is the ideal situation to use this IGBT power module?

A: Deploy this module in scenarios requiring high current capability, robust insulation, and fast switching-particularly in motor control, industrial inverters, and automated factory systems.

Q: Where are the main export markets for this IGBT module?

A: The main export markets include India's domestic sector as well as international clients in Asia, Europe, and North America, supported by professional supply and logistics channels.

Q: What are the primary benefits of using the BSM50GD120DN2 module?

A: Key benefits include low switching losses, excellent heat dissipation, high current and voltage handling, plus longevity in harsh industrial operating conditions.

Q: How can customers request a sample or inquire about pricing and logistics?

A: Contact an authorized distributor, supplier, or importer to inquire about samples. They will provide information regarding asking price, available freight options, and efficient logistics suitable for your requirements.
