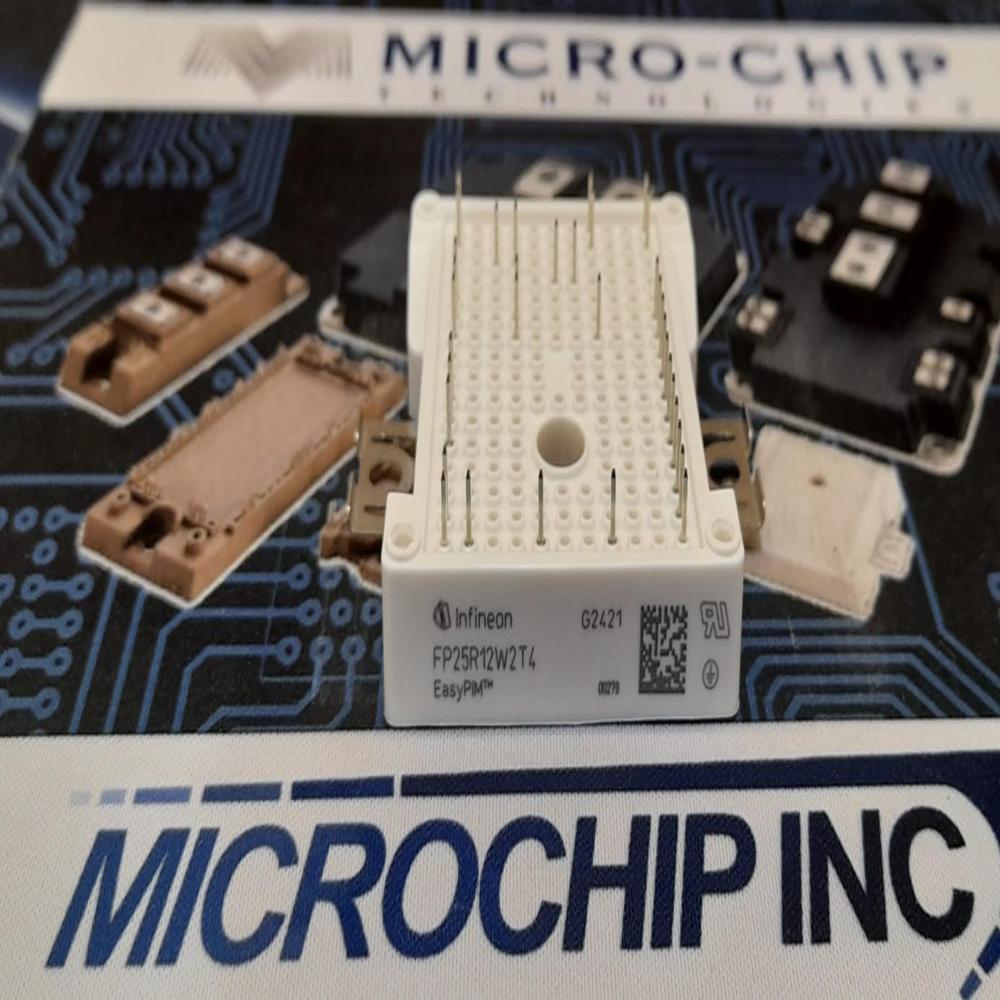

FP25R12W2T4 INFINEON IGBT MODULE

Name: FP25R12W2T4 INFINEON IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FP25R12W2T4 INFINEON IGBT MODULE Specification

Interface
Screw Terminal

IP Rating
IP20

Components
IGBT chips, Diode

Thermal Conductivity
High (Copper Baseplate)

Usage
IGBT inverter, Motor Drive, Power Conversion

Power Source
External Power

Output
Power Output

Input
Control Signal

Power Supply
DC/AC

Response Time
Fast switching

Operating Temperature
-40 to +150 C

Features
Low Losses, Rugged Design, High Efficiency

Product Type
IGBT Module

Application
Industrial Drives, Inverter, UPS, Power Supply

Rated Voltage
1200 V

Supply Voltage
Up to 1200 V

Size
Compact module

Dimension (L*W*H)
94 x 34 x 30 mm

Function
Switching Power Electronics

Color
White

Weight
Around 100g

Thickness
Standard Module

Current Rating
25 A

Capacity
25 A

Frequency
up to 20 kHz

Switching Energy (Eoff/Eon)
Low

Mounting Style
Screw Mount

Model Number
FP25R12W2T4

Collector Current (Ic)
25 A

Number of Phases
3 Phase

Technology
Trench/Fieldstop IGBT4

Short Circuit Rating
10 s

Isolation Voltage
2500 V RMS

Module Baseplate
Copper

Package Type
EconoPACK 2

Diode Reverse Recovery Time
Fast

Collector Emitter Voltage (VCES)
1200 V

RoHS Compliant
Yes

Gate Emitter Voltage
20V

FP25R12W2T4 INFINEON IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

FP25R12W2T4 INFINEON IGBT MODULE About

Find the latest in power electronics with the FP25R12W2T4 INFINEON IGBT MODULE, designed to deliver sizzling and dominant performance in industrial applications. Featuring Trench/Fieldstop IGBT4 technology, this module operates with an invincible 1200 V collector-emitter voltage and a flawless 25 A collector current. Its high thermal conductivity copper baseplate, low switching losses, and rugged design ensure it excels in motor drives, inverters, and UPS systems. The EconoPACK 2 structure, compact size, and RoHS compliance make it the perfect choice for reliable, efficient power conversion in demanding environments.

Versatile Industrial Excellence for Motor Drives and Inverters

The FP25R12W2T4 INFINEON IGBT MODULE is specifically engineered for general and special use in industrial drives, IGBT inverters, UPS systems, and advanced power conversion applications. It operates excellently in environments requiring robust DC/AC power supply and efficient switching performance. Its fast response time, three-phase compatibility, and low switching energy make it suitable for both machinery automation and uninterrupted power solutions in factories, data centers, and energy plants, meeting a broad range of operational media needs.

Fast Delivery and Flexible Shipping Options Available

Expect prompt delivery and reliable drop-off service when you order the FP25R12W2T4 INFINEON IGBT MODULE. We prioritize express shipping to ensure your modules reach you quickly, minimizing downtime for your critical systems. Sample policies are available for qualified buyers, allowing you to test before bulk orders. Products are shipped from major FOB ports in India, enabling flexible logistics for distributors, importers, and suppliers who value both speed and assurance in receiving genuine components.

FAQ's of FP25R12W2T4 INFINEON IGBT MODULE:

Q: How does the FP25R12W2T4 INFINEON IGBT MODULE enhance industrial drive performance?

A: The module delivers high efficiency and rapid switching capabilities, which support dominant and flawless operation in industrial drives, resulting in improved reliability and energy savings.

Q: What environments and applications is this IGBT module best suited for?

A: It is ideal for industrial drives, motor inverters, UPS systems, and power conversion, especially where a compact, rugged, and high-performance module is required.

Q: When can I expect delivery of the FP25R12W2T4 module after placing an order?

A: With express shipping and efficient logistics, most orders are processed and shipped promptly, with typical delivery times depending on your location and shipping choice.
