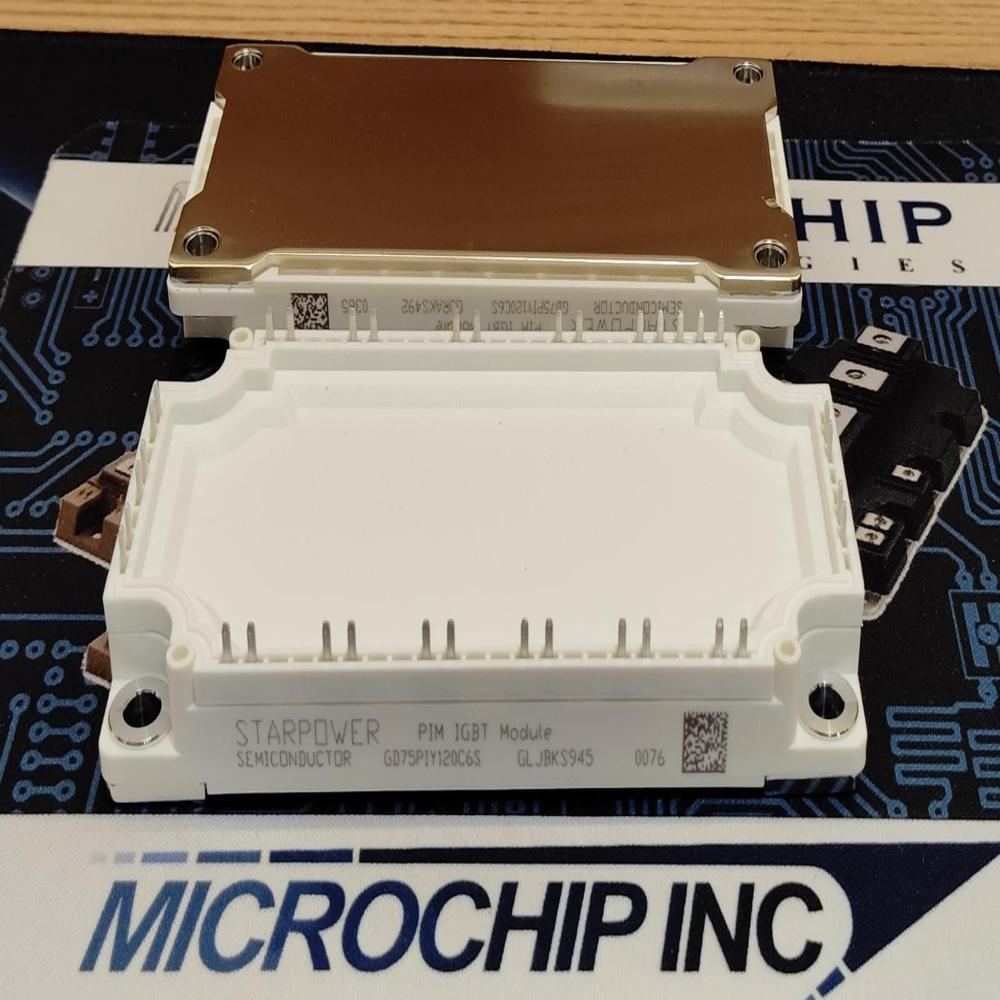

GD75PIY120C6S STARPOWER PIM IGBT MODULE

Name: GD75PIY120C6S STARPOWER PIM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GD75PIY120C6S STARPOWER PIM IGBT MODULE Specification

Input
DC

IP Rating
IP00

Thermal Conductivity
Optimized for heat dissipation

Operating Temperature
-40C to +150C

Response Time
Fast switching

Interface
Screw terminals

Features
Low saturation voltage, high reliability, integrated protection

Output
AC

Usage
Industrial Motor Drives, Power Supplies, Inverters

Power Supply
Electric

Components
IGBT & Diode Integrated

Power Source
External Power Supply

Product Type
IGBT Module

Application
General Inverter Applications, Motor Drives

Rated Voltage
1200V

Supply Voltage
1200V

Size
Standard module size

Dimension (L*W*H)
106mm x 62mm x 30mm (approx)

Function
PIM (Power Integrated Module) for inverter/converter applications

Color
Black / White

Weight
225g (approx)

Thickness
Standard module profile

Capacity
75A

Current Rating
75A

Frequency
50/60Hz

Collector Current (Ic)
75A

Mounting Type
Panel/Chassis Mount

RoHS Compliance
Yes

Lead Free Status
Lead Free / RoHS Compliant

Gate Emitter Voltage
+/-20V (max)

Application Notes
Optimized for use in low-loss and high-efficiency inverters

Collector Emitter Voltage (Vces)
1200V

Protection Functions
Short circuit, over-temperature, under voltage lockout

Isolation Voltage
2500Vrms (AC, 1 min)

Control Method
PWM, 3-phase

Storage Temperature
-40C to +125C

Insulation
Isolated Baseplate

Package Type
Standard PIM module housing

Module Type
PIM IGBT (6-Pack)

Model Number
GD75PIY120C6S

Short Circuit Withstand Time
10s

GD75PIY120C6S STARPOWER PIM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About GD75PIY120C6S STARPOWER PIM IGBT MODULE

Pick Yours today! The GD75PIY120C6S STARPOWER PIM IGBT MODULE stands as a crowning choice for industrial power needs. Featuring a celebrated 6-pack PIM IGBT design, it delivers a towering Collector Emitter Voltage of 1200V and a robust 75A capacity. Benefit from rapid switching, optimized thermal conductivity, integrated protections and effortless panel mounting. Ideal for motor drives, inverters, and power supplies. Don't miss this hot deal-now on sale! Combine reliability, safety and performance in one premium RoHS-compliant package. Order now from leading distributors, importers, and suppliers in India.

Versatile Application for Industrial Excellence

GD75PIY120C6S STARPOWER PIM IGBT MODULE is engineered for use across a range of industrial environments. Its application surfaces include general inverter modules, industrial motor drives, and high-efficiency AC power supplies. Easily installable on panel or chassis mounts, it supports heavy-duty performance on standardized module surfaces. This robust module efficiently manages energy in automated systems, converters, and variable frequency drives, delivering dependable power conversion in demanding applications.

Secure Packaging and Swift Delivery Across India

Shipped in secure, industry-standard packing, each GD75PIY120C6S module reaches you safely and ready for use. Order processing is streamlined for prompt dispatch to your location, covering all main domestic markets across India. Sample availability ensures you can test the module's performance before large-scale deployment. Trust in quick delivery and attentive service, optimizing your procurement and production timelines with every purchase.

FAQ's of GD75PIY120C6S STARPOWER PIM IGBT MODULE:

Q: How can the GD75PIY120C6S STARPOWER PIM IGBT MODULE be used in industrial applications?

A: The module is designed for high-efficiency inverter and industrial motor drive applications, efficiently converting DC input to AC output for reliable operation in demanding systems.

Q: What protections are integrated into the GD75PIY120C6S IGBT module?

A: This module features built-in protection functions including short circuit, over-temperature, and under voltage lockout, ensuring enhanced safety and system reliability.

Q: When is the ideal time to consider this module for an upgrade or new installation?

A: Consider using this module when you need reliable, low-loss power management in environments demanding high efficiency and integrated protection, such as during equipment upgrades or for new inverter setups.

Q: Where can I source the GD75PIY120C6S in India?

A: The module is available through authorized distributors, importers, and suppliers across India, ensuring easy access for various industrial needs.

Q: What is the process of packaging and testing before delivery?

A: Each module is shipped in protective, industry-compliant packaging. Samples can be ordered to test the product's fit and performance before committing to bulk orders, ensuring quality and satisfaction.
