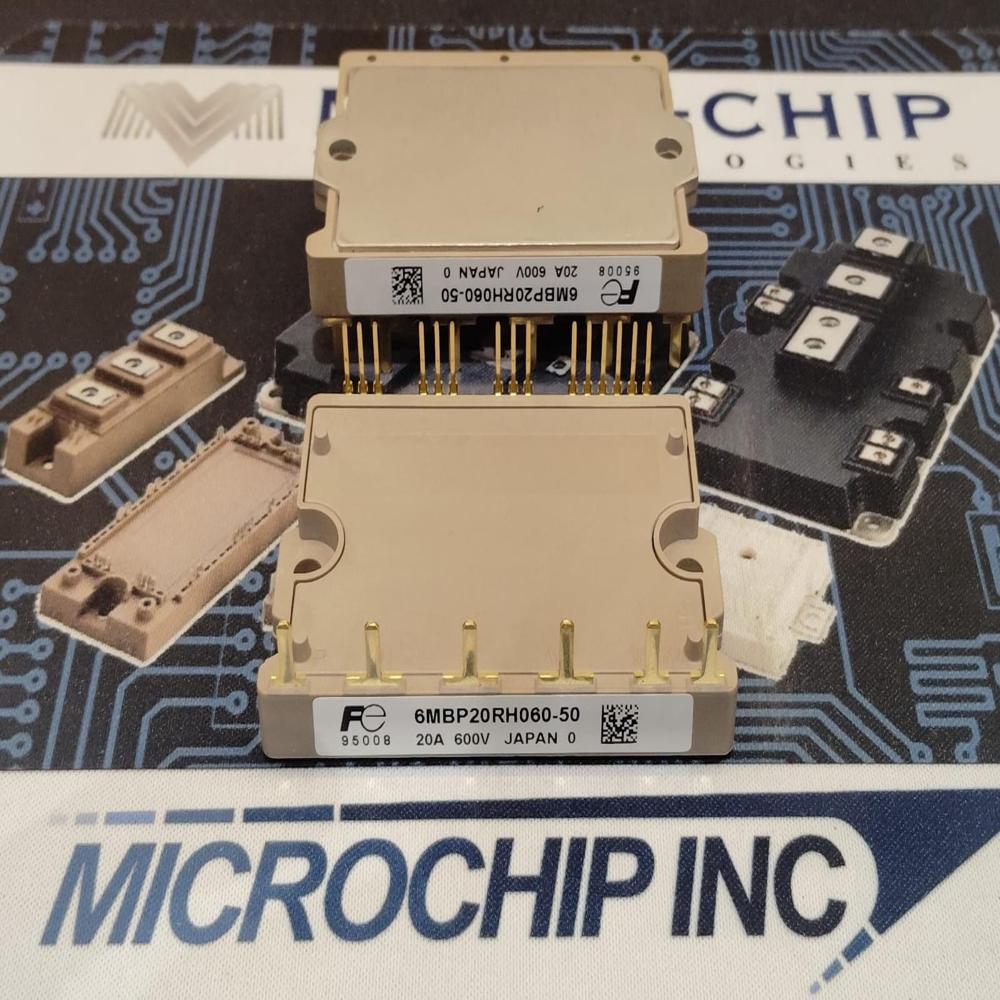

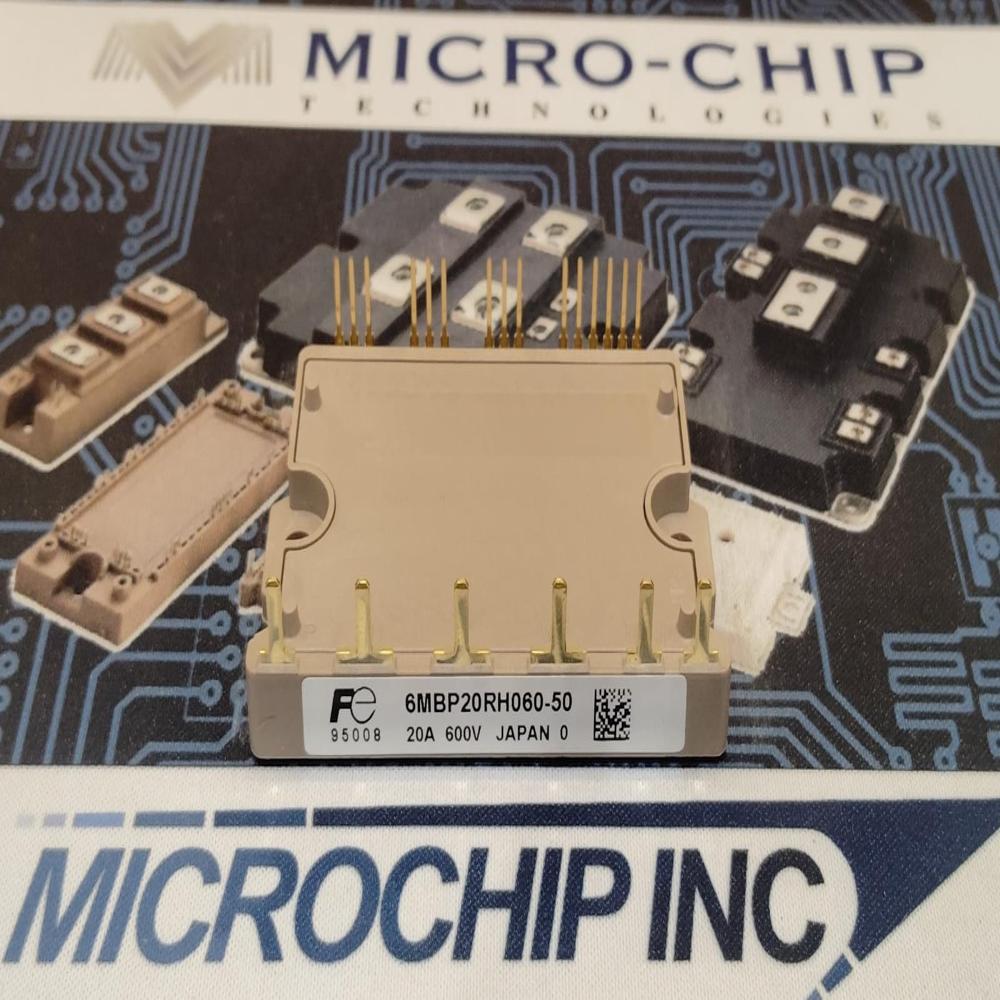

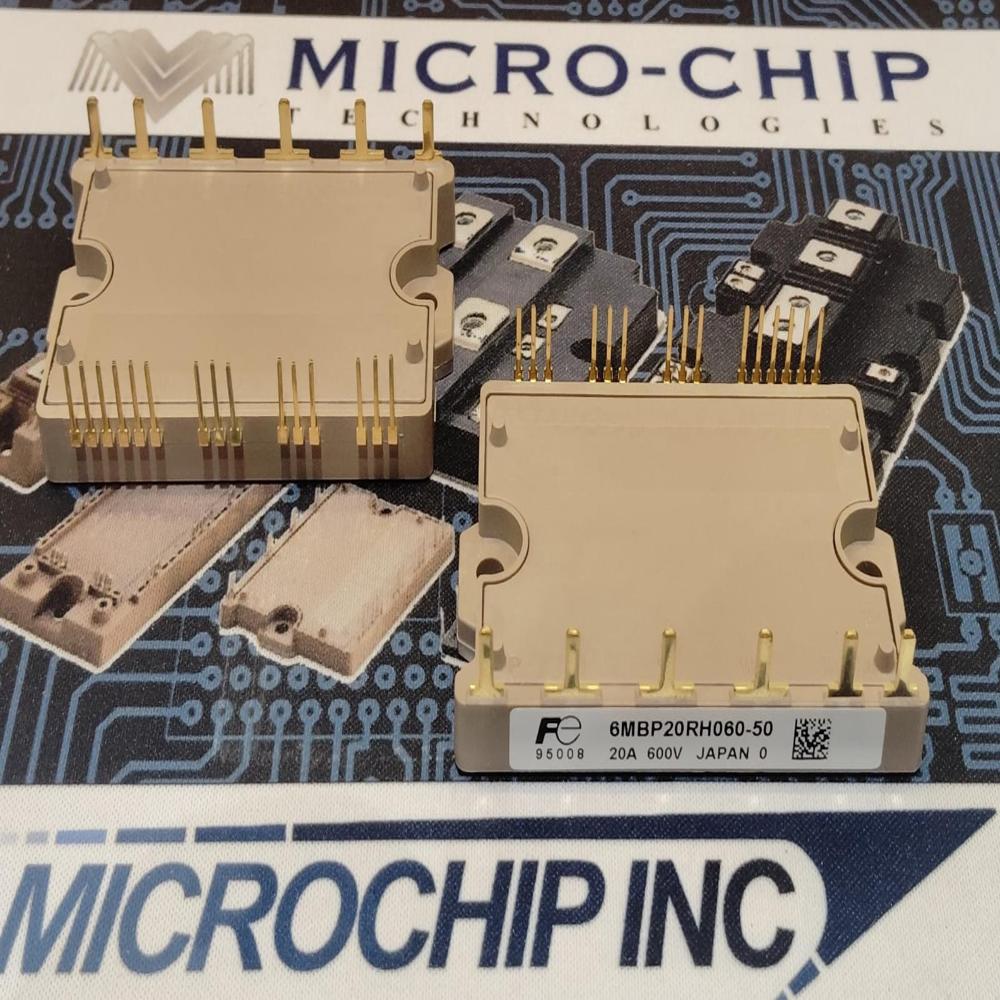

6MBP20RH060-50 IPM MODULE JAPAN

Name: 6MBP20RH060-50 IPM MODULE JAPAN
Brand: MICROCHIP TECHNOLOGIES
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6MBP20RH060-50 IPM MODULE JAPAN Specification

Power Supply
Electric

Power Source
External DC/AC power

Interface
Screw terminal, logic control pins

Response Time
Fast switching response

Input
Logic control input

Display Type
No display

Components
Integrated IGBT, Drive IC, Protection circuitry

Usage
Industrial motor drive, Inverter applications

Features
Built-in IGBT, integrated drive and protection, compact size, high reliability

Sensors Specification
Built-in protection sensors

Thermal Conductivity
Optimized for heat dissipation with baseplate

Operating Temperature
-20C to +150C

Output
Three-phase output

IP Rating
Not rated

Product Type
IPM (Intelligent Power Module)

Application
Industrial automation, Motor control systems

Rated Voltage
600V

Supply Voltage
600V DC Max

Size
Standard module size

Dimension (L*W*H)
107 mm 62 mm 30 mm

Function
Intelligent Power Module (IPM) for motor drive and inverter applications

Color
Black with metallic connectors

Weight
Approx. 150 g

Capacity
20A rated output current

Thickness
Compact module

Current Rating
20A

Frequency
Applicable up to 20 kHz switching frequency

Lead Type
Screw-in terminal

Cooling Method
Baseplate for heat sink attachment

Storage Temperature
-40C to +125C

Isolation Voltage
2500V AC/min (input to output)

Package Type
Standard module package

Gate Drive Voltage
15V DC typical

Mounting Type
Panel/Chassis Mount

Protection Functions
Over-temperature, Overcurrent, Under-voltage lockout

RoHS Compliance
Yes

Part Number
6MBP20RH060-50

6MBP20RH060-50 IPM MODULE JAPAN Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 6MBP20RH060-50 IPM MODULE JAPAN

Take advantage of the phenomenal 6MBP20RH060-50 IPM Module from Japan, now available at the lowest price in India! This decorated module features a compact design, gorgeous black body with metallic connectors, and is engineered for industrial motor drive and inverter applications. With a 600V rated voltage, 20A output, and robust protection-over-temperature, overcurrent, under-voltage lockout-this module guarantees high reliability and superior performance. Enjoy unbeatable price on a RoHS-compliant, panel/chassis mountable solution ideal for automation, motor control systems, and more.

6MBP20RH060-50 IPM Module: Features & Application

The 6MBP20RH060-50 IPM Module is perfect for applications in industrial automation, motor control systems, and inverter solutions. Key features include a built-in integrated IGBT, drive IC, and comprehensive protection circuitry for exceptional reliability and performance. Its compact size and optimized thermal conductivity make it highly suitable for environments requiring efficient heat dissipation. Used for logic-controlled, three-phase motor drive output, this module stands out in demanding industrial settings.

Export Markets, Domestic Reach, & Supply Ability

Serving both main export markets and the formidable domestic market, the 6MBP20RH060-50 IPM Module ensures reliable supply ability. Our express shipping options minimize expenditure and reduce wait times, with protective packaging safeguarding each unit during delivery. Major clients in India and abroad trust us for timely, safe import and distribution, ensuring your orders reach you swiftly while maintaining the module's integrity and operational excellence.

FAQ's of 6MBP20RH060-50 IPM MODULE JAPAN:

Q: How can the 6MBP20RH060-50 IPM Module be applied in industrial environments?

A: This module is specifically designed for industrial motor drive and inverter applications, providing intelligent control and high-efficiency operation in automation systems and motor control setups.

Q: What are the main features that distinguish the 6MBP20RH060-50 from other IPM modules?

A: Its phenomenal built-in protection-including over-temperature, overcurrent, and under-voltage lockout-along with integrated IGBT and drive IC ensures reliable and safe operation under rigorous conditions.

Q: Where does this module find its most common usage?

A: The 6MBP20RH060-50 is widely used in industrial automation, inverter drives, and motor control systems where compactness and reliability are essential.

Q: What packaging and shipping options are available when ordering this module?

A: We offer express shipping to minimize downtime, with secure packaging designed to protect each module during transit for both domestic and export deliveries.

Q: How does the module ensure safety and high performance during operation?

A: Built-in protection circuitry and optimized thermal conductivity provide robust defense against operational anomalies, ensuring consistent high-performance and operational safety under varying industrial conditions.
