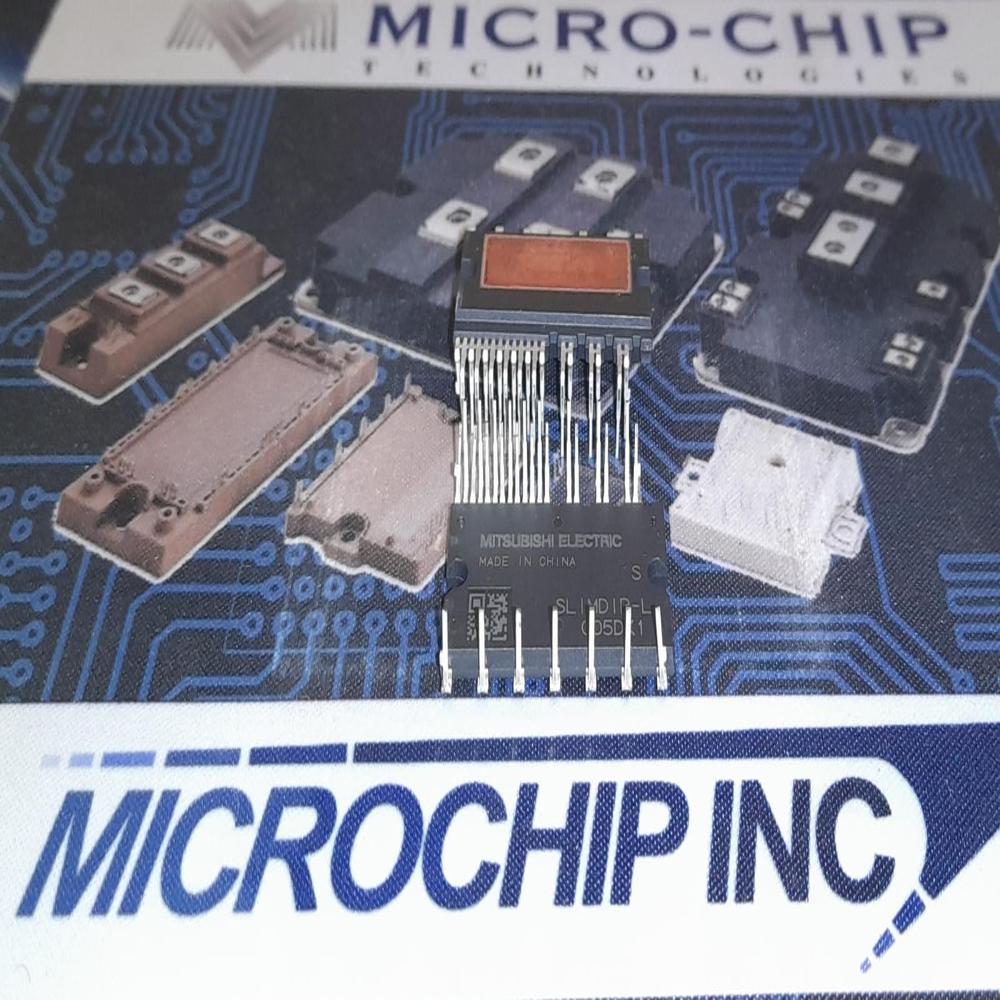

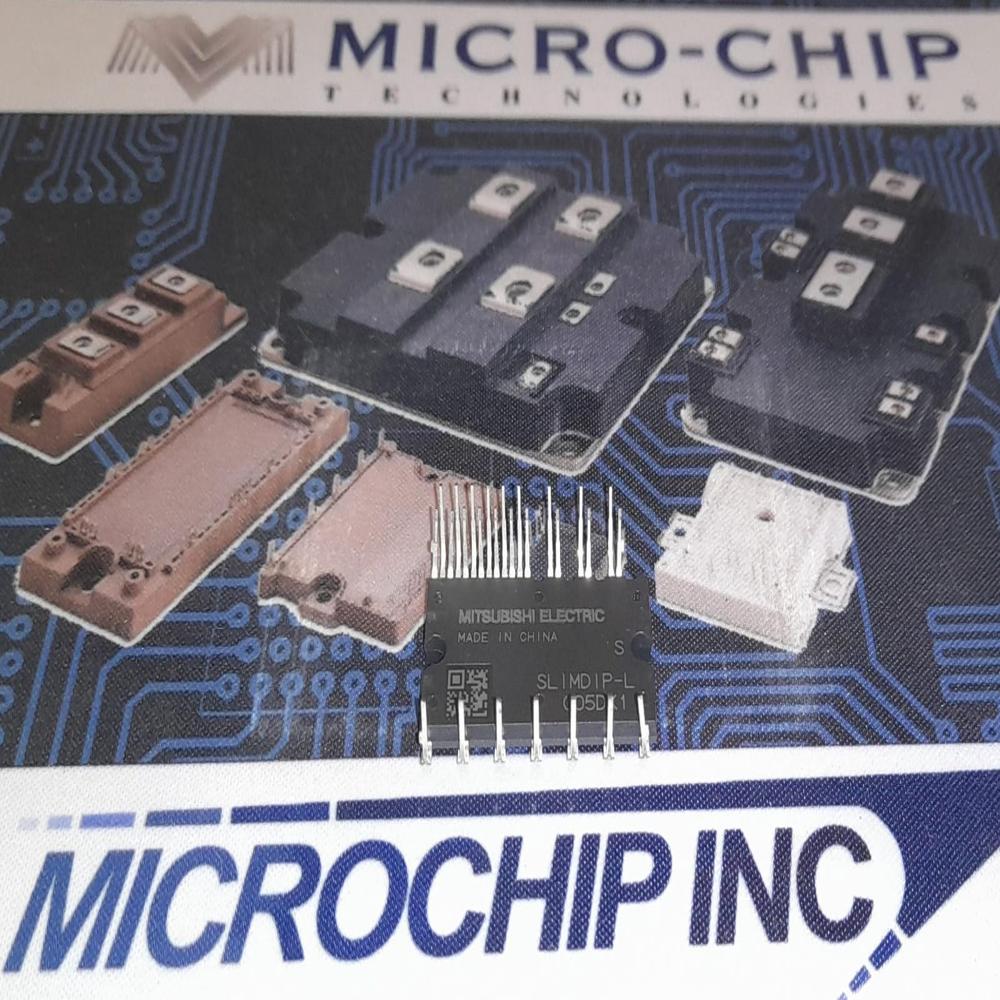

SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE

Name: SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE Specification

Resistance
Low RDS (on)

Output
3-phase Motor Drive Output

Theory
Insulated Gate Bipolar Transistor (IGBT)

Type
Intelligent Power Module (IPM)

Accuracy
High

Operating Voltage
600V (maximum)

Output Voltage
600V (maximum)

Storage Temperature
-40C to +150C

Operating Temperature
-40C to +150C

Control Voltage
15V

Gate Drive
Built-in HVIC

Isolation Voltage
2500Vrms min

Application
Inverter for Home Appliances and General Purpose Motor Drive

RoHS Compliant
Yes

Short-circuit Protection
Built-in

Package
SLIMDIP-L compact DIP module

Iout
5A

Part Number
SLIMDIP-LCO5DK1

Pins
15-pin SLIMDIP

Switching Frequency
up to 20kHz

SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE

Type | Intelligent Power Module (IPM) |
| Voltage rating (V_CES) | 600V |
| Current capability | 15A per phase |
| Builtin protections | Shortcircuit / undervoltage / overtemperature |
| Isolation Voltage | 2000Vrms |
| Package | SLIMDIP (narrow dualinline)

Enhanced Safety and Reliability

The SLIMDIP-LCO5DK1 IPM features built-in short-circuit protection and high isolation voltage, ensuring robust safety for both users and circuitry. Its wide operating temperature range and RoHS compliance further strengthen its reliability for demanding inverter and motor drive environments.

Compact and Efficient Design

With a 15-pin SLIMDIP-L package, this IPM offers excellent integration and space-saving installation. Low RDS(on) and high accuracy allow for efficient operation with minimized losses, making it ideal for modern, compact appliance inverters and motor drives.

Versatile Motor Drive Application

This Mitsubishi module is optimized for 3-phase motor drive outputs, supporting switching frequencies up to 20kHz. As a result, it suits a variety of general-purpose and household motor-driven systems, delivering a combination of versatile performance and simple implementation.

FAQ's of SLIMDIP-LCO5DK1 MISSUBISHI IPM MODULE:

Q: How is the SLIMDIP-LCO5DK1 IPM module used in inverter applications?

A: The SLIMDIP-LCO5DK1 is designed for integration into the inverter circuits of home appliances and general-purpose motor drives. It directly drives three-phase motors, handles power switching and control via its intelligent onboard IGBT, and provides protection features, simplifying circuit design and enhancing functional safety.

Q: What are the key benefits of using the SLIMDIP-LCO5DK1 module?

A: Its main advantages include built-in gate drive and short-circuit protection, high switching accuracy, and energy-efficient low RDS(on) operation. The compact SLIMDIP package saves space, and the high isolation voltage ensures user and equipment safety.

Q: Where can I source the SLIMDIP-LCO5DK1 module in India?

A: Authorized distributors, importers, and suppliers across India offer the SLIMDIP-LCO5DK1. Major electronic component retailers and Mitsubishi Electric's official partners are recommended sources for genuine parts.

Q: When should I choose this IPM over other modules?

A: Choose the SLIMDIP-LCO5DK1 when you require a compact, efficient solution for 3-phase motor drives in appliances, where high safety, energy efficiency, and reliable performance across wide temperature ranges are needed.

Q: What process is involved in installing the SLIMDIP-LCO5DK1?

A: Installation involves mounting the 15-pin SLIMDIP module onto your inverter or motor drive PCB, ensuring correct orientation and connection. Adequate heat dissipation, proper control voltage supply (15V), and secure isolation measures should be observed during integration.

Q: How does the IPM ensure motor drive safety and accuracy?

A: The module provides built-in HVIC gate drive for precise switching and integrated short-circuit protection to safeguard connected loads. Its high isolation voltage and low RDS(on) minimize electrical and thermal risks, promoting operational accuracy and equipment longevity.
