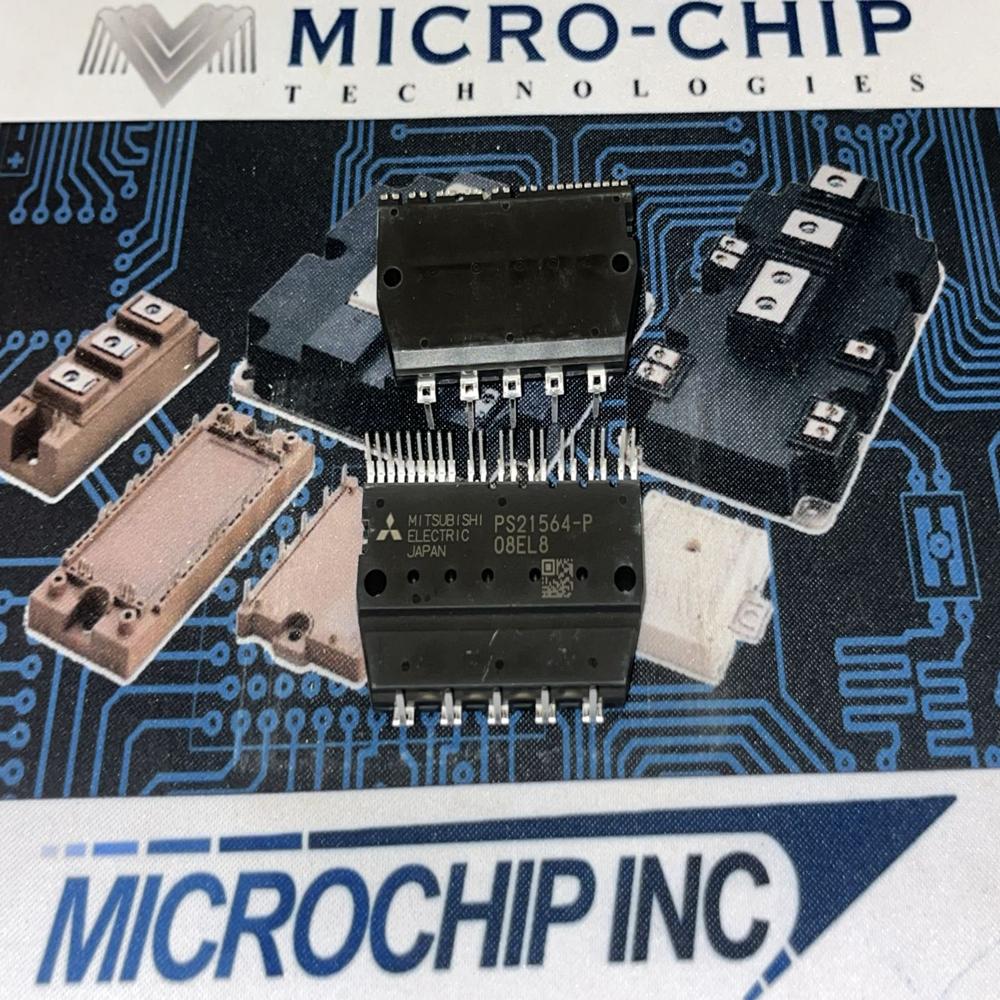

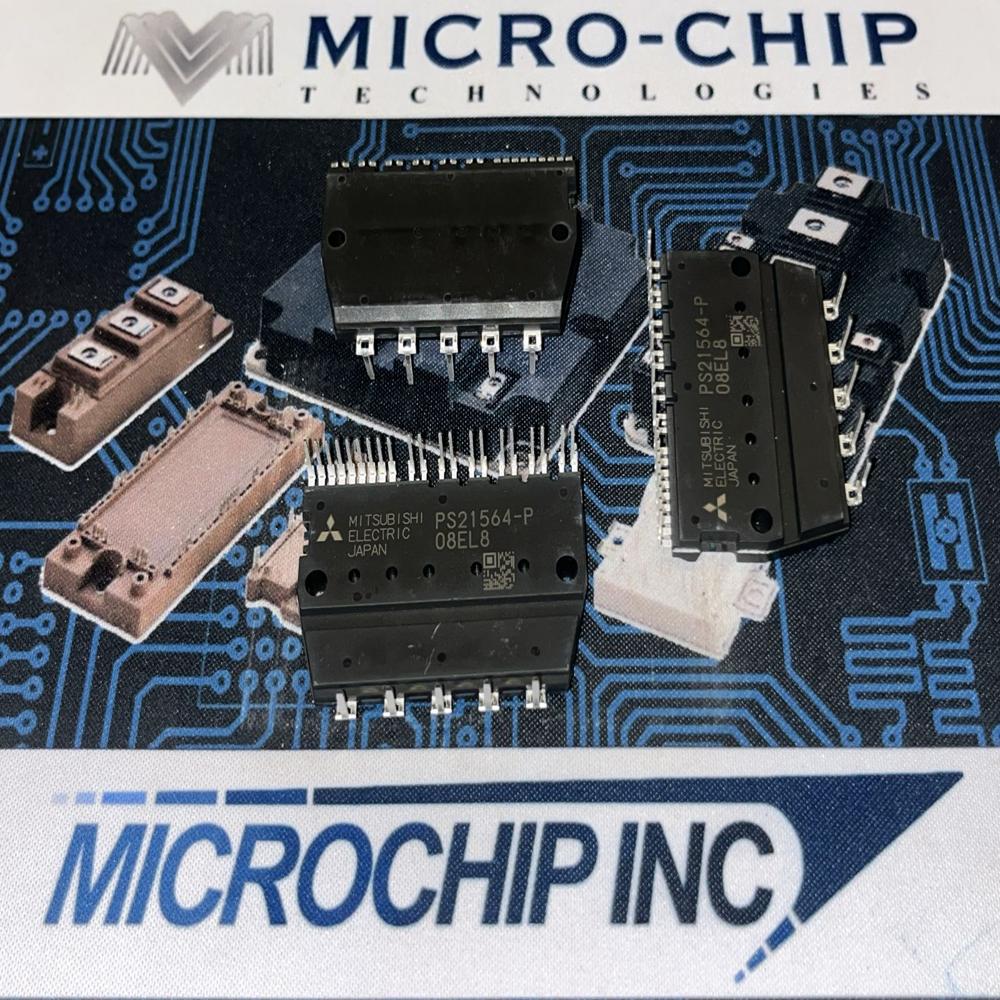

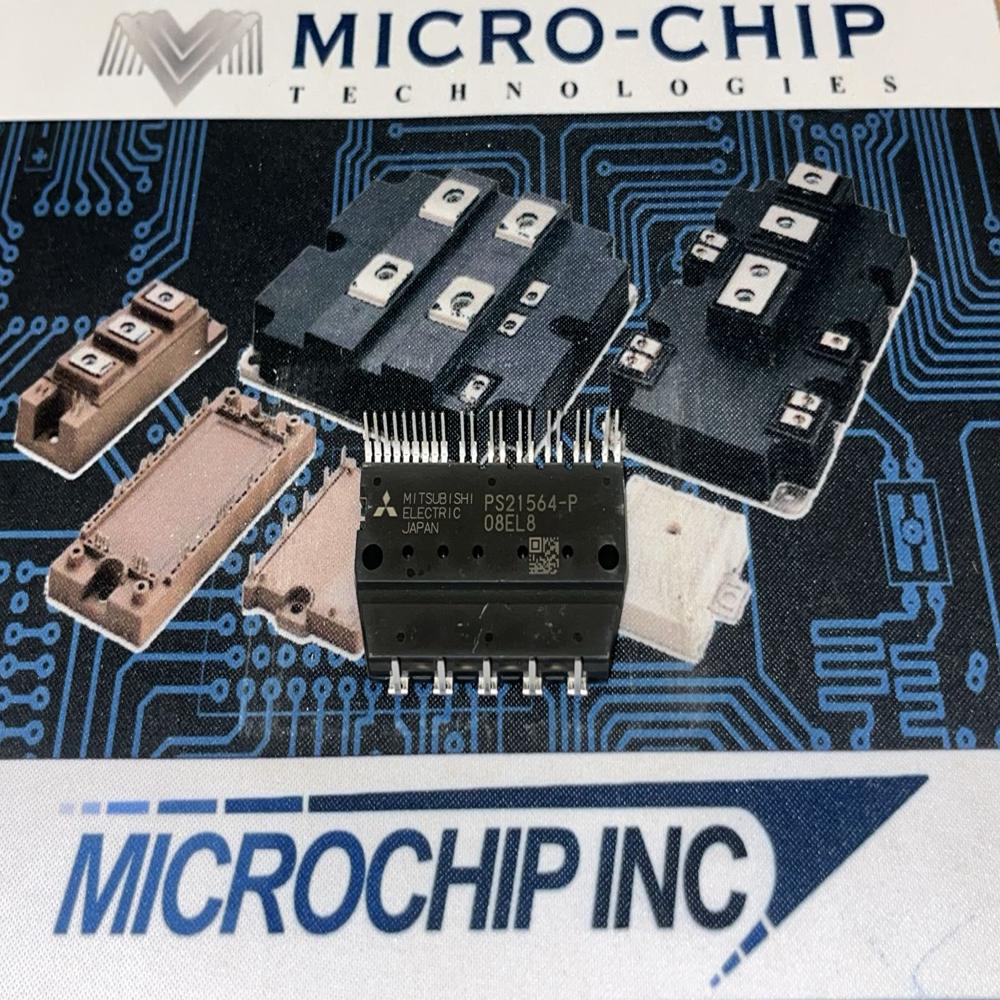

PS21564-P08EL8 MITSUBISHI IPM MODULE

Name: PS21564-P08EL8 MITSUBISHI IPM MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PS21564-P08EL8 MITSUBISHI IPM MODULE Specification

Output
3-Phase Motor Drive

Type
Intelligent Power Module (IPM)

Operating Voltage
600V (Vce)

Output Voltage
600V (Maximum Collector-Emitter Voltage)

Storage Temperature
-40C to +125C

Operating Temperature
-20C to +150C

Mounting Type
Through Hole

Package
P08EL8

Internal Circuit
Built-in control ICs for gate drive and protection

Isolation Voltage
2500Vrms/min

Part Number
PS21564-P08EL8

Dimensions
25.6 x 48.5 x 8 mm (Approx.)

Switching Frequency
up to 20kHz

Collector Current (Ic)
15A

PS21564-P08EL8 MITSUBISHI IPM MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

PS21564-P08EL8 MITSUBISHI IPM MODULE About

Redeem excellence with the PS21564-P08EL8 Mitsubishi IPM Module, engineered for outstanding motor drive applications. This rarefied module features a collector current (Ic) of 15A, impeccable isolation voltage up to 2500Vrms/min, and a robust 600V operating limit. Highlighted for its built-in control ICs ensuring enhanced gate drive and protection, it boasts impeccable reliability. Suitable for instant checkout from leading distributors, importers, and suppliers across India, this through-hole, compact module ensures performance and safety in even the harshest environments. The PS21564-P08EL8 redefines efficiency for intelligent, 3-phase motor drive systems.

Versatile Applications and Impressive Features

The PS21564-P08EL8 Mitsubishi IPM Module is tailored for 3-phase motor drive systems in industrial and commercial environments. Its intelligent IGBT inverter circuit, built-in protection, and gate drive ICs make it ideal for both general and specific high-demand uses. Outstanding switching frequencies up to 20kHz and robust through-hole mounting ensure longevity and adaptability, making it suitable for automation, HVAC, and energy management applications.

Logistics, Sampling, and Exceptional Pricing

Benefit from streamlined logistics and punctual shipments with PS21564-P08EL8 Mitsubishi IPM Modules sourced via major FOB ports. Distributors in India offer tailored quotations, enabling you to secure the lowest price for bulk orders. Sample modules are available on request, with flexible payment terms to suit procurement needs. Get an instant checkout experience that ensures timely delivery and seamless integration into your supply chain.

FAQ's of PS21564-P08EL8 MITSUBISHI IPM MODULE:

Q: How do I install the PS21564-P08EL8 Mitsubishi IPM Module in my application?

A: The module features a through-hole mounting type, making installation straightforward for 3-phase motor drive and inverter systems. Consult the datasheet for pin assignments and recommended PCB layout.

Q: What makes the PS21564-P08EL8 suitable for high-performance uses?

A: Its rarefied combination of a 15A collector current, isolation up to 2500Vrms/min, and integrated control ICs enable outstanding reliability and efficiency in demanding environments.

Q: Where can I procure the PS21564-P08EL8 in India?

A: You can redeem your order through reputable distributors, importers, and suppliers specializing in Mitsubishi components throughout India, many of whom offer instant checkout services.

Q: What are the payment terms and logistics for bulk orders?

A: Flexible payment terms are available. Efficient logistics via major FOB ports ensure fast shipments, and you can request tailored quotations for the lowest price on large volumes.

Q: What is the process for requesting samples of this IPM module?

A: Contact your chosen distributor or supplier to request a sample. Many offer sample modules to qualified buyers as part of their procurement process.

Q: What are the primary benefits of using this IPM Module in motor drives?

A: You will experience impeccable control, integrated gate drive protection, high switching frequencies, and reliable performance across a wide temperature range, ensuring outstanding results in motor control applications.
