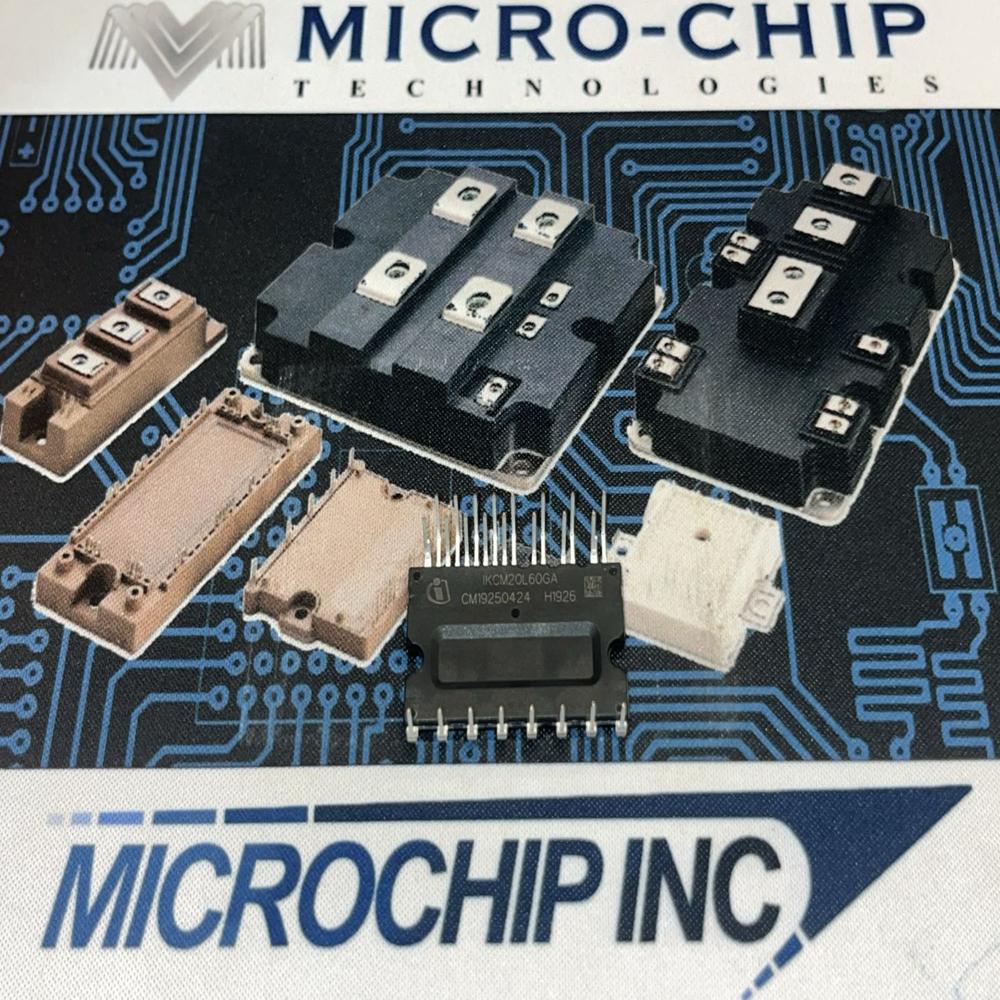

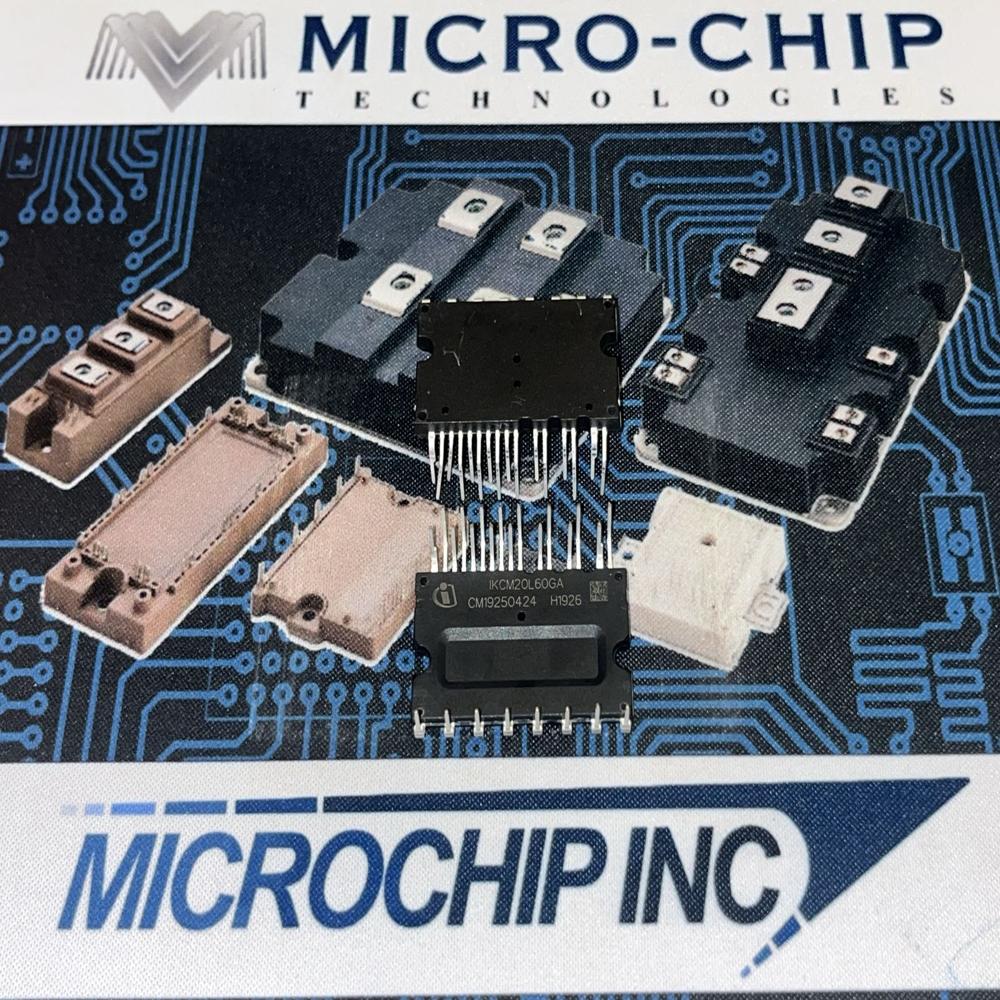

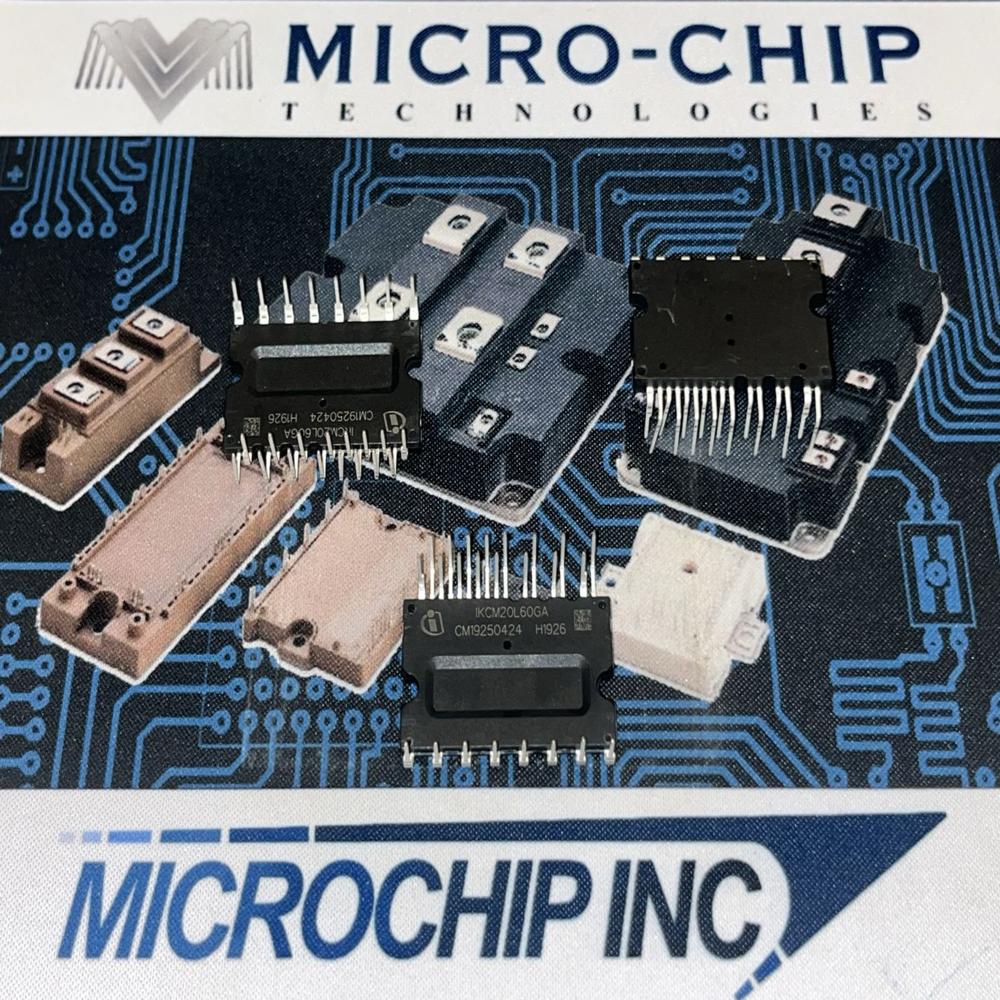

IKCM30F60HA IPM IGBT MODULE

Name: IKCM30F60HA IPM IGBT MODULE
Brand: MICROCHIP TECHNOLOGIES
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

IKCM30F60HA IPM IGBT MODULE Specification

Resistance
Low saturation voltage (low VCE(sat))

Output
30A

Type
IPM IGBT Module

Accuracy
High switching accuracy

Operating Voltage
Up to 600V

Output Voltage
600V

Storage Temperature
-40C to +125C

Operating Temperature
-40C to +125C

Isolation Voltage
2500V (minimum)

Package
Compact SPM (Smart Power Module)

Switching Frequency
up to 20kHz

Gate Drive
Integrated built-in drive circuit

Under Voltage Protection
Yes

Current Rating
30A continuous

Short Circuit Protection
Yes

Mounting
Screw Mounting

Configuration
3-Phase Inverter

Application
Motor Drives, Industrial Inverters, AC Drives, HVAC

Model Number
IKCM30F60HA

IKCM30F60HA IPM IGBT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

IKCM30F60HA IPM IGBT MODULE About

Step into invincible performance with the IKCM30F60HA IPM IGBT MODULE-a masterful, gilt-edged solution for industrial power conversion. Engineered for current ratings up to 30A continuous and voltages up to 600V, this compact SPM integrates sophisticated gate-drive and comprehensive protection features, including short circuit and under-voltage safeguards. Perfect for motor drives, HVAC, and industrial inverters. Jump on this gilt-edged offer-try now to experience low VCE(sat), robust isolation (2500V), and seamless screw mounting. Utilise this exclusive opportunity-contact your trusted distributor, importer, or supplier in India today!

Method & Sites of Application: Streamlined Industrial Integration

Utilising the IKCM30F60HA IPM IGBT Module is straightforward-screw mount the compact module onto your drive or control panel for hassle-free installation. Deploy it in a variety of applications such as motor drives, AC drives, and HVAC systems, where its high switching accuracy and integrated gate drive deliver optimal performance. Whether used in manufacturing plants or HVAC facilities, this module's reliability and protection features ensure robust operation across demanding industrial sites.

Export Markets, Samples & Delivery-Your Gateway to Innovation

The IKCM30F60HA IPM IGBT Module is available for export primarily to Asian, Middle Eastern, and European markets. Interested buyers can request samples, available with a nominal charge and prompt freight arrangements. Samples are dispatched with reliable shipping, ensuring timely arrival at your facility. Leverage our streamlined sample policy to evaluate the module's masterful capabilities before placing large orders-unlock gilt-edged technology for your market requirements today.

FAQ's of IKCM30F60HA IPM IGBT MODULE:

Q: How do you mount and connect the IKCM30F60HA IPM IGBT Module in industrial applications?

A: The IKCM30F60HA is designed for straightforward screw mounting, making installation efficient. Simply secure the module onto your system's heatsink or chassis, connect the terminal pins as indicated by the datasheet, and integrate it into your 3-phase inverter or drive application.

Q: What protective features are integrated into the IKCM30F60HA module?

A: This module incorporates robust short circuit and under voltage protection, offering enhanced safety for critical equipment. These features ensure invincible reliability by automatically safeguarding against overcurrent or voltage dips.

Q: Where is the IKCM30F60HA IPM IGBT Module typically used?

A: The module is widely utilized in motor drives, industrial inverters, AC drive systems, and HVAC units due to its high switching accuracy, integrated gate drive, and compact SPM design.

Q: What benefit does the integrated gate drive circuit provide?

A: The built-in gate drive circuit simplifies design complexity and improves system reliability, allowing for seamless and masterful system integration while ensuring consistent high-speed switching performance.

Q: When can I expect the sample to arrive after placing an order, and is there a sample charge?

A: Samples are made available upon request and typically incur a nominal charge. After confirming your order, freight is arranged to ensure the sample arrives promptly at your designated location, so you can swiftly evaluate its functionality in your application.
