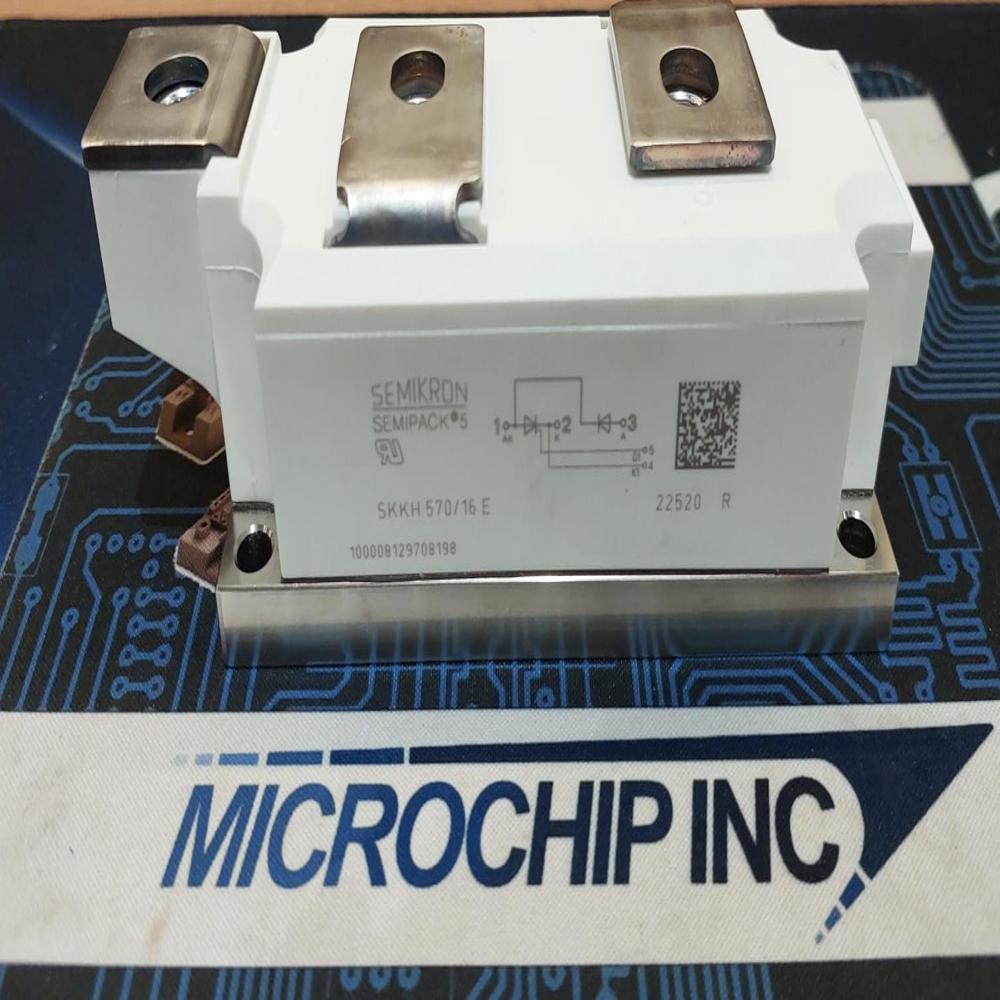

SKKH 570/16E SSEMIKRON HIGH-POWER THYRISTOR DIODE (SCR) MODULE

Get a Price/Quote

SKKH 570/16E SSEMIKRON HIGH-POWER THYRISTOR DIODE (SCR) MODULE Specification

Product Type
High-Power Thyristor Diode (SCR) Module

Application
Power conversion, motor drives, industrial control, rectifiers, inverters

Supply Voltage
Up to 1600V (Repetitive Peak Reverse Voltage: 1600V)

Dissipation Power
Up to 1960W

Operating Temperature
-40C to +125C

Power Consumption
Dependent on load/application (refer to datasheet for detailed calculation)

Temperature Range
-40C to +125C

Input Voltage
Control via gate trigger voltage (refer to datasheet, typically 3V to 5V for gate)

Voltage Regulator Type
Not Applicable (Thyristor/Diode module)

Size
Approx. 134 x 55 x 30 mm (Semikron SEMIPACK 5 housing)

Weight
Approx. 850g (varies slightly with exact configuration)

Isolation Voltage
3000V RMS (base plate to terminals)

Module Type
SEMIPACK 5

Maximum Average On-State Current
570A (per thyristor)

Part Number
SKKH 570/16E

Case Material
High-grade insulation plastic with metal base

Configuration
Thyristor/Diode dual module (as per schematic on body)

Commutation
Natural or forced, depending on external circuitry

Outline Drawing Reference
SEMIPACK 5 standard

Storage Temperature
-40C to +125C

Mounting
Screw Mount, Panel Mount

Lifecycle Status
Active (subject to manufacturer update)

SKKH 570/16E SSEMIKRON HIGH-POWER THYRISTOR DIODE (SCR) MODULE About

Unlock noble performance and uncommon reliability with the SKKH 570/16E SEMIKRON High-Power Thyristor Diode Module. This trending SEMIPACK 5 dual module delivers a virtuoso level of power conversion, sustaining an on-state current of 570A per thyristor and isolation voltage up to 3000V RMS. The high-grade insulated case and easy panel or screw-mount options ensure trusted savings in intense industrial applications. Take advantage of this enduring, active-status SCR module-a deal worthy of engineers who seek robust, durable, and versatile power solutions.

Versatile Power Application and Machine Features

The SKKH 570/16E SSR module is highly suitable for industrial controls, motor drives, inverters, rectifiers, and power conversion systems. Its robust design offers a high maximum average on-state current, superior voltage endurance, and reliable insulation. Installation is straightforward with its screw or panel mount. The module supports natural or forced commutation, adapting to different circuitry needs, making it ideal for engineers needing flexibility and resilience in demanding environments.

Export Markets, Payment Flexibility, and Sample Availability

SKKH 570/16E modules are available for export to global markets with reliable logistics support to ensure safe and timely delivery. Transaction options include a variety of payment terms to accommodate customer preferences, adding transparency to every sale price discussion. Sample units can be provided upon request for evaluation, with a minor charge applying to cover handling and shipping. Efficient international experience ensures smooth import, purchase, and scaling up for mass orders.

FAQ's of SKKH 570/16E SSEMIKRON HIGH-POWER THYRISTOR DIODE (SCR) MODULE:

Q: How do I install the SKKH 570/16E SEMIKRON module?

A: Installation is straightforward-use screw or panel mounts as specified in the SEMIPACK 5 outline. Ensure correct connection according to the schematic on the module body, and always follow safety protocols for high-power devices.

Q: What are the benefits of using the SKKH 570/16E in industrial applications?

A: The module delivers high current and voltage tolerance, robust insulation, and flexible commutation, making it ideal for demanding power conversion, motor drive, and industrial control tasks-promoting dependable operation and long-term savings.

Q: Where can this module be applied most effectively?

A: It is best suited for motor drive systems, power rectifiers, industrial controls, and inverter circuits, particularly where durable and high-capacity power handling is required.

Q: What is the process for obtaining a sample?

A: Samples are available upon request. Contact our sales team, discuss your application, and arrange logistics for delivery. A nominal charge applies for sample handling and shipping costs.

Q: When is replacement or update of this module necessary?

A: The SKKH 570/16E is active, but it is wise to consult the manufacturer for lifecycle status updates or product changes and perform regular maintenance as part of routine industrial equipment management.

Q: How does the payment and shipping process work for export orders?

A: Multiple payment terms are available to accommodate your needs. Once payment is confirmed, logistics are arranged for prompt shipment, and sale price details are transparently communicated throughout the ordering process.
